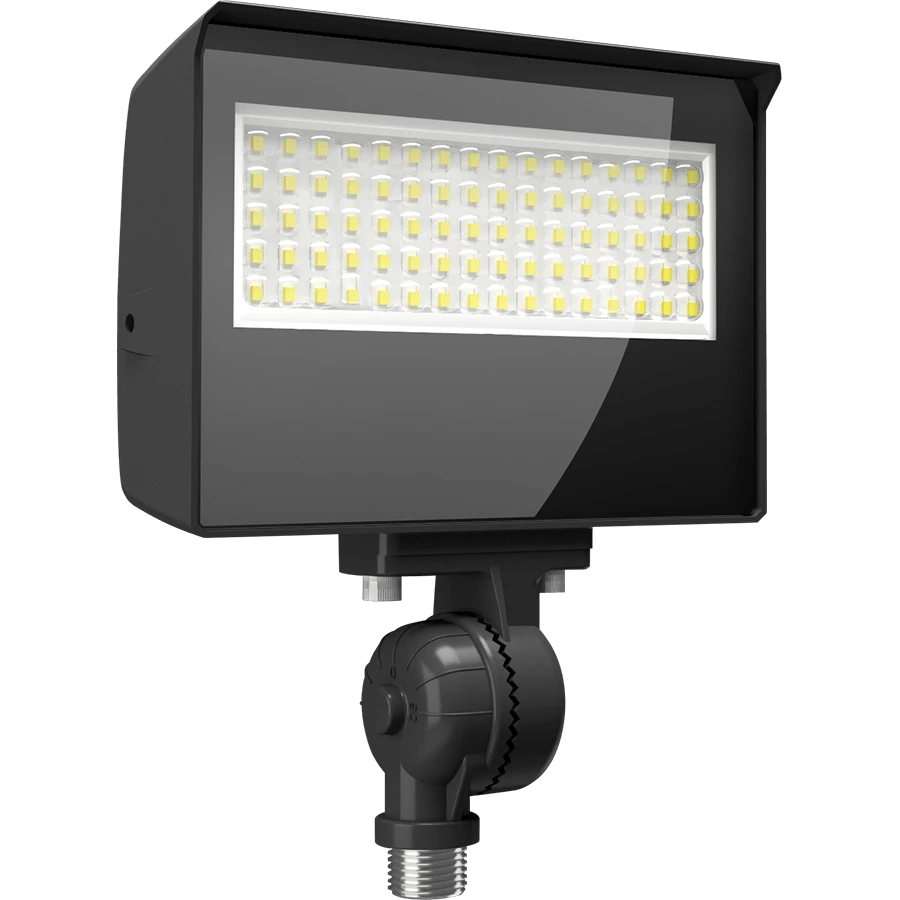

RAB X22-35 35W LED Flood Light Selectable Wattage Color & Beam Angle
RAB X22-35 35W LED Flood Light Selectable Wattage Color & Beam Angle
Regular price
$99.00
Regular price
Sale price
$99.00
Unit price
/
per
X22 35W Floodlight
The X22 series not only gives you the flexibility of controlling beam angle, wattage, CCT, and photocell—it also comes with two mounting options right out of the box for a mind-blowing 144 SKUs in ONE SINGLE FLOODLIGHT!
Models of the X22 are available in both white and bronze with an adjustable distribution that makes them the optimal floodlight for a large variety of general-purpose applications. All models also come standard with 0-10V dimming
- Selectable power, CCT and beam angle
- Available models & wattages: X22-20 : 20/17/13/10W X22-35: 35/30/25/20W X22-60: 60/50/40/30W X22-80: 80/70/60/50W X22-150: 150/125/100/75W
- Selectable CCT: 3000/4000/5000K
- Suitable for wet locations
- 0-10V dimming
- 120-277V on/off photocell (480V photocell available for 150W model)
- Two mounts included with each: 20 and 30W: Knuckle and Yoke 60 and 80W: Knuckle and Trunnion 150W: Slipfitter and Trunnion
- 5-year limited warranty
Spec Sheet
Spec Sheet |
Bronze | White |
35W |
Spec Sheet |
Spec Sheet |
Installation Instructions
Info
Product Type | Flood Light |
Wattage | 20/25/30/35W |
Lumen | 2,832-5,286 lm |
Efficacy | 123-155 lm/W |
Color Temp. | 3000K 4000K 5000K |
CRI | 81-84 CRI |
L70 Lifespan | 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations |
Housing | Precision die-cast aluminum |
Finish | Bronze | White |
Mounting | Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. Yoke included. |
Tilt Increment | Rotates in 6 degree increments |
Lens | Tempered glass |
Beam Angle | NEMA Beam Spread of 7H x 6V |
IP Rating | Ingress protection rating of IP65 for dust and water |
Additional Info
Compliance
|
||||||||||
Electrical
|
