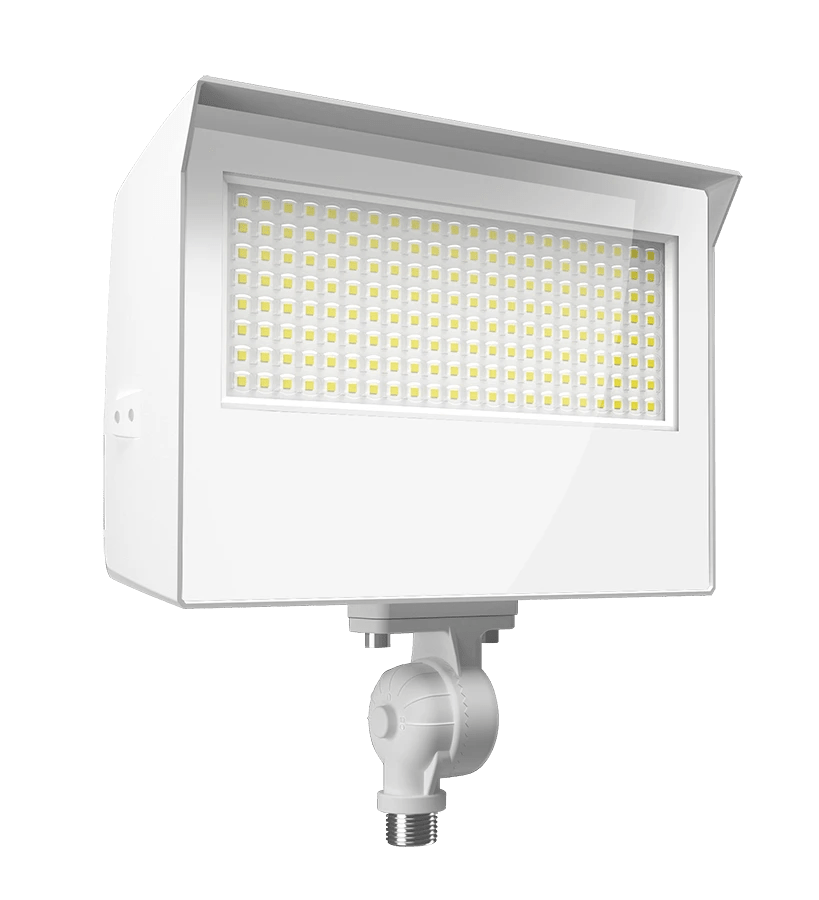

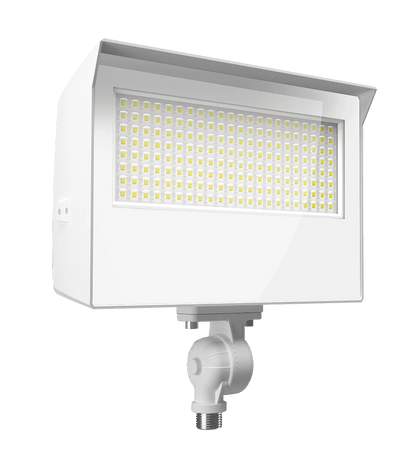

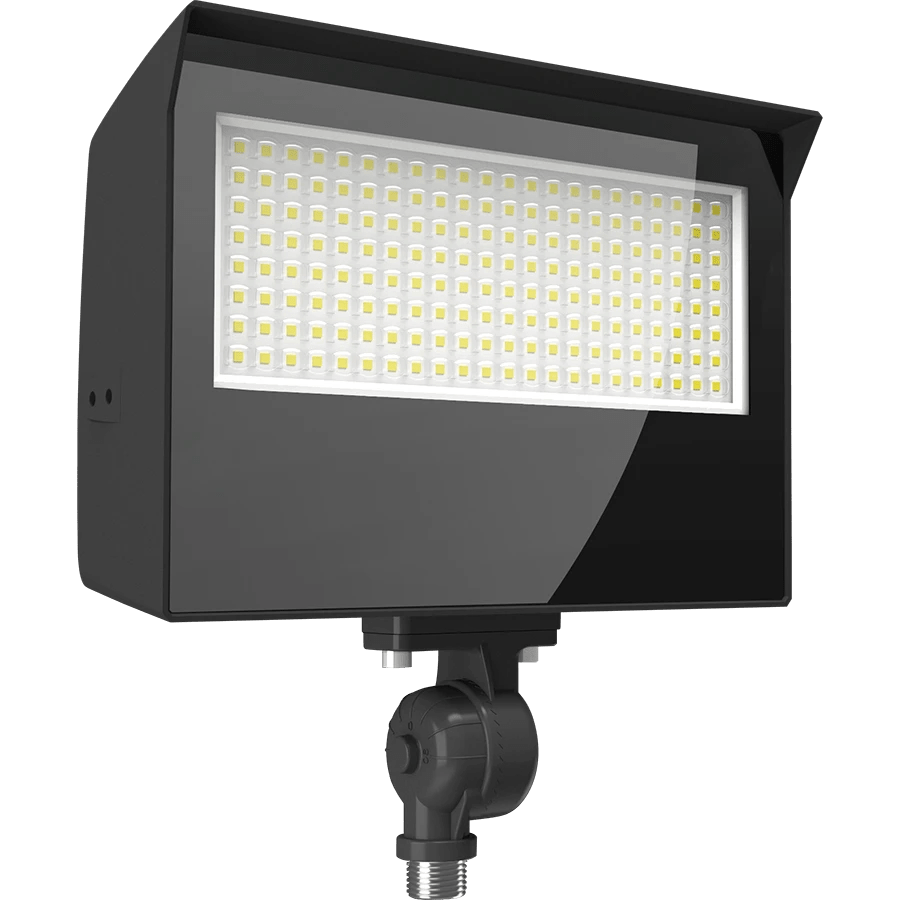

RAB X22-80 80W LED Flood Light Selectable Wattage Color & Beam Angle

RAB X22-80 80W LED Flood Light Selectable Wattage Color & Beam Angle

Regular price $185.00
Regular price Sale price $185.00
Sale Sold out
Shipping calculated at checkout.
Color: White
Wattage
Color Temperature

X22 80W Floodlight

The X22 series not only gives you the flexibility of controlling beam angle, wattage, CCT, and photocell—it also comes with two mounting options right out of the box for a mind-blowing 144 SKUs in ONE SINGLE FLOODLIGHT!

Models of the X22 are available in both white and bronze with an adjustable distribution that makes them the optimal floodlight for a large variety of general-purpose applications. All models also come standard with 0-10V dimming

  • Selectable power, CCT and beam angle

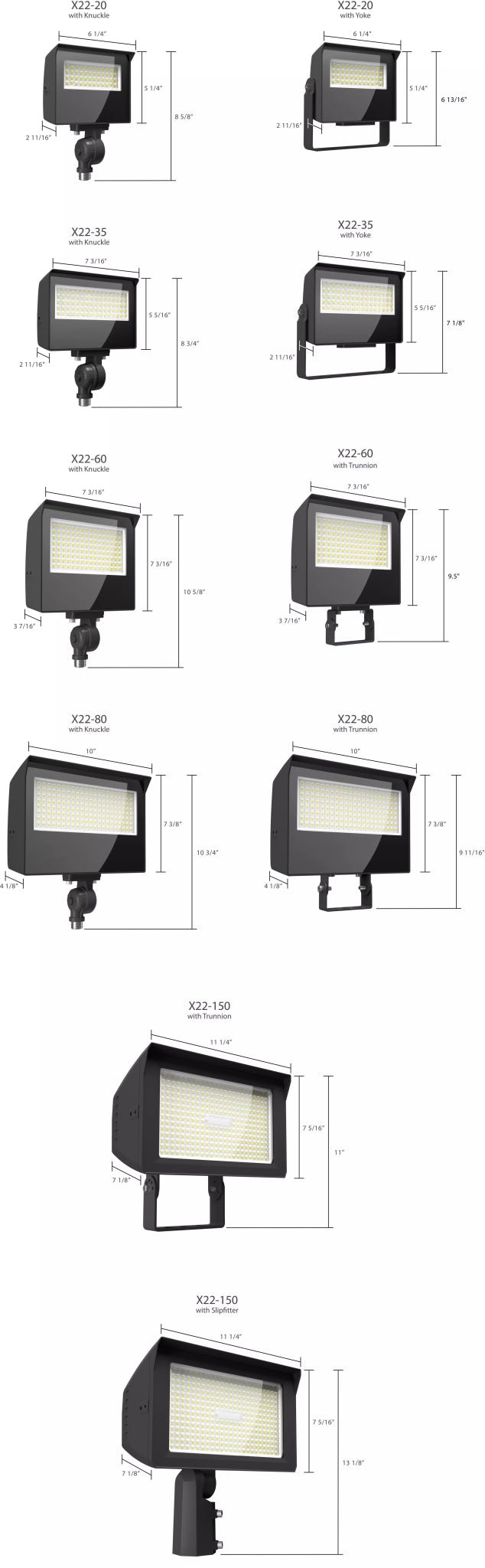

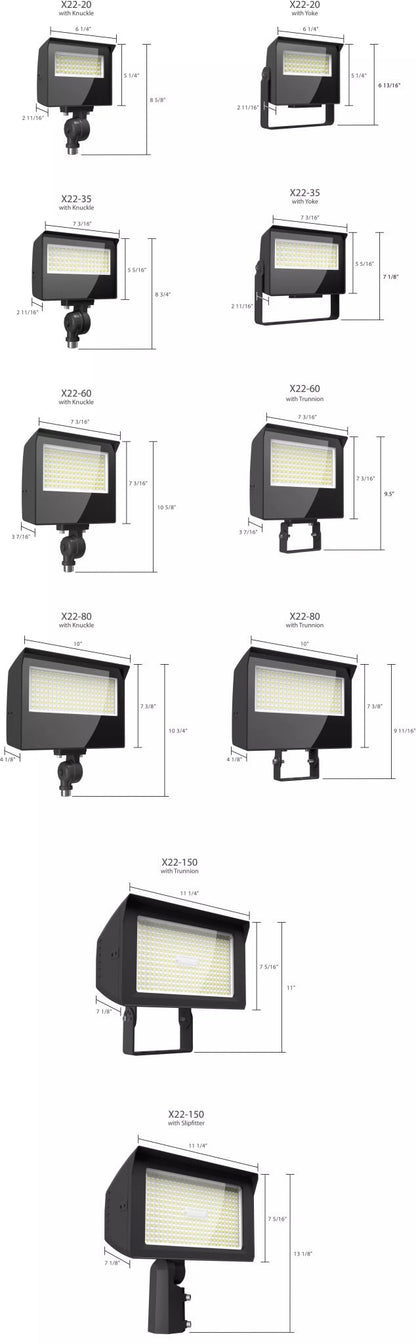

  • Available models & wattages: X22-20 : 20/17/13/10W X22-35: 35/30/25/20W X22-60: 60/50/40/30W X22-80: 80/70/60/50W X22-150: 150/125/100/75W
  • Selectable CCT: 3000/4000/5000K
  • Suitable for wet locations
  • 0-10V dimming
  • 120-277V on/off photocell (480V photocell available for 150W model)
  • Two mounts included with each: 20 and 30W: Knuckle and Yoke 60 and 80W: Knuckle and Trunnion 150W: Slipfitter and Trunnion
  • 5-year limited warranty





    Spec Sheet

    Family Spec Sheet

    Bronze Spec Sheet / White Spec Sheet

    Installation Instructions


    Info
    Product Type  Flood Light
    Wattage 50/60/70/80W
    Lumen 7,193-12,772 lm
    Efficacy 123-155 lm/W
    Color Temp. 3000K 4000K 5000K
    CRI 81-84 CRI
    L70 Lifespan 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
    Housing Precision die-cast aluminum
    Finish  Bronze | White
    Mounting Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.
    Tilt Increment Rotates in 6 degree increments
    Lens Tempered glass
    Beam Angle NEMA Beam Spread of 7H x 6V
    IP Rating Ingress protection rating of IP65 for dust and water
    Additional Info



                                                    Compliance
    UL Listed Suitable for wet locations
    IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
    DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PLTHPHCP1VH8
                                                      Electrical
    Driver See Spec Sheets
    THD See Spec Sheets
    Power Factor See Spec Sheets
    Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
    Photocell 120-277V selectable photocell that can be turned on and off
