Flexible LED Tape Mounting Channels, Lens and Endcaps

Creating a permanent, architectural installation for Vision120 LED tape may require a suitable channel that not only protects the LED tape, but also insures an uninterrupted line of light that is free of hot spots or glare (when using the aluminum channel with frosted lens). Our Vision120 mounting channels are high quality extrusions. Specify either aluminum with lens, or plastic. End caps available (sold in pairs). Easy to install.

High grade aluminum
Field cuttable
Custom designed end cap for complete finished look
Easy to mount
High-grade frosted acrylic lens with over-locking system for aluminum channel

Spec Sheet

Vision120 Channel Spec Sheet

Info

Catalog No.	Length	Width	Height	Finish
V120-CHL-4	48″	.75"(Inner dia. 0.563")	.313″	Aluminum
V120-CHL-4-LENS	48"	N/A	N/A	Plastic
V120-CHL-P-4	48"			PVC
V120-CHL-8	96″	.75″(Inner dia. 0.563")	.313″	Aluminum
V120-CHL-8-LENS	96"	N/A	N/A	Plastic
V120-CHL-P-8	96"			PVC
V120-ECC	N/A	N/A	N/A	Plastic
V120-MC	N/A	N/A	N/A	Aluminum

Accessories

Catalog No.	Description
V120-CHL-4	4′ Aluminum mounting channel. Lens sold separately
V120-CHL-4-LENS	Frosted lens for 4′ aluminum mounting channel
V120-CHL-P-4	4′ PVC mounting channel (lens not available)
V120-CHL-8	8′ Aluminum mounting channel. Lens sold separately
V120-CHL-P-8	8′ PVC mounting channel (lens not available)
V120-CHL-8-LENS	Frosted lens for 8′ aluminum mounting channel
V120-MC	Bag of 10 mounting clips (use 1 per foot, minimum)

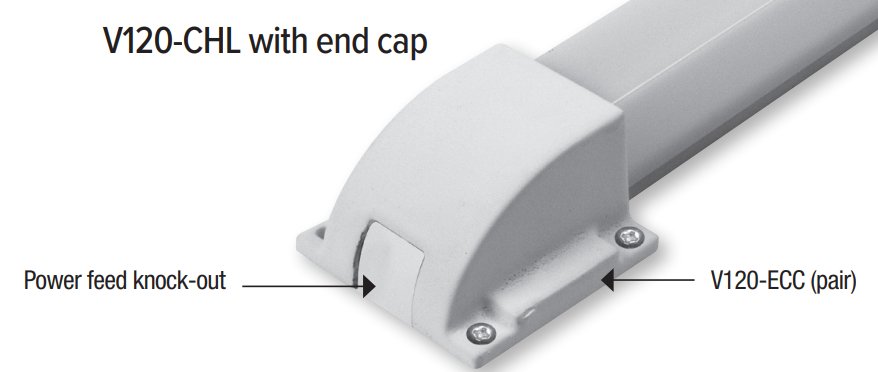

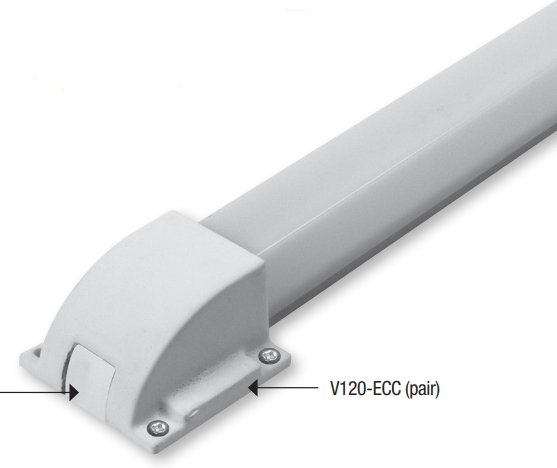

V120-ECC	End cap covers (2) for aluminum channel (V120-CHL-4 / 8) with lens. White

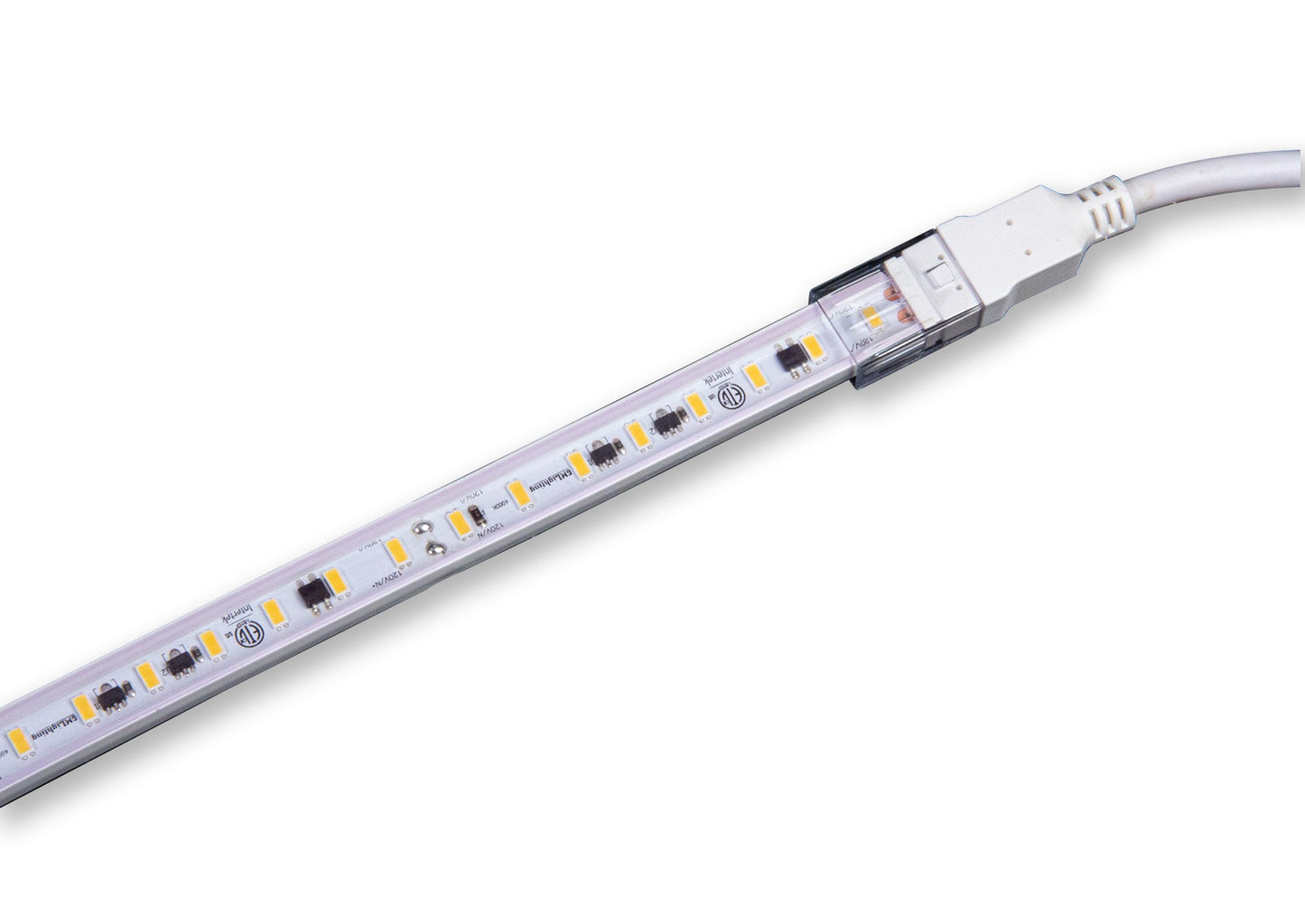

V120-PC-4	4′ Power connector – cord and plug
V120-PC-8	8′ Power connector – cord and plug
V120-PCHW-4	4′ Power connector – hardwire
V120-PCHW-8	8′ Power connector – hardwire
V120-TTC-6	6″ Tape to tape flexible connector
V120-TTC-12	12″ Tape to tape flexible connector
V120-TTC-18	18″ Tape to tape flexible connector
V120-TTC-24	24″ Tape to tape flexible connector
V120-3M-VHB-15	15′ Long x 1/2″ wide double-sided mounting tape
V120-90L	90° left connector
V120-90R	90° right connector
