RAB SR8H 8FT 85W Strip Light Selectable Wattage & CCT
RAB SR8H 8FT 85W Strip Light Selectable Wattage & CCT
Regular price
$136.00
Regular price
Sale price
$136.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

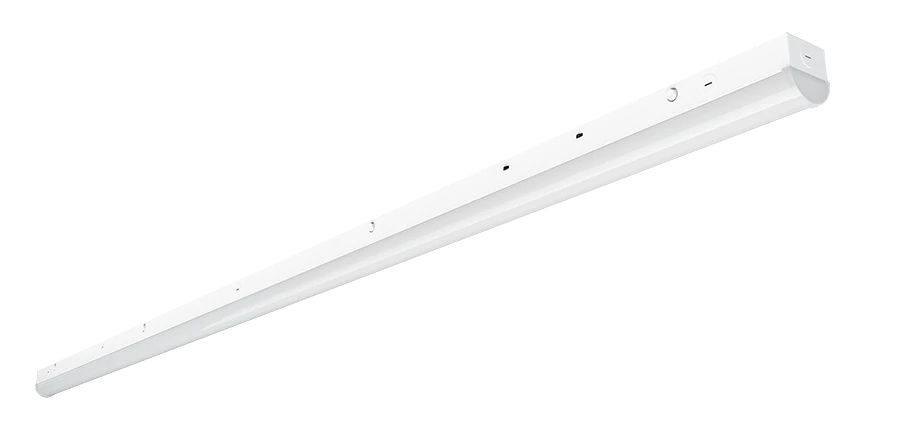

8FT 85W Strip Light
The SR strip light offers a wide range of options, making it suitable for various applications. With three field-adjustable wattages and CCTs (3500/4000/5000K) and 2ft, 4ft, and 8ft models available, this versatile light is ideal for both general purpose and low-bay use. Whether surface-mounted or suspended with accessories like V-hooks and 40" chains, the SR is adaptable to different locations. Plus, the joiner bracket accessory allows for easy continuous-run mounting.
- 8 Ft (85/75/54W)
- Field-adjustable CCT: 3500/4000/5000K
- All models are compatible with Lightcloud Blue-enabled microwave or passive infrared occupancy sensor
- Standard J-Box adapter. V-hooks are optional accessory for suspended mounting and Joiner Kit available for daisy chain use.
- UL Listed for damp locations
- 0-10V dimming
- 5-Year, limited warranty
Spec Sheets
Spec Sheet
Family Spec Sheet
Sell Sheet
Installation Instructions
Info
| Wattage | 54/75/85W |
| Lumen | 7,889-12,591 lm |
| Color Temp. | 3500K-5000K |
| Efficacy | 145.6-157.2 lm |
| CRI | 84-85 |
| L70 Lifespan | 50,000 Hrs |
| Lens | Polycarbonate lens |
| Mounting | Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT). |
| Housing | Sheet Metal |
| Finish | Formulated for high durability and long-lasting color |
Additional Info
| Driver |
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Power Factor | 99.7% at 120V, 96.5% at 277V |
| THD |
6.47% at 120V, 11.3% at 277V
|
| Surge Protection | L-N 1KV, L/N-G 2KV |
