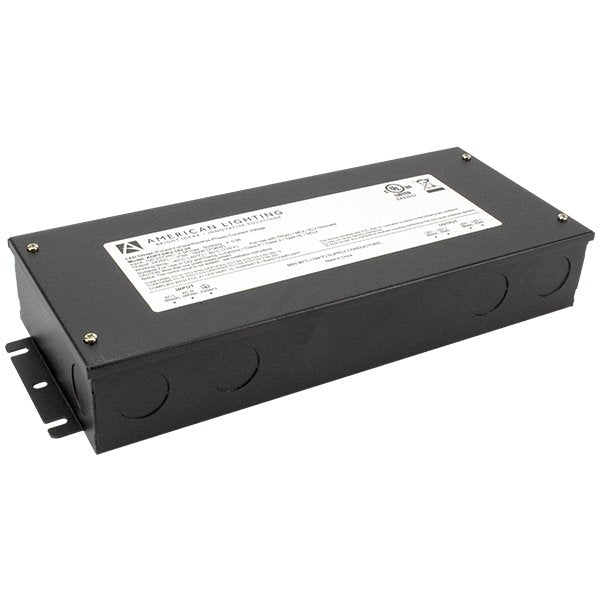

American Lighting ADPT-DRJ Adaptive 192W 24V DC Driver

American Lighting ADPT-DRJ Adaptive 192W 24V DC Driver

Regular price $272.25
Regular price Sale price $272.25
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

Adaptive 192W Driver

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • Integrated wiring compartment
  • 24V DC Constant voltage 192W (2 X 96W) hardwire LED driver
  • Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
  • Features integrated wiring compartments for line and low voltage
  • Forward phase & reverse phase compatible
  • Short circuit, over-load, and over temperature protections
  • Integrated wiring compartment
  • Slim compact housing design - Less than 1-5/8" in height
  • Free air convection cooling
  • PWM Output with 10-100% load operation
  • Class 2, Class P, Type HL, FCC compliant, cULus Listed, wet location rated

          Spec Sheet

          Spec Sheet



          Info

          SERIES ADPT-DRJ

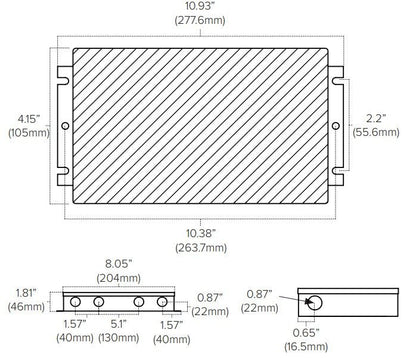

          Dimensions
          Weight 5.20 LBs
          Length 10.93"
          Width 4.15"
          Height 1.80"
          Electrical
          Input Voltage
          100-277V AC
          Output Voltage
          24VDC
          Max Load
          192W(2 x 96W)
          Min Load
          19.2W(2 x 9.6W)
          Dimmable
          Phase Dimming / MLV / ELV / TRIAC
          Rating cULus Listed for Wet locations
          Additional Info
