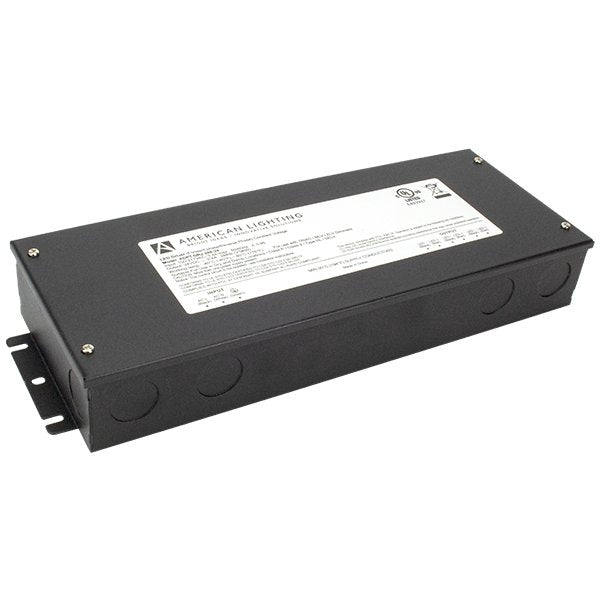

American Lighting ADPT-DRJ Adaptive 288W 24V DC Driver

American Lighting ADPT-DRJ Adaptive 288W 24V DC Driver

Regular price $349.56
Regular price Sale price $349.56
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

Adaptive 288W Driver

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • 24V DC Constant voltage 288W (3 X 96W) hardwire LED driver
  • Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
  • Features integrated wiring compartments for line and low voltage
  • Forward phase & reverse phase compatible
  • Short circuit, over-load, and over temperature protections
  • Slim compact housing design - Less than 1-5/8" in height
  • Class II / cULus Listed - Damp location rated

            Spec Sheet

            Spec Sheet



            Info

            SERIES ADPT-DRJ

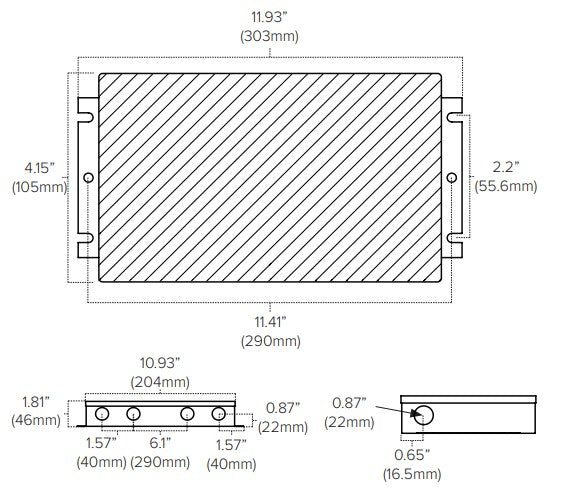

            Dimensions
            Weight 6.80LBs
            Length 11.93"
            Width 4.25"
            Height 1.80"
            Electrical
            Input Voltage
            100-277V AC
            Output Voltage
            24VDC
            Max Load
            288W (3 x 96W)
            Min Load
            28.8W (3 x 9.6W)
            Dimmable
            Phase Dimming / MLV / ELV / TRIAC
            Rating cULus Listed for Wet locations
