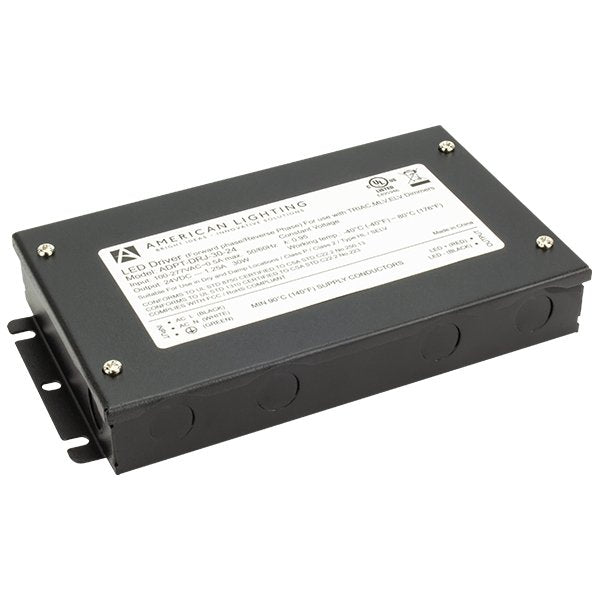

American Lighting ADPT-DRJ Adaptive 30W 12V/24V DC Driver

American Lighting ADPT-DRJ Adaptive 30W 12V/24V DC Driver

Regular price $92.07
Regular price Sale price $92.07
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

Adaptive 30W Driver

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • 12V or 24V DC Constant voltage 30W hardwire LED driver
  • Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
  • Features integrated wiring compartments for line and low voltage
  • Forward phase & reverse phase compatible
  • Short circuit, over-load, and over temperature protections
  • Slim compact housing design - Less than 1-1/16" in height
  • Class II / cULus Listed - Damp location rated

    Spec Sheet

    Spec Sheet



    Info

    SERIES ADPT-DRJ

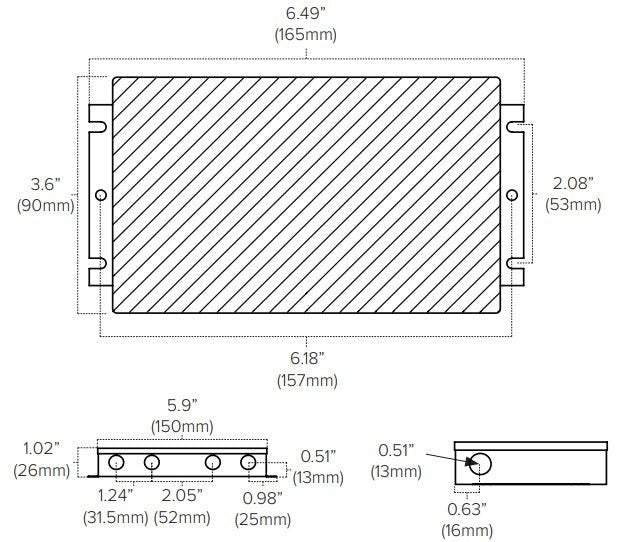

    Dimensions
    Weight 1.65 LBs
    Length 6.49"
    Width 3.60"
    Height 1.02"
    Electrical
    Input Voltage
    100-277V AC
    Output Voltage
    12VDC | 24VDC
    Max Load
    30W
    Min Load
    3W
    Dimmable
    MLV / ELV / TRIAC / 0-10V / 1-10V / 10V PWM
    Rating cULus Listed (Wet Location)
