American Lighting

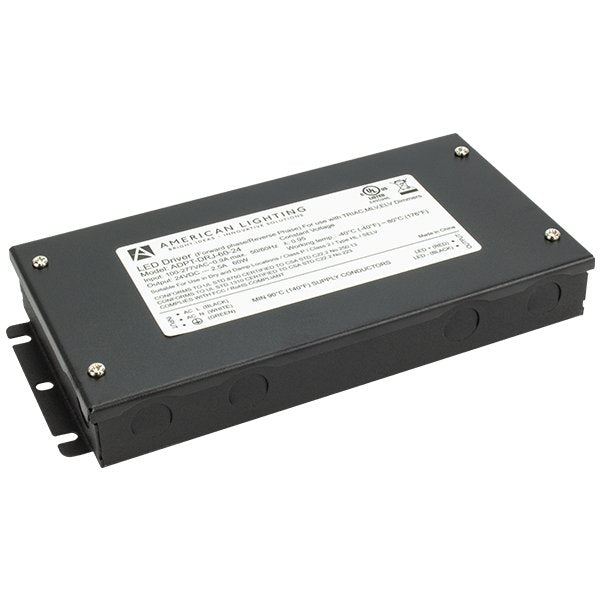

American Lighting ADPT-DRJ Adaptive 60W 24V DC Driver

American Lighting ADPT-DRJ Adaptive 60W 24V DC Driver

Regular price $139.50
Regular price Sale price $139.50
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

Adaptive 60W Driver

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch, or can also be used with secondary side controls such as Trulux Lighting Systems, and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • 24V DC Constant voltage 60W hardwire LED driver
  • Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
  • Features integrated wiring compartments for line and low voltage
  • Forward phase & reverse phase compatible
  • Short circuit, over-load, and over temperature protections
  • Slim compact housing design - Less than 1-1/16" in height
  • Class II / cULus Listed - Damp location rated

      Spec Sheet

      Spec Sheet



      Info

      SERIES ADPT-DRJ
      Dimensions
      Weight 2.00 LBs
      Length 7.04"
      Width 3.60"
      Height 1.02"
      Electrical
      Input Voltage
      100-277V AC
      Output Voltage
      24VDC
      Max Load
      60W
      Min Load
      6W
      Dimmable

      Dimmable Primary or Secondary side dimming

      MLV / ELV / TRIAC

      Rating cULus Listed (Damp Location)
      Additional Info
