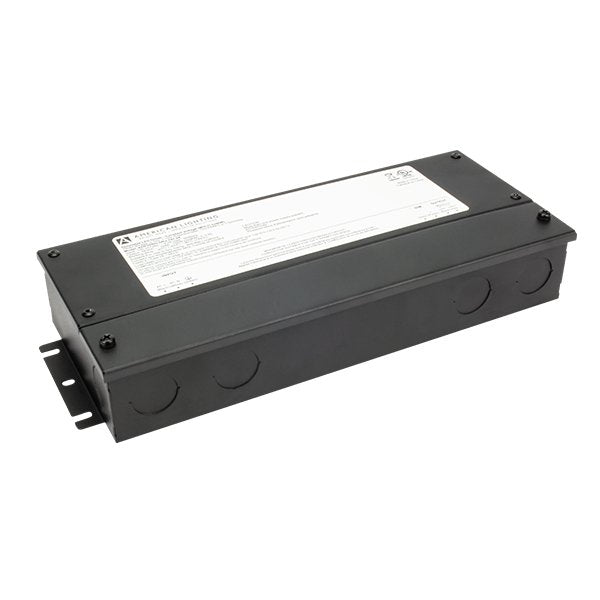

Adaptive Pro 192W Driver
The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.
- 24V DC Constant voltage 192W (2 x 96W) hardwire LED drivers
- 5-in-1 Forward and Reverse Phase Dimming:
ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer - Dedicated line voltage and low voltage wiring compartments
- Short circuit, over-load, and over temperature protections
- Class 2 / Type HL / FCC Compliant
- cULus Listed - Wet location rated
Spec Sheet
Spec Sheet
Info
| SERIES ADPTPRO-DRJ | |
|---|---|

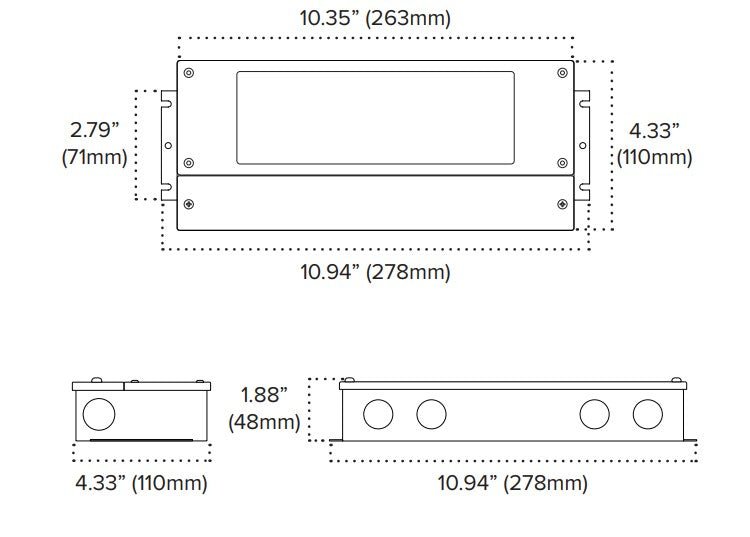

| Dimensions | |
| Weight | 5.00 LBs |
| Length | 10.94" |
| Width | 4.33" |
| Height | 1.88" |
| Electrical |
|
| Input Voltage |
100-277V AC |
|
Output Voltage |
24VDC |
| Max Load |
192W (2 x 96W) |
| Min Load |
19.2W (2 x 9.6W) |
| Dimmable |
MLV / ELV / TRIAC / 0-10V / 1-10V / 10V PWM |
| Rating | cULus Listed (Wet Location) |
