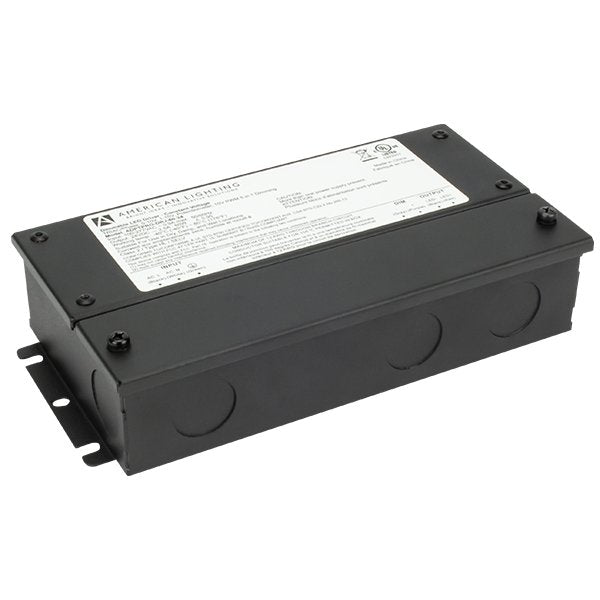

American Lighting ADPTPRO-DRJ Adaptive Pro 60W 24V DC Driver

American Lighting ADPTPRO-DRJ Adaptive Pro 60W 24V DC Driver

Regular price $153.54
Regular price Sale price $153.54
Sale Sold out
Shipping calculated at checkout.
Volt
Wattage

Adaptive Pro 60W Driver

The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.

  • 24V DC Constant voltage 60W hardwire LED drivers
  • 5-in-1 Forward and Reverse Phase Dimming:
    ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer

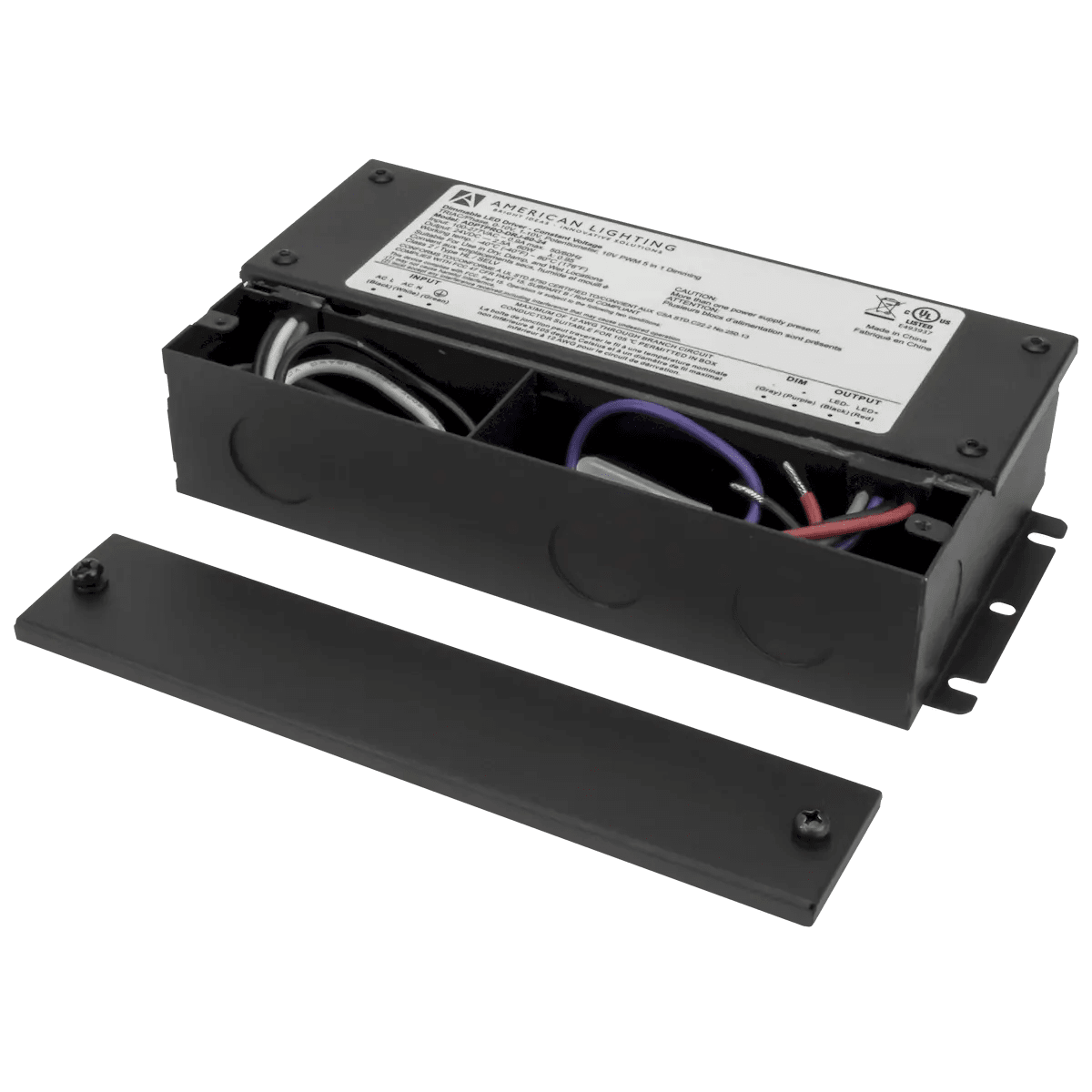

  • Dedicated line voltage and low voltage wiring compartments
  • Short circuit, over-load, and over temperature protections
  • Class 2 / Type HL / FCC Compliant
  • cULus Listed - Wet location rated

    Spec Sheet

    Spec Sheet



    Info

    SERIES ADPTPRO-DRJ

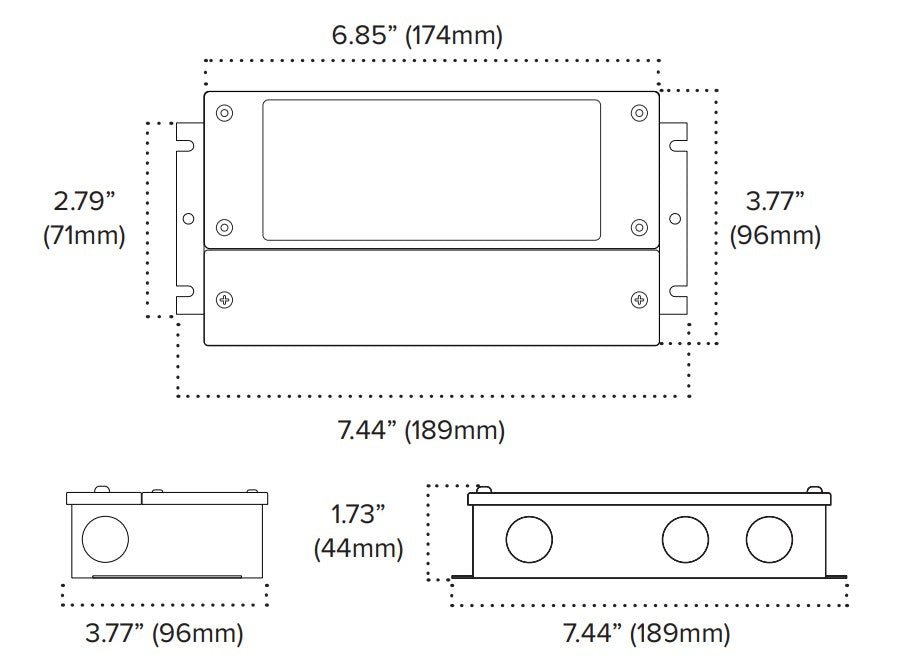

    Dimensions
    Weight 2.00 LBs
    Length 7.44"
    Width 3.77"
    Height 1.73"
    Electrical
    Input Voltage
    100-277V AC
    Output Voltage
    24VDC
    Max Load
    60W
    Min Load
    6W
    Dimmable
    MLV / ELV / TRIAC / 0-10V / 1-10V / 10V PWM
    Rating cULus Listed (Wet Location)
