American Lighting

American Lighting Canvas CNVS 24V DC LED Light Sheet 30K-50K

American Lighting Canvas CNVS 24V DC LED Light Sheet 30K-50K

Regular price $596.34
Regular price Sale price $596.34
Sale Sold out
Shipping calculated at checkout.
Color Temperature

Canvas Light Sheet 30K/40K/50K

Ordered in Minimum of 2 Packs (You will get 2 of the 1' X2' sheets)

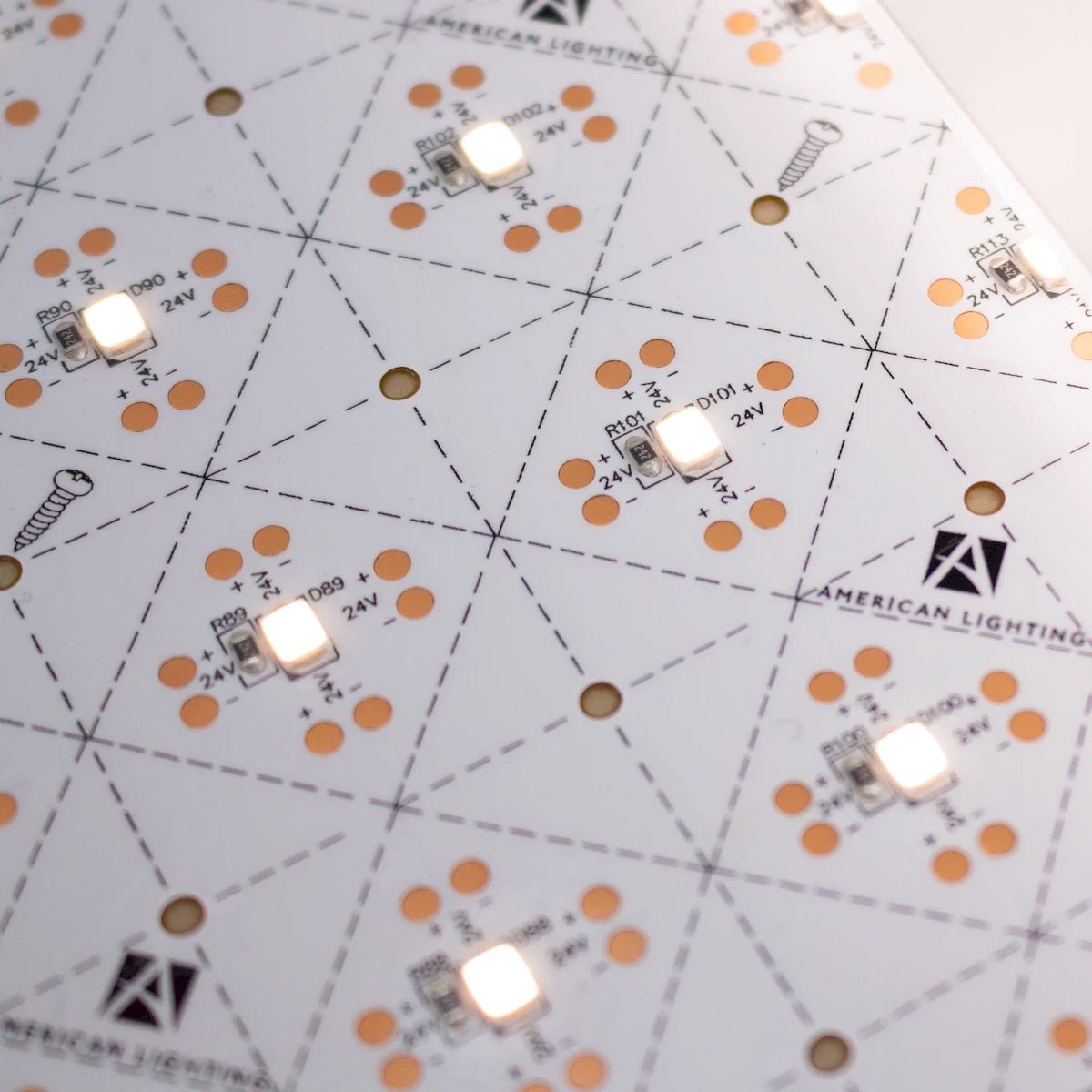

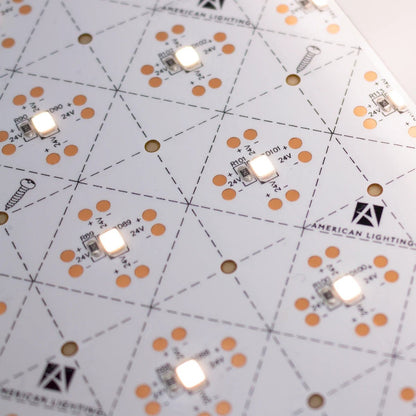

The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.

  • Available in 3000K / 4000K / 5000K
  • Ideal for backlighting semi-translucent materials
  • Up to 2050Lm output performance per sheet
  • Available in 12”H x 24”W sheet size
  • Field cuttable on-site for an accurate fit
  • 1” x 1” Cuttability and LED spacing
  • 3M peel and stick backing for quick installation
  • Built-in terminal ports make it easy to run power from any side
  • Integrated 1/2” stand-offs spaced every 8 inches:
  • Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
  • 50,000 hours rated life / 5-year limited warranty
Spec Sheet

Spec Sheet

Installation Instructions

Catalog No. Dimensions Wattage Lumens Color Temp.
CNVS-WW-12x24 12″ x 24″ 20W 1925Lm 3000K
CNVS-WH-12x24 12″ x 24″ 20W 2000Lm 4000K
CNVS-CW-12x24 12″ x 24″ 20W 2050Lm 5000K

Additional Info

Series CNVS
Voltage 24V DC
3000K / 4000K / 5000K
CRI 90+
Lumens Up to 2050Lm per sheet
Wattage 20W
Cut Increments 1" x 1"
Max Run 96W
IP Rating IP54
Dimmable 5-100%
Ratings cULus Listed
Rated Life 50,000 Hours


CNVS-RPC-2 2-pin Rigid Connector; Bag of 5
CNVS-ICON-2PIN 19mm Sheet to Sheet Jumper Wire (Qty 4); Bag of 10
CNVS-STOF Stick On Rubber Bumper Stand-Offs For Canvas Sheets, 10PCS/BAG
