American Lighting CNVS-TW Canvas 24V DC LED Light Sheet Tunable White
American Lighting CNVS-TW Canvas 24V DC LED Light Sheet Tunable White
Regular price
$501.66
Regular price
Sale price
$501.66
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

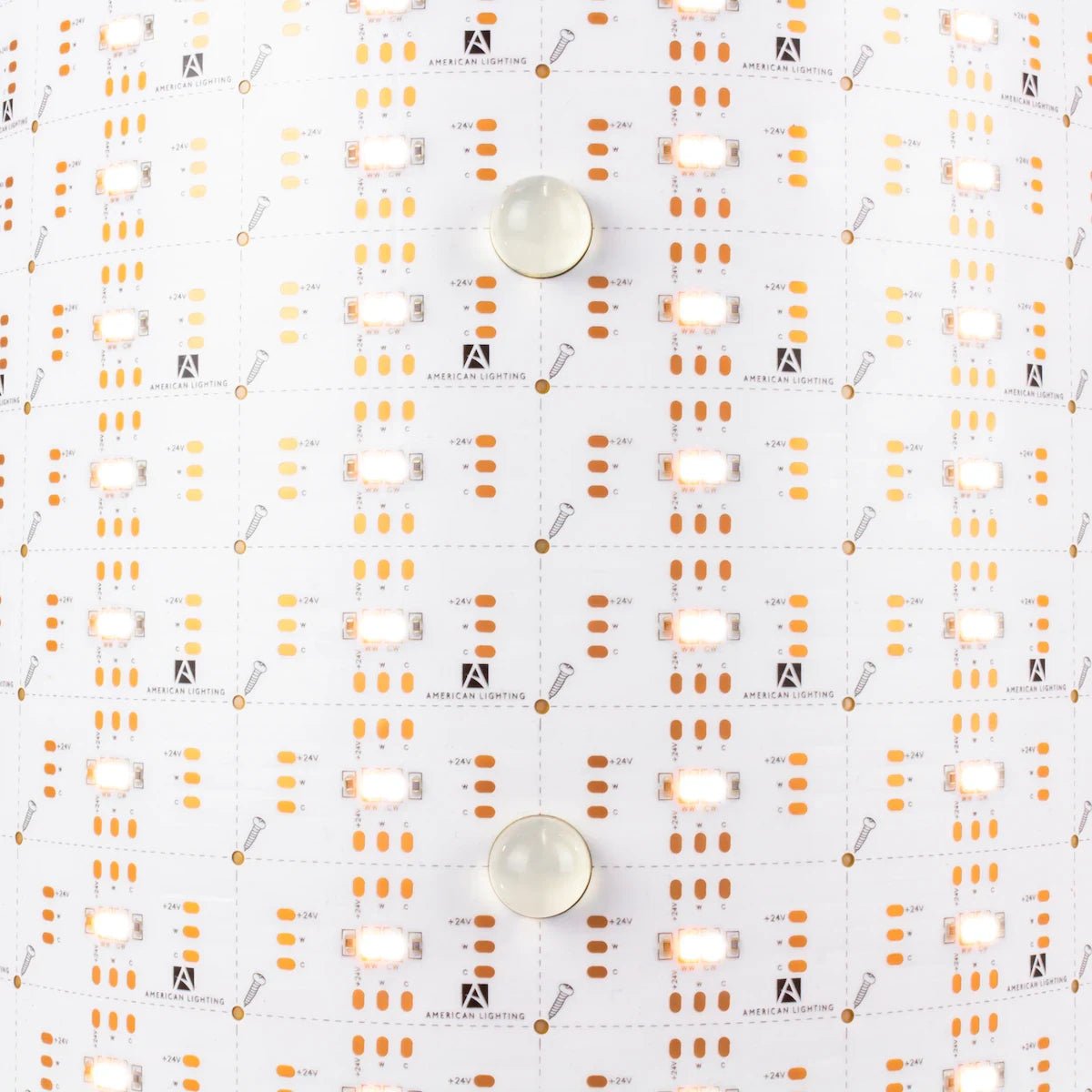

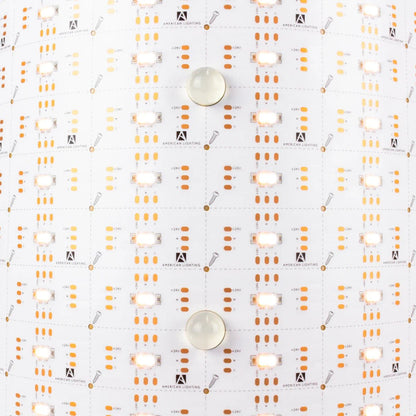

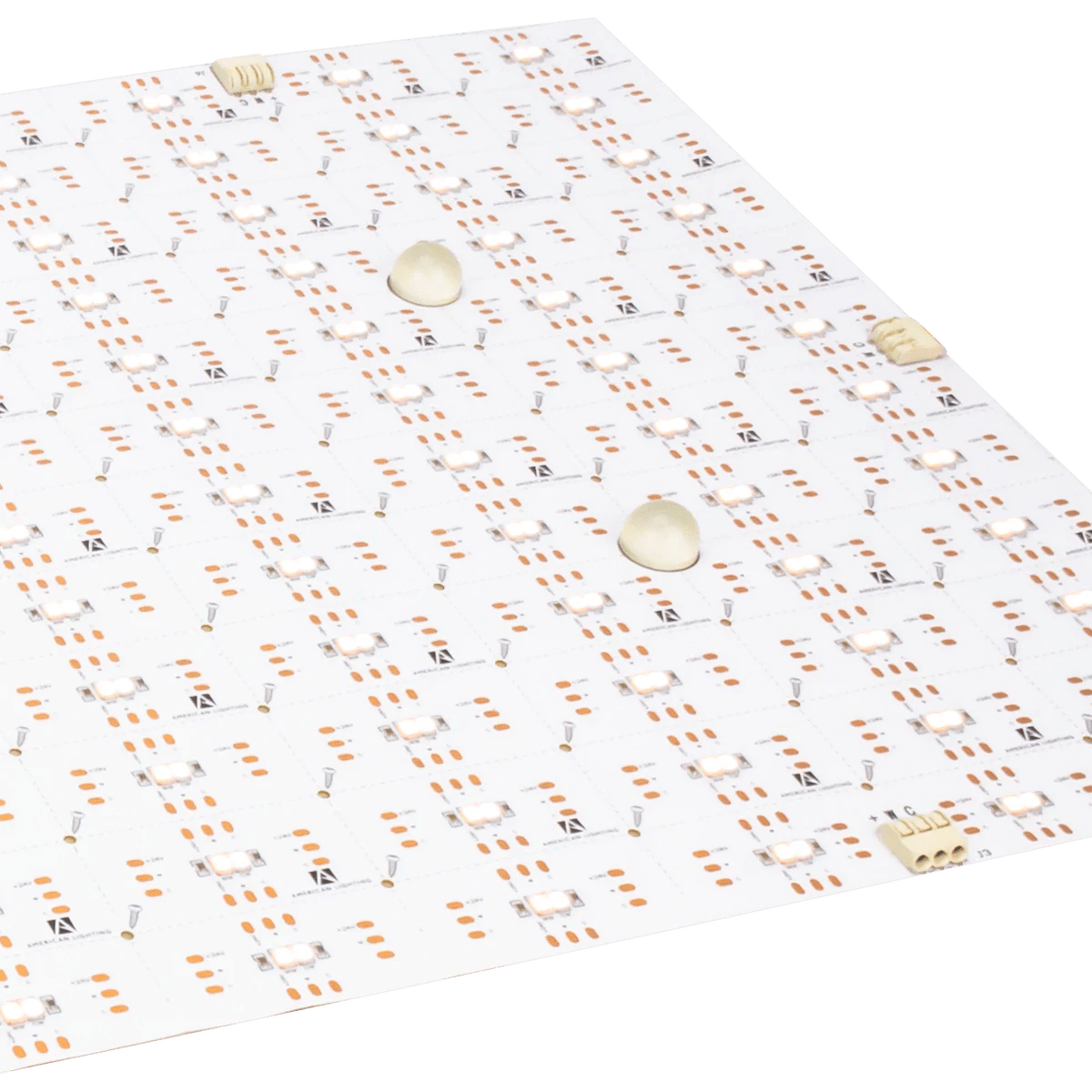

Canvas Light Sheet Selectable CCT
Ordered in Minimum of 2 Packs (You will get 2 of the 1' X2' sheets)
The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.
- Tunable CCT 2700K to 6000K Color Tuning
- Ideal for backlighting semi-translucent materials
- Up to 1800Lm output performance per sheet
- Available in 12”H x 24”W sheet size
- Field cuttable on-site for an accurate fit
- 2” x 1” Cuttability and LED spacing
- 3M peel and stick backing for quick installation
- Built-in terminal ports make it easy to run power from any side
- Integrated 1/2” stand-offs spaced every 8 inches:
- Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Catalog No. | Dimensions | Wattage | Lumens | Color Temp. |
|---|---|---|---|---|
| CNVS-TW-12x24 | 12″ x 24″ | 20W | 1800 | 2700K to 6000K |
Includes: (2) 12”x24” Canvas LED Sheets / (1) 24” 20/3 Power Wire / (4) 12” 20/3 Jumper Wires
Additional Info
| Series | CNVS-TW |
| Voltage | 24V DC |
| CCT |
2700K to 6000K |
| CRI | 90+ |
| Lumens | Up to 1800Lm per sheet |
| Wattage | 20W |
| Cut Increments | 2" x 1" |
| Max Run | 96W (4.5 sheets) |
| IP Rating | IP54 |
| Dimmable | 5-100% |
| Ratings | cULus Listed |
| Rated Life | 50,000 Hours |
Accessories
| CNVS-RPC-3 | 3-pin Rigid Connector; Bag of 5 |
| CNVS-ICON-3PIN | 2” (50mm) In-line 3-pin Jumper Wire |
| CNVS-STOF | Stick On Rubber Bumper Stand-Offs For Canvas Sheets, 10PCS/BAG |
