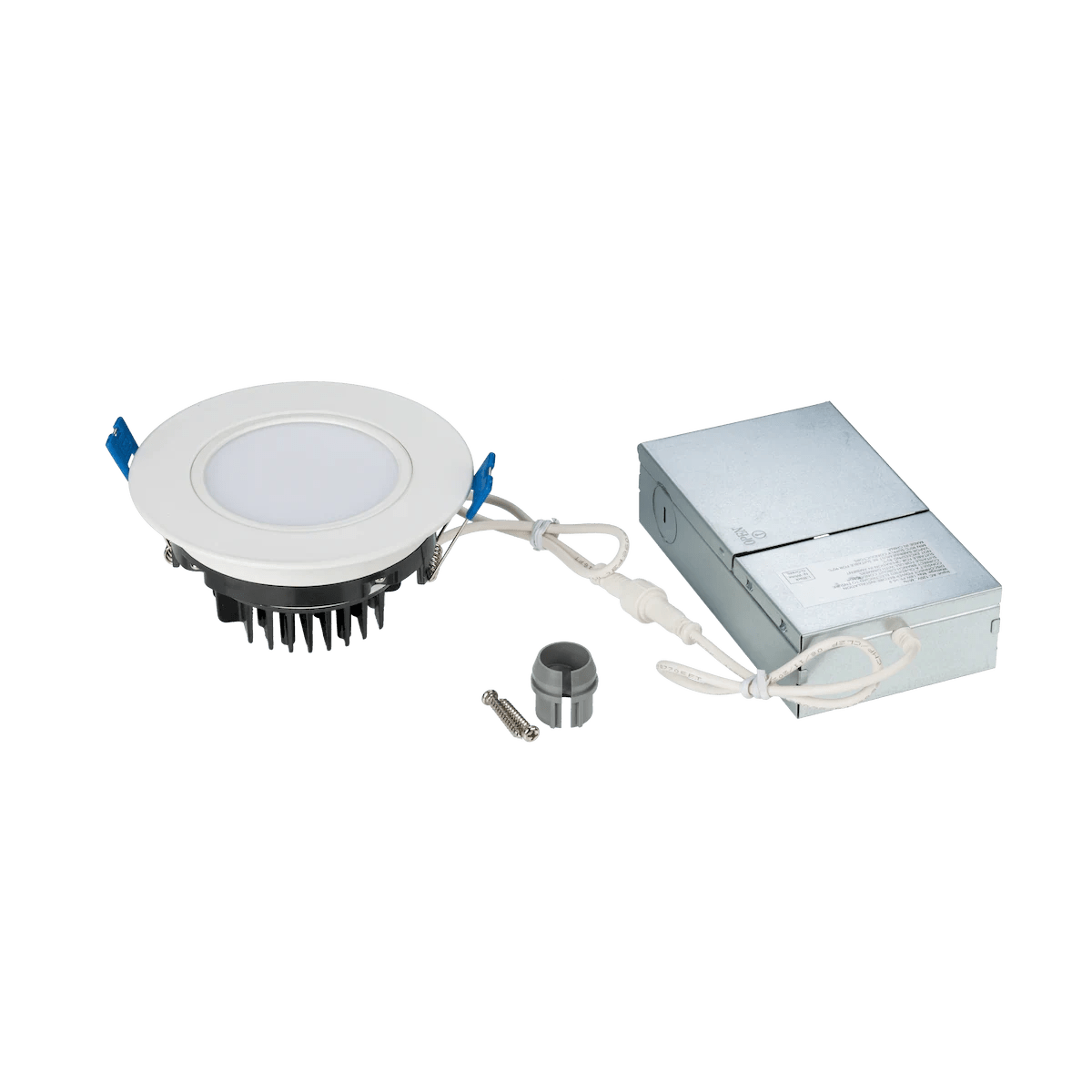

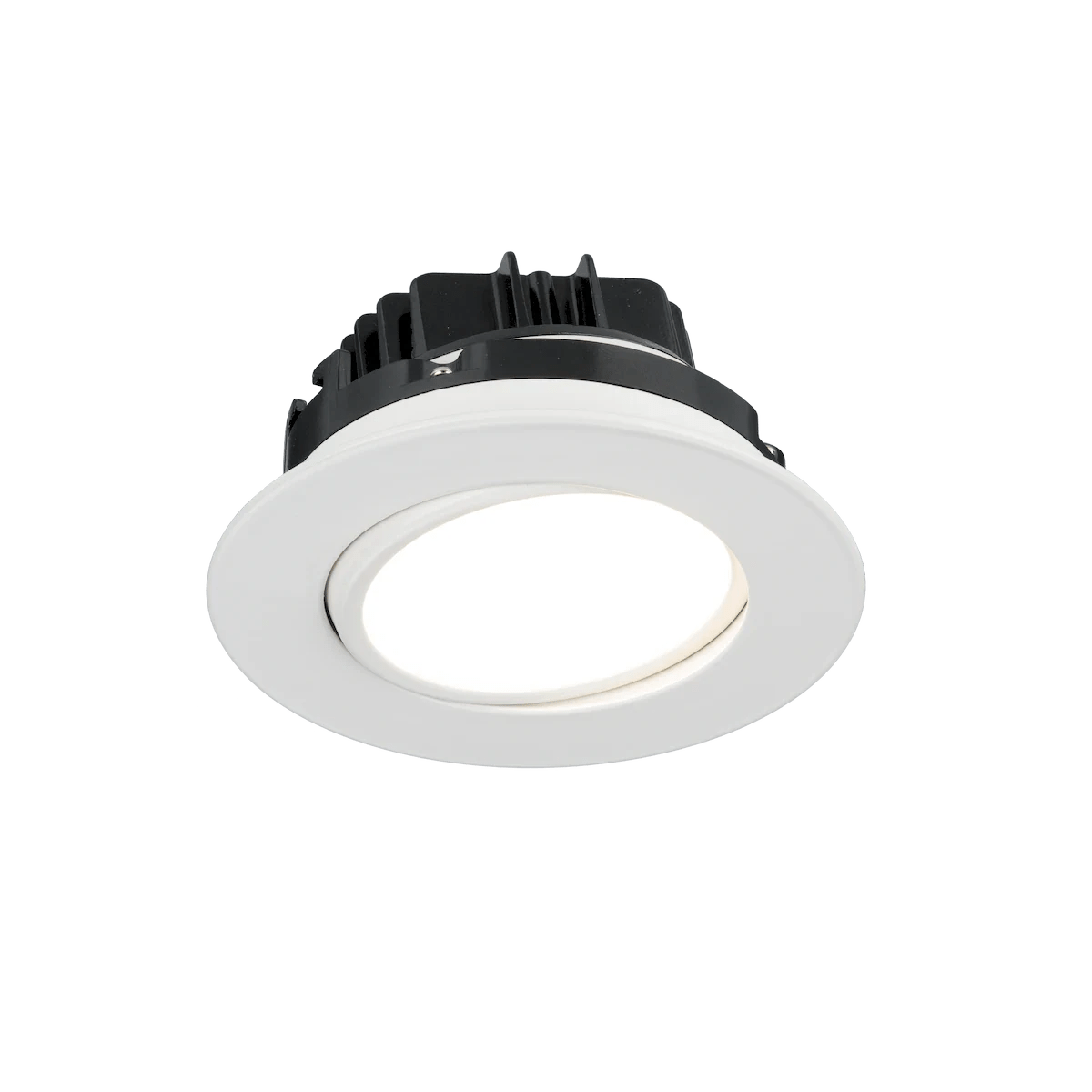

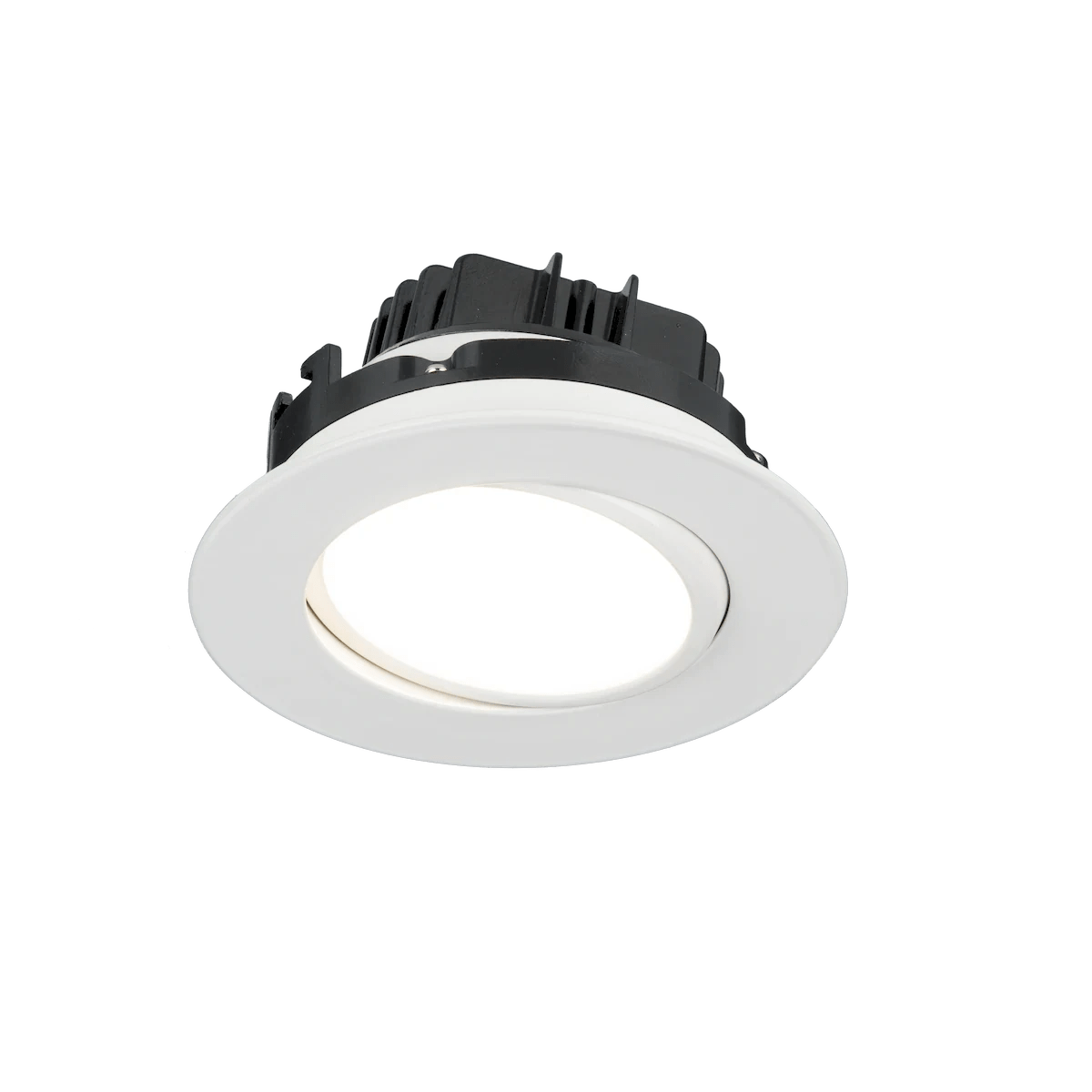

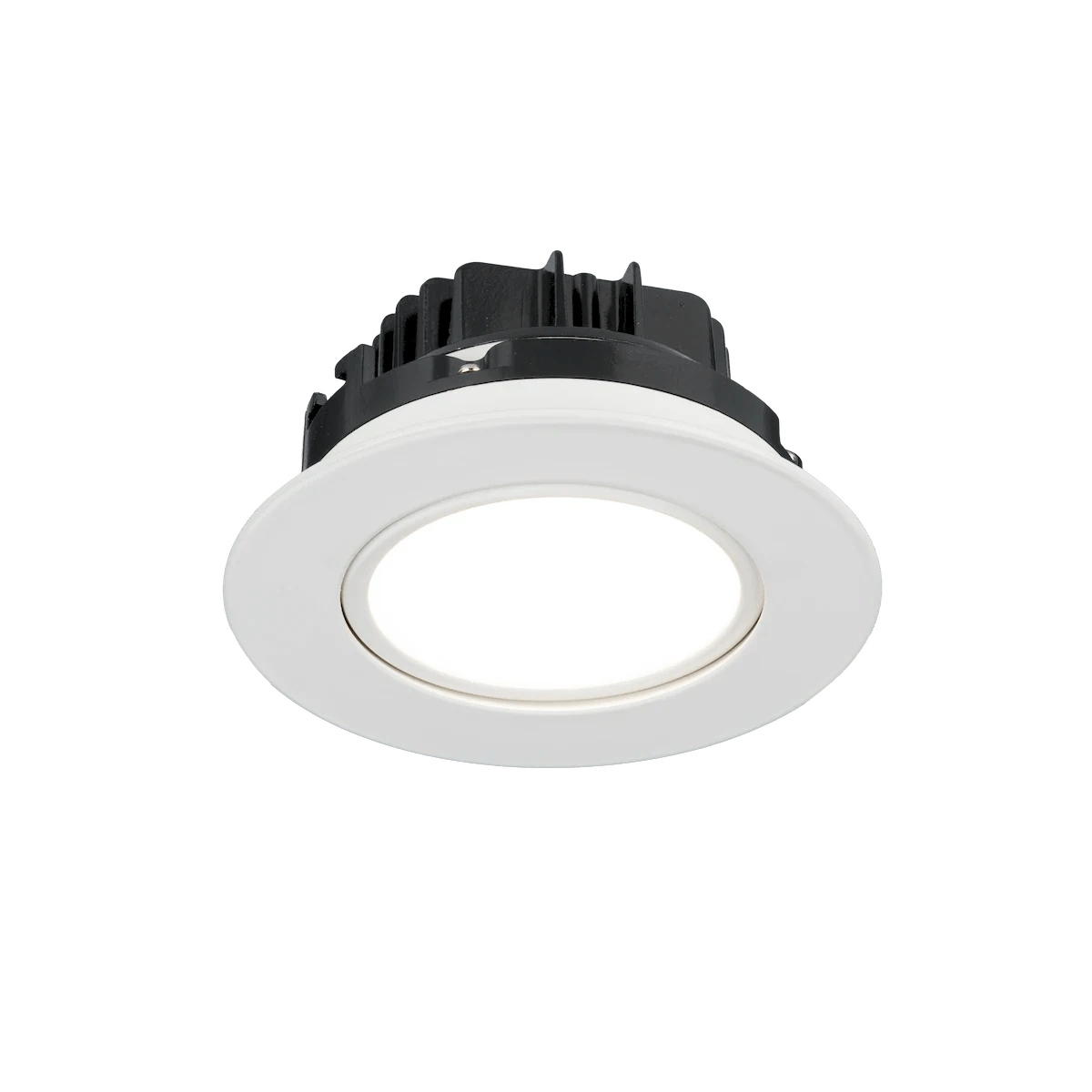

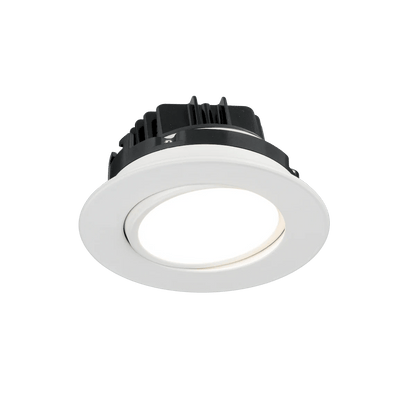

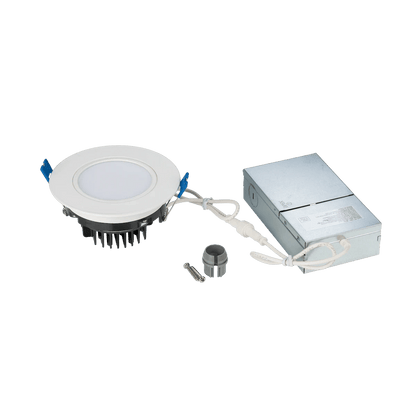

American Lighting DIP4 360° Gimbal 4inch Downlight Selectable CCT

American Lighting DIP4 360° Gimbal 4inch Downlight Selectable CCT

Regular price $33.21
Regular price $37.99 Sale price $33.21
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Color
Size

Dip 360° Gimbal 4inch Downlight, 5CCT, White Finish

The Dip 360° Gimbal 5CCT downlight offers 5 selectable color temperatures in one compact package. The selectable CCT switch is located on the back of the downlight housing and can be adjusted on the fly. This feature is also beneficial when it comes time to remodel, providing a simple way to update lighting to match a new color scheme or design.

  • Excellent color rendering (90 CRI)
  • Five selectable color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
  • Lumen output up to 960 Lumens
  • Dimmable with most TRIAC dimmers
  • Spring loaded mounting clips
  • Type IC and cETLus Listed for indoor, wet locations
  • 50,000 hours rated life
  • ENERGY STAR Certified and JA8 Compliant

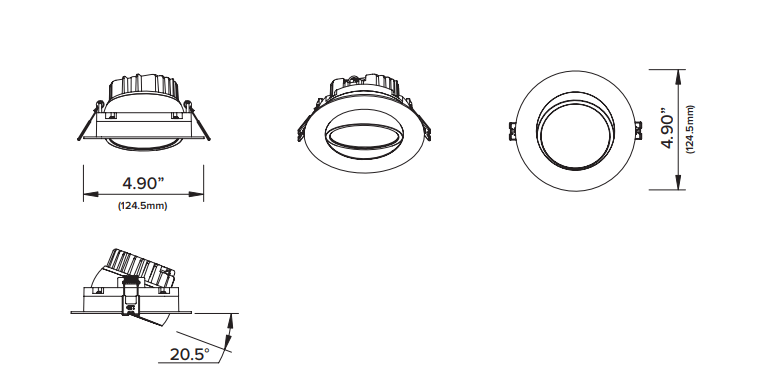

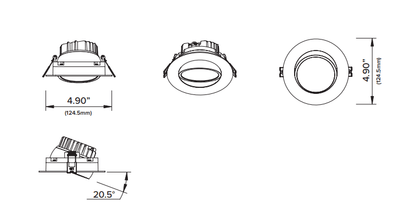

Dimensions
Width (In.)  4.90"
Height (In.) 2.50"
Aperture Size (In.) 4.00"


    Spec Sheets

    Spec Sheet

    Installation Instructions

    Cutout Template

    Info
    Mounting Recessed mount
    Watt 14W
    Lumen 960
    Voltage 120V AC
    Color Temp. 5CCT (27K-50K)
    Finish White
    CRI 90+
    L70 Hours 50,000 Hours
    Dimmable TRIAC (10 - 100%)
    Beam Angle 100°
    Certifications Type IC; cETLus Listed - Wet Location Rated


    Additional Info
     ITEM NUMBER SIZE  CCT CRI LUMEN Dimming
    DIP4-5CCT-WH 4" 5-CCT 90 880-960 10-100%
