American Lighting DIP6 360° Gimbal 6inch Downlight Selectable CCT
American Lighting DIP6 360° Gimbal 6inch Downlight Selectable CCT
Regular price
$41.22
Regular price
$46.99
Sale price
$41.22
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

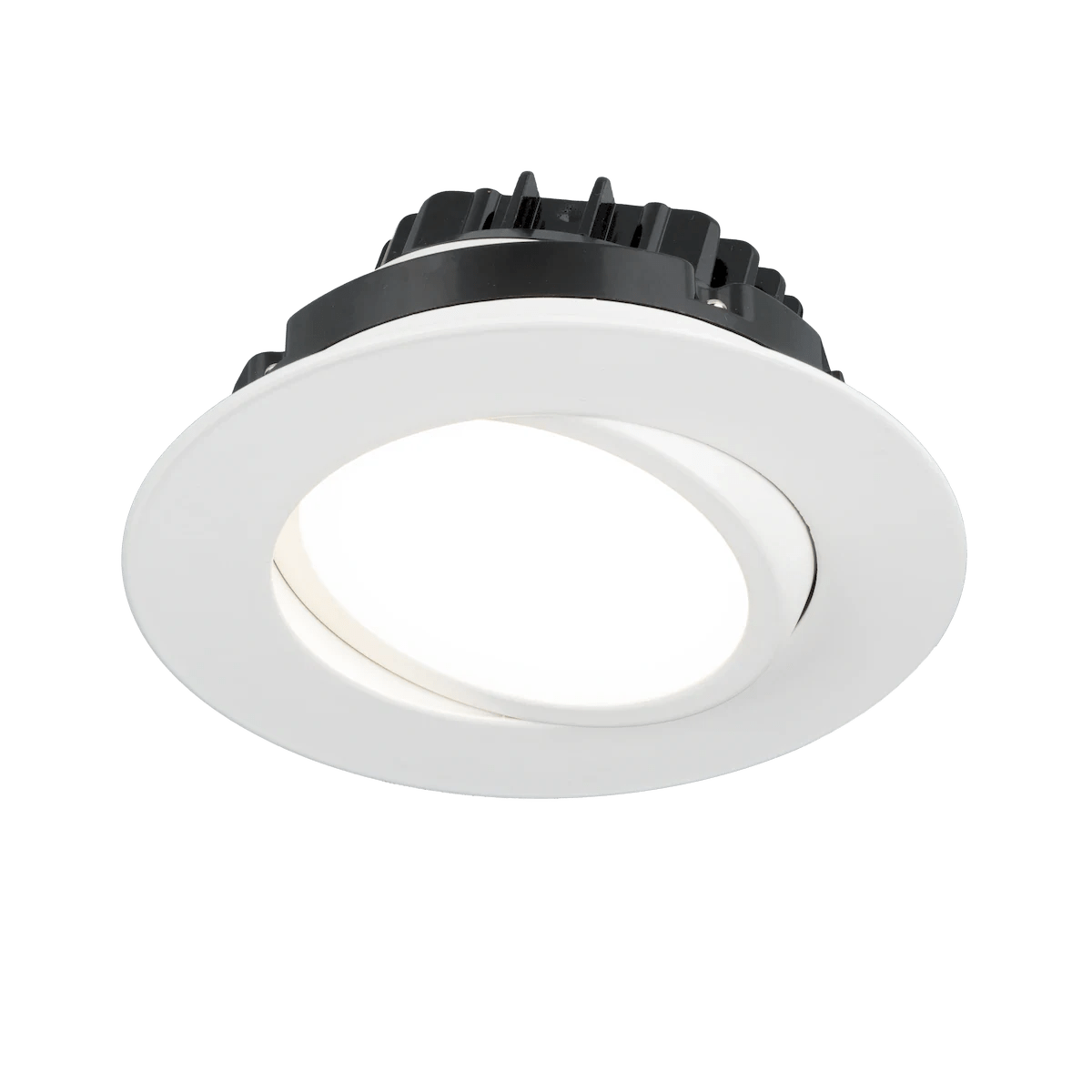

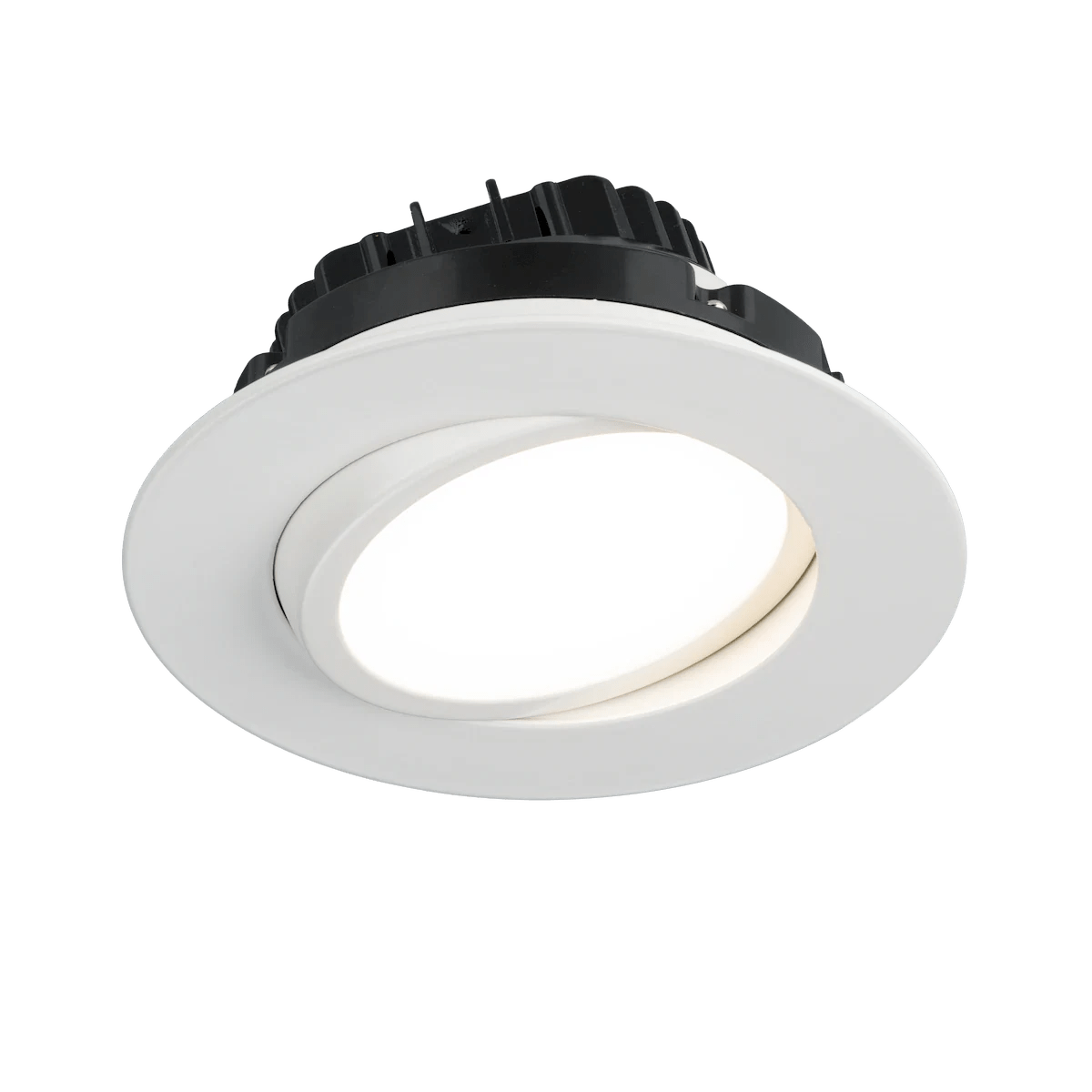

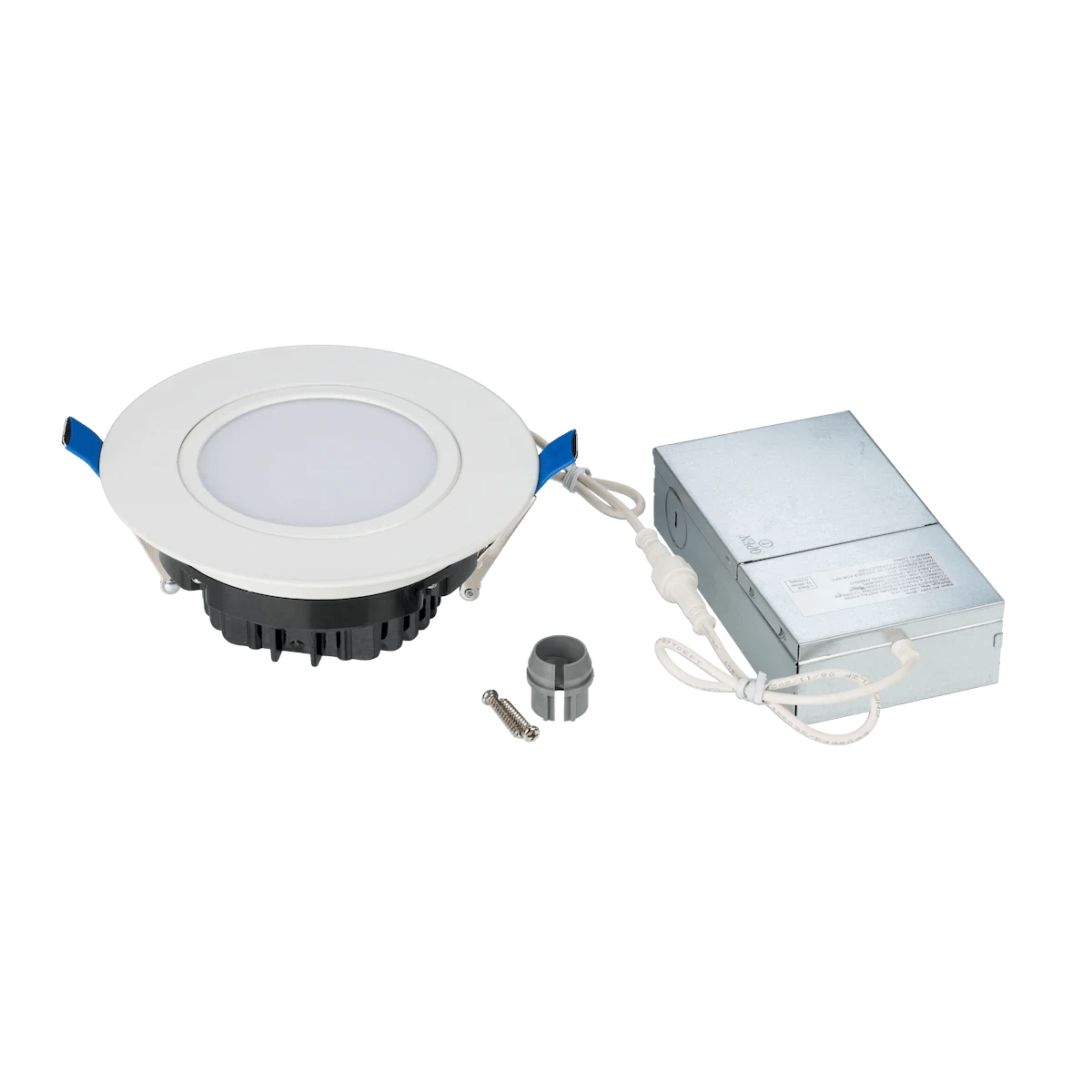

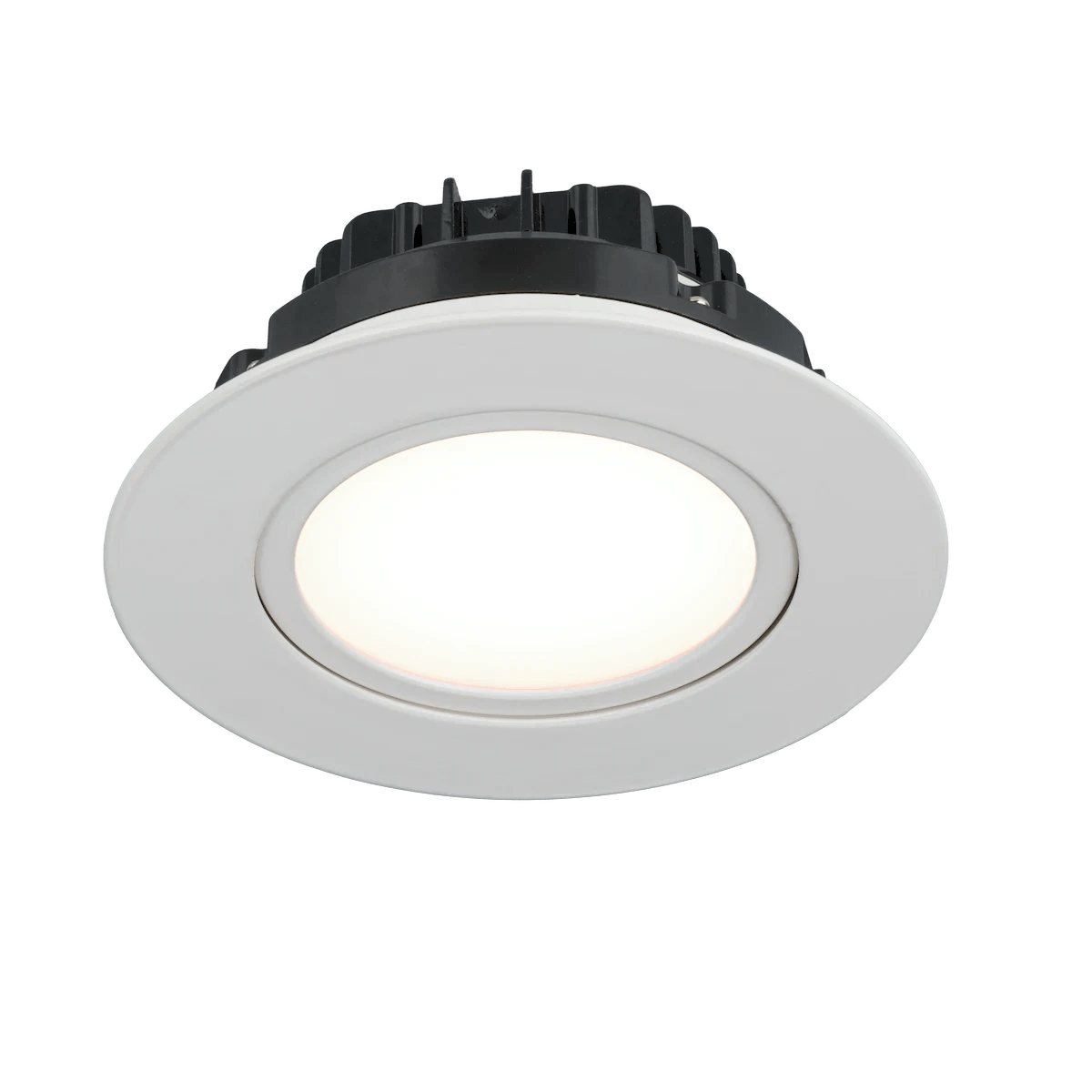

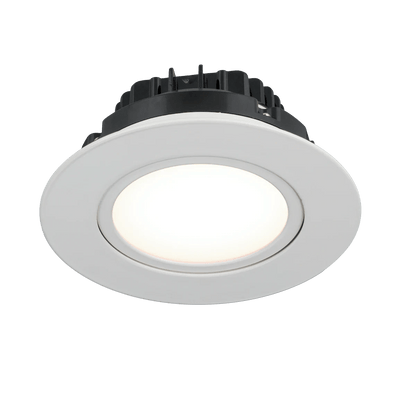

Dip 360° Gimbal 6 Inch Downlight, 5CCT, White Finish
The Dip 360° Gimbal 5CCT downlight offers 5 selectable color temperatures in one compact package. The selectable CCT switch is located on the back of the downlight housing and can be adjusted on the fly. This feature is also beneficial when it comes time to remodel, providing a simple way to update lighting to match a new color scheme or design.
- Excellent color rendering (90 CRI)
- Five selectable color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
- Lumen output up to 1500 Lumens
- Dimmable with most TRIAC dimmers
- Spring loaded mounting clips
- Type IC and cETLus Listed for indoor, wet locations
- 50,000 hours rated life
- ENERGY STAR Certified and JA8 Compliant

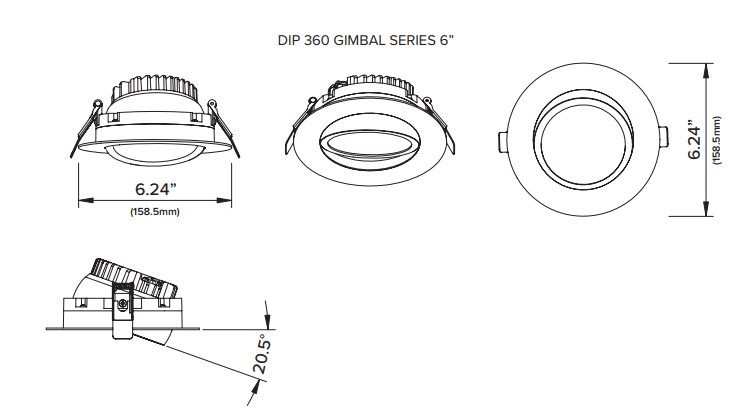

Dimensions | ||||||
|
Spec Sheets
Spec Sheet
Installation Instructions
Cutout Template
Info
Mounting | Recessed mount |
Watt | 20W |
Lumen | 1500 |
Voltage | 120V AC |
Color Temp. | 5CCT (27K-50K) |
Finish | White |
CRI | 90+ |
L70 Hours | 50,000 Hours |
Dimmable | TRIAC (10 - 100%) |
Beam Angle | 100° |
Certifications | Type IC; cETLus Listed - Wet Location Rated |
Additional Info
ITEM NUMBER | SIZE | CCT | CRI | LUMEN | Dimming |
DIP6-5CCT-WH | 6" | 5-CCT | 90 | 1320-1500 | 10-100% |
