American Lighting

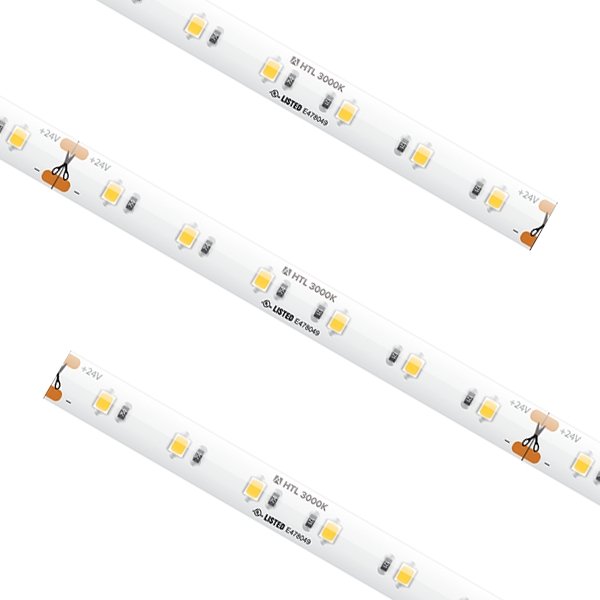

American Lighting HTL 16FT 4.6W/FT High Output LED Tape Light 27K/30K/40K

American Lighting HTL 16FT 4.6W/FT High Output LED Tape Light 27K/30K/40K

Regular price $149.58
Regular price Sale price $149.58
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

TruLux® High Output HD Tape Light

Our most popular tape light option, the High Output series is a go to for most applications in part to the great lumen output with a slightly longer max run. With up to 310 lumens a foot and a max run up to 22 feet, High Output tape light provides a perfect blend of lumens, light quality, and color temperature options for multiple applications.

  • Excellent color rendering (96+ CRI)
  • Color temperatures available from 2400K to 4000K
  • 200-310 lumens per foot performance
  • Consuming only 4.6 watts per foot
  • Dimmable with most electronic low voltage (ELV) dimmers
  • Run lengths up to 22 feet and cuttable every 3.94"
  • Suitable for use in closets when used in an enclosed extrusion based on
    NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • cULus Listed for indoor dry/damp, and wet locations
  • JA8 Compliant
  • 50,000 hours rated life

16.4ft Reels (IP54) Include: Attached 3ft Lead Wire / (3) TL-CONKIT / (3) TL-BLKS / (3) TL-2PWR-HD

Spec Sheet

Spec Sheet

Installation Instructions



Info

Dimensions
Weight 1.50 LBs
Length 196.80
Width 0.39" (10mm)
Light Source
Delivered Lumens 285-310
Dimmable Yes (ELV)
Expected Life Span (Hours) 50,000
Light Source LED
Wattage 4.6 W/FT
Mounting/Installation
Interior/Exterior Interior
Location Rating IP54 - Damp Location
Cuttable Every 3.94"
Photometrics
Color Rendering Index 96+
Kelvin Temperature 27K/30K/40K
Additional Info
PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING
HTL-UWW 2700K 90+ 4.6W/ ft 285Lm/ft 22ft IP54 - Damp
HTL-WW 3000K 90+ 4.6W/ ft 300Lm/ft 22ft IP54 - Damp
HTL-WH 4000K 90+ 4.6W/ ft 310Lm/ft 22ft IP54 - Damp
Accessories
TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
TL-2PWR-HD 6’ HD Power Feed (IP54)
TL-2JUMP6-HD 6” HD Linking Cable
TL-2JUMP24-HD 24” HD Linking Cable
TL-2SPL-HD HD Tape to Tape Splice Connector
TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
WIRE-15-2PIN 15ft (20/2) Wire Spool
WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
LVSB-2PIN In-Line Splice Terminal Block
RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
