• AML-HTL65-COB-UWW-16American Lighting HTL-COB 16FT 4.5W/FT LED High Output COB Tape Light 27K-50K IP65
1 1

American Lighting

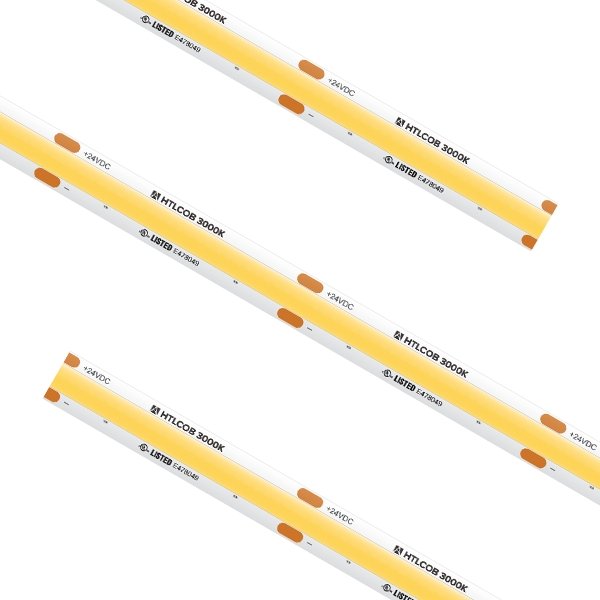

American Lighting HTL-COB 16FT 4.5W/FT LED High Output COB Tape Light 27K-50K IP65

American Lighting HTL-COB 16FT 4.5W/FT LED High Output COB Tape Light 27K-50K IP65

$192.60
$192.60
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

TruLux® High Output COB IP65

COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

  • Seamless COB design that eliminates virtually all LED dotting
  • Available in 2700K, 3000K, 3500K, 4000K, and 5000K
  • 90+ color rendering index
  • Lumen output ranging from 349Lm to 430Lm per foot
  • Cuttable every 1.96” with 16.4ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • Available in IP65 Jacketed ratings
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry location
  • JA8 Compliant
  • 50,000 hours rated life

16.4ft Reels (IP65) Include: Attached 3ft IP65 Lead Wire Connection / (3) HD Power Feeds (IP20)


Spec Sheet

Spec Sheet

Installation Instructions



Info

Dimensions
Weight 1.50 LBs
Length 196.80
Width 0.39" (10mm)
Light Source
Delivered Lumens 350-430
Dimmable Yes 5-100%
Expected Life Span (Hours) 50,000
Light Source LED
Wattage 4.5 W/FT
Mounting/Installation
Interior/Exterior Interior
Location Rating IP65 Wet Location
Cuttable Every 1.96"
Photometrics
Color Rendering Index 90
Kelvin Temperature 27K/30K/35K/40K/50K
Additional Info
PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING
HTL65-COB-UWW-16 2700K 90+ 4.5W/ft 349Lm/ft 16.4ft IP65 Wet
HTL65-COB-WW-16 3000K 90+ 4.5W/ft 379Lm/ft 16.4ft IP65 Wet
HTL65-COB-NW-16 3500K 90+ 4.5W/ft 387Lm/ft 16.4ft IP65 Wet
HTL65-COB-WH-16 4000K 90+ 4.5W/ft 415Lm/ft 16.4ft IP65 Wet
HTL65-COB-CW-16 5000K 90+ 4.5W/ft 434Lm/ft 16.4ft IP65 Wet
Accessories
TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
TL-2PWR-HD 6’ HD Power Feed (IP54)
TL-2JUMP6-HD 6” HD Linking Cable
TL-2JUMP24-HD 24” HD Linking Cable
TL-2SPL-HD HD Tape to Tape Splice Connector
TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
TL-2JUMP65-.5  6” Linking Cable (IP65)
TL-2JUMP65-1 12” Linking Cable (IP65)
TL-2JUMP65-2 24” Linking Cable (IP65)
WIRE-15-2PIN 15ft (20/2) Wire Spool
WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
LVSB-2PIN In-Line Splice Terminal Block
RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
