American Lighting HTL-COB-TW 16FT 4.5W/FT 24V LED High Output Tunable COB Tape Light 27K-60K
American Lighting HTL-COB-TW 16FT 4.5W/FT 24V LED High Output Tunable COB Tape Light 27K-60K
Regular price
$185.76
Regular price
Sale price
$185.76
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

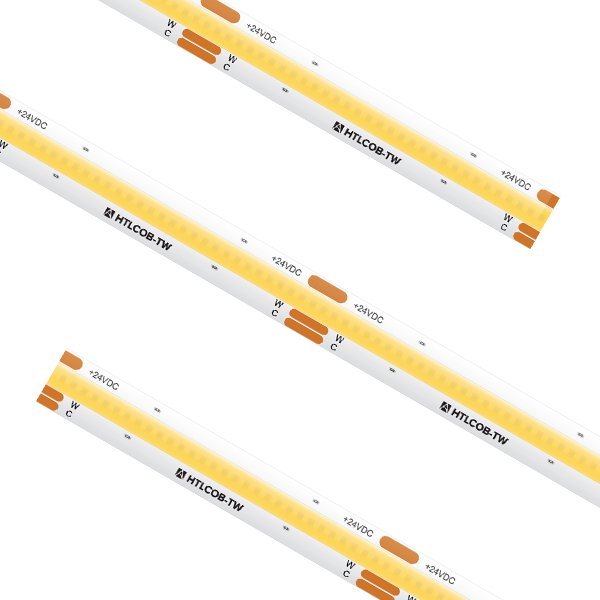

TUNABLE CCT HIGH OUTPUT COB
COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Adjust color temps from 2700K to 6000K and everything in between to create elegant lighting catered to times of day or application setting.
- Seamless COB design that eliminates virtually all LED dotting
- Dynamic white color tuning from 2700K up to 6000K
- 90+ color rendering index
- Up to 400 lumen per foot output performance
- Consumes up to 4.5W per foot
- Cuttable every 2.46” with maximum runs up to 16.4ft
- 5-100% Dimmable with most secondary side controls
- Control color temperature via DMX or secondary side controls
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
Spec Sheet
Spec Sheet
DMX Spec Sheet
Installation Instructions
Info
Voltage | 24V DC |
Wattage | 4.5W/FT |
Lumen | 400LM/FT |
CCT | 2700K-6000K |
CRI | 90+ |
Max Run | 16.4ft |
Cuttable | 2.46” (62.5mm) |
IP Rated | IP54 - Coated |
Dimmable | 5-100% (Requires Secondary Side Controller) |
Dimensions | 10mm (0.39”) W x 1.65mm (0.06”) H |
Beam Angle | 120° |
Operating Temp | 5°C (41°F) to 70°C (158°F) |
Certifications | cULus Listed - Dry / Damp Location |
Rated Life | 50,000 Hours |
Additional Info
ITEM NUMBER | VOLTAGE | CRI | WATTAGE | LUMENS | CUTTABLE | MAX RUN |
---|---|---|---|---|---|---|
HTL-COB-TW-16 | 24V DC | 94+ | 4.5 watts/ft | 400Lm/ft | 2.46" | 16.4ft |
Accessories
WIRE-15-4PIN | 15ft (20/4) Wire spool |
---|---|
RCWY-PVC-1M |
1m Plastic Wire Cover Raceway
|
INLINE-TW-CTRL |
Simple Select In-line Controller (Tunable)
|
REC-DMX-RJ45A-5CH | Trulux 5-Channel DMX Receiver / Decoder |
CTRLW-DMXB-TW-4Z |
Wall Mount DMX Tunable White Control Touch Panel |
