• AML-HTLHD-UWW-100American Lighting HTLHD 100FT 3.6W/FT LED High Output HD Tape Light 27K-50K
1 1

American Lighting

American Lighting HTLHD 100FT 3.6W/FT LED High Output HD Tape Light 27K-50K

American Lighting HTLHD 100FT 3.6W/FT LED High Output HD Tape Light 27K-50K

$1,140.39
$1,140.39
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

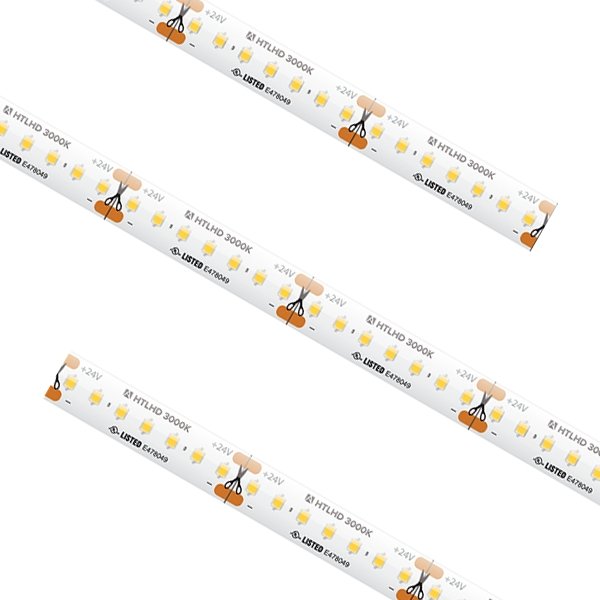

TruLux® High Output HD Tape Light

High Output HD tape light utilizes a powerful new type of LED to achieve substantially more lumens per foot while using less watts per foot than our original High Output tape light. Tightly spaced LEDs also allow High Output HD tape light to be cut every 1.51 inches – making for an ideal fit in any application.

  • High Density (HD) LED spacing in High Output performance
  • Available in 2700K, 3000K, 3500K, 4000K, and 5000K
  • 90+ color rendering index
  • Lumen output ranging from 310Lm to 385Lm per foot
  • Cuttable every 1.51” with 27ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life / 5-year limited warranty
    100ft Reels (IP54) Include: Attached 3ft Lead Wire / (5) TL-CONKIT / (5) TL-BLKS / (5) TL-2PWR-HD

    Spec Sheet

    Spec Sheet

    Installation Instructions



    Info

    Dimensions
    Weight 9.8 LBs
    Length 1200.00"
    Width 0.39" (10mm)
    Light Source
    Delivered Lumens 310-385
    Dimmable Yes 5-100%
    Expected Life Span (Hours) 50,000
    Light Source LED
    Wattage 3.65 W/FT
    Mounting/Installation
    Interior/Exterior Interior
    Location Rating IP54 - Damp Location
    Cuttable Every 1.51"
    Photometrics
    Color Rendering Index 90
    Kelvin Temperature 27K/30K/35K/40K/50K
    Additional Info
    PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING
    HTLHD-UWW-100 2700K 90+ 3.65W/ ft 310Lm/ft 27ft IP54 - Damp
    HTLHD-WW-100 3000K 90+ 3.65W/ ft 335Lm/ft 27ft IP54 - Damp
    HTLHD-NW-100 3500K 90+ 3.65W/ ft 355Lm/ft 27ft IP54 - Damp
    HTLHD-WH-100 4000K 90+ 3.65W/ ft 370Lm/ft 27ft IP54 - Damp
    HTLHD-CW-100 5000K 90+ 3.65W/ ft 385Lm/ft 27ft IP54 - Damp
    Accessories
    TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
    TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
    TL-2PWR-HD 6’ HD Power Feed (IP54)
    TL-2JUMP6-HD 6” HD Linking Cable
    TL-2JUMP24-HD 24” HD Linking Cable
    TL-2SPL-HD HD Tape to Tape Splice Connector
    TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
    WIRE-15-2PIN 15ft (20/2) Wire Spool
    WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
    INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
    LVSB-2PIN In-Line Splice Terminal Block
    RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
