American Lighting HTMR-COB 49FT 3W/FT COB Max Run 27-50K
American Lighting HTMR-COB 49FT 3W/FT COB Max Run 27-50K
Regular price
$514.80
Regular price
Sale price
$514.80
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

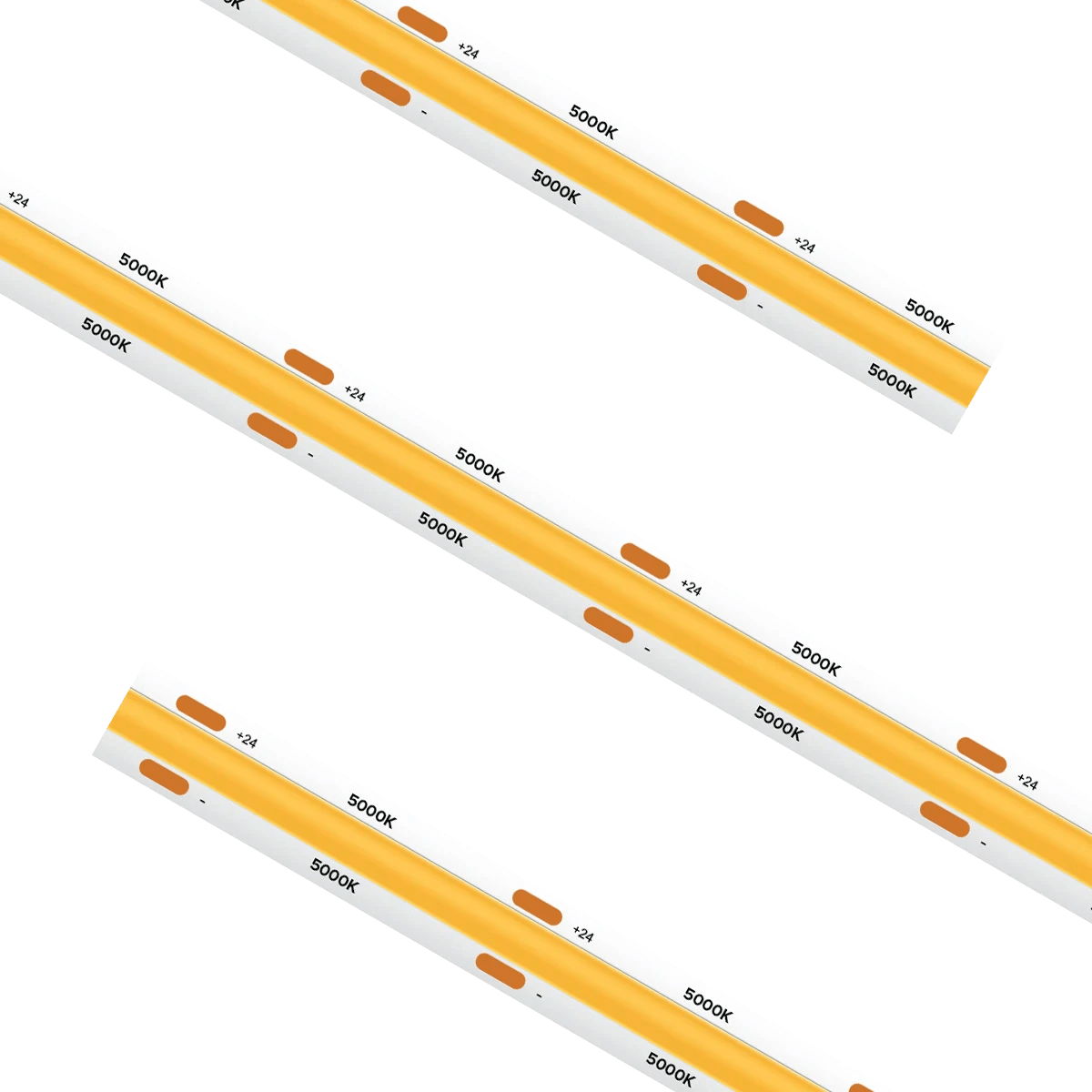

High Output Max Run COB Tape Light
Ideal for extensive applications, the Max Run series simplifies setup by reducing the need for drivers and connections. Each reel contains 49.2 FT of COB tape light with a maximum powered run of 32.8 FT. Use it for coves, corridors, lobbies, and retail spaces.
- Achieve longer max runs perfect for larger installations while still benefiting from the seamless look of COB
- Excellent color rendering (90+ CRI)
- Up to 280 lumens per foot performance
- Consuming up to 3 watts per foot
- Max run length up to 32.8 FT; cuttable every 1.64"
- IP54 rating featuring nano-coating protective layer
- Dimmable (5-100%) with most ELV, TRIAC dimmers
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
49.2 FT reels include a 6ft lead, 6ft tail, (1) TL-CONKIT, (3) TL-BLKS, and (3) TL-2PWR-HD.
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Part Number | CCT | Lumens/FT |
|---|---|---|
| HTMR-COB-UWW-49 | 27K | 220 |
| HTMR-COB-WW-49 | 30K | 240 |
| HTMR-COB-NW-49 | 35K | 250 |
| HTMR-COB-WH-49 | 40K | 270 |
| HTMR-COB-CW-49 | 50K | 280 |
| Voltage | 24V DC |
| Wattage | 3W/FT |
| Lumen | Up to 280 lm/ft |
| CCT | 27-50K |
| CRI | 90+ |
| Reel Length | 49.2 FT |
| Max Run | 32.8 FT |
| Cut Interval | 1.64” (42mm) |
| IP Rating | IP54 - Coated |
| Dimming | TRIAC / ELV (5-100%) |
| Dimension | 10mm (0.39”) W x 2mm (0.08”) H |
| Certifications | cULus Listed - Dry / Damp Location |
| Life Hours | 50,000 Hours |
