• AML-LUC2-32-30-WHAmerican Lighting LUC2-32-30 Contrax2 20W 32 Inch Undercabinet Lighting 30K
1 1

American Lighting

American Lighting LUC2-32-30 Contrax2 20W 32 Inch Undercabinet Lighting 30K

American Lighting LUC2-32-30 Contrax2 20W 32 Inch Undercabinet Lighting 30K

$49.99
$49.99
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Color

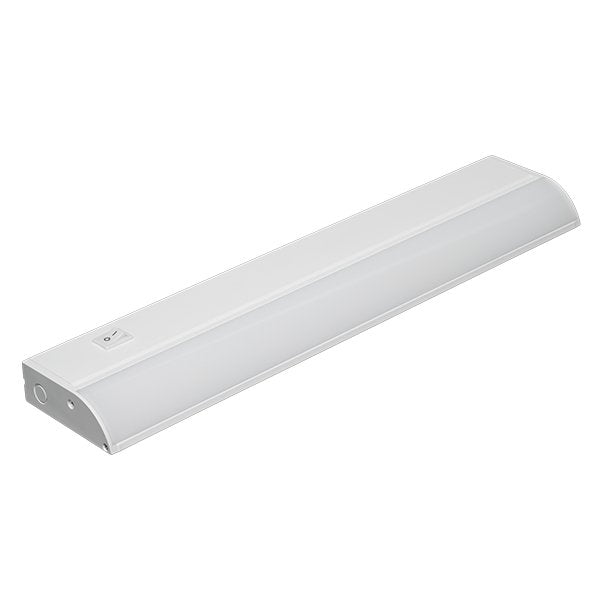

Contrax2 LED Undercabinet Light

The economical Contrax2 provides the necessary illuminance for all undercabinet task lighting. With contractor-friendly knock-outs and a versatile access panel, hard-wiring each fixture is simple and straightforward. Available in 3000K, two finishes and five different linear lengths, the Contrax2 will provide the essential task lighting in application.

  • Available in 3000K CCT
  • High color rendering index of 90+ CRI
  • 120V AC Input
  • Low power consumption of up to 25W
  • Surface mount ultra low profile
  • cETLus Listed for dry locations
  • 35,000 hour rated life
General
Finish White, Dark Bronze
Wattage 20W
CCT (Kelvin) 30K
Color Temperature Warm White
Length (in.) 32"
Width (in.) 3.34"
Height (in.) 1.09"
Indoor or Outdoor Fixture Indoor
Spec Sheets

Spec Sheets

Installation Instructions

Cut Sheet

Info
Technology LED
Wattage 20W
CCT (Kelvin) 3000
Color Temperature Warm White
CRI 90+
Lumen Output 1160L
Rated Hours 35,000
Voltage 120V
Dimmable Yes-10-100% (TRIAC | CL)
Weight (lb.) 2.00
Fixture Material Aluminum / Polycarbonate (PC)
Fixture Type Under Cabinet
Operating Temperature -20C (-4F) to a maximum of +40C (+104F)

 Dimensions
Wattage 20W
Height (in.) 1.09"
Width (in.) 3.34"
Length (in.) 32.00"
Weight (lbs.) 2.00


Additional Info
Safety Listing cETLus
Location Rating Dry
UL Application Undercabinet & Cove
Energy Star Yes
California Status California T24 Listed
California Prop 65
Lead
RoHS Compliant Yes
FCC Compliant Yes
