American Lighting RHYM-DL3Q-15 Rhyme 3" 15W Deep Baffle Square Downlight
American Lighting RHYM-DL3Q-15 Rhyme 3" 15W Deep Baffle Square Downlight
Couldn't load pickup availability

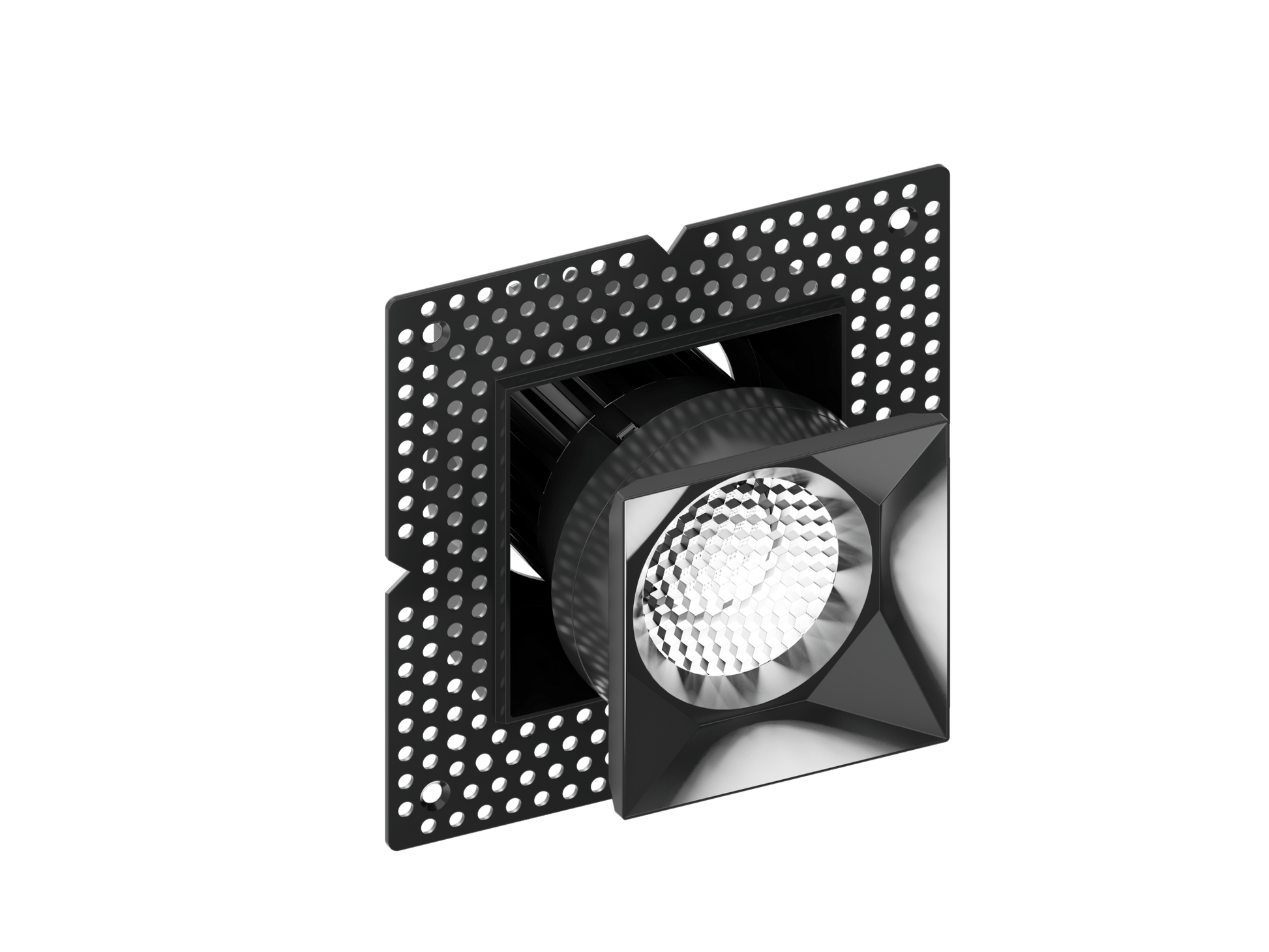

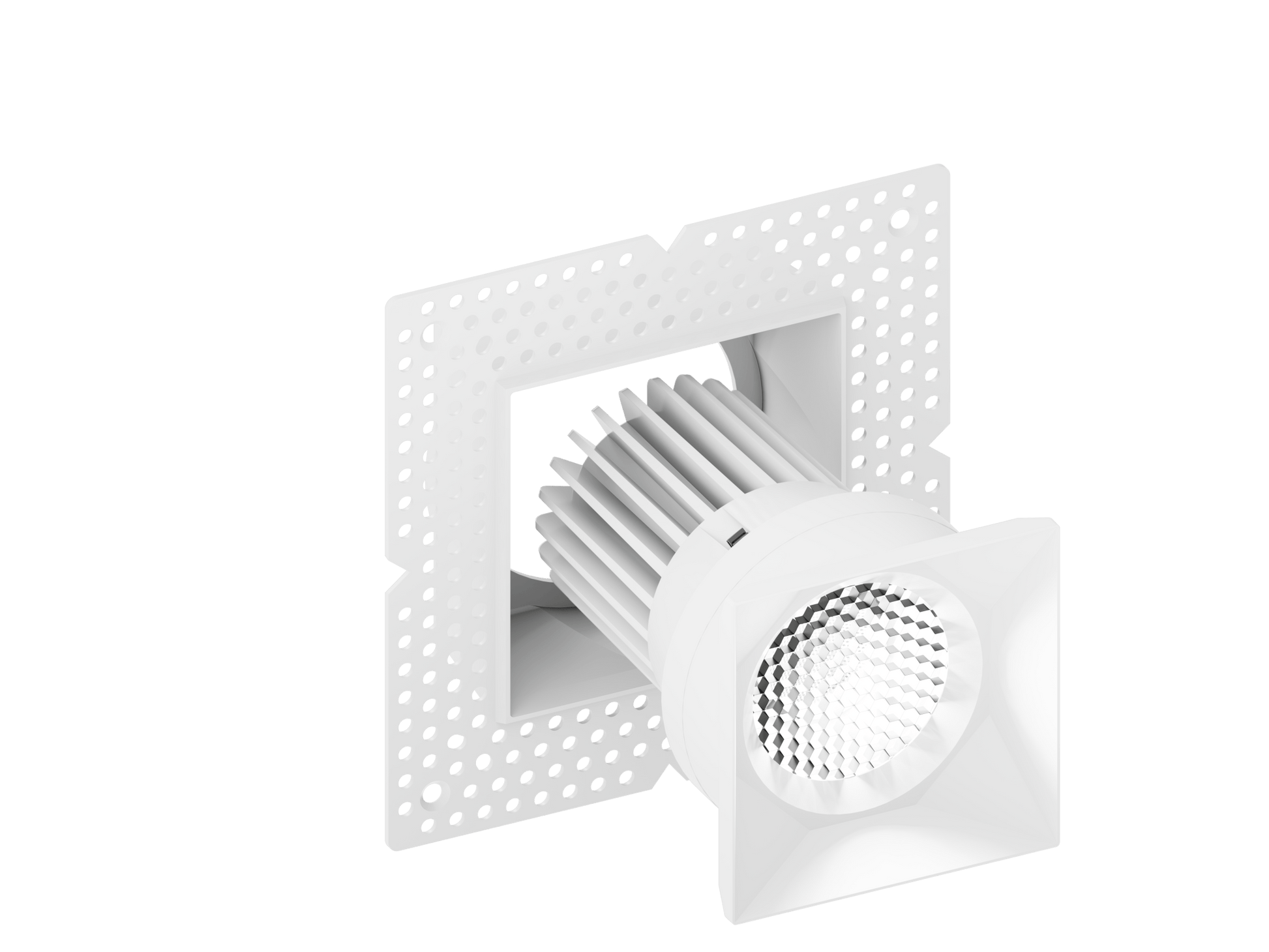

3" 15W Deep Baffle Square Downlight Selectable CCT
Rhyme Series Downlights – Small Aperture, Big Performance
The Rhyme Series downlights combine a sleek, low-profile design with powerful performance, making them a versatile choice for modern lighting applications. Available in both trim and trimless styles, these downlights offer effortless installation and maintenance with an innovative click-action mechanism. Featuring swappable beam angle lenses (24°–60°) and a hex louver anti-glare lens to enhance visual comfort,. Upgrade your space with the Rhyme Series Downlights – the perfect blend of style, efficiency, and innovation.

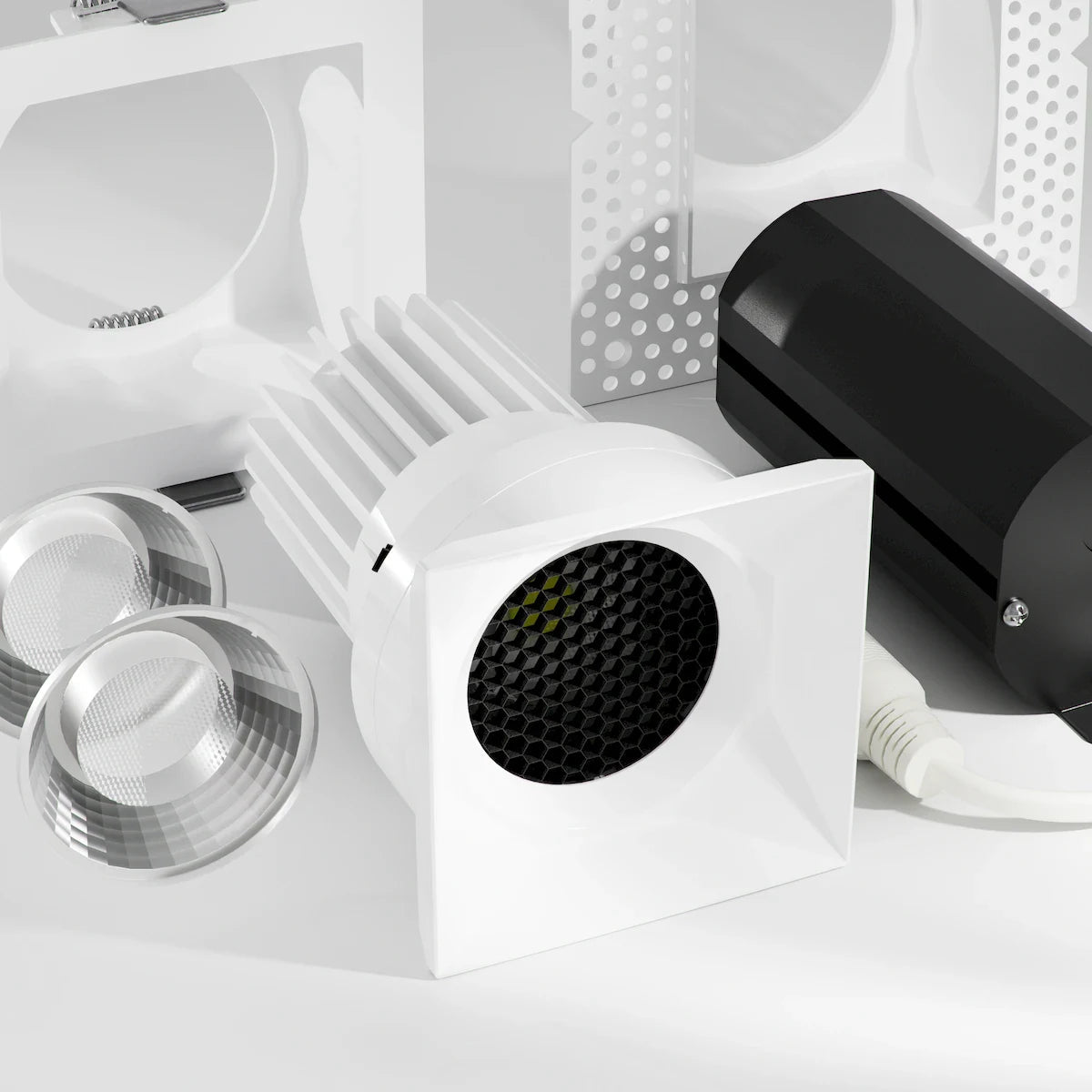

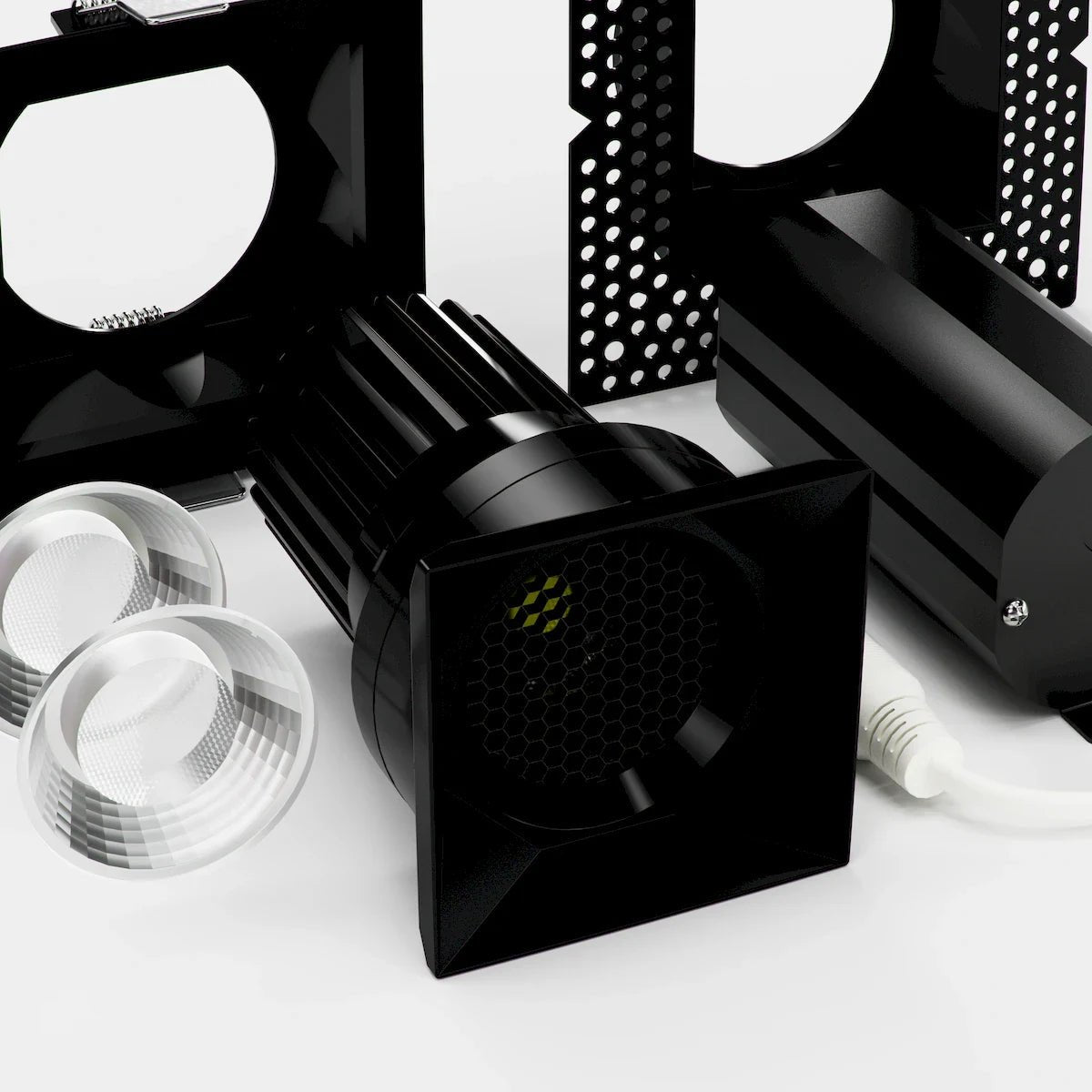

RHYME Deep Baffle Square Includes: (1) Remote Driver / (1) Plastic Mud stopper/ (1) Square Trimless Mud-Ring / (1) Square Trim-Ring / (2) Field Adjustable Optics (24º and 60º) (Default is 36º)

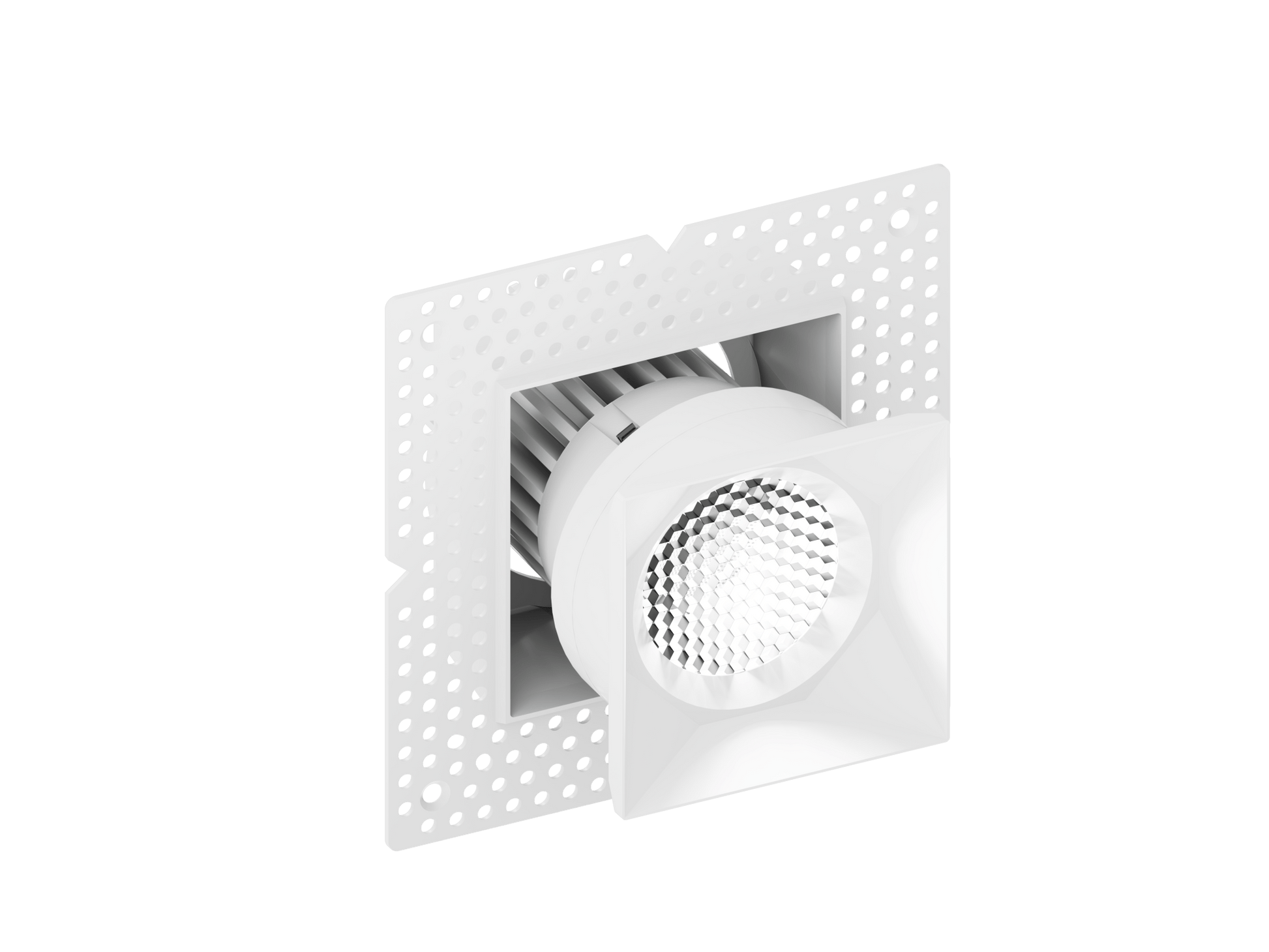

- Quick & Easy Installation – Click-action mechanism simplifies setup and maintenance

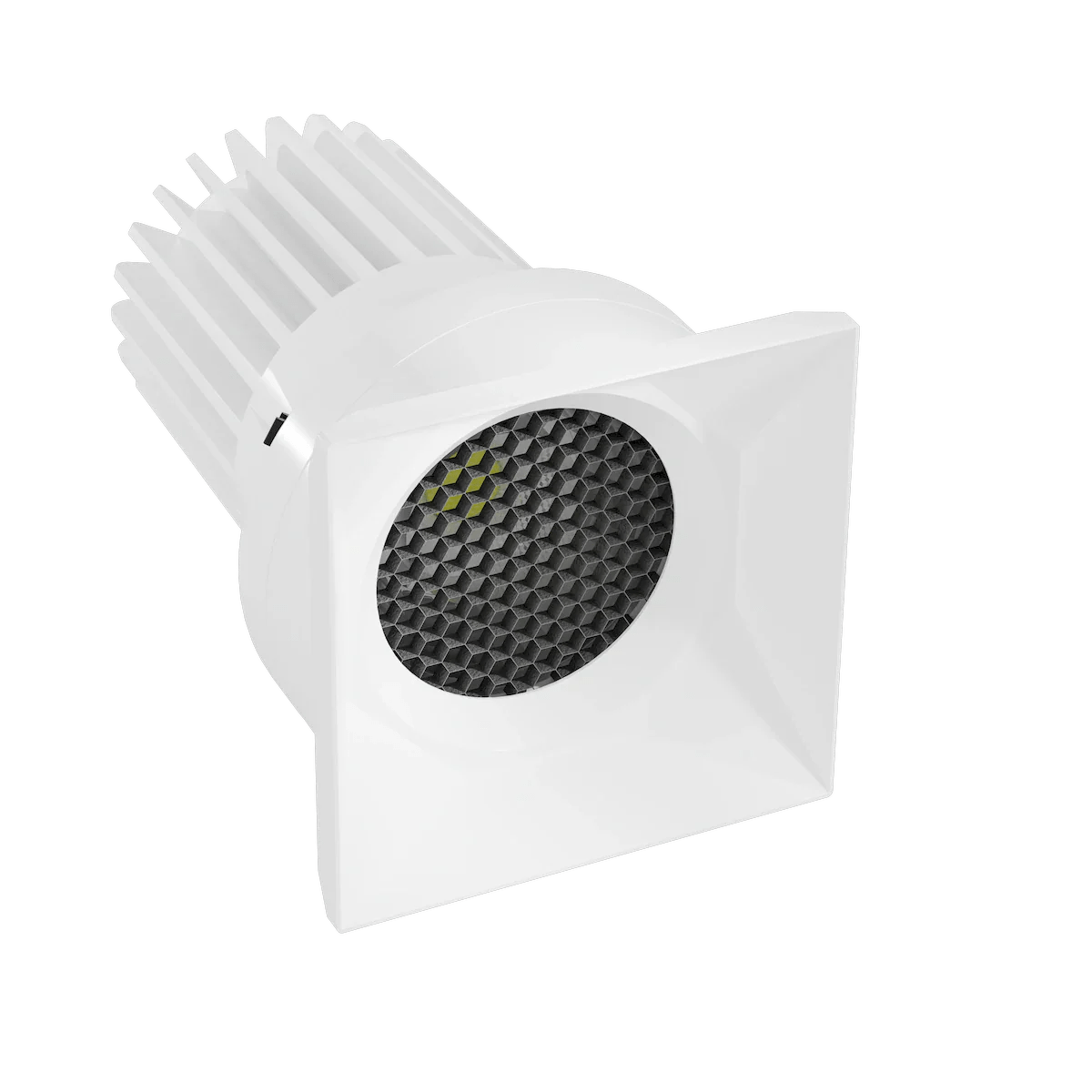

- Enhanced Visual Comfort – Includes a hex louver anti-glare lens to reduce glare and improve visual clarity.

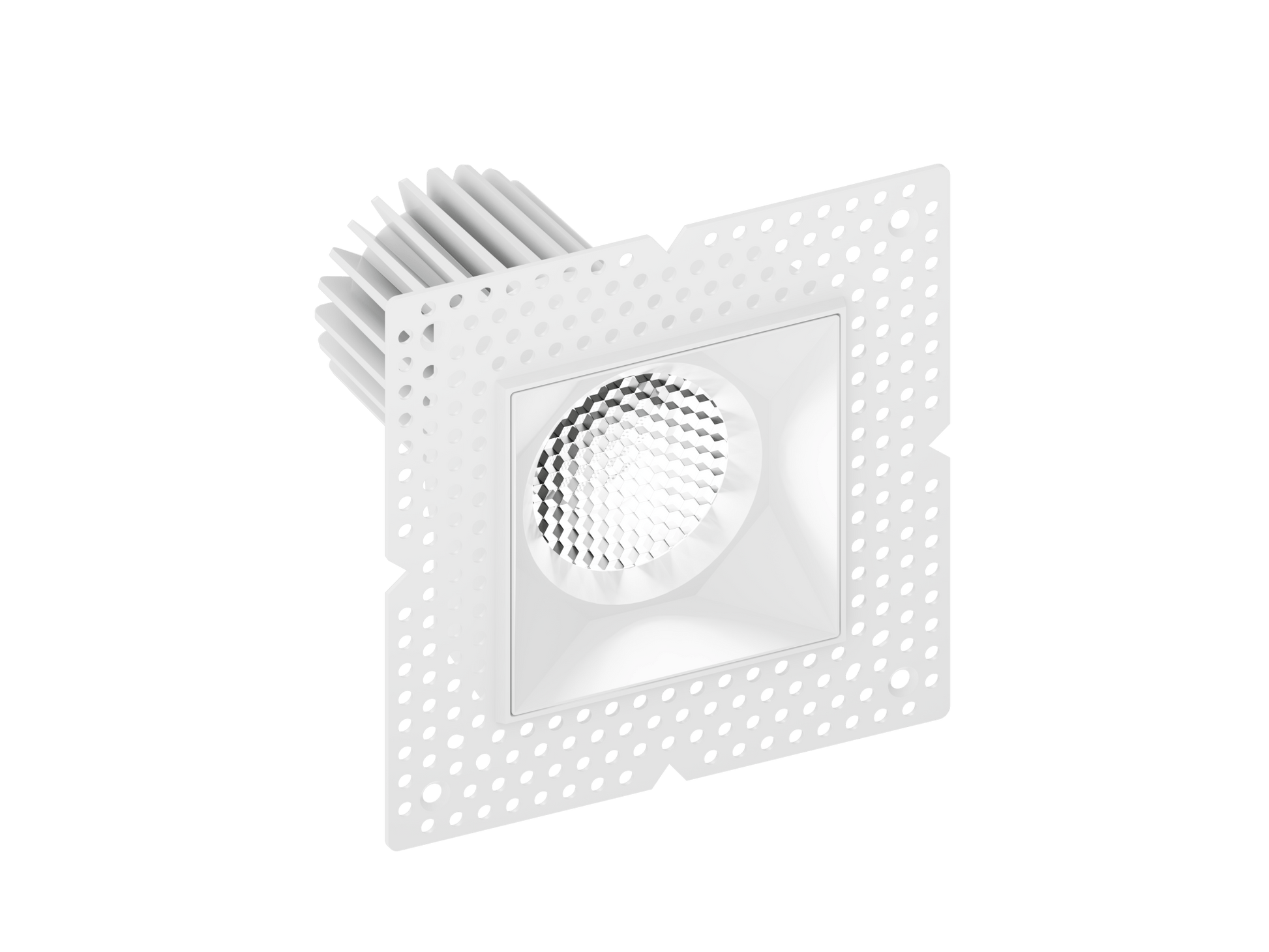

- Versatile Design – Each module includes both a mud-in trimless and trim accessory for flexible installation
- Durable Construction – Sturdy aluminum housing with a high-quality polycarbonate lens.
- Customizable Lighting – 5CCT adjustable color temperature (2700K–5000K) to suit any ambiance.
- High Performance – Lumen output up to 1520 lumens for bright and efficient lighting.
- Smooth Dimming – Compatible with most TRIAC/ELV dimmers for precision control.
- Reliable & Safe – cETLus Listed for wet locations, JA8 Compliant, IC-rated, and air-tight for energy efficiency.
- Long-Lasting – Rated for 50,000 hours of use, ensuring longevity and reliability.

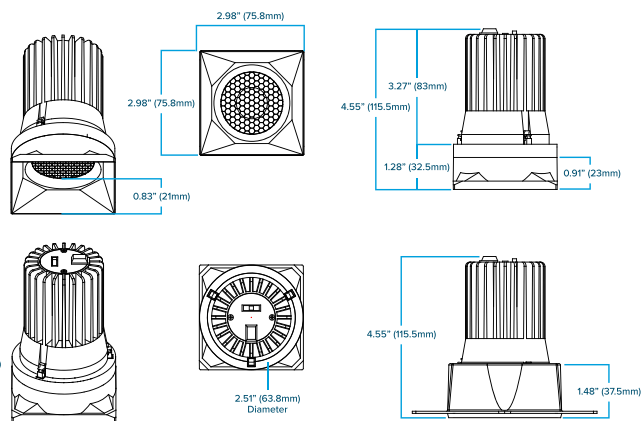

Width Aperture (In.) | 2.95" |
Height (In.) | 4.55" |
Cutout (In.) | 3.375" X 3.3375" |
Spec Sheets
Spec Sheet
Cut Out Template
Installation Instructions
Info
Type | Deep Baffle Square Downlight |
Watt | 15W |
Lumen | 1160 |
Voltage | 120V AC |
Color Temp. | 5CCT (2700K / 3000K / 3500K / 4000K / 5000K) |

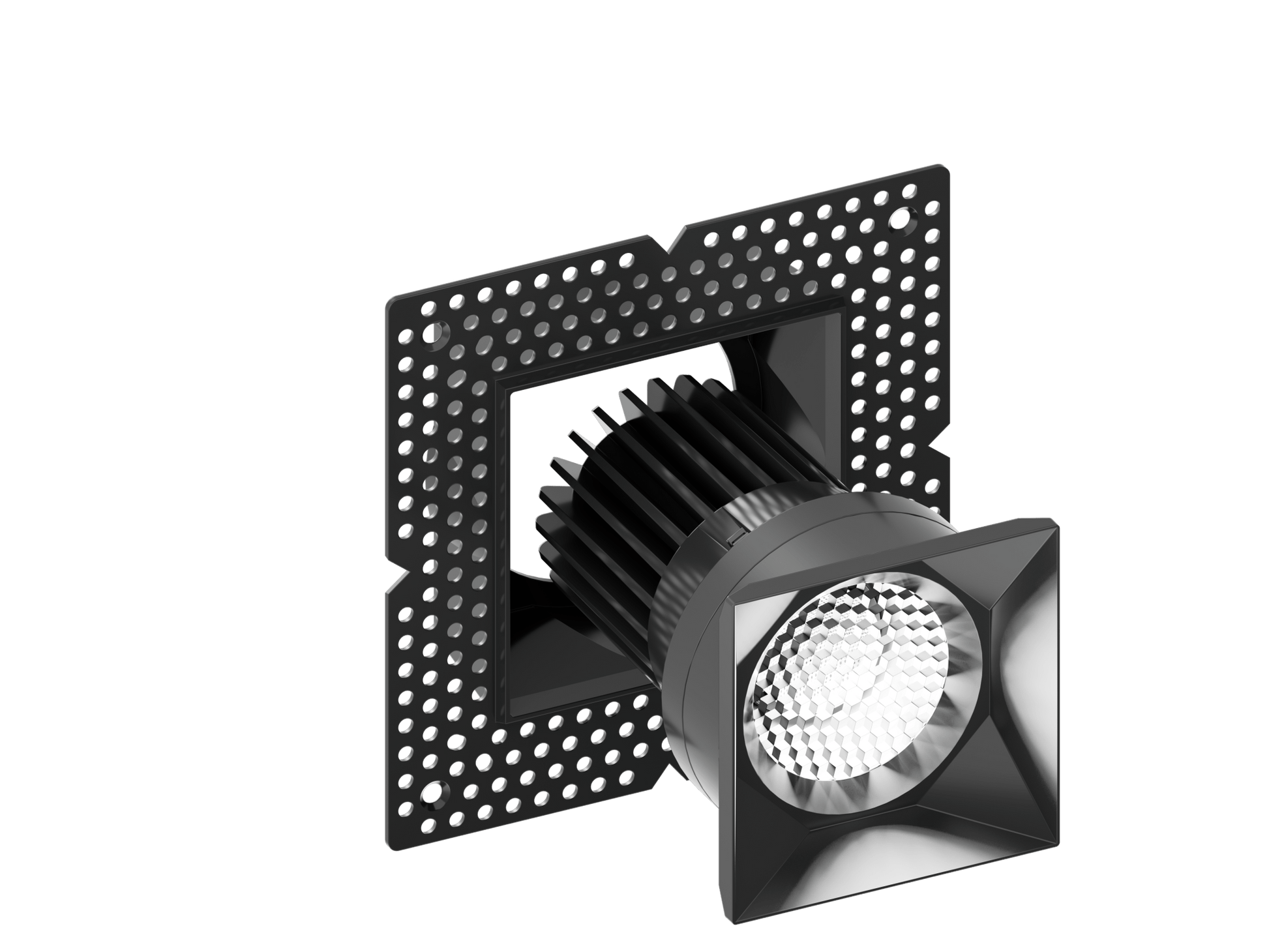

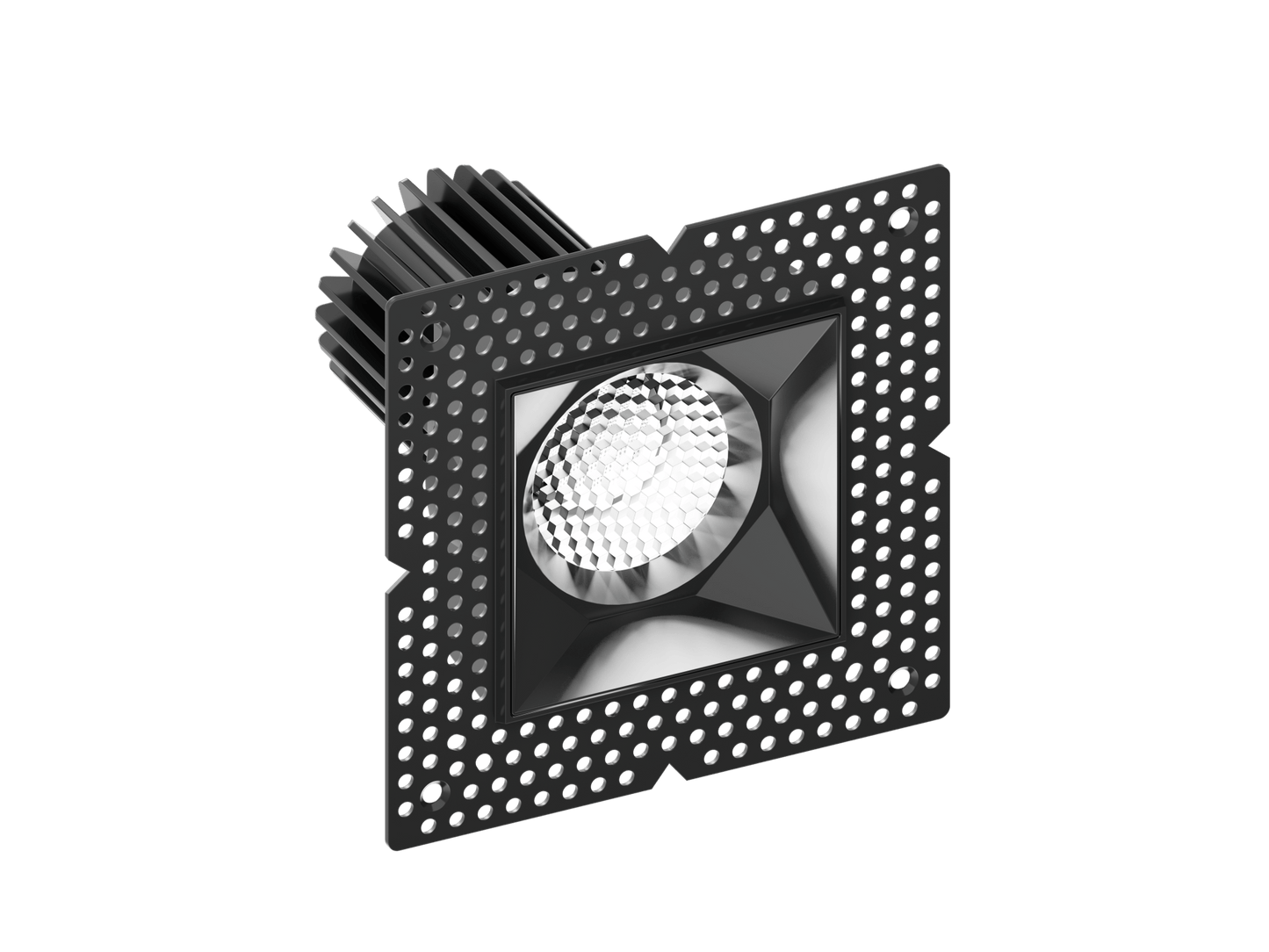

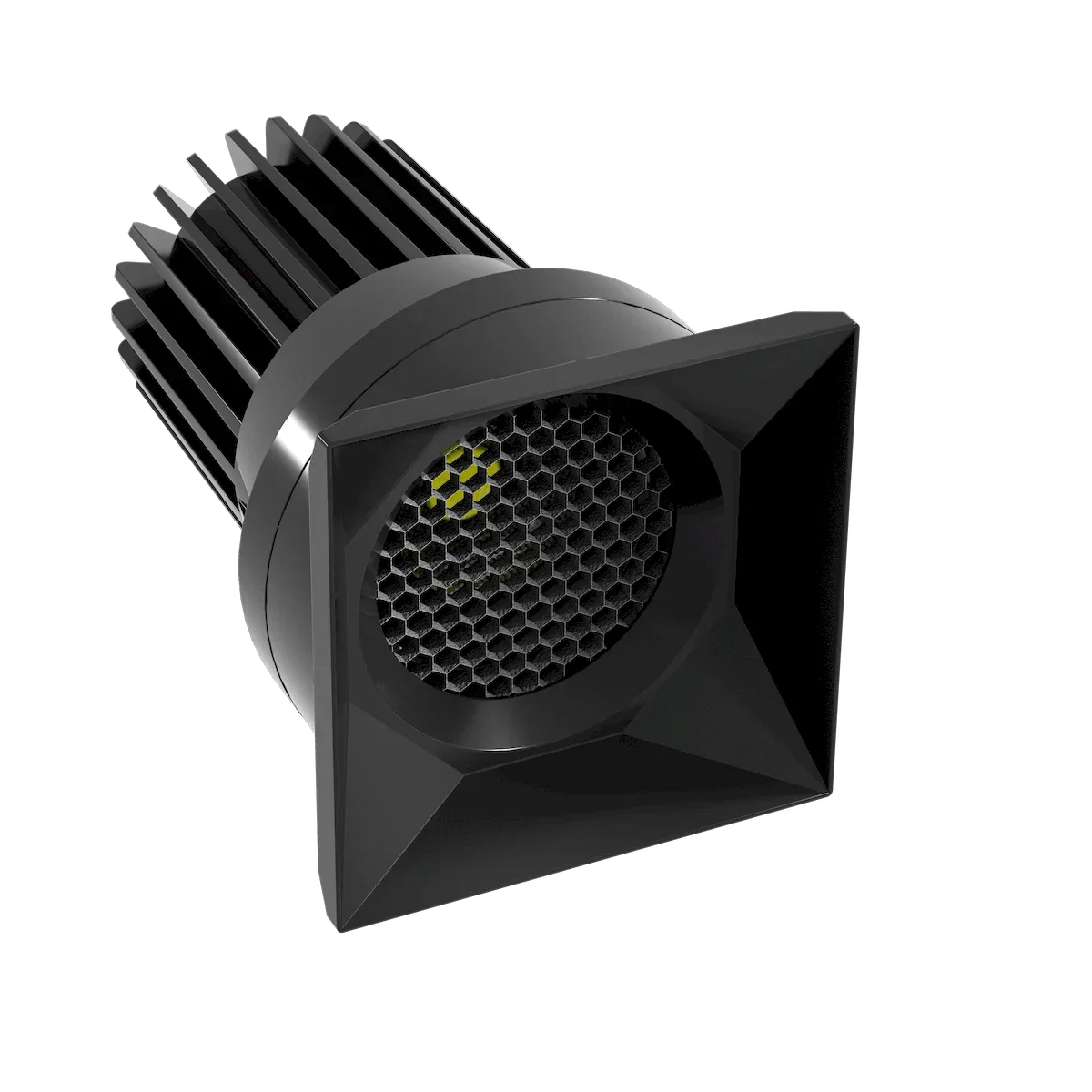

Finish | White, Black |
CRI | 90+ |
Mounting | Recessed |
Dimmable | TRIAC/ELV (10 - 100%) |
Beam Angle | 36º Beam Angle (Included 24°/60°) |
Additional Info
Location | Wet Location |
Listings | cETLus Listed, FCC, JA8, |
IC Rating | IC Rated |
