American Lighting

American Lighting SGL4 1-4W Round LED Step Light 12V DC

American Lighting SGL4 1-4W Round LED Step Light 12V DC

$20.43
$20.43
Sale Sold out
Shipping calculated at checkout.
Size
Trim Color
Color Temperature

SGL4 Round LED Step Light 30K Black and White Trim Included

Easy to install with 12V DC operation, the SGL4 12V round series feature two size and recessed and surface mount installation. Each fixture includes both white and black faceplates for design options as well as easy to change faceplates featuring removable hood scoops.

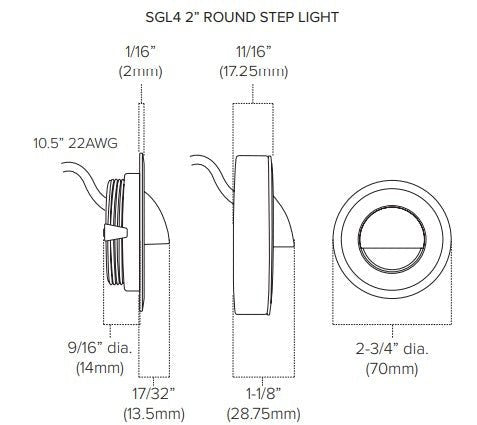

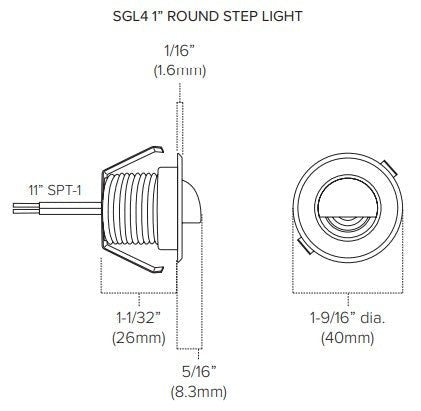

 Dimensions
1" Model 2" Surface Mount 2" Recessed Mount
Width (In.) 1.5625"
 2.75" 2.75"
Depth (In.) 1.875" 11/16"
 9/16"
Trim Depth (In.) 1/16" 11/16"
 1/16"
Depth with Scoop (In.) 5/16" 1.125" 17/32"
  • 12V DC voltage input
  • 3000K Color temperature with 90+ CRI
  • Features all-in-1 LED module with included faceplates (Back & White)
  • Dimmable with most TRIAC dimmers and 12V power supplies (10-100%)
  • Surface or recessed mount design for added installation flexibility
  • Light module rated for outdoor wet locations (IP65)
  • cETLus Listed for indoor and outdoor use
  • 30,000 hours rated life


      Spec Sheet

      Spec Sheet

      Installation Instructions

      Info
      Voltage 12V DC
      Watt 1W-4W
      Lumen Up to 18Lm (SGL4-RD1) / 110Lm (SGL4-RD2)
      CRI 90+
      Color Temp. 30K
      Beam Angle 30° (SGL4-RD1)
      Mounting Surface / Recessed Mount
      Dimming TRIAC (10-100%)
      Life Hours 30,000 Hours
      Color Black/White both included
      Rating cETLus Listed
      Location Wet Location


      Additional Info
      Part Number Description Watt Lumen
      SGL4-12-30-RD1 1” Round Step Light 1W 15Lm (BK) / 18Lm (WH)
      SGL4-12-30-RD2 2” Round Step Light 2W 70Lm (BK) / 110Lm (WH)

      Dimming-TRIAC (10-100%)

      Color Temp.- 30K



      Part Number Recessed Hole Size
      		 Surface Mount
      SGL4-12-30-RD1 1-3/8” (35mm) Diameter N/A
      SGL4-12-30-RD2 2-1/4” (60mm) Diameter 20mm hole offset by 10mm of center
