American Lighting

American Lighting SGL4 2W LED Horizontal/Vertical Step Light 30K

American Lighting SGL4 2W LED Horizontal/Vertical Step Light 30K

Regular price $75.15
Regular price Sale price $75.15
Sale Sold out
Shipping calculated at checkout.
Mounting
Style
Color Temperature

SGL4 2W LED Step Light 30K Black and White Trim Included

Available in a 3000K warm white light, the SGL4 120V step lights are available in multiple trim styles featuring vertical and horizontal mounting options. Each fixture includes white and black faceplates for design flexibility and mounts to most standard junction boxes for easy installation

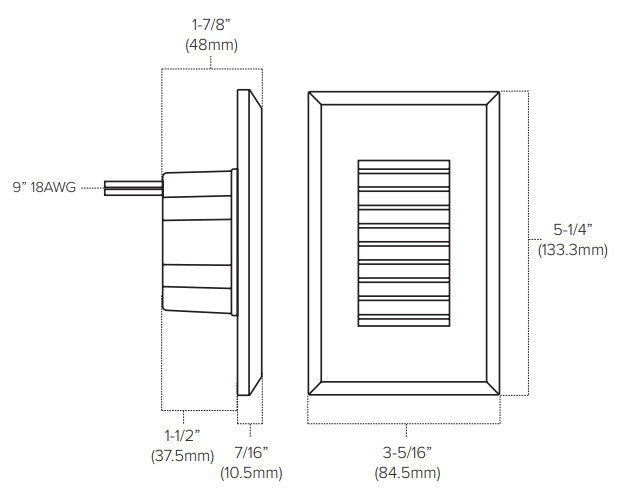

 Dimensions
Length (In.) 5.250"
Width (In.) 3.125"
Depth (In.) 1.875"
Trim Depth (In.) 7/16"
  • 120V AC voltage input
  • 3000K Color temperature with 90+ CRI
  • Features all-in-1 LED module with included faceplates (Back & White)
  • Light module rated for outdoor wet locations (IP65)
  • Dimmable with most TRIAC dimmers (10-100%)
  • No rough-in kit required - mounts to most standard single gang junction box
  • cETLus Listed for indoor and outdoor use
  • 30,000 hours rated life
  • Black and White trim is included for flexibility
  • Open Trim can be used both Vertically or Horizontally


      Spec Sheet

      Spec Sheet

      Installation Instructions

      Info
      Watt 2W
      Lumen Up to 68Lm
      CRI 90+
      Color Temp. 30K
      Mounting Wall Mount (Standard single gang junction box)
      Dimming TRIAC / CL / LED (10-100%)
      Life Hours 30,000 Hours
      Color Black/White both included


      Additional Info
      Part Number Description Lumen

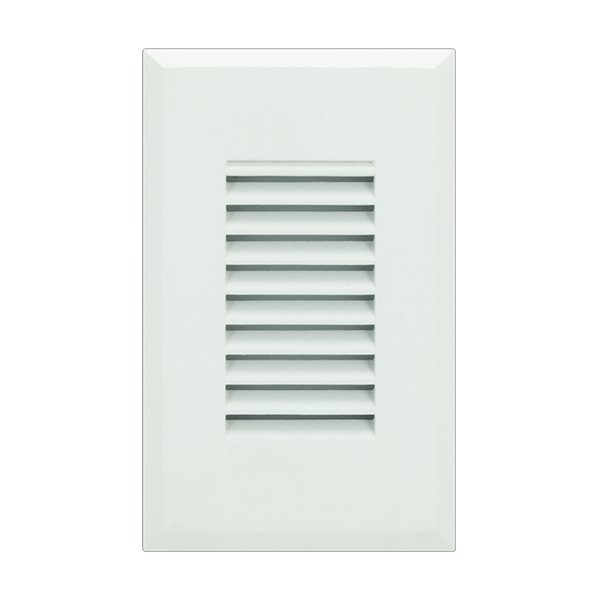

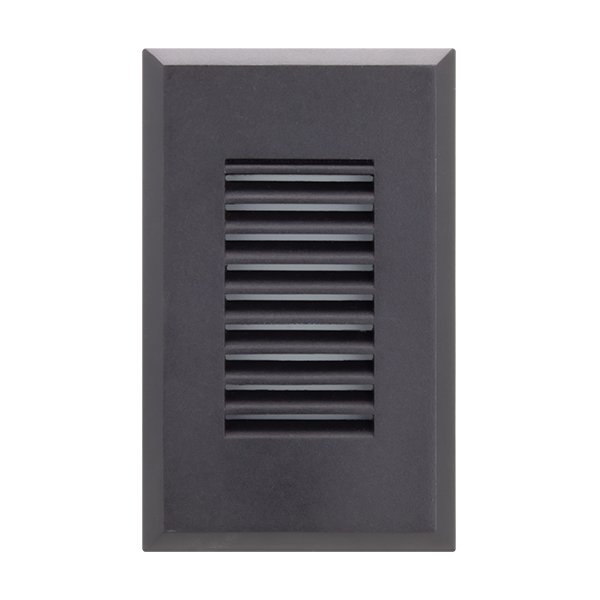

      SGL4-120-30-VL Vertical Louver 9Lm (BK) / 6Lm (WH)

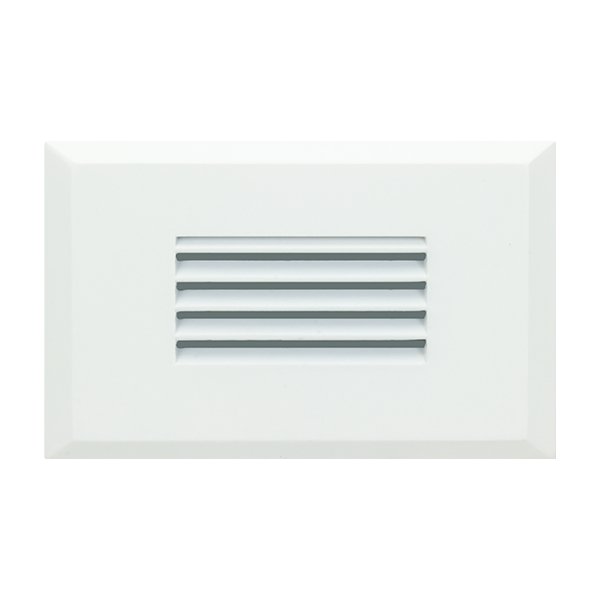

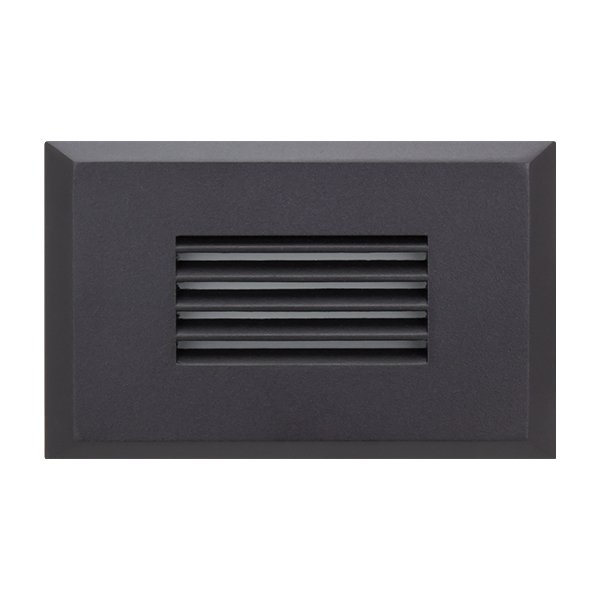

      SGL4-120-30-HL Horizontal Louver 9Lm (BK) / 13Lm (WH)

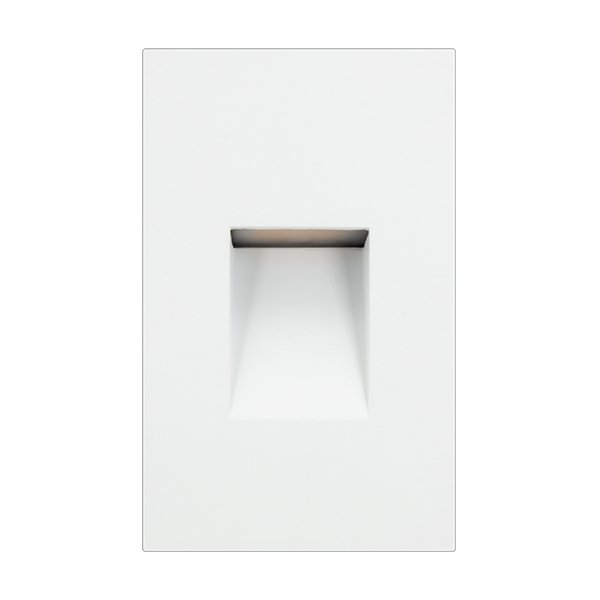

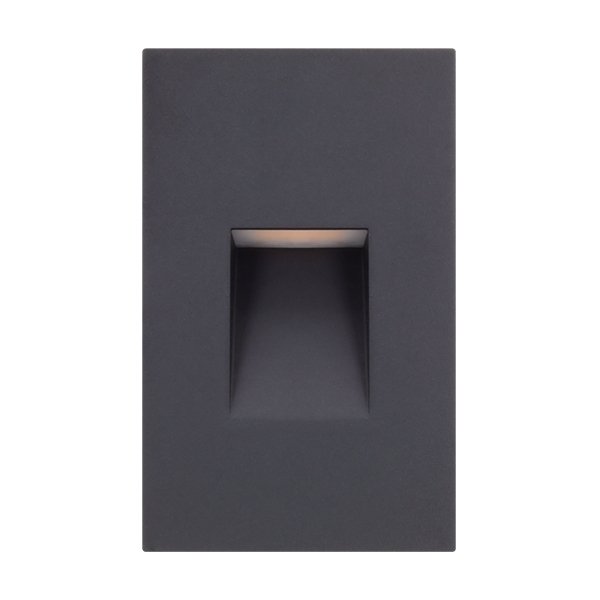

      SGL4-120-30-VS Vertical Slot 36Lm (BK) / 60Lm (WH)

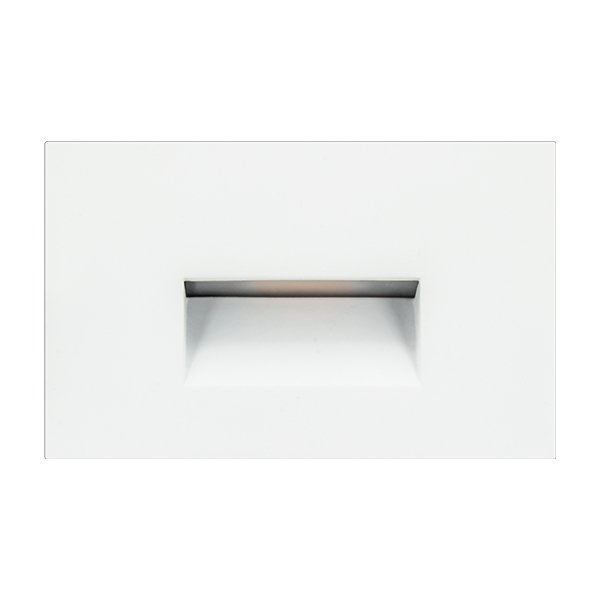

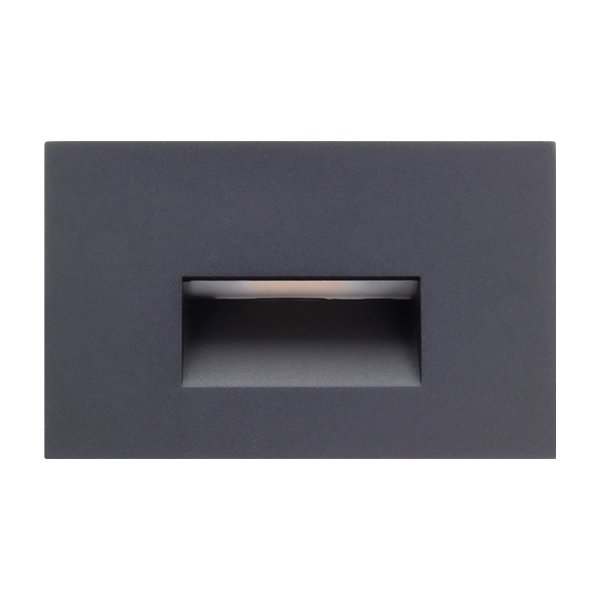

      SGL4-120-30-HS Horizontal Slot 43Lm (BK) / 68Lm (WH)

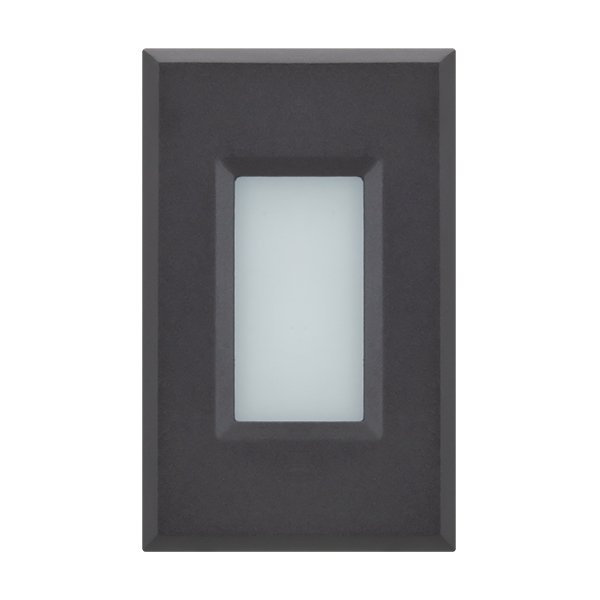

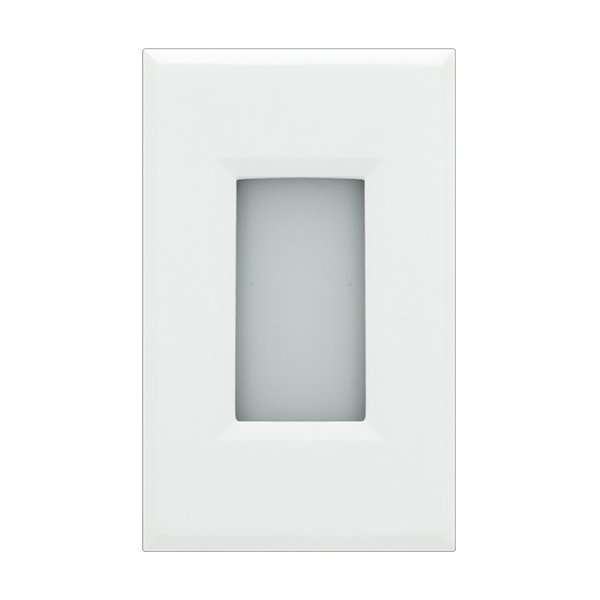

      SGL4-120-30-OW Open Window 30Lm (BK) / 30Lm (WH)

      Dimming-TRIAC / CL / LED (10-100%)

      Color Temp.- 30K



      Listings cETLus Listed
      Location Rating Wet Location
