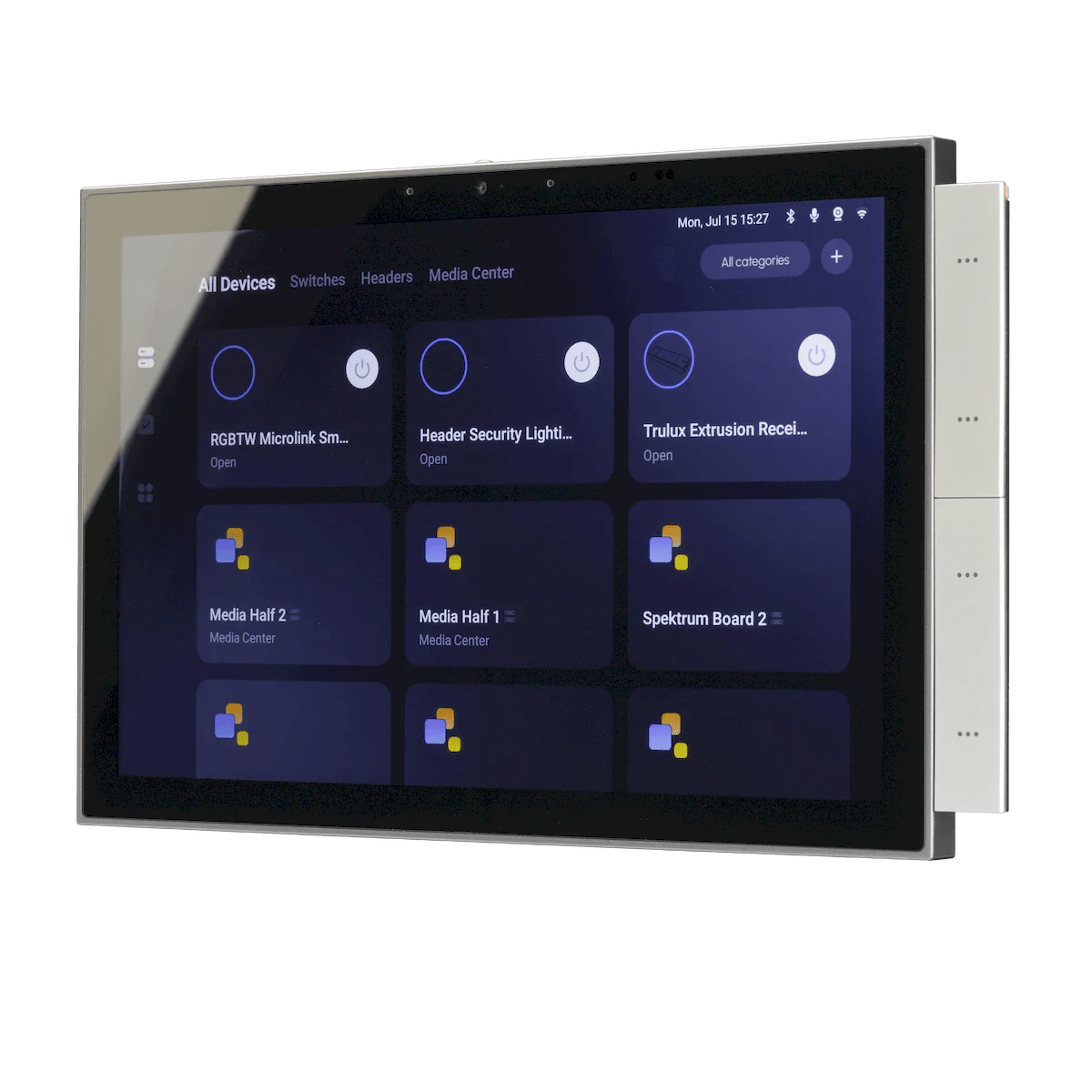

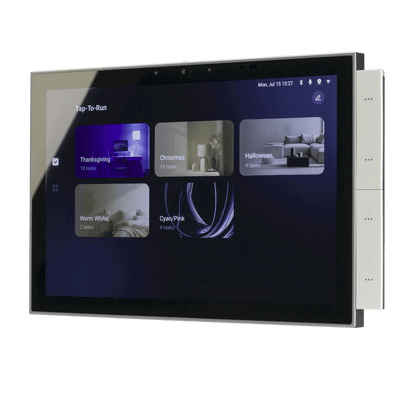

American Lighting SPKPL-CTRL-10 Spektrum+ 10 Inch Touch Screen Wall Mount Control Panel

American Lighting SPKPL-CTRL-10 Spektrum+ 10 Inch Touch Screen Wall Mount Control Panel

Regular price $758.70
Regular price Sale price $758.70
Sale Sold out
Shipping calculated at checkout.

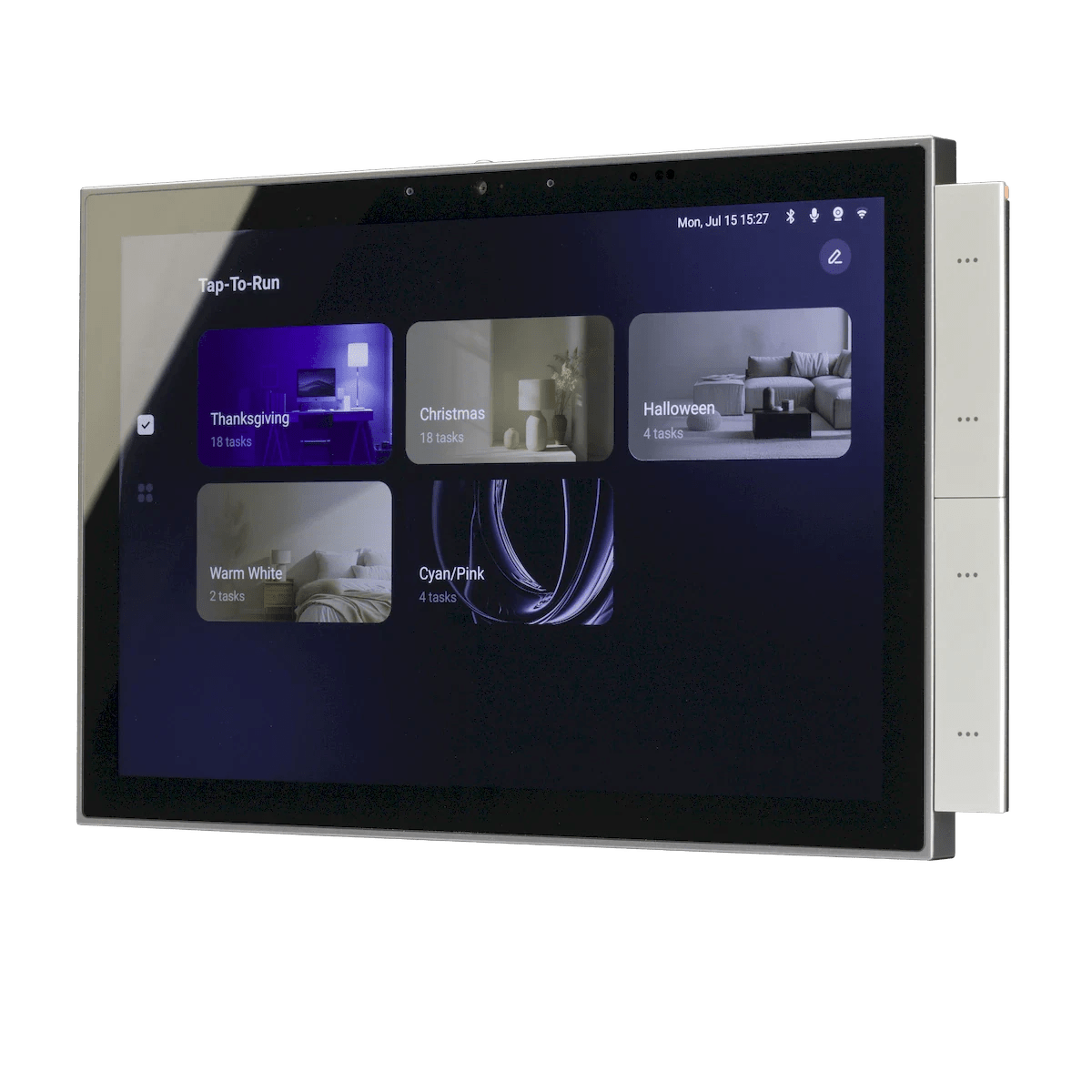

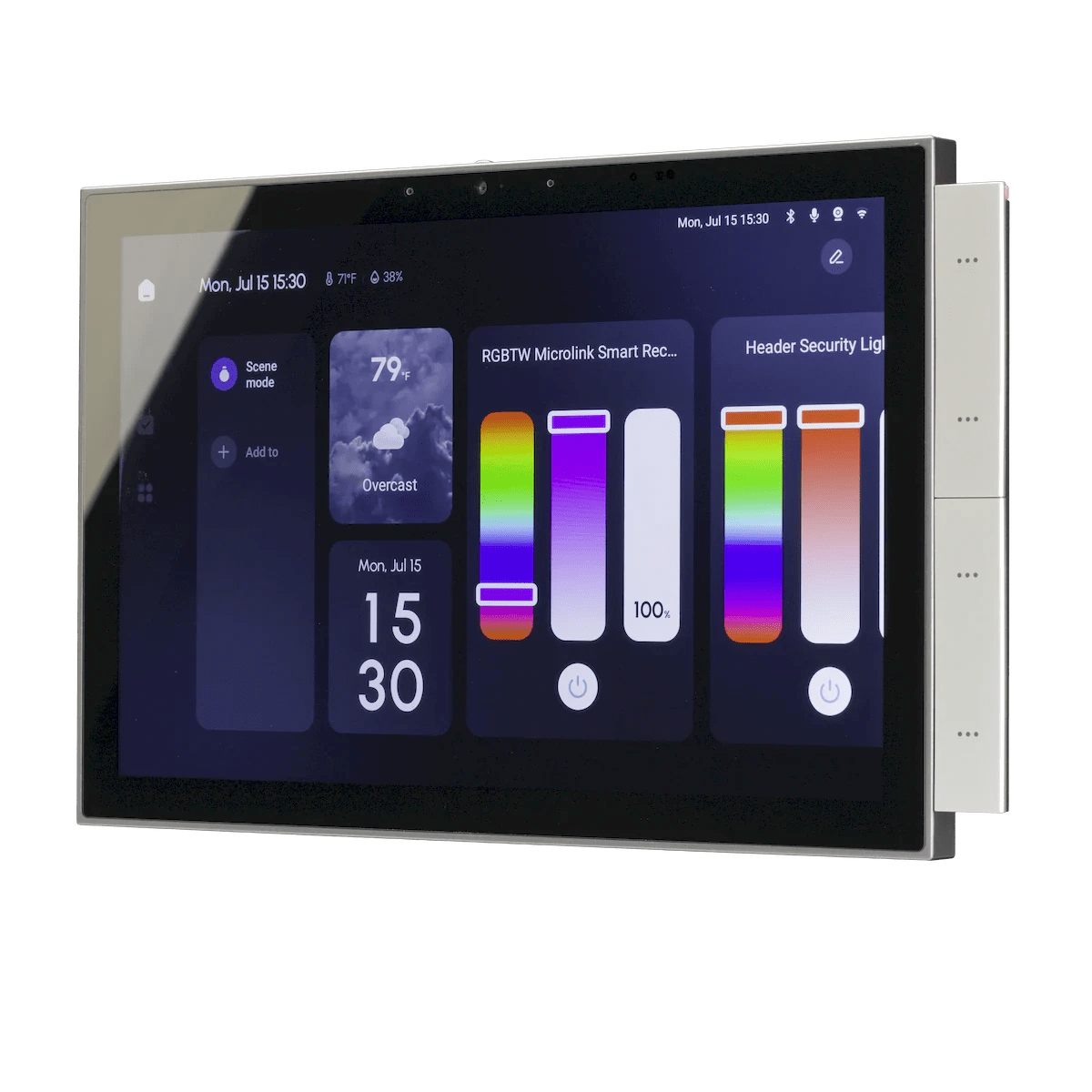

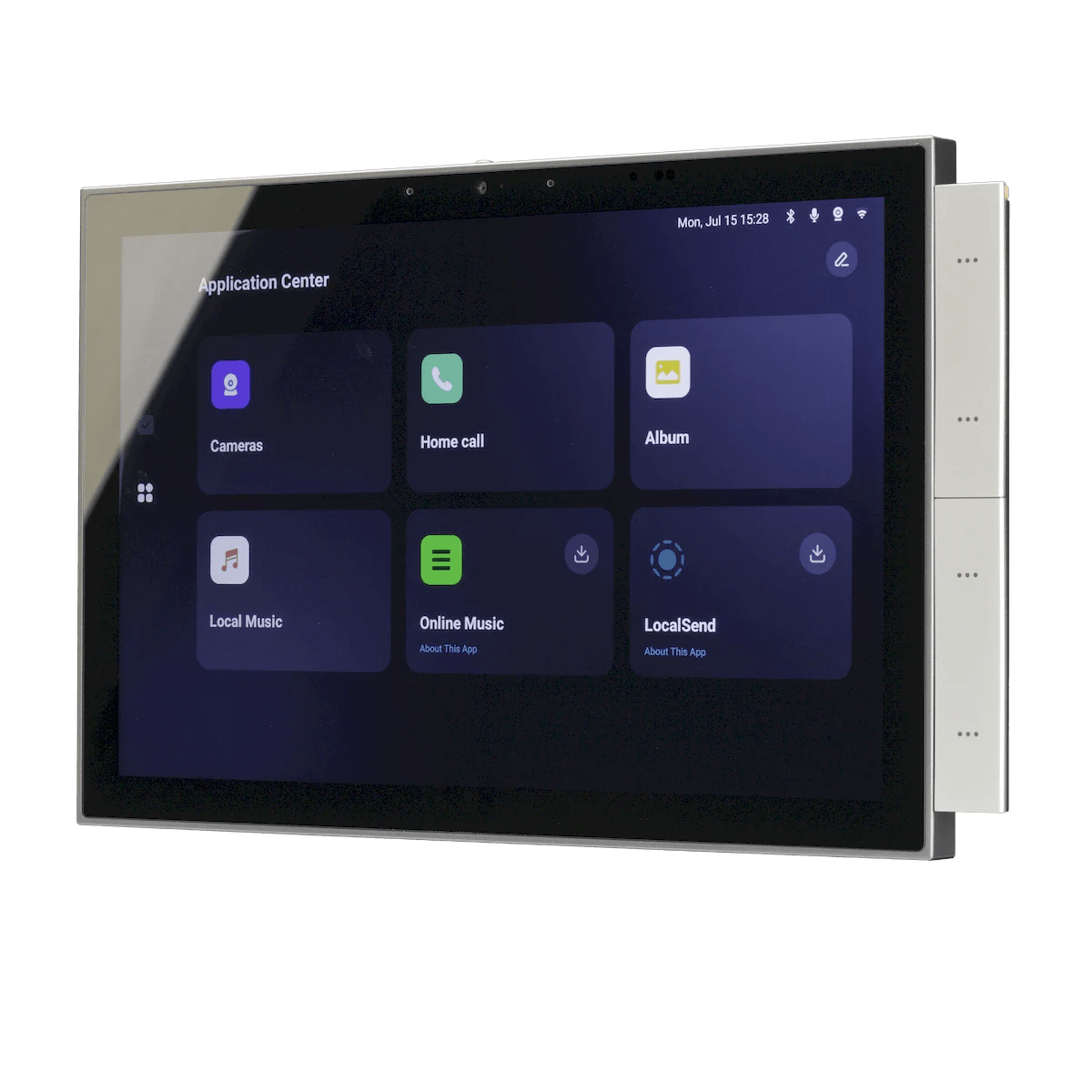

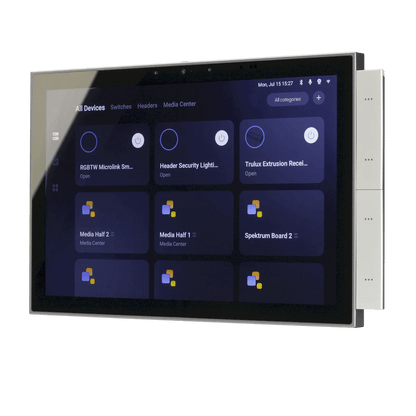

Spektrum+ 10 Inch Touch Screen

The Spektrum+ 10 inch Touch Screen Control Panel is designed to be user-friendly while also taking your smart home to the next level. Also serving as a gateway to control any Spektrum+ products, this control panel gives you the ability to manage entertainment, lighting, and security from a single device via touchscreen, physical buttons, and voice commands.

  • 10 inch touchscreen to provide easy operation
  • Anti-fingerprint coating for a clean, finished look
  • Full control of your Spektrum+ products without your phone
  • Internal gateway with optional RJ45 port for hard line Internet connection instead of WiFi
  • 2 standard on/off switch inputs
  • Spektrum+ Lighting app required for setup
  • Need Help? Check out our library of Spektrum+ videos!
    Spec Sheet

    Spec Sheet

    Instructions

    App



    Info
    Input
    100-240V AC, DC12V1A
    Operating Temp 0°C (32°F) to 40°C (104°F)
    Certifications Indoor - Dry Location
    Working Humidity 5% - 90% RH (non-condensing

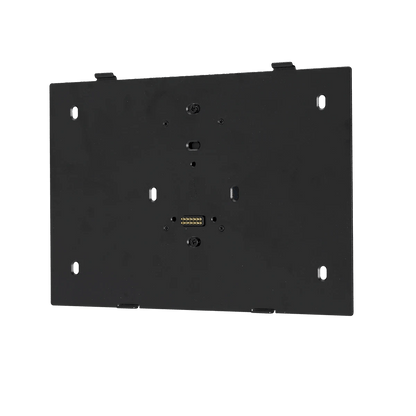

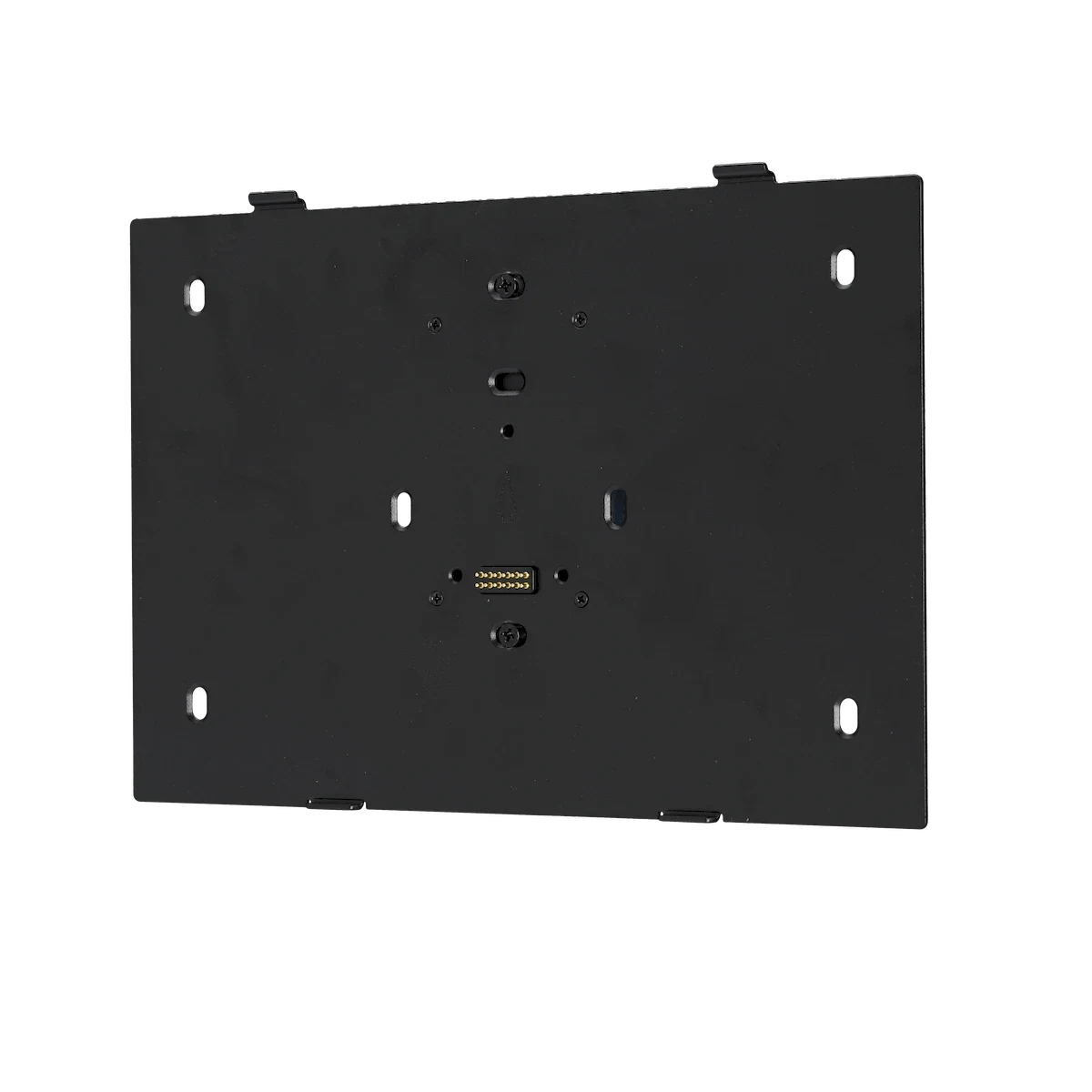

    Mounting Surface mount with wall bracket
    Screen Size 5 IN
    Screen Resolution 1920x1200
    Screen Type
    Multi-touch, Anti-fingerprint
    Audio Communication 2 Microphones, 2 Speaker
    Light Sensing 12C Interface, 16 Bit output
    Proximity Sensing 25º Field of view, 0.02-1m Distance

    Additional Info
    Item Number Description Input Voltage Finish
    SPKPL-CTRL-10 10in Smart Control Panel 100-240V AC Black
