American Lighting

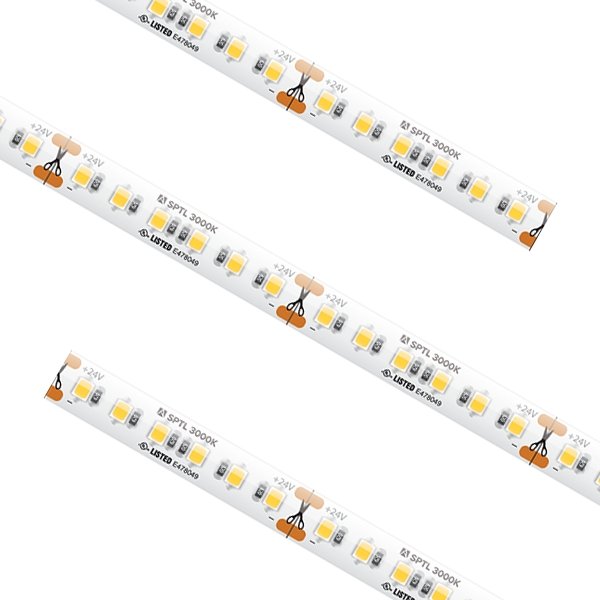

American Lighting SPTL 13FT 7.8W/FT LED Spec Grade Tape Light 27K-40K

American Lighting SPTL 13FT 7.8W/FT LED Spec Grade Tape Light 27K-40K

Regular price $193.41
Regular price Sale price $193.41
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

TruLux®Spec Grade Tape Light

At full brightness, Spec Grade tape light offers up to 525 lumens per foot making for a perfect solution when lighting installs require bright and impactful impressions. The superior light output is best used in large open spaces in both residential and commercial applications and is available in multiple color temps.

  • Excellent color rendering (96+ CRI)
  • Color temperatures available from 2400K to 4000K
  • 280-525 lumens per foot performance
  • Consuming up to 7.8 watts per foot
  • Dimmable with most electronic low voltage (ELV) dimmers
  • Run lengths up to 13.1 feet and cuttable every 1.97"
  • cULus Listed for indoor dry/damp, and wet locations
  • JA8 Compliant
  • 50,000 hours rated life

    13.1ft Reels (IP54) Include: Attached 3ft Lead Wire / (3) TL-CONKIT / (3) TL-BLKS / (3) TL-2PWR-HD

    Spec Sheet

    Spec Sheet

    Installation Instructions



    Info

    Dimensions
    Weight 1.2 LBs
    Length 156.10"
    Width 0.39" (10mm)
    Light Source
    Delivered Lumens 280-525
    Dimmable TRIAC / ELV (5 - 100%)
    Expected Life Span (Hours) 35,000 Hours
    Light Source LED
    Wattage 7.8W/FT
    Mounting/Installation
    Interior/Exterior Interior
    Location Rating IP54 - Damp Location
    Cuttable Every 1.97"
    Certifications cETLus Listed - Dry/Damp Location
    Photometrics
    Color Rendering Index 96+
    Kelvin Temperature 27K/30K/40K
    Additional Info
    PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING
    SPTL-UWW-13 2700K 96+ 7.8W/ ft 485Lm/ft 13.1ft IP54 - Damp
    SPTL-WW-13 3000K 96+ 7.8W/ ft 495Lm/ft 13.1ft IP54 - Damp
    SPTL-WH-13 4000K 96+ 7.8W/ ft 525Lm/ft 13.1ft IP54 - Damp
    Accessories
    TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
    TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
    TL-2PWR-HD 6’ HD Power Feed (IP54)
    TL-2JUMP6-HD 6” HD Linking Cable
    TL-2JUMP24-HD 24” HD Linking Cable
    TL-2SPL-HD HD Tape to Tape Splice Connector
    TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
    WIRE-15-2PIN 15ft (20/2) Wire Spool
    WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
    INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
    LVSB-2PIN In-Line Splice Terminal Block
    RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
