American Lighting

American Lighting SPTL-TW 13FT 7W/FT 24V LED High Output Tunable Tape Light 27K-60K

American Lighting SPTL-TW 13FT 7W/FT 24V LED High Output Tunable Tape Light 27K-60K

$213.75
$213.75
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

TUNABLE CCT SPEC GRADE

Need custom color temperature lighting at the turn of a dial? Tunable CCT series is a great option when on the fly color adjustment is a must, or when single CCT options just wont cut it. Adjust color temps from 2700K to 6000K and everything in between to create elegant lighting catered to times of day or application setting. This is best used as general lighting in a room as it has a high output of 7W/FT

  • Dynamic white color tuning 2700K up to 6000K with 94+ CRI
  • Adjust and blend color temperatures for the perfect dynamic white setting
  • Lumen output up to 510Lm per foot while consuming only 7W per foot
  • Dimmable color blending via DMX Tunable CCT Controller
  • Compatible with most third party DMX controls

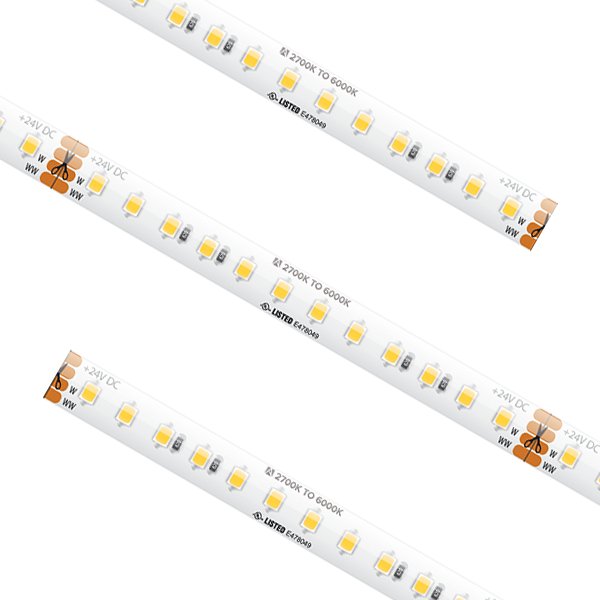

  • Run lengths up to 13.1 feet and cuttable every 3.94"
    Attached 3ft Lead Wire / (3) TL-4PWR-HD

    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info

    Dimensions
    Weight 1.50 LBs
    Length 156"
    Width 0.39" (10mm)
    Light Source
    Delivered Lumens 510
    Dimmable Yes 5-100%
    Expected Life Span (Hours) 50,000
    Light Source LED
    Wattage 7 W/FT
    Mounting/Installation
    Interior/Exterior Interior
    Location Rating IP54 - Damp Location
    Cuttable Every 3.94"
    Photometrics
    Color Rendering Index 90
    Kelvin Temperature Selectable CCT
    Additional Info
    ITEM NUMBER LENGTH CCT WATTAGE CUTTABLE MAX RUN IP RATING
    SPTL-TW 13.1ft 2700K-6000K 7 watts/ft 3.94" 13.1ft IP54
    Accessories
    TL-4PWR-HD 6" HD Power Feed
    TL-4SPL-HD HD Tape to Tape Splice Connector
    TL-4JUMP6-HD 6" HD Linking Cable
    TL-4JUMP24-HD 24" HD Linking Cable
    WIRE-15-4PIN 15ft (20/4) Wire spool
    RCWY-PVC-1M
    1m Plastic Wire Cover Raceway
    INLINE-TW-CTRL
    Simple Select In-line Controller (Tunable)
    REC-DMX-RJ45A-5CH Trulux 5-Channel DMX Receiver / Decoder
    CTRLW-DMXB-TW-4Z Wall Mount DMX Tunable White Control Touch Panel
