• AML-SPTLX-UWW-13American Lighting SPTLX 13FT 7W/FT LED Spec Ultra Tape Light 27K-40K
1 1

American Lighting

American Lighting SPTLX 13FT 7W/FT LED Spec Ultra Tape Light 27K-40K

American Lighting SPTLX 13FT 7W/FT LED Spec Ultra Tape Light 27K-40K

$224.73
$224.73
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

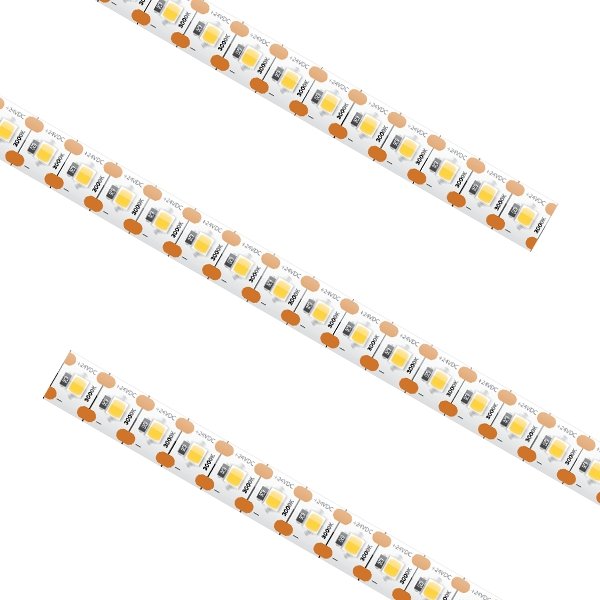

TruLux®Spec Ultra Tape Light

You asked. We listened. The all new Spec Ultra series features the same great quality of our traditional spec grade tape light, but we gave it a little boost. Featuring up to 650 lumens per foot and 90+ CRI performance, Spec Ultra features a "One LED - One Cut" design that allows for ultra precise cut increments for the more complex linear lighting applications.

  • Ultra bright, ultra precise - One LED, One Cut tape light option
  • Lumen output ranging from 550Lm to 650Lm per foot
  • Cuttable every 0.33” with 13.1ft max run
  • Available in 2700K, 3000K, 3500K, and 4000K
  • 90+ color rendering index
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 30,000 hours rated life / 5-year limited warranty

      13.1ft Reels (IP54) Include: Attached 3ft Lead Wire / (3) TL-CONKIT / (3) TL-BLKS / (3) TL-2PWR-HD

      Spec Sheet

      Spec Sheet

      Installation Instructions



      Info

      Dimensions
      Weight 1.2 LBs
      Length 156.10"
      Width 0.39" (10mm)
      Light Source
      Delivered Lumens 550-650
      Dimmable TRIAC / ELV (5 - 100%)
      Expected Life Span (Hours) 30,000 Hours
      Light Source LED
      Wattage 7W/FT
      Mounting/Installation
      Interior/Exterior Interior
      Location Rating IP54 - Damp Location
      Cuttable Every 0.32"
      Certifications cETLus Listed - Dry/Damp Location
      Photometrics
      Color Rendering Index 90+
      Kelvin Temperature 27K/30K/35K/40K



      Recommended: In commercial applications, solder all connection points. ALWAYS mount via an aluminum extrusion to allow proper dissipation of heat

      Additional Info
      PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING
      SPTLX-UWW-13 2700K 90+ 7W/ft 550Lm/ft 13.1ft IP54 - Damp
      SPTLX-WW-13 3000K 90+ 7W/ft 600Lm/ft 13.1ft IP54 - Damp
      SPTLX-WW-13 3500K 90+ 7W/ft 620Lm/ft 13.1ft IP54 - Damp
      SPTLX-WH-13 4000K 90+ 7W/ft 650Lm/ft 13.1ft IP54 - Damp
      Accessories
      TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
      TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
      TL-2PWR-HD 6’ HD Power Feed (IP54)
      TL-2JUMP6-HD 6” HD Linking Cable
      TL-2JUMP24-HD 24” HD Linking Cable
      TL-2SPL-HD HD Tape to Tape Splice Connector
      TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
      WIRE-15-2PIN 15ft (20/2) Wire Spool
      WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
      INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
      LVSB-2PIN In-Line Splice Terminal Block
      RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
