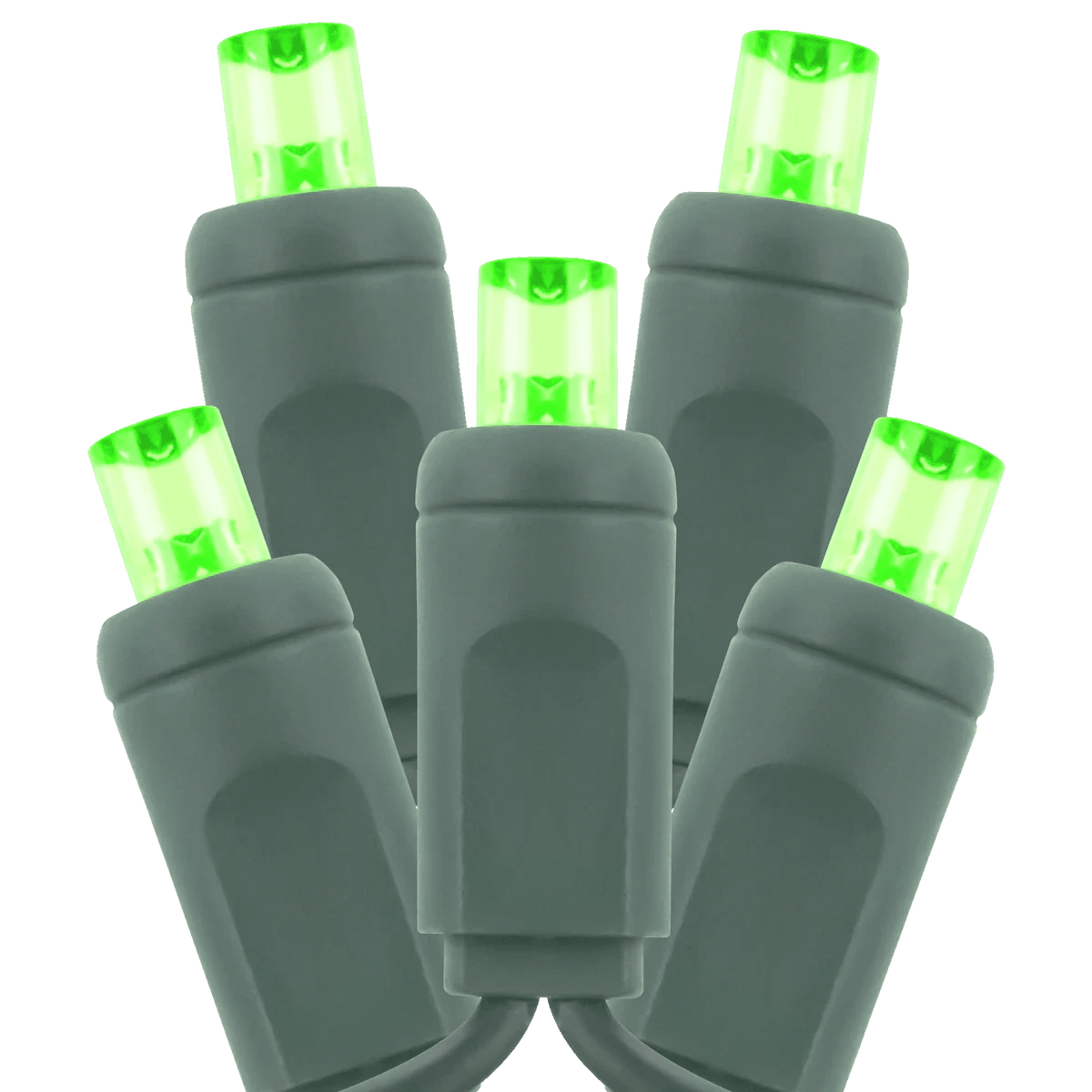

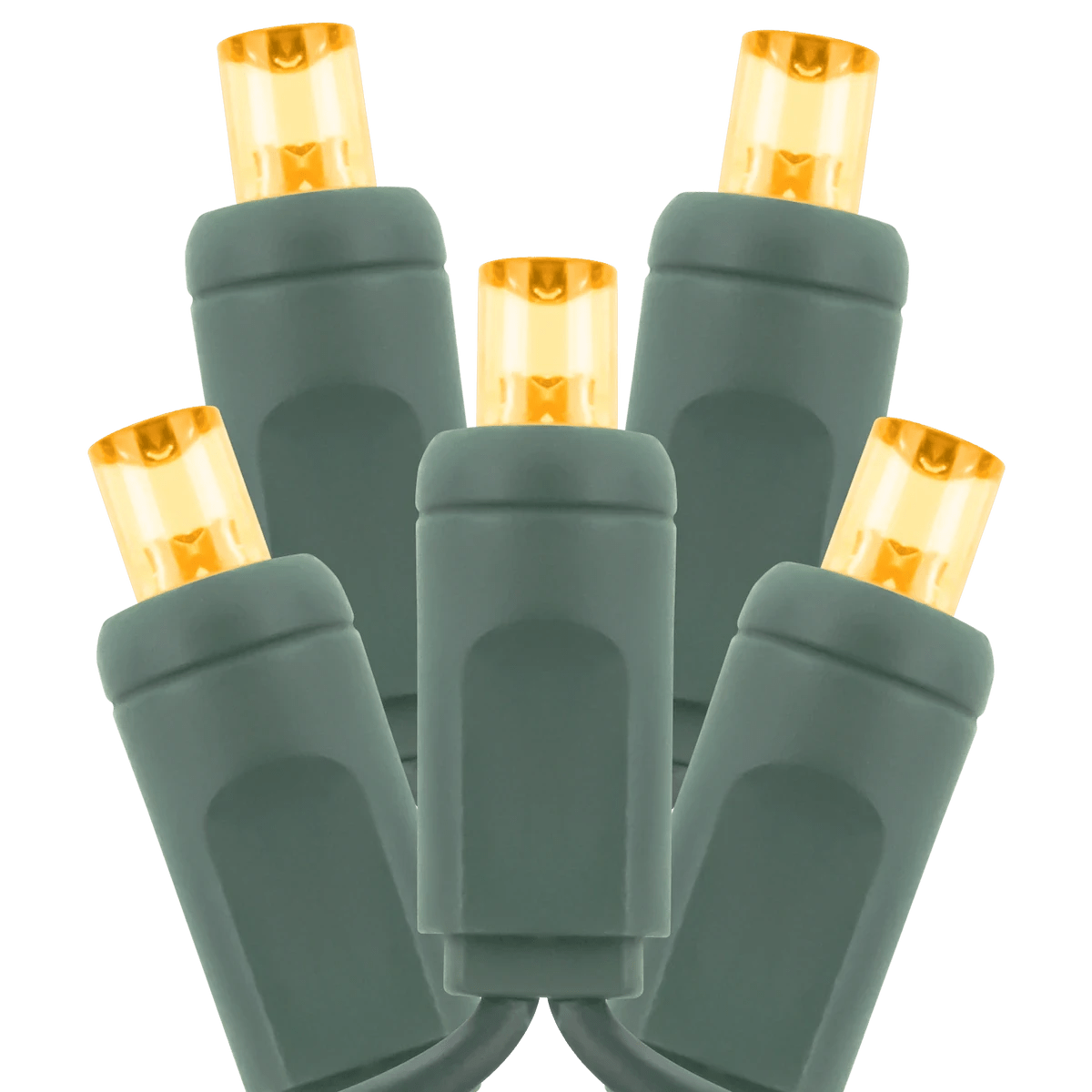

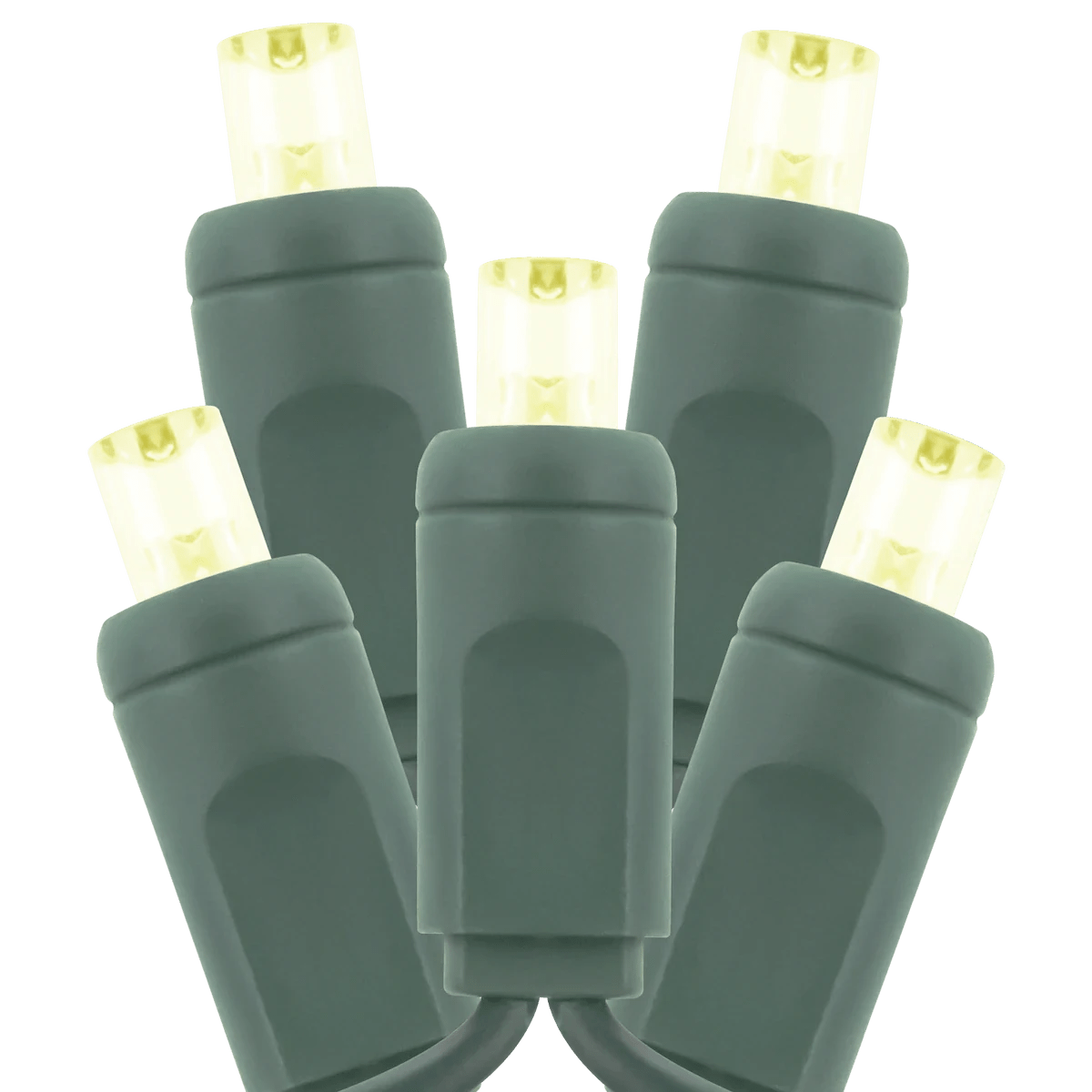

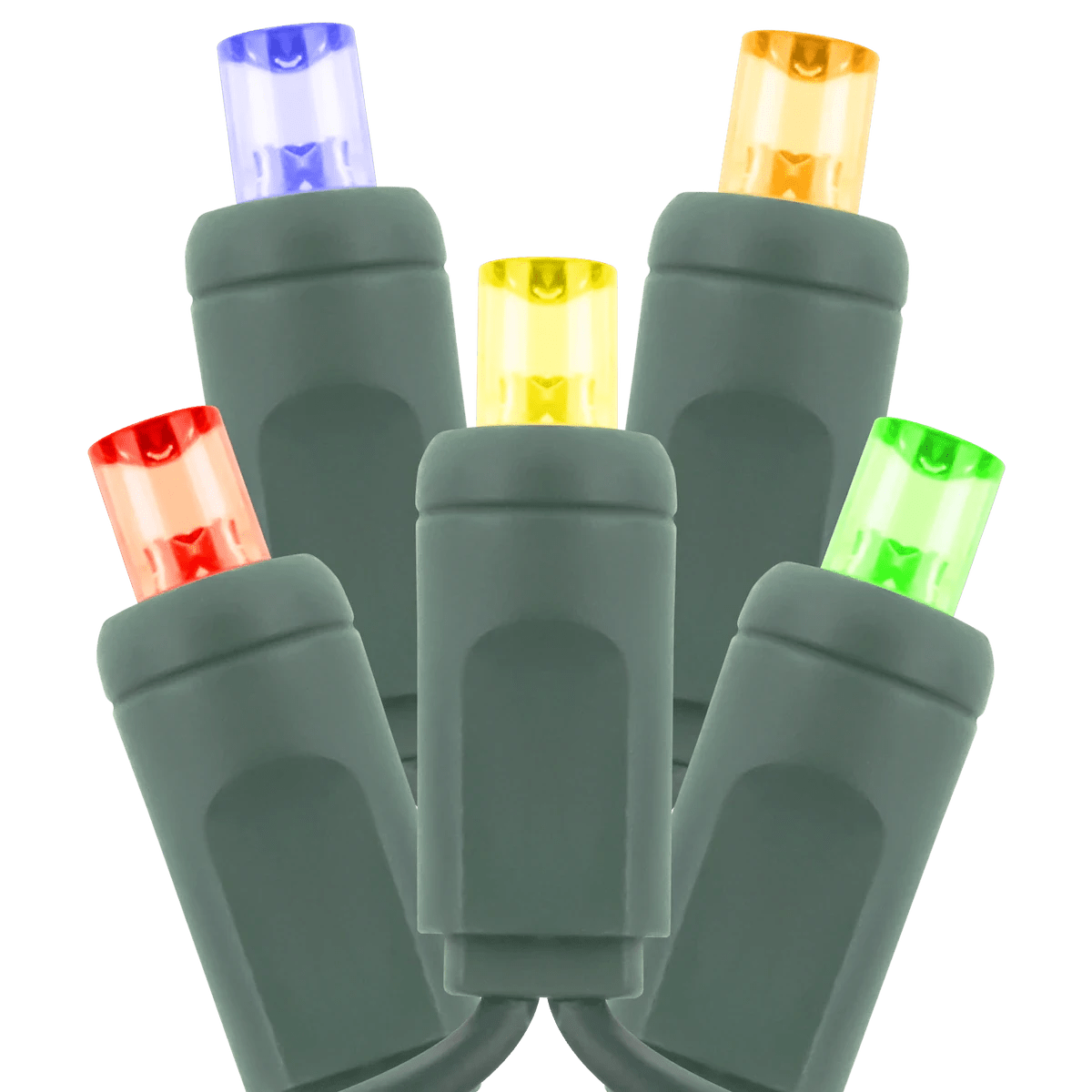

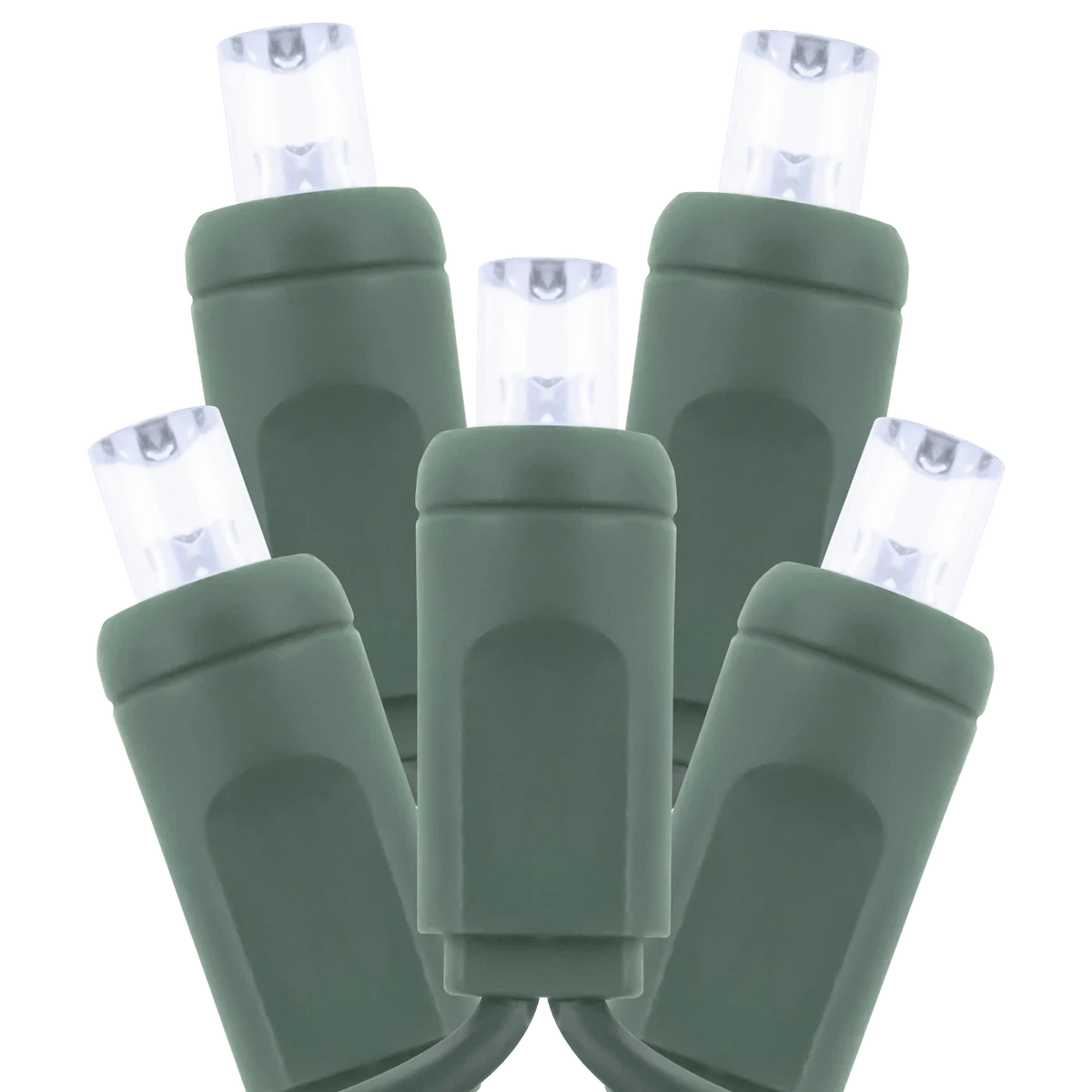

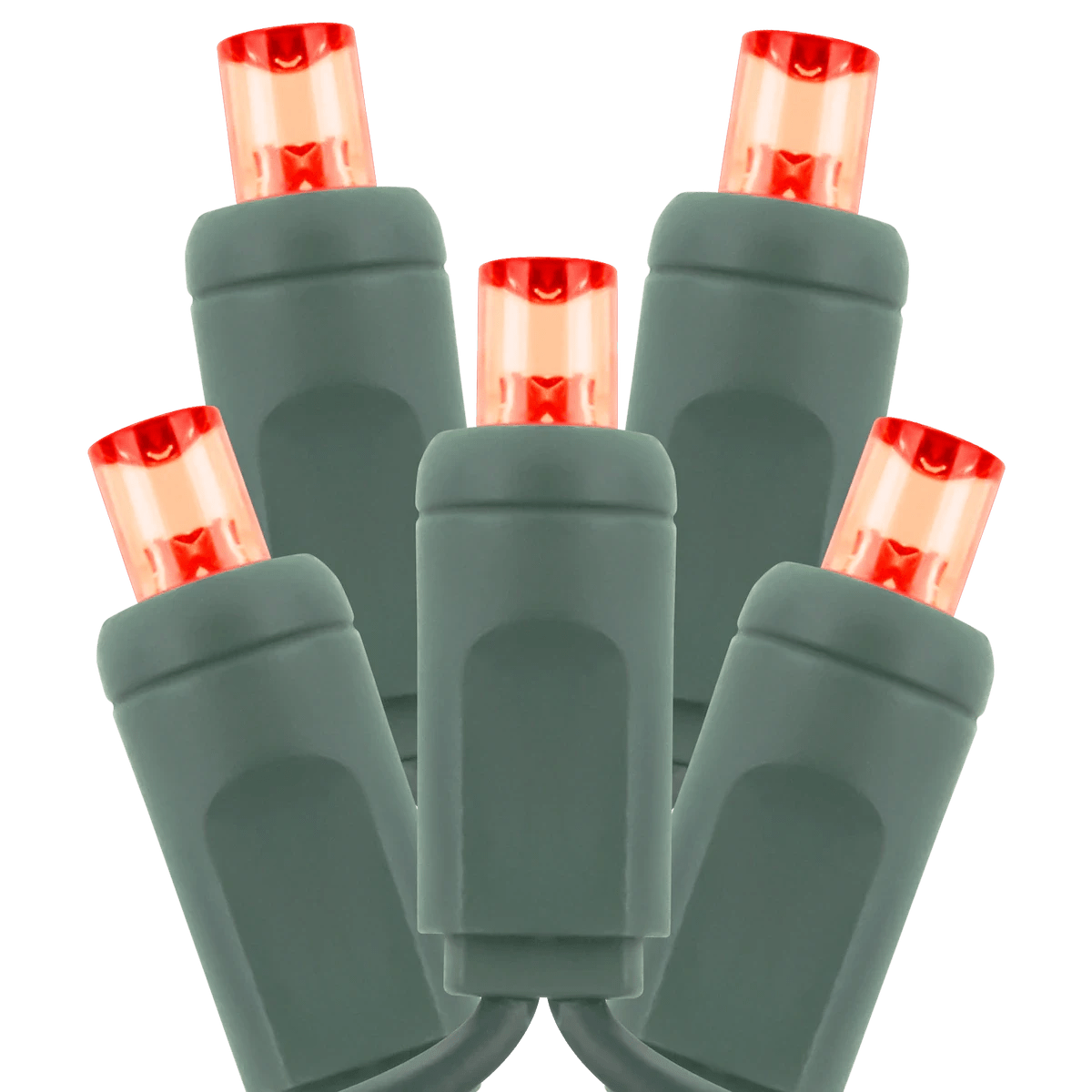

5MM Light String

This lens is 5MM tall with an inverted cone at the top of the lens that disperses the very directional light from the LEDs to more closely approximate the sparkle of incandescent mini lights. Our most popular lens type is offered in 8 different colors and features commercial coaxial connections for all season use.

Up to 90% energy savings over incandescent light string
Max run of 240 watts for 50/6 strings and 420 watts for 25/6 strings

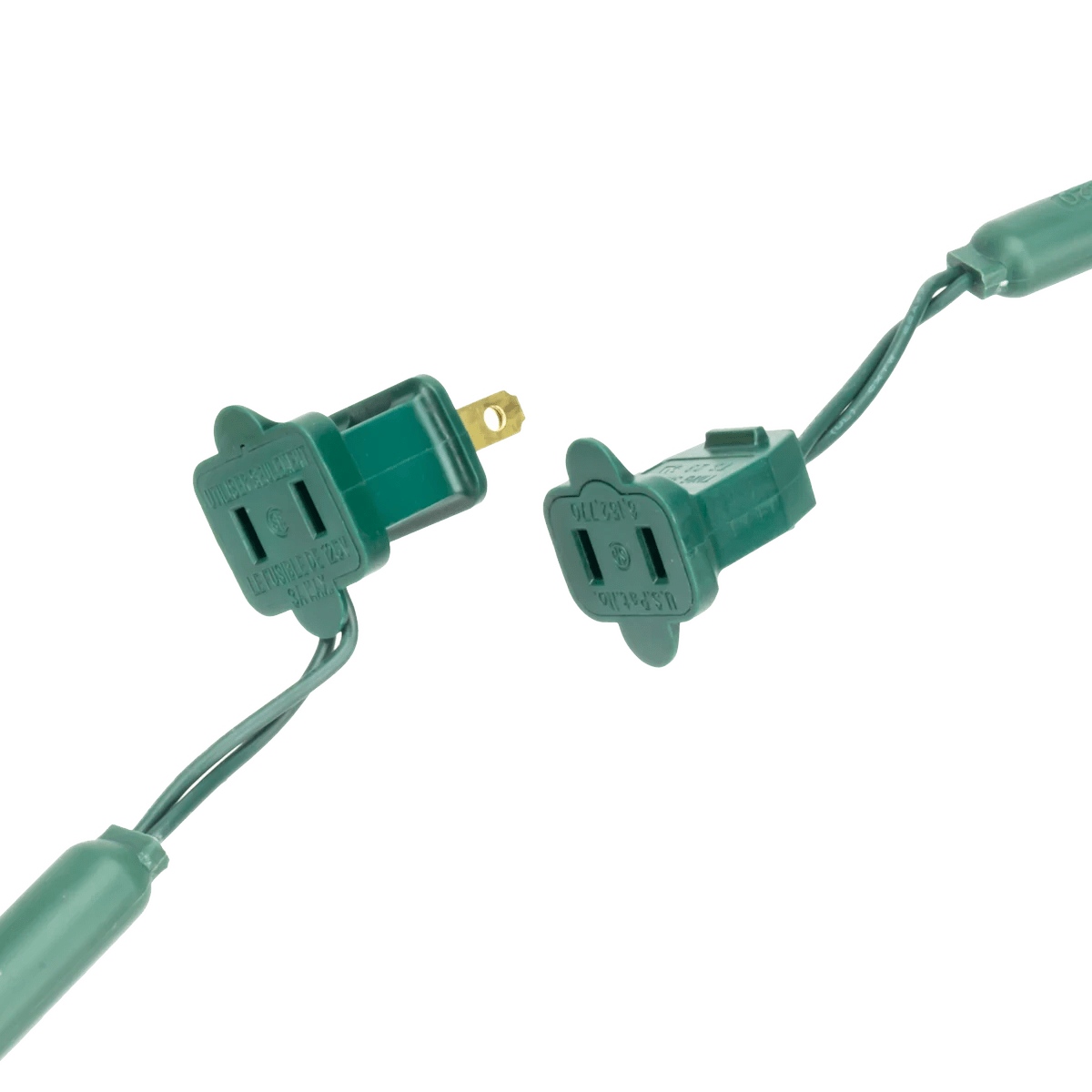

Coaxial power connection system provides strain relief and keeps moisture out of connections
Durable construction includes thicker 20AWG wire
Available in 6 different color options
Connection accessories available for large scale installations while minimizing connections to power
CSAus Certified (25/6 strings) or ETLus Listed (50/6 strings) for indoor and outdoor use
3-season warranty

Spec Sheet

Info

25ft / 50 LEDs / 6” Spacing

Item Number	Length	Input Voltage	CCT	Wattage	Max Run	UOM
5MM-50/6-G-BL-S	25 Foot	120V AC	Blue	4.8 W	210 W	Each
5MM-50/6-G-GR-S	25 Foot	120V AC	Green	4.8 W	210 W	Each
5MM-50/6-G-RE-S	25 Foot	120V AC	Red	4.8 W	310 W	Each
5MM-50/6-G-MU-S	25 Foot	120V AC	Assorted	2.4 W	210 W	Each
5MM-50/6-G-OR-S	25 Foot	120V AC	Orange	2.4 W	210 W	Each
5MM-50/6-G-PU-S	25 Foot	120V AC	Purple	4.8 W	210 W	Each
5MM-50/6-G-PI-S	25 Foot	120V AC	Pink	4.8 W	210 W	Each
5MM-50/6-G-UWW-S	25 Foot	120V AC	3000K	2.4 W	210 W	Each
5MM-50/6-G-CW-S	25 Foot	120V AC	4000K	4.8 W	210 W	Each
5MM-50/6-G-PW-S	25 Foot	120V AC	7000K	4.8W	210 W	Each

23.5ft / 70 LEDs / 4” Spacing

Item Number	Length	Input Voltage	CCT	Wattage	Max Run	UOM
5MM-70/4-G-BL-S	23.5FT	120V AC	Blue	4.8 W	210 W	Each
5MM-70/4-G-GR-S	23.5FT	120V AC	Green	4.8 W	210 W	Each
5MM-70/4-G-RE-S	23.5FT	120V AC	Red	4.8 W	310 W	Each
5MM-70/4-G-MU-S	23.5FT	120V AC	Assorted	2.4 W	210 W	Each
5MM-70/4-G-OR-S	23.5FT	120V AC	Orange	2.4 W	210 W	Each
5MM-70/4-G-PU-S	23.5FT	120V AC	Purple	4.8 W	210 W	Each
5MM-70/4-G-PI-S	23.5FT	120V AC	Pink	4.8 W	210 W	Each
5MM-70/4-G-UWW-S	23.5FT	120V AC	3000K	2.4 W	210 W	Each
5MM-70/4-G-CW-S	23.5FT	120V AC	4000K	4.8 W	210 W	Each
5MM-70/4-G-PW-S	23.5FT	120V AC	7000K	4.8W	210 W	Each
