American Lighting

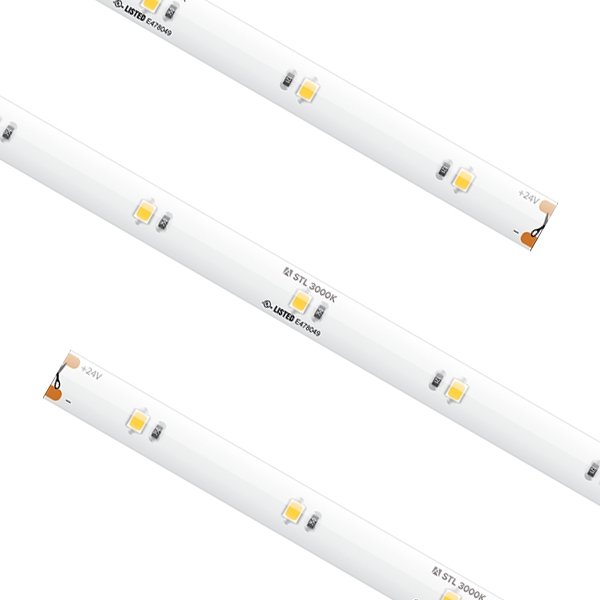

American Lighting STL 16FT 2.2W/FT 24V LED Standard Grade Tape Light 27K/30K/40K Wet Location

American Lighting STL 16FT 2.2W/FT 24V LED Standard Grade Tape Light 27K/30K/40K Wet Location

Regular price $143.82
Regular price Sale price $143.82
Sale Sold out
Shipping calculated at checkout.
Color Temperature

TruLux® Standard Grade Tape Light

Build an economical and versatile layered lighting system with Standard Grade tape light. Light output ranging from 140-155 lumens per foot, with easy to work with run lengths up to 32.8 feet, Standard Grade is perfect for accent lighting applications when soft and subtle lighting is desired.

  • Excellent color rendering (96+ CRI)
  • 100-155 lumens per foot performance
  • Consuming only 2.19 watts per foot
  • Dimmable with most electronic low voltage (ELV) dimmers
  • Run lengths up to 32.8 feet (24V DC)
  • Available in (IP65) jacketed versions
  • Suitable for use in closets when used in an enclosed extrusion based on
    NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • cULus Listed for indoor dry/damp, and wet locations
  • JA8 Compliant
  • 50,000 hours rated life
    16.4ft Reels (IP65) Include: Attached 2ft IP65 Lead Wire +6” Conkit / Attached 2ft IP65 Tail Wire +6” Conkit / (3) HD Power Feeds (IP20)

    Spec Sheet

    Spec Sheet

    Installation Instructions



    Weight 1.50 LBs
    Length 196.80"
    Width 0.39" (10mm)
    Light Source
    Delivered Lumens 100-155
    Dimmable Yes (ELV)
    Expected Life Span (Hours) 50,000
    Light Source LED
    Wattage 2.19 W/FT
    Interior/Exterior Interior
    Location Rating IP65 - Wet Location
    Cuttable Every 6.56"
    Color Rendering Index 96
    Kelvin Temperature 27K/30K/40K
    Additional Info
    STL65-UWW 16.4ft 2700K 96+ 2.19 watts/ft 105/ft 6.56" 10mm
    STL65-WW 16.4ft 3000K 96+ 2.19 watts/ft 115/ft 6.56" 10mm
    STL65-WH 16.4ft 4000K 96+ 2.19 watts/ft 125/ft 6.56" 10mm

    TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
    TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
    TL-2PWR-HD 6’ HD Power Feed (IP54)
    TL-2JUMP6-HD 6” HD Linking Cable
    TL-2JUMP24-HD 24” HD Linking Cable
    TL-2SPL-HD  HD Tape to Tape Splice Connector
    TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
    TL-2JUMP65-.5 6” Linking Cable (IP65)
    TL-2JUMP65-1 12” Linking Cable (IP65)
    TL-2JUMP65-2 24” Linking Cable (IP65)
    WIRE-15-2PIN 15ft (20/2) Wire Spool
    WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
    INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
    LVSB-2PIN In-Line Splice Terminal Block
    RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
