• AML-STL-UWWAmerican Lighting STL 16FT/32FT/100FT 2.2W/FT 24V LED Standard Grade Tape Light 27K/30K/40K
1 1

American Lighting

American Lighting STL 16FT/32FT/100FT 2.2W/FT 24V LED Standard Grade Tape Light 27K/30K/40K

American Lighting STL 16FT/32FT/100FT 2.2W/FT 24V LED Standard Grade Tape Light 27K/30K/40K

$120.69
$120.69
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

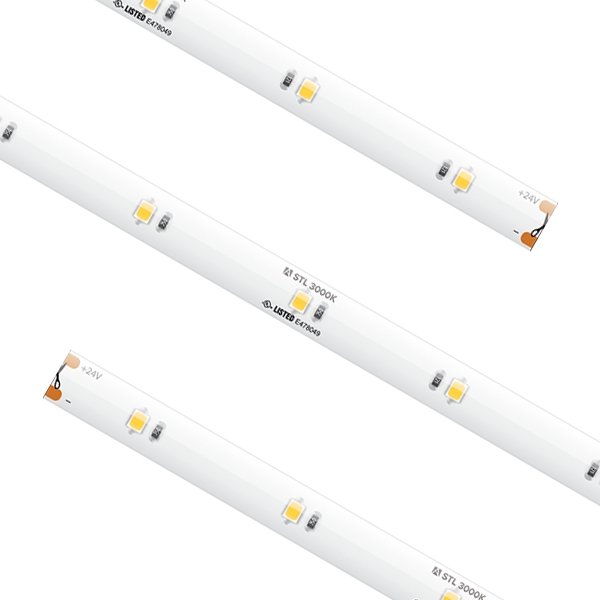

TruLux® Standard Grade Tape Light

Build an economical and versatile layered lighting system with Standard Grade tape light. Light output ranging from 140-155 lumens per foot, with easy to work with run lengths up to 32.8 feet, Standard Grade is perfect for accent lighting applications when soft and subtle lighting is desired.

  • Excellent color rendering (96+ CRI)
  • 100-155 lumens per foot performance
  • Consuming only 2.19 watts per foot
  • Dimmable with most electronic low voltage (ELV) dimmers
  • Run lengths up to 32.8 feet (24V DC)
  • Available in (IP54) unjacketed
  • Suitable for use in closets when used in an enclosed extrusion based on
    NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • cULus Listed for indoor dry/damp, and wet locations
  • JA8 Compliant
  • 50,000 hours rated life
    16.4ft & 33ft (IP54) Include: Attached 3ft Lead Wire / (3) TL-CONKIT / (3) TL-BLKS / (3) TL-2PWR-HD
    100ft Reels (IP54) Include: Attached 3ft Lead Wire / (5) TL-CONKIT / (5) TL-BLKS / (5) TL-2PWR-HD

    Spec Sheet

    Spec Sheet

    Installation Instructions



    Info

    Dimensions
    Weight 1.50/3.0/9.80 LBs
    Length 196.80"/393.60"/1200.00"
    Width 0.39" (10mm)
    Light Source
    Delivered Lumens 100-155
    Dimmable Yes (ELV)
    Expected Life Span (Hours) 50,000
    Light Source LED
    Wattage 2.19 W/FT
    Mounting/Installation
    Interior/Exterior Interior
    Location Rating IP54 - Damp Location
    Cuttable Every 6.56"
    Photometrics
    Color Rendering Index 96
    Kelvin Temperature 27K/30K/40K
    Additional Info
    PART NUMBER LENGTH CCT CRI WATTAGE LUMENS CUTTABLE WIDTH
    STL-UWW 16.4ft 2700K 96+ 2.19 watts/ft 146/ft 6.56" 10mm
    STL-WW 16.4ft 3000K 96+ 2.19 watts/ft 150/ft 6.56" 10mm
    STL-WH 16.4ft 4000K 96+ 2.19 watts/ft 155/ft 6.56" 10mm
    STL-UWW-33 32.8ft 2700K 96+ 2.19 watts/ft 105/ft 6.56" 10mm
    STL-WW-33 32.8ft 3000K 96+ 2.19 watts/ft 115/ft 6.56" 10mm
    STL-WH-33 32.8ft 4000K 96+ 2.19 watts/ft 125/ft 6.56" 10mm
    STL-UWW-100 100ft 2700K 96+ 2.19 watts/ft 146/ft 6.56" 10mm
    STL-WW-100 100ft 3000K 96+ 2.19 watts/ft 150/ft 6.56" 10mm
    STL-WH-100 100ft 4000K 96+ 2.19 watts/ft 155/ft 6.56" 10mm

    Accessories
    TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
    TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
    TL-2PWR-HD 6’ HD Power Feed (IP54)
    TL-2JUMP6-HD 6” HD Linking Cable
    TL-2JUMP24-HD 24” HD Linking Cable
    TL-2SPL-HD  HD Tape to Tape Splice Connector
    TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
    WIRE-15-2PIN 15ft (20/2) Wire Spool
    WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
    INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
    LVSB-2PIN In-Line Splice Terminal Block
    RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
