• AML-STLHD-UWW-100American Lighting STLHD 100FT 2.2W/FT 24V LED Standard Grade HD Tape Light 27K-50K
1 1

American Lighting

American Lighting STLHD 100FT 2.2W/FT 24V LED Standard Grade HD Tape Light 27K-50K

American Lighting STLHD 100FT 2.2W/FT 24V LED Standard Grade HD Tape Light 27K-50K

$919.44
$919.44
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

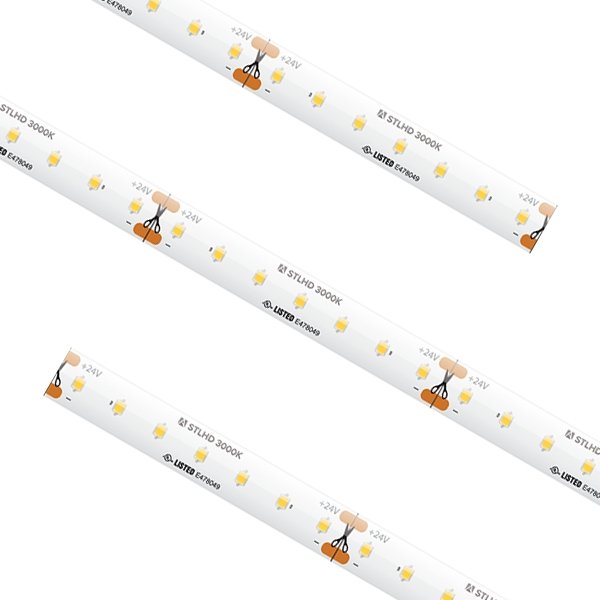

TruLux® 100FT Standard Grade HD Tape Light

Standard Grade HD tape light is a powerful new addition to the award winning Trulux lighting system. By utilizing a new LED, Standard Grade HD tape light is able to produce up to 235 lumens per foot while using just 2.2 watts per foot. With cutting increments every 2.46 inches, this tape light can be cut to fit your project perfectly.

  • High Density (HD) LED spacing
  • Available in 2700K, 3000K, 3500K, 4000K, and 5000K
  • 90+ color rendering index
  • Lumen output ranging from 200Lm to 235Lm per foot
  • Cuttable every 2.46” with 32.8ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for dry & damp locations
  • 50,000 hours rated life / 5-year limited warranty

100ft Reels (IP54) Include: Attached 3ft Lead Wire / (5) TL-CONKIT / (5) TL-BLKS / (5) TL-2PWR-HD

Spec Sheet

Spec Sheet

Installation Instructions



Info

Dimensions
Weight 10.00LBs
Length 1200.00"
Width 0.39" (10mm)
Light Source
Delivered Lumens 200-230
Dimmable Yes 5-100%
Expected Life Span (Hours) 50,000
Light Source LED
Wattage 2.19 W/FT
Mounting/Installation
Interior/Exterior Interior
Location Rating IP54 - Damp Location
Cuttable Every 2.46"
Photometrics
Color Rendering Index 90
Kelvin Temperature 27K/30K/35K/40K/50K
Additional Info
PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING WIDTH
STLHD-UWW-100 2700K 90+ 2.19W/ ft 200Lm/ft 32.8ft IP54 - Damp 10mm
STLHD-WW-100 3000K 90+ 2.19W / ft 210Lm/ft 32.8ft IP54 - Damp 10mm
STLHD-NW-100 3500K 90+ 2.19W/ft 220Lm/ft 32.8ft IP54 - Damp 10mm
STLHD-WH-100 4000K 90+ 2.19W/ft 235Lm/ft 32.8ft IP54 - Damp 10mm
STLHD-CW-100 5000K 90+ 2.19W/ft 230Lm/ft 32.8ft IP54 - Damp 10mm
Accessories
TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
TL-2PWR-HD 6’ HD Power Feed (IP54)
TL-2JUMP6-HD 6” HD Linking Cable
TL-2JUMP24-HD 24” HD Linking Cable
TL-2SPL-HD HD Tape to Tape Splice Connector
TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
WIRE-15-2PIN 15ft (20/2) Wire Spool
WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
LVSB-2PIN In-Line Splice Terminal Block
RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
