American Lighting

American Lighting TL4MM-COB Connectors

American Lighting TL4MM-COB Connectors

Regular price $5.00
Regular price Sale price $5.00
Sale Sold out
Shipping calculated at checkout.
Connector
Quantity

Trulux 4MM COB Tape Light

4MM COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

  • Seamless COB design in ultra small 4mm profile that eliminates virtually all LED dotting
  • Available in 2700K, 3000K, and 4000K
  • 90+ color rendering index
  • Lumen output ranging from 210Lm to 240Lm per foot
  • Cuttable every 1.97” with 16.4ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • Available in IP54 coated
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life
  • Suitable for use in closets when used in an enclosed mounting channel and installed in accordance with NFPA 70, NEC section 410.16 (B)(3) and 410.16 (D)(1)(Exception)
    16.4ft Reels (IP54) Include: 6ft lead, 6ft tail6ft lead, 6ft tail


    Spec Sheet

    Spec Sheet

    Installation Instructions



    Info

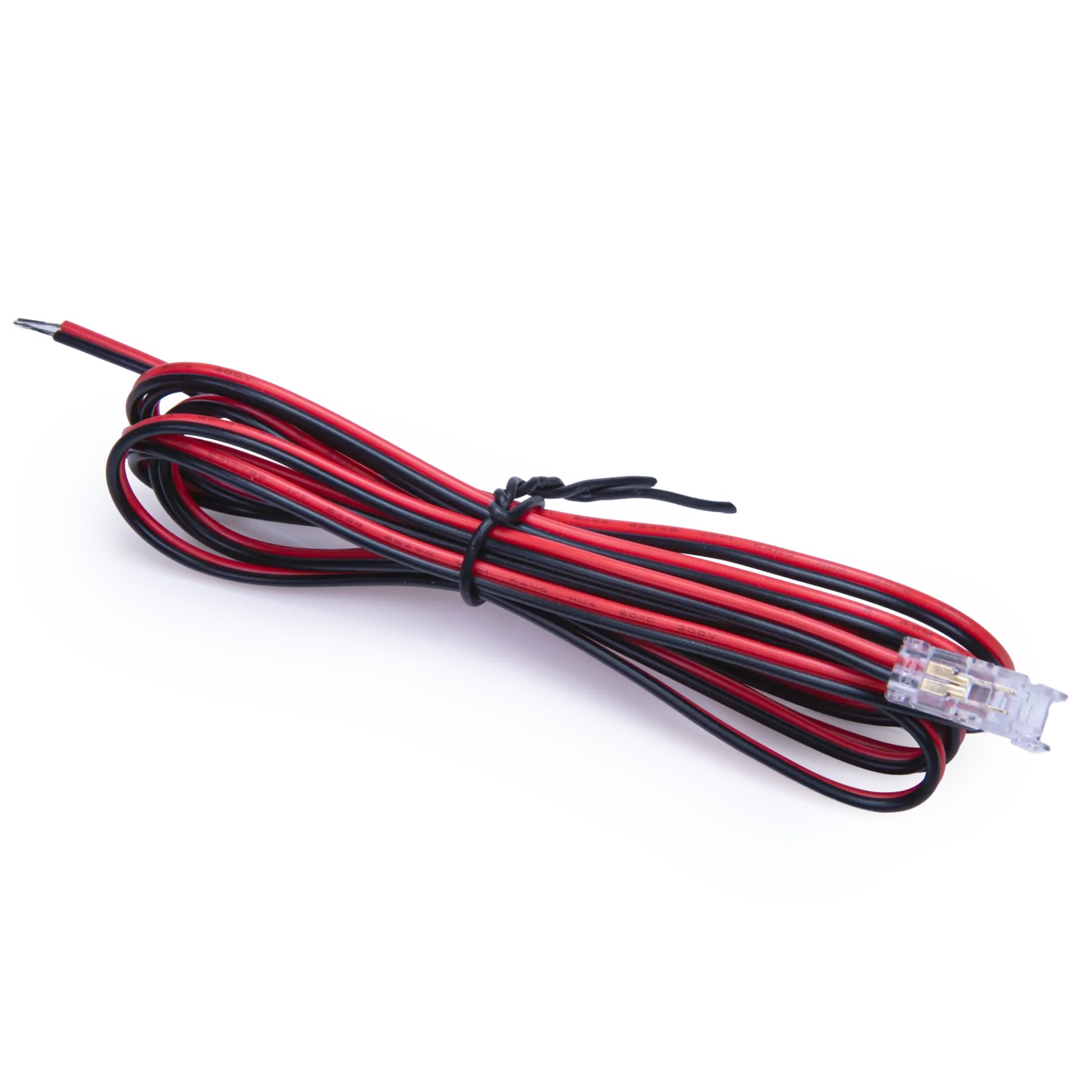

    TL-2PWR-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, 6FT POWER

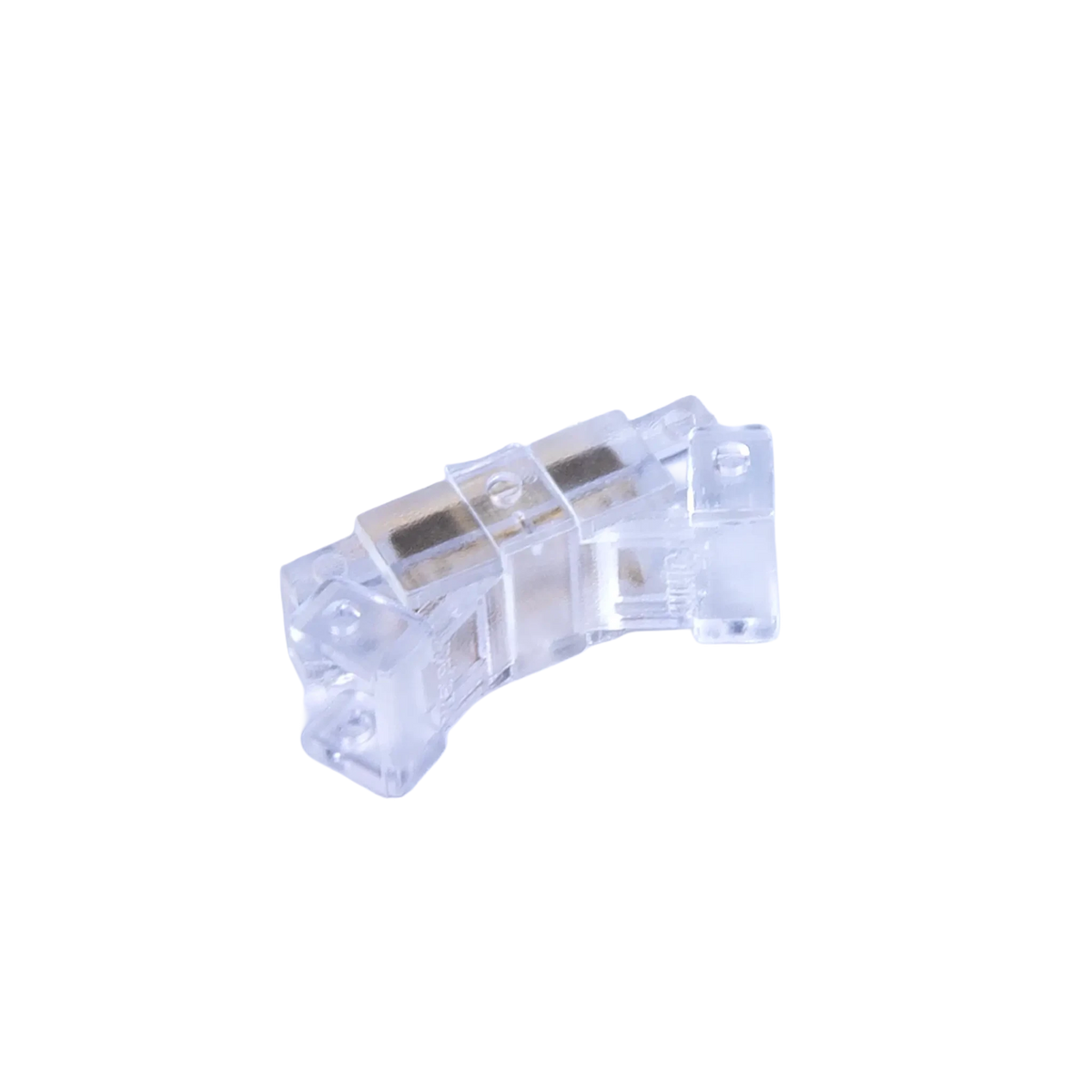

    TL-2SPL-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, SPLICE

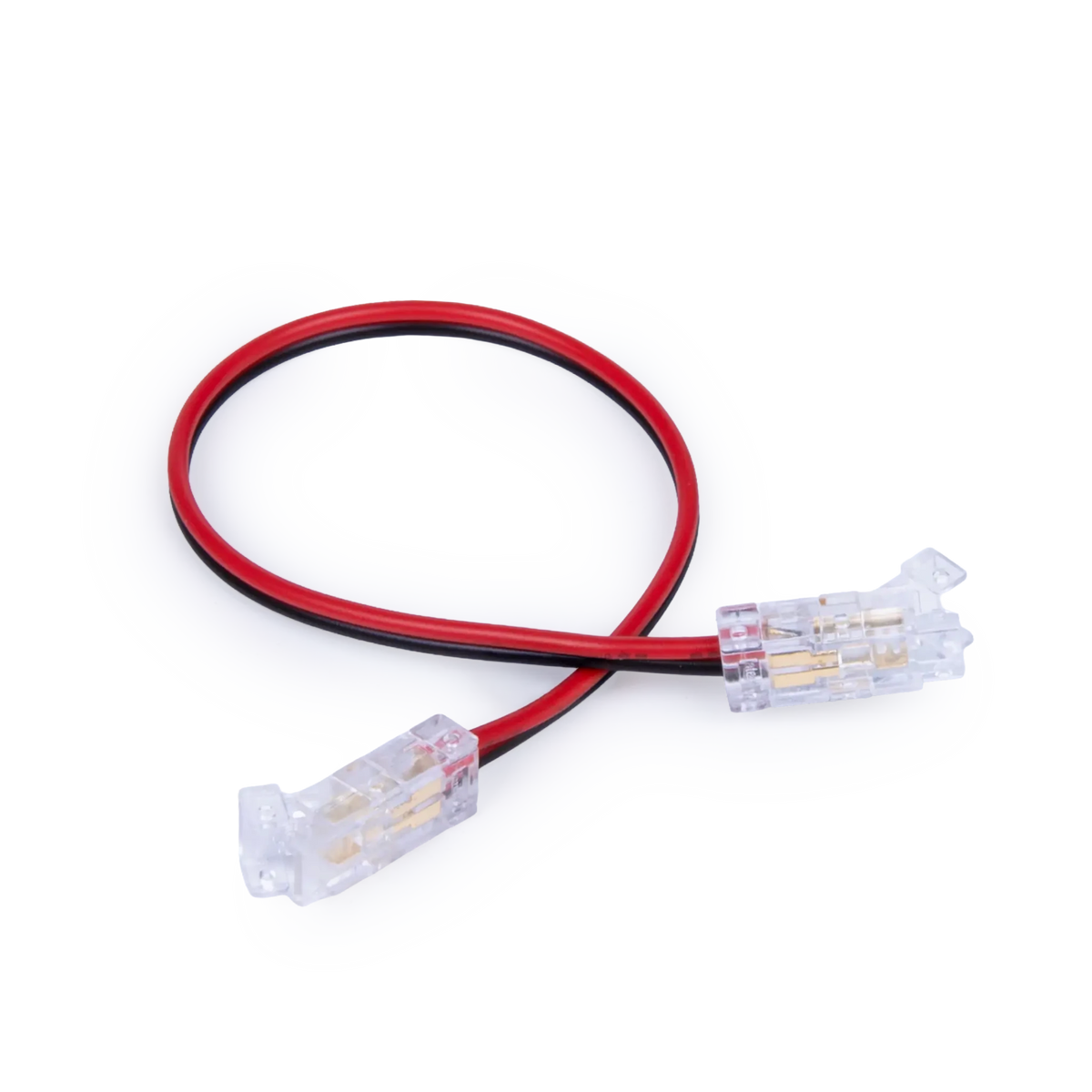

    TL-2JUMP6-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, 6IN LINKING

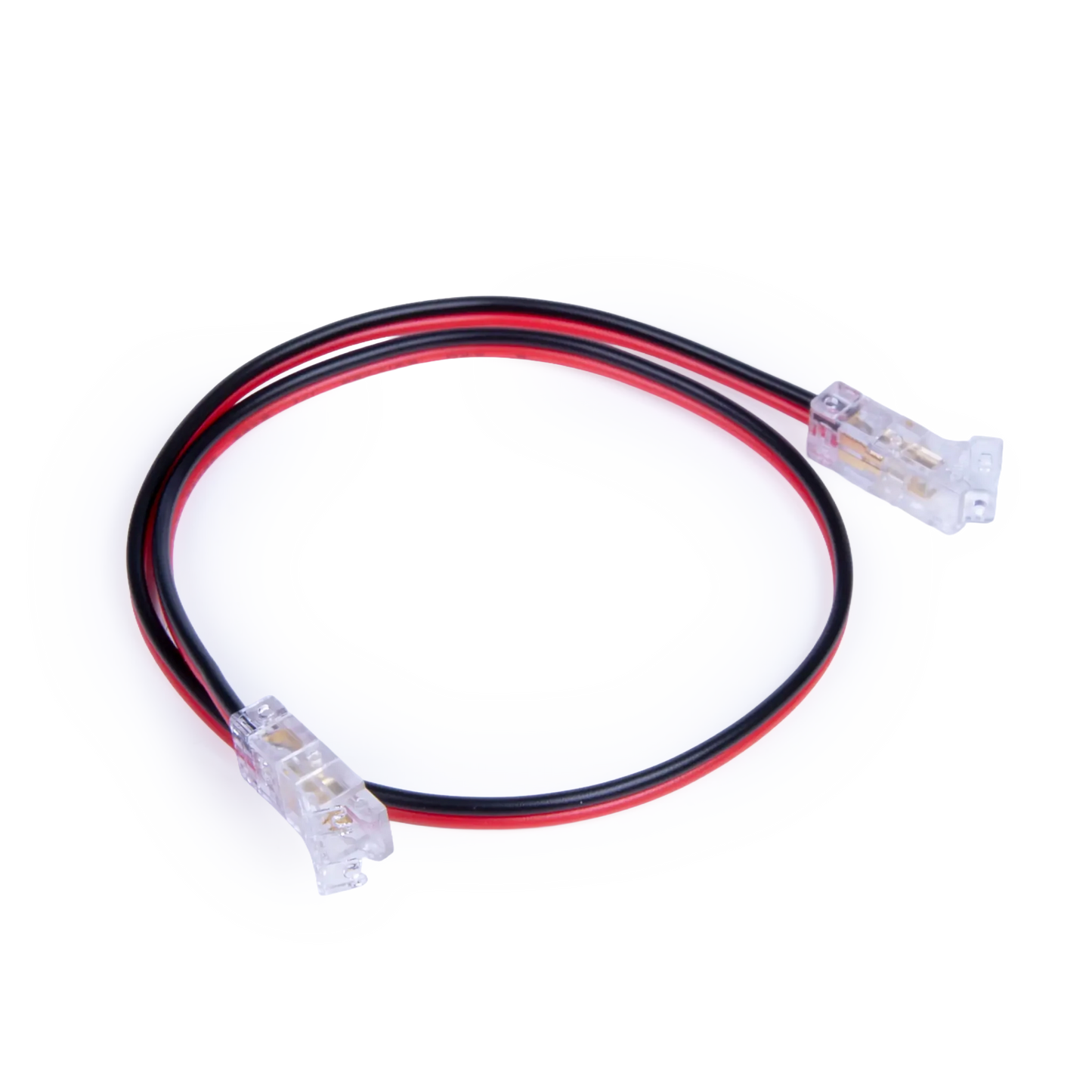

    TL-2JUMP12-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, 12IN LINKING

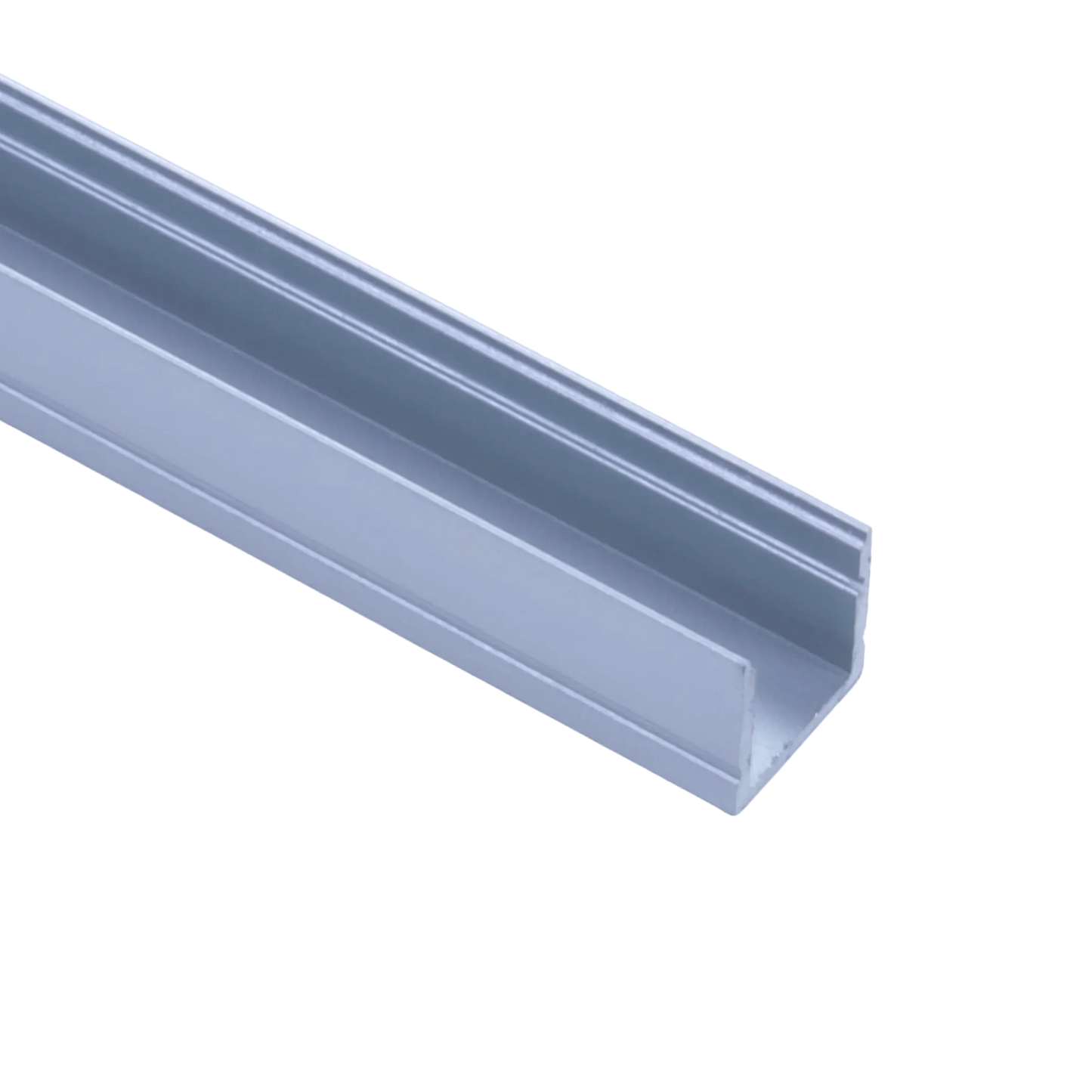

    TL4MM-CHAN-1M 1M ALUMINUM CHANNEL FOR 4MM/5MM TAPE LIGHT
