SNAP²IT® Connector with Insulated Throat

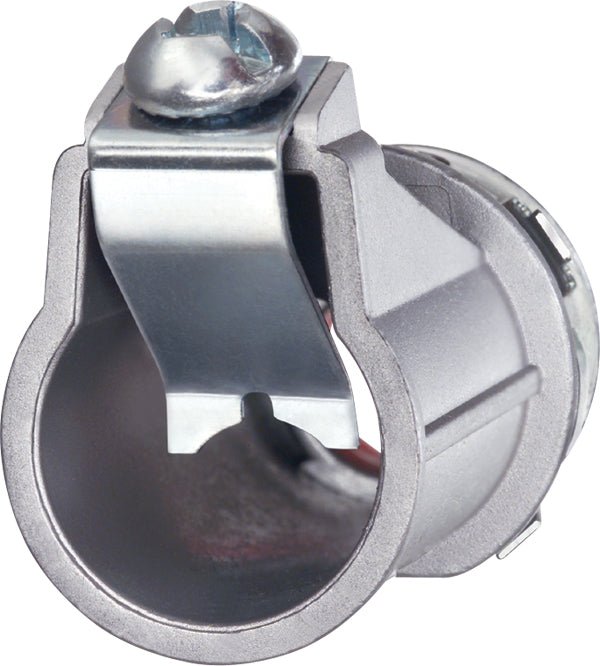

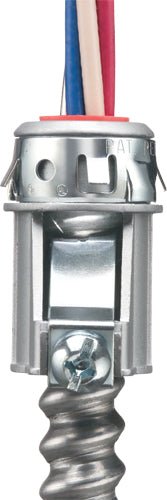

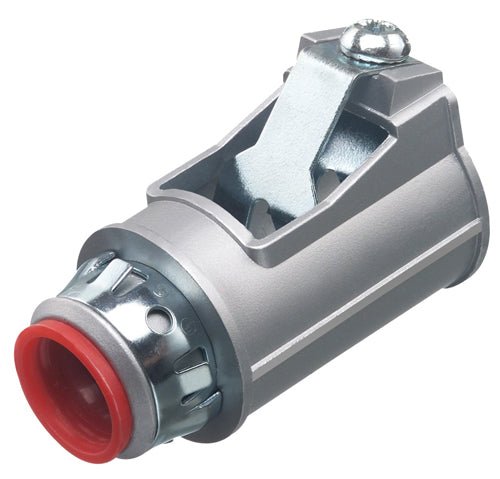

Constructed of durable zinc die-cast, these 1/2" SNAP²IT® Connectors offer a swift installation and secure hold with a removable screw-in spring steel clip and external spring steel clip - eliminating the need for tools. For concrete-tight connections, a tape wrap is recommended. An insulated throat is included.

Spec Sheet

Spec Sheet

5010AST Line Drawing

Info

Weight	0.100 lbs/each
Height	2.210"
Width	1.514"
Color	Silver
Cable Range	0.560 - 0.850
Knockout Size	1/2"
Trade Size	1/2"
Listing
