Fan/Fixture Mounting Box

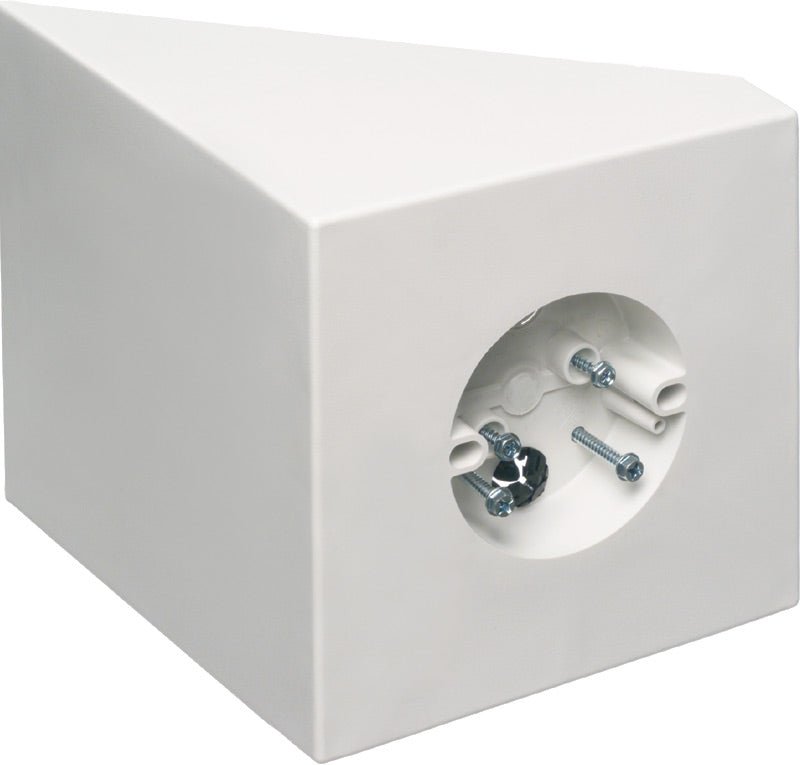

The Arlington FB450 fan/fixture mounting box is designed for new construction with a sloped ceiling of up to 45 degrees. It is able to handle a fan or fixture of up to 70 lbs. or 200 lbs. respectively, while providing a 14.5 cu. in. 8" square mounting surface for larger canopies. The textured finish is paintable and adds sturdiness.

• One piece design
• Textured, paintable surface
• NM cable connector included
• Installs before or after siding is installed. Remove break away flanges for installation on previously sided structures

Spec Sheet

Spec Sheet

FB450 Line Drawing

Info

Weight	1.542 lbs/each
Height	7.881"
Width	7.881"
Color	White
Material(s)	UV-Rated Plastic
Gang	Single Gang
Description/ Style	Fits sloped ceilings up to 45° / 14.5 Cu. In.
Cubic Inches	14.5
Listing

Accessories

(Included)
