Arlington FBRS415 Fan & Fixture Mounting Box

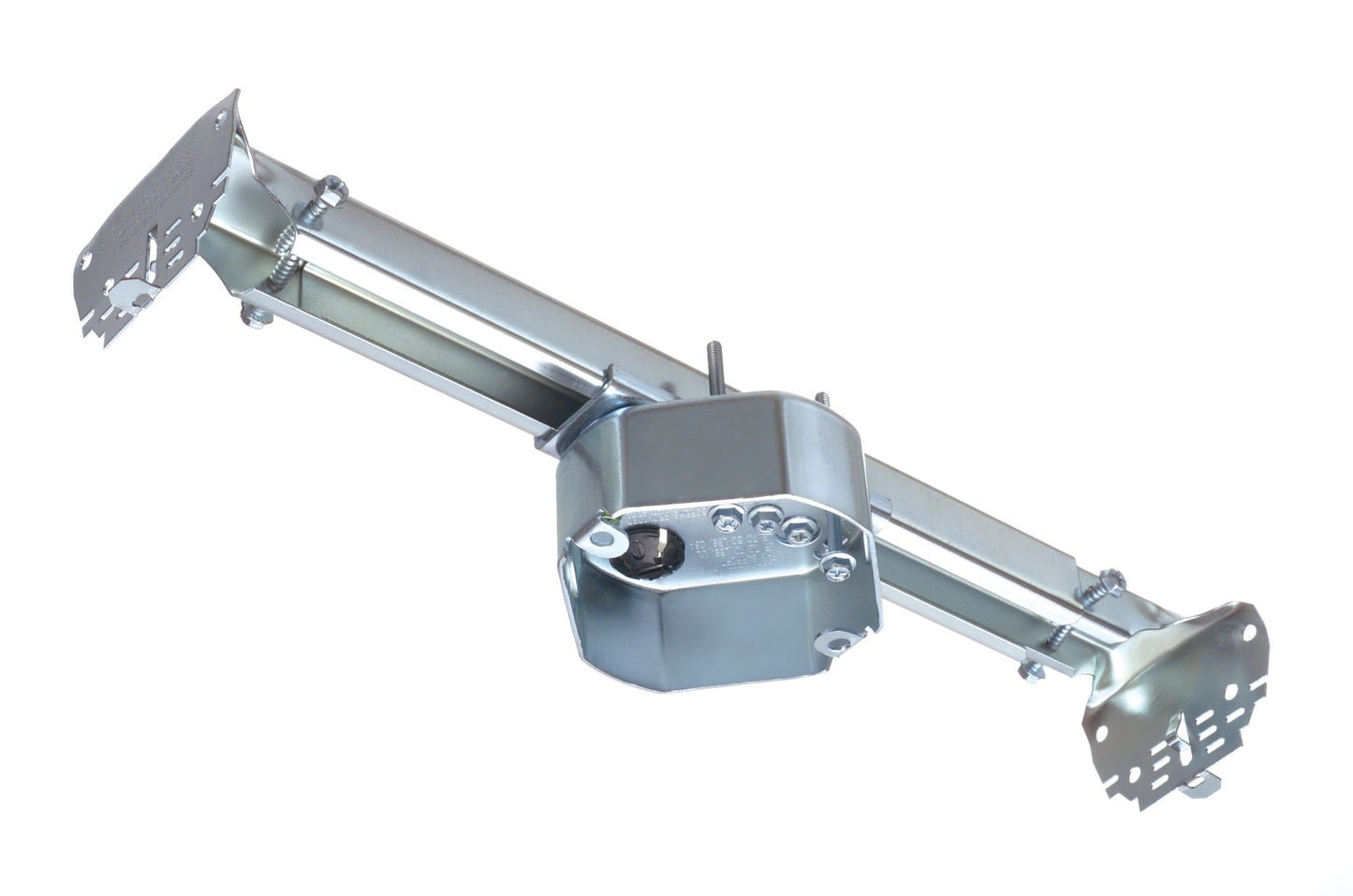

Steel Fan & Fixture Mounting Box with Adjustable Mounting Bracket for New Construction

Steel fan and fixture box with adjustable mounting bracket for new construction. 16" to 24" on center positioning. Bracket pre-set and 1/2" ceiling thickness. Bend Bracket along the score lines for 3/4", 1", 1-1/4" ceiling depths. 15.6 cu. in.

• Works on ceilings up to 1-1/4” thick, fully adjustable

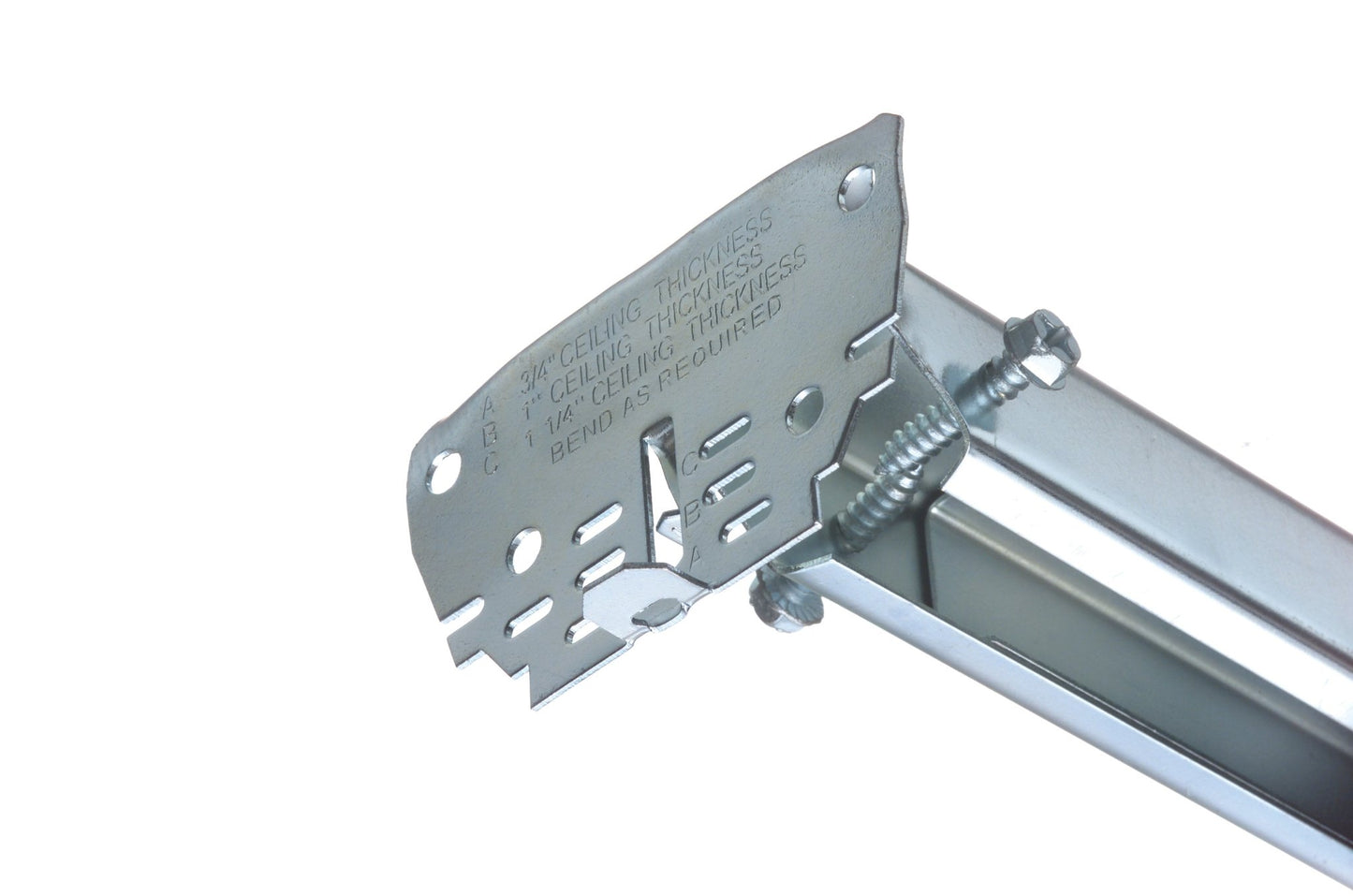

• For ceiling material greater than 5/8”, convenient indicator marks allow you to bend the bracket at the scoreline matching your ceiling depth for a flush ceiling installation

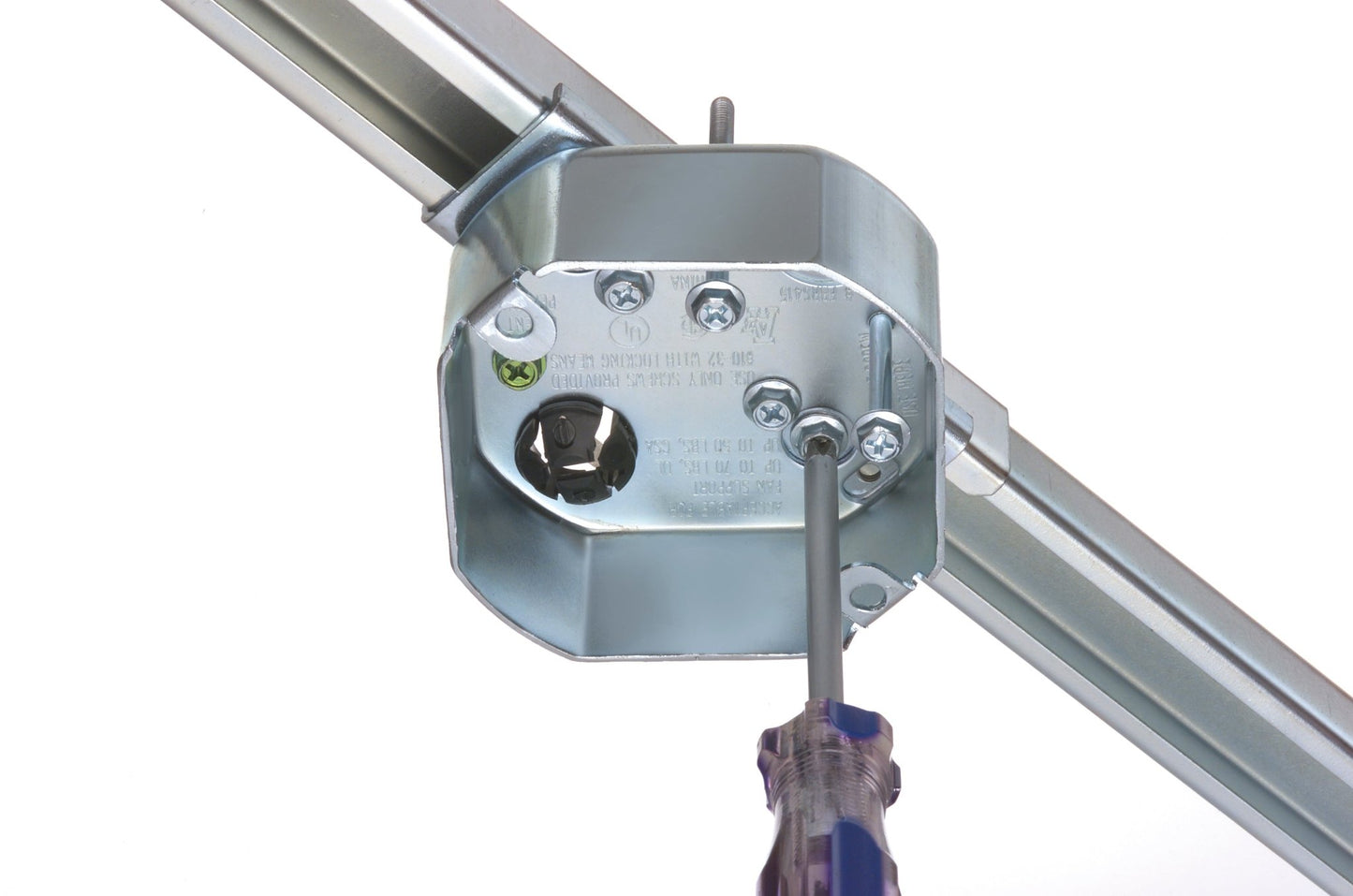

• Fan/fixture installation screws are parked, ready for easy fan/fixture bracket installation
• UL rated: 70 lb fan/90 lb fixture at 24” o.c. and 70 lb fan/150 lb fixture at 16” o.c.; CSA rated: 50 lb fan/fixture
• No loose parts to misplace
• Extra duty plated steel construction eliminates fan wobble
• Versatile 16” to 24” on center positioning
• Bracket preset for 1/2” ceiling thicknesses
• Locator tabs included for installation ease

Spec Sheet

Spec Sheet

Installation Instructions

FBRS415 Line Drawing

Info

Additional Info

Cubic Inches	15.6
Style	For up to 1-1/4" Ceiling Thickness
Trade Size	15.6 cu. in.
Listing
