Arlington FBRS4200R Fan & Fixture Mounting Box

Arlington FBRS4200R Fan & Fixture Mounting Box

Regular price $36.99
Regular price $39.99 Sale price $36.99
Sale Sold out
Shipping calculated at checkout.

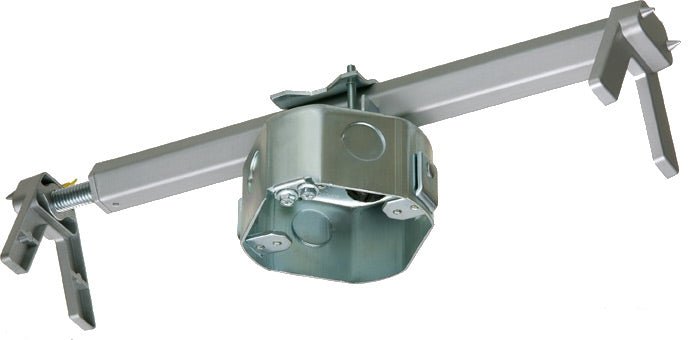

Fan/Fixture Box with Adjustable Bracket

Steel fan and fixture box with adjustable mounting bracket for existing construction. Adjusts from 16" to 24" on center spacing. 2" deep box. 20.0 cu. in.

  • No parts to lose, installation and adjustment screws ship parked in place

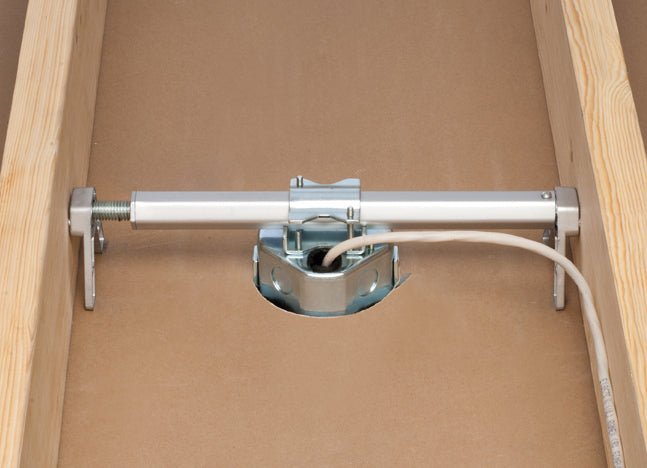

  • Installs quickly and securely between joists or rafters 16” to 24” o.c.
  • Fan/fixture installation screws are parked, ready for easy fan/fixture bracket installation
  • UL rated: 70 lb fan/90 lb fixture at 24” o.c. and 70 lb fan/150 lb fixture at 16” o.c.; CSA rated: 50 lb fan/fixture


Spec Sheet

Spec Sheet

Installation Instructions

FBRS4200R Line Drawing

Weight 3.184 lbs/each
Height 3.563"
Width 13.979"
Color Silver
Material(s) Plated Steel

Additional Info
Cubic Inches 20.0
2" Box Depth
Trade Size 20 cu. in.
Load Rating UL Rated at 24" o.c.: 70lb Fan; 90lb Fixture
UL Rated at 16" o.c.: 70lb Fan; 150lb Fixture
CSA Rated: 50lb Fan; 50lb Fixture
