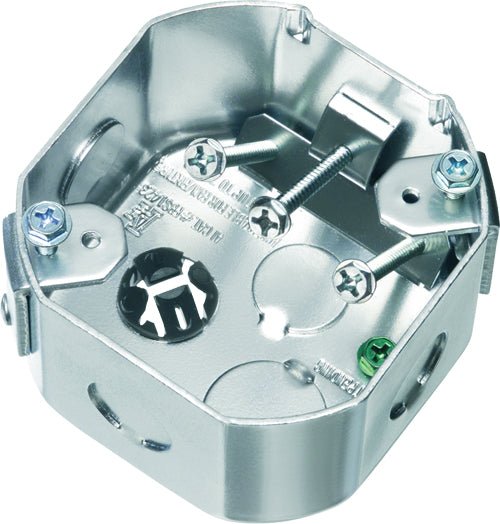

Arlington FBS1423 Fan/Fixture Box

Arlington FBS1423 Fan/Fixture Box

Regular price $16.99
Regular price $18.49 Sale price $16.99
Sale Sold out
Shipping calculated at checkout.

Steel One Box™

Steel one box designed for new construction or retrofit. Side mounts to joist. 70lb fan rated, 50lb fixture rated. 2-3/8 box depth. 23.0 cu. in.

  • Installation screws for mounting box to joist, and fan to box ship captive
  • Tabs for 1/2" positioning

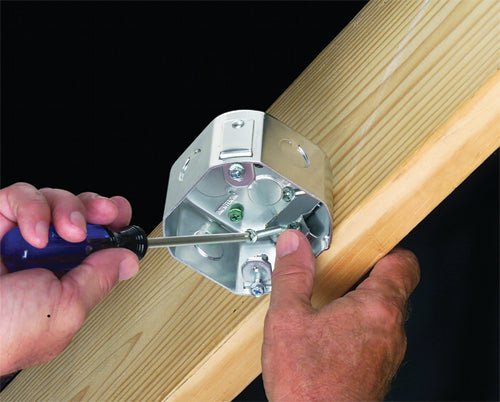

  • Fast, easy installation. Place box at the proper depth on the joist and attach it with the three captive screws in the box
  • Extra-large 23.0 cubic inch capacity
  • UL Rated for fans/fixtures up to 70 lbs.
  • CSA Rated for fans/fixtures up to 50 lbs.


Spec Sheet

Spec Sheet

FBS1423 Line Drawing

Weight 0.835 lbs/each
Height 4.250"
Width 3.572"
Color Silver
Material(s) Steel
Additional Info
Cubic Inches 23.0
2-3/8" Box Depth/ Mounts on Side of Joist
Trade Size 23.0 cu. in.

Comes With

(1) NM Cable Connector
(1) Box
(2) #10-32 x 7/8" Long Screws
(3) #10-16 x 2" Long Screws
