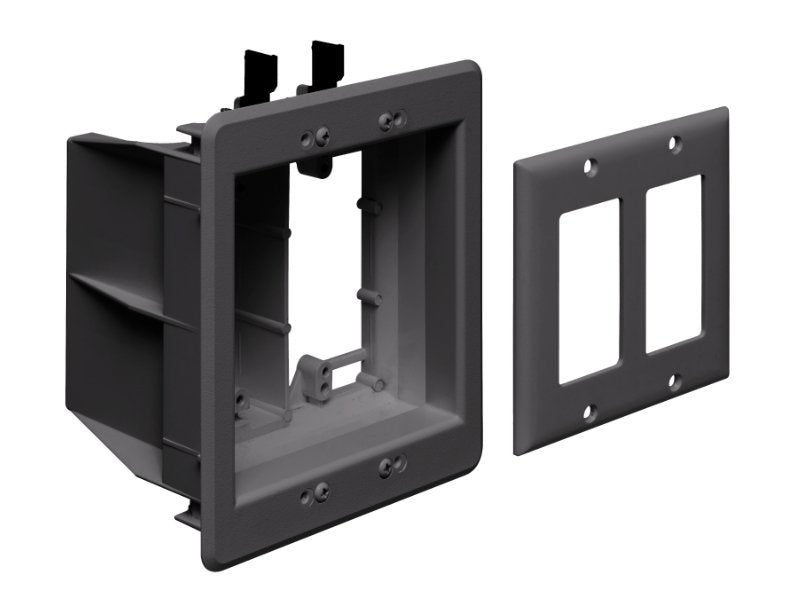

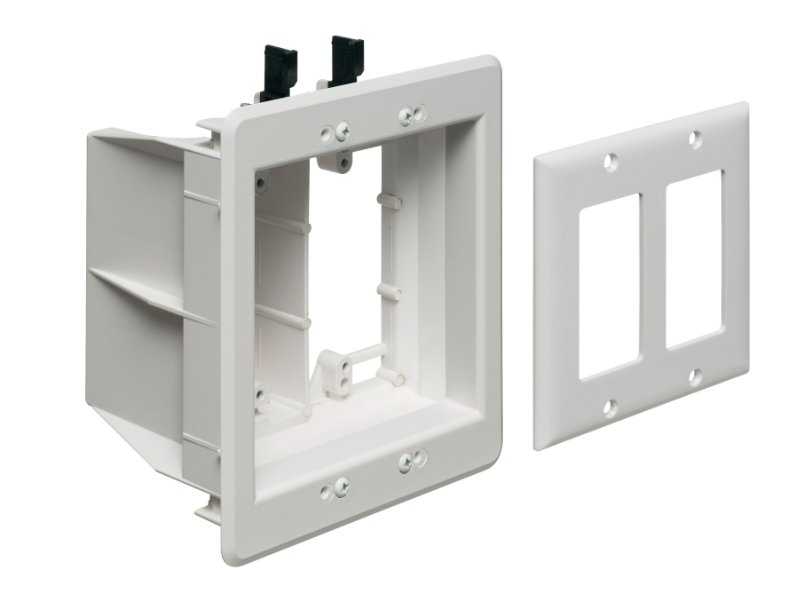

Arlington TVBU505 Two-Gang Recessed TV Box™ for Power and Low Voltage

Arlington TVBU505 Two-Gang Recessed TV Box™ for Power and Low Voltage

Regular price $22.99
Regular price $27.99 Sale price $22.99
Sale Sold out
Shipping calculated at checkout.

Two-Gang Recessed TV Box™ for Power and Low Voltage™

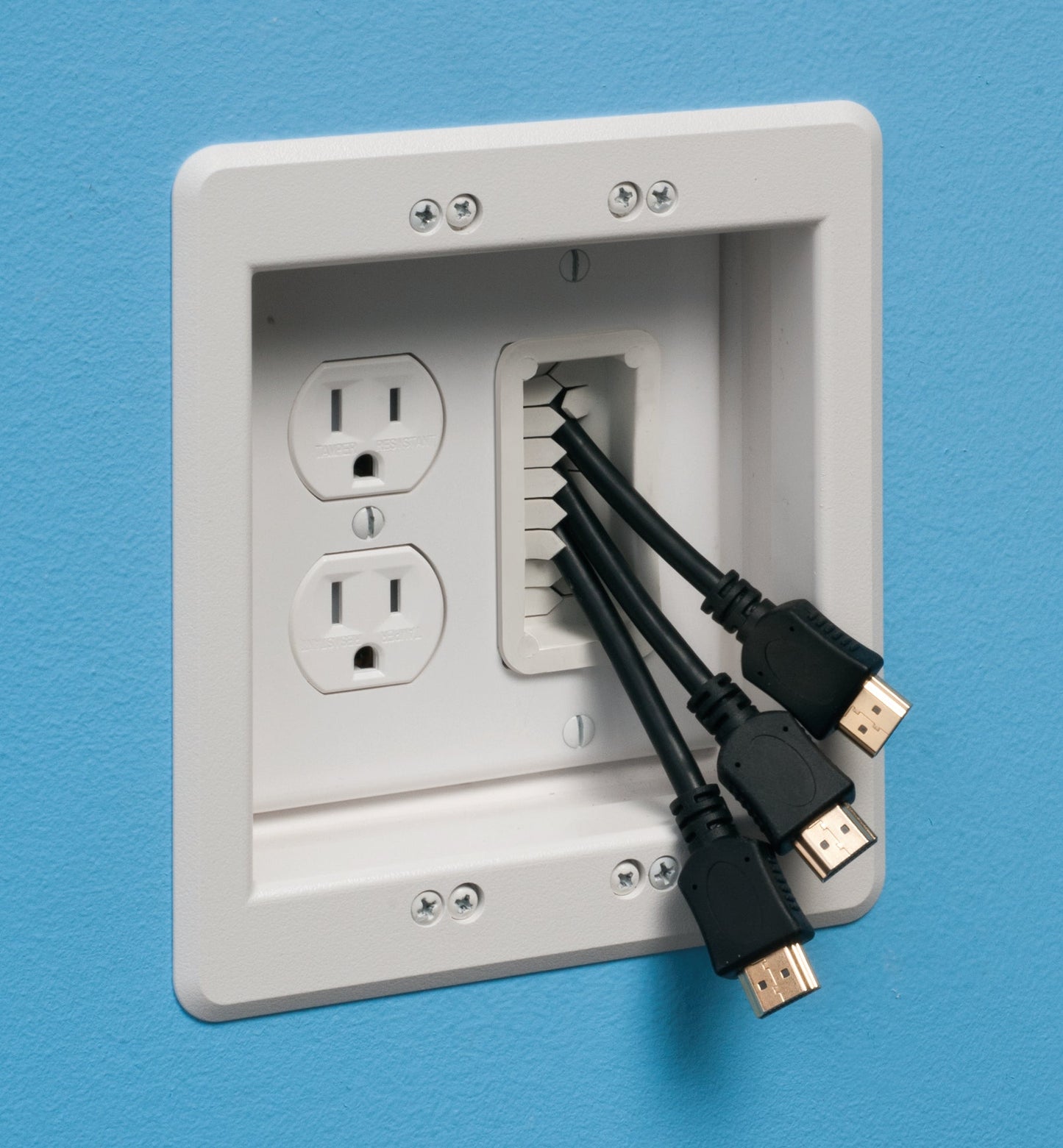

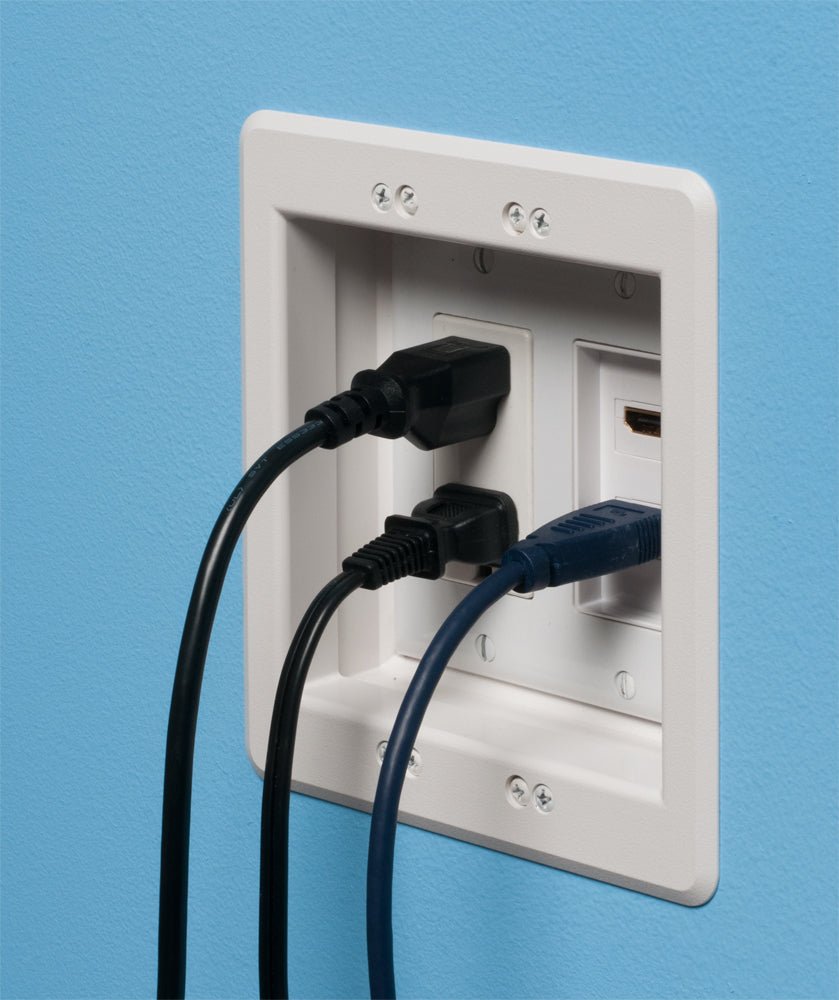

Arlington's recessed TVBU505 non-metallic combination power and low voltage TV BOX™ is the secure, easy way to mount a flat screen TV flush against a wall. It features power in one side; low voltage in the other for Class 2 wiring of satellite or cable TV, speakers and more. The job looks great! Plugs and connectors stay inside this two-gang box, without extending past the wall. Trim in White or Black

  • Recessed combo box allows you to mount LCD/plasma TVs and other system components flush against the wall
  • For new work. Use supplied screws to install on stud. For convenience, box positioning tabs are set for 1/2” or 5/8” drywall
  • Trim plate is textured/paintable and covers edges of cut wall surface
  • Mounting wings hold bracket securely against wall when screws are tightened
  • For walls up to 1-1/2” thick


Spec Sheet

Spec Sheet

TVBU505 Line Drawing

Weight 0.726 lbs/each
Height 6.942"
Width 6.254"
Color White/Black
Material(s) Plastic
Additional Info
Two-Gang Recessed Power and Low-Voltage TV Box™
Wall Depth 1/2", 5/8", and up to 1-1/2"
Trade Size 2-Gang

Comes With

(1) Trim Plate
(1) Recessed Combo Box
(2) NM94 Cable Connector
(1) 2-Gang Decorator-Style / GFCI Wall Plate with screws
(2) #8 x 3" Long Screws
(4) #6-32 x 1/2" Long Screws
