Cooper Lighting Solutions

Cooper Lighting APCH7R LED Emergency Exit Combo Sign With Remote Capability

Cooper Lighting APCH7R LED Emergency Exit Combo Sign With Remote Capability

$99.99
$119.99 $99.99
Sale Sold out
Shipping calculated at checkout.

APCH7RG Emergency Exit Combo

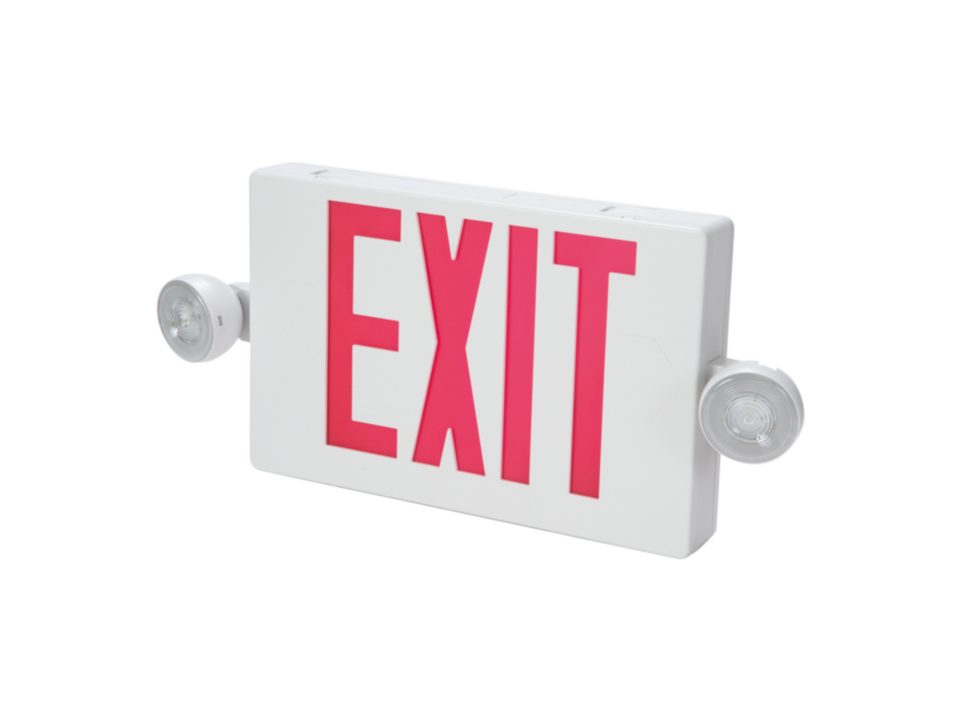

This Cooper Lighting APCH7RG LED Emergency Exit Combo Sign is the ideal choice for indoor exit and emergency signage. Adhering to UL924 standards, this light is equipped with a customizable LED heads, up to 17ft of emergency coverage, and a maintenance-free nickel-cadmium battery. LED illumination is available in red, with single or double face w/ chevrons support. Durable polycarbonate housing is universally mountable and comes in black or white. Opt for the H series to power two 3.6V emergency heads from the APWR series for top-notch lighting.

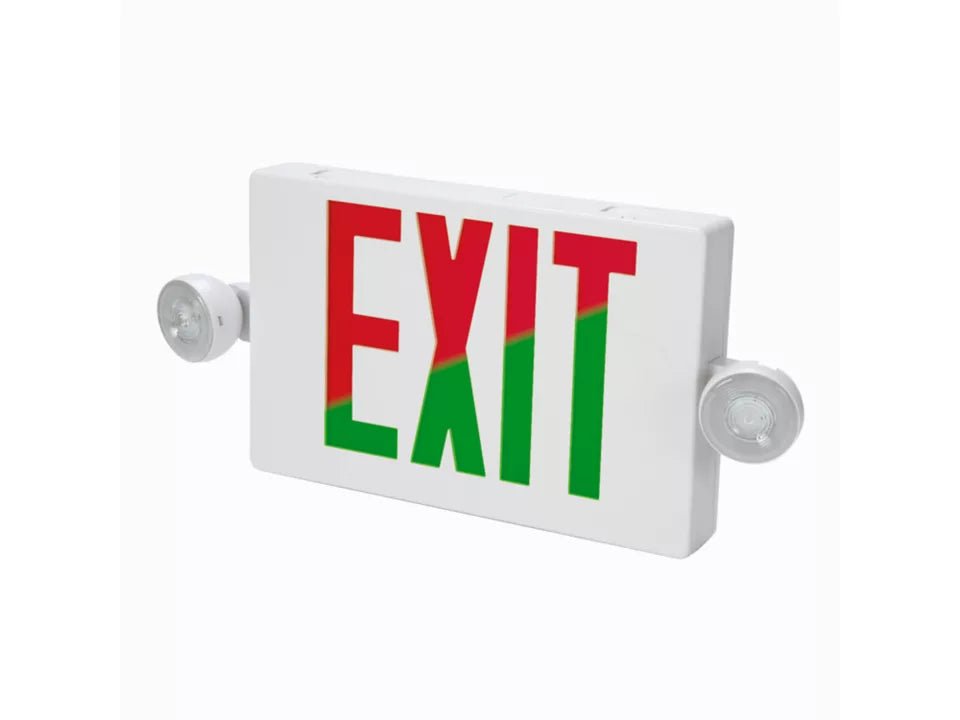

  • Red / green selectable exit sign and emergency light
  • Runs for 90 minutes when AC power is lost
  • 3.6 V, 0.78W LED heads provide up to 17 feet of egress coverage
  • Field selectable, long-life red or green LEDs and face inserts provide deep letter colors and uniform illumination
  • Selectable single or double faces and snap-in/snap-out directional chevrons
  • High impact, UV resistant, 5VA flame resistant housing
  • Nickel cadmium battery
  • Ceiling, wall and back mount with universal J-box mounting pattern
  • Remote capable model powers up to two additional APWR LED heads
  • UL 924 damp location listed
  • Dual voltage input 120/277 VAC, 60Hz
Dimensions See Spec Sheet
Length (in.) 16-9/16"
Width (in.) 2-5/16"
Height (in.) 7.50"

    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
     Head/Lamp Data
    AC LED: Long life LED lamps provide uniform diffused illumination
    DC: LED DC lamps (Brighter in emergency mode)
    Heads DC: 3.6V, .78W Long Life LED Heads Light Output Equivalent to 5.4W Incandescent
    Electrical
    Dual Voltage Input 120/277VAC, 60Hz
    Line-latching
    Solid-State Voltage Limited Charger
    Solid-State Switching
    Brownout Protection
    Low Voltage Disconnect
    Overload/Short Circuit Protection
    Dual Voltage Input 120/277VAC 60Hz
    Test Switch / Power Indicator Light
    High Power Combo available capable of running two additional LED remote heads
    3.6V, .78W D
    Housing Construction
    All components are injection molded, color stable, high impact polycarbonate material
    Reinforcing ribs throughout to provide maximum strength
    Molded-in wireways facilitate internal wire routing and connections
    Available in a white or black finish
    Components are of snap-fit construction to facilitate under 5-minute installation
    Reinforcing ribs throughout to provide maximum strength connections
    All components including battery and electronics are located inside the exit housing
    Snap-out or snap-in chevron directional indicators have full 3/4" stroke
    Universal exits can be field configured as single face or double face
    Snap-fit canopy with mounting screws included with all exits
    Exit can be ceiling, wall, or end mounted
    Universal J-box mounting pattern
    Operating temperature range 10 °C to 40 °C




    Additional Info
    Battery
    Sealed nickel cadmium
    Maintenance-free, long-life
    Full recharge time: 24 hrs (max.)

     Code Compliance
     UL 924 Listed
    UL Damp Location Listed
    Life Safety NFPA 101
    NEC/OSHA
    Most State and Local Codes
    Operating temperature range 10 °C to 40 °C
    California Energy Code compliant
    Warranty
    Five-year warrant
    Seven-year prorated battery warranty
