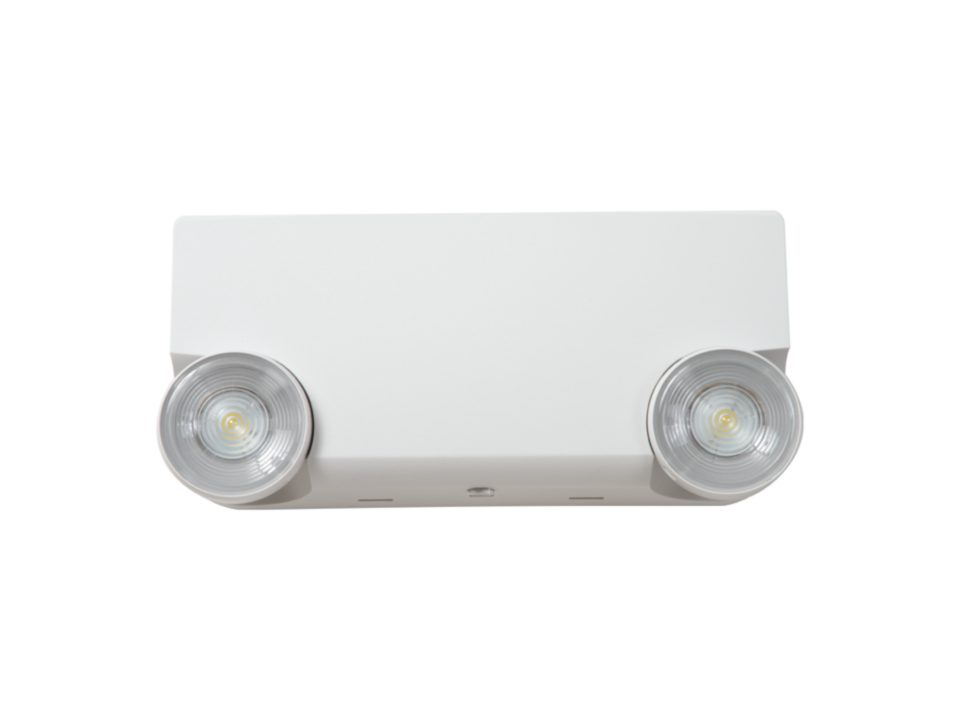

Cooper Lighting APEL LED Emergency Light

Cooper Lighting APEL LED Emergency Light

$35.99
$37.99 $35.99
Sale Sold out
Shipping calculated at checkout.

APEL Emergency Light

The APEL is an UL 924 listed emergency light with a minimum of 90 minutes of run time and 17 feet of emergency egress coverage. Key features include LED heads, a no maintenance nickel cadmium battery and a five year fixture warranty. The LED heads are fully adjustable to maximize design flexibility while the compact form factor optimizes aesthetics. The universal j-box mounting pattern and snap fit housing construction significantly reduce installation time. The APELH2 versions have remote capacity capable of powering two additional APWR LED heads.

  • 3.6V, .78W DC long lasting LED heads
  • Dual voltage input 120/277 VAC, 60 Hz
  • Sealed nickel cadmium battery
  • Universal J-box mounting pattern
  • Operating temperature range of 10°C to 40°C
  • Components are injection molded, high impact thermoplastic
  • Low voltage disconnect
  • Line-latched
  • Brownout circuit
Dimensions
Length (in.) 9.00"
Width (in.) 2-5/8"
Height (in.) 4-11/16"

    Spec Sheets

    Spec Sheet

    Info
     Head/Lamp Data
     Long Life LED Emergency Head
    Two heads standard
    Fully adjustable
    High impact thermoplastic
    Matches housing finish
    Electrical
    Dual Voltage Input 120/277VAC, 60Hz
    240 VAC with 48 hour recharge time
    Line-latching
    Brownout circuit
    Low Voltage Disconnect
    Overload/Short Circuit Protection
    Test Switch/Power connector facilitates installation
    3.6V, .78W DC Long Lasting LED Heads
     Remote capacity option (H2) powers two APWR remotes
    Housing Construction
    All components are injection- molded, color stable, high impact thermoplastic material
    Designer textured finish standard
    Components are of snap-fit construction to facilitate under 5-minute installation
    Reinforcing ribs throughout to provide maximum strength - Available in white or black color
    Suitable for wall or ceiling mount applications
    Universal J-box mounting pattern
    Keyhole mounting slots
    Aesthetically designed with a thin profile
    Available in white




    Additional Info
    Battery Sealed nickel cadmium - Maintenance-free, long-life - Full recharge time: 24 hrs (max.) - Polarized battery terminals
    Compliance UL 924 Damp Location Listed - Life Safety NFPA 101 - NEC/OSHA - Most State and Local Codes - Operating temperature range 10 °C to 40 °C - California Energy Code compliant
    Warranty Five-year warranty - Seven-year prorated battery warranty
