Cooper Lighting Solutions

Cooper Lighting APX7RG Emergency Exit Sign

Cooper Lighting APX7RG Emergency Exit Sign

$35.99
$37.99 $35.99
Sale Sold out
Shipping calculated at checkout.

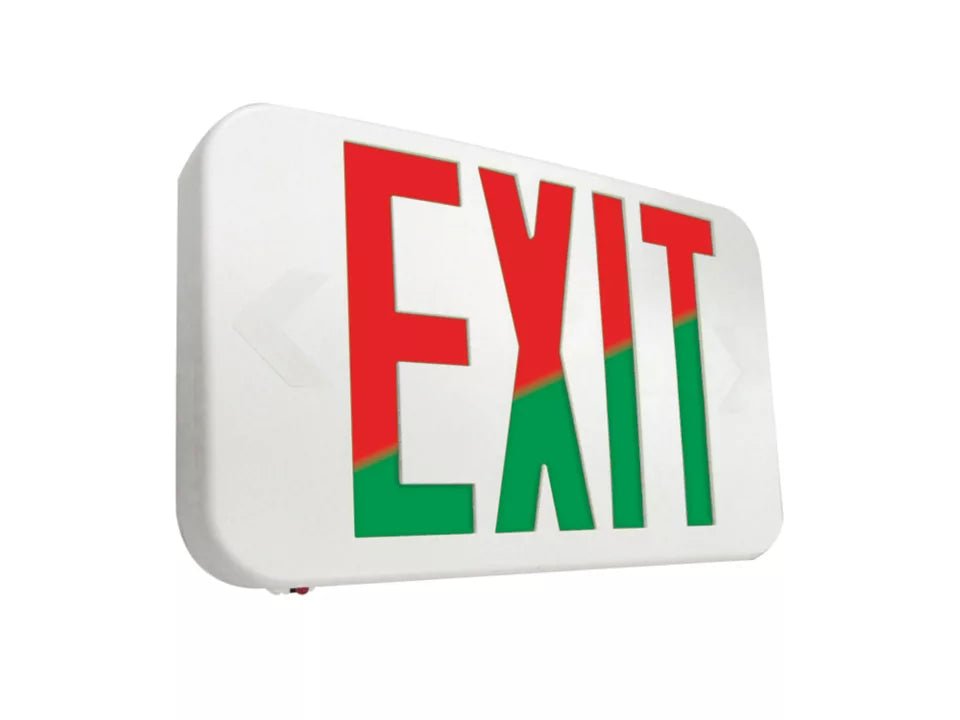

APX7RG Emergency Exit Sign

The LED APX series is UL924 code compliant solution for indoor exit requirements. It is self-powered (APX7) with a maintenance free nickel cadmium battery. The self-powered version will operate for a minimum of 90 minutes during a power outage.

  • Long-life LED sources provide uniform diffused illumination
  • Field selectable red or green faces
  • Ceiling, wall and back mount with universal J-box mounting pattern
  • Dual voltage input 120/277 VAC, 60Hz
  • UL 924 Damp location certified

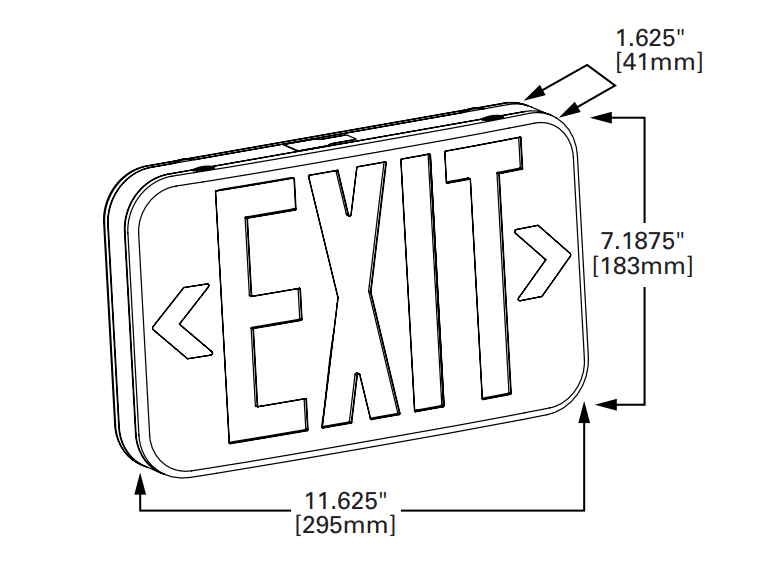

Dimensions
Length (in.) 11.625"
Width (in.) 1.625"
Height (in.) 7.1875"

    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
     Head/Lamp Data
    AC LED: Long life LED lamps provide uniform diffused illumination
    DC: LED DC lamps (Brighter in emergency mode, APX7)
    Electrical
    Dual Voltage Input 120/277VAC 60Hz
    Solid-State voltage limited charger (APX7)
    Brownout circuit (APX7)
    Test switch / Power indicator light (APX7)
    Housing Construction
    All components are injection molded, color stable, high impact thermoplastic material
    Available in a white or black finish
    Components are of snap-fit construction to facilitate under 5-minute installation
    Reinforcing ribs throughout to provide maximum strength connections
    All components including battery and electronics are located inside the exit housing
    Snap-out or snap-in chevron directional indicators have full 3/4" stroke
    Universal exits can be field configured as single face or double face
    Snap-fit canopy with mounting screws included with all exits
    Universal J-box mounting pattern
    Exit can be ceiling, wall, or end mounted
    Universal J-box mounting pattern
    Operating temperature range 10 °C to 40 °C




    Additional Info
    Battery
    Sealed nickel cadmium
    Maintenance-free, long-life
    Full recharge time: 24 hrs (max.)

     Code Compliance
     UL 924 Listed
    UL Damp Location Listed
    Life Safety NFPA 101
    NEC/OSHA
    Most State and Local Codes
    Operating temperature range 10 °C to 40 °C
    California Energy Code compliant
    Warranty
     Five-year warrant
    Seven-year prorated battery warranty
