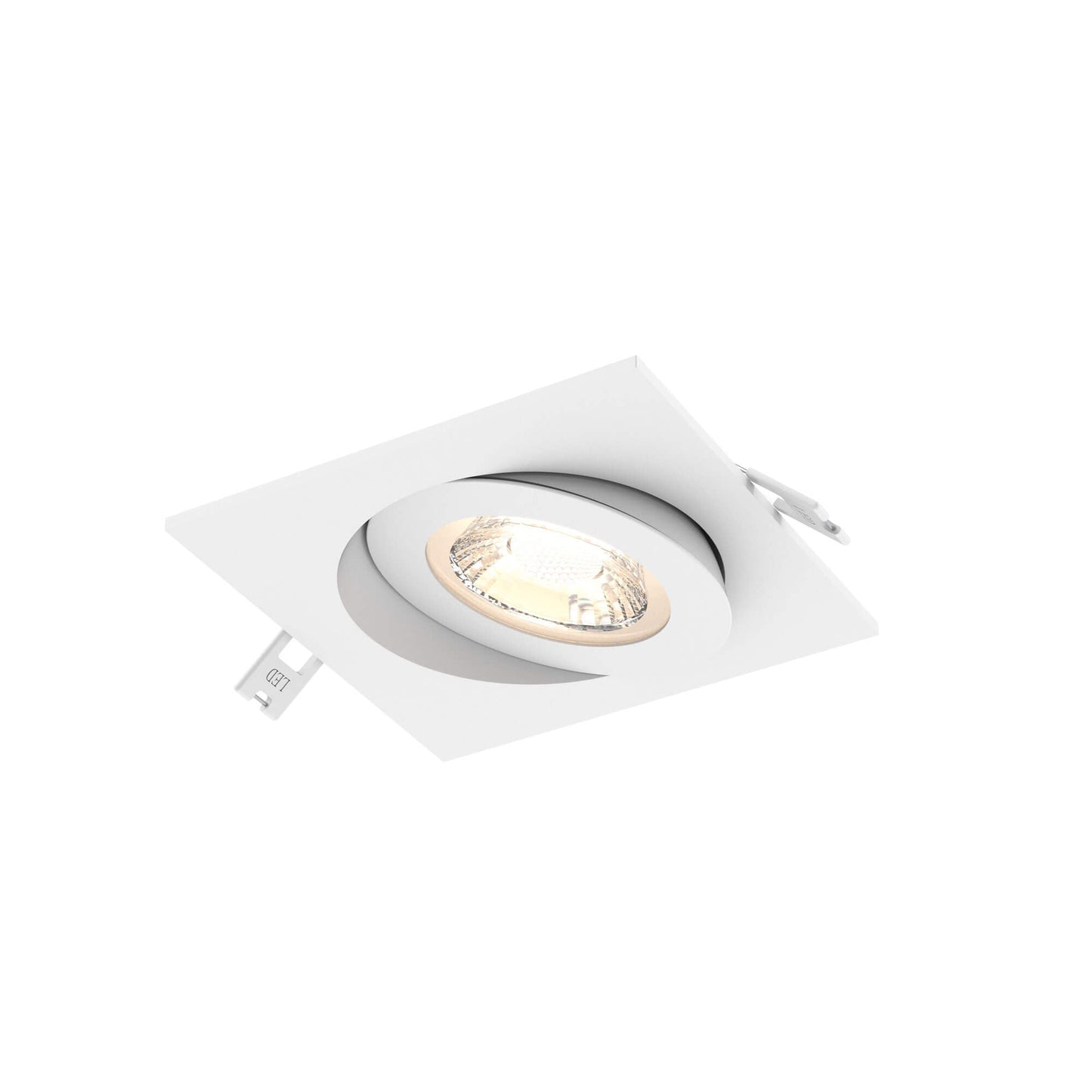

Dals Lighting FGM4SQ-CC 4” 9W Square LED Pivot Gimbal Selectable CCT

Dals Lighting FGM4SQ-CC 4” 9W Square LED Pivot Gimbal Selectable CCT

$36.50
$36.50
Sale Sold out
Shipping calculated at checkout.
Color: White
Size
Color Temperature

9W 4" LED Square Pivot Gimbaled Downlight Selectable CCT

Experience unparalleled lighting versatility with our Dals FGM4SQ-CC 4" 9W Square LED Pivot Gimbal Selectable CCT. Boasting a high lumen output and the freedom to direct light with a 360° rotation and 90° tilt angle, this product is the ultimate solution for all your lighting desires.

  • Every fixture includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • 90° tilting, 360° rotation
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K*
  • Low profile
  • 40° beam spread
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40° C
  • 5-year warranty
    Fixture Type Pivoting Gimbaled Downlight

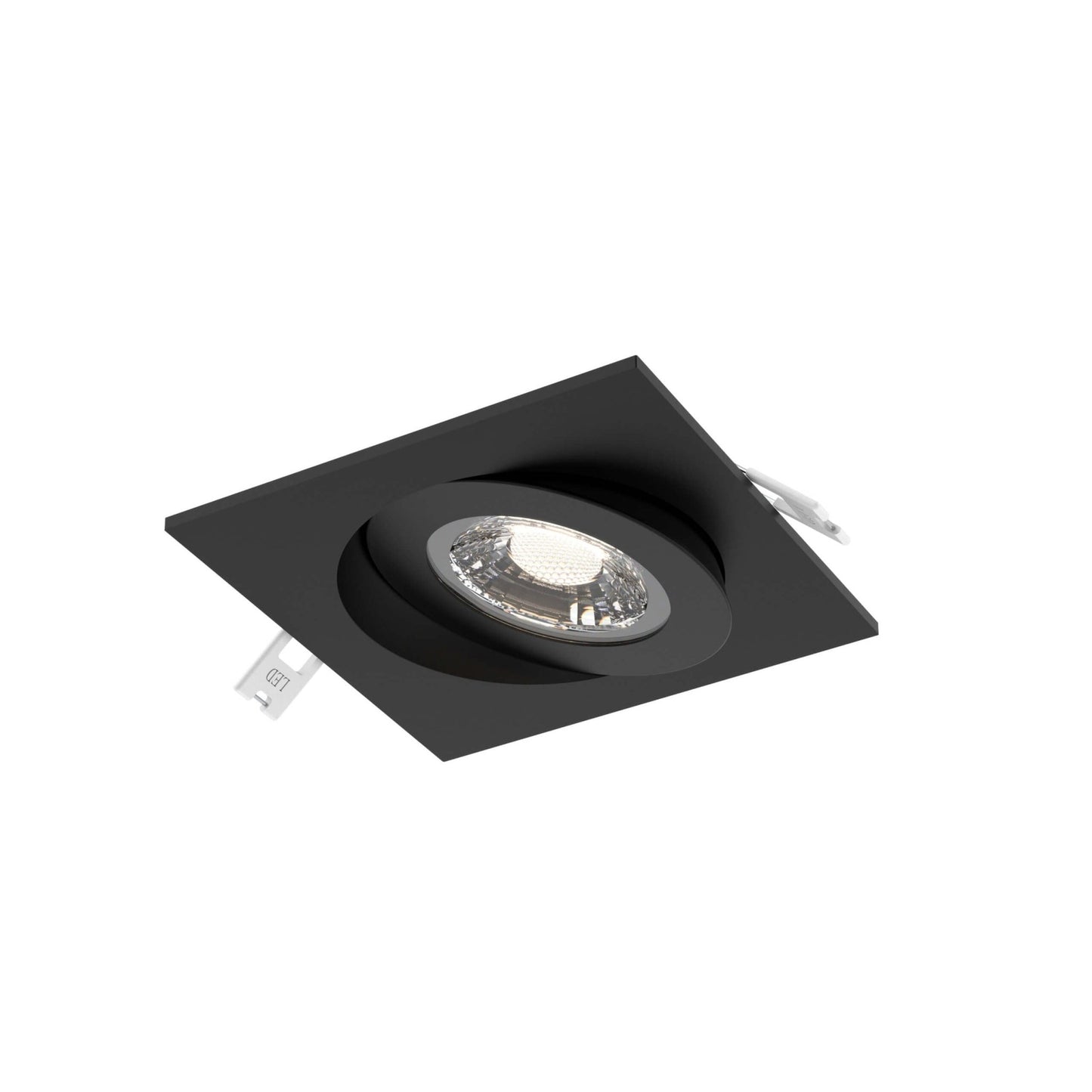

    Finish White, Black
    Wattage 9W
    Lumen Output 800L
    CCT (Kelvin) 27K-50K
    Temperature Selectable
    Indoor or Outdoor Fixture Indoor

    Certifications energy-starCertifications etlCertifications ja8


      Spec Sheet

      Spec Sheet

      Installation Instructions

      Info
      Technology LED
      Wattage 9W
      Lumen 800L
      CCT (Kelvin) 27K-50K
      Color Temp. Selectable
      CRI >90
      Voltage 120V
      Rated Hours 50000
      Dimmable Yes-Dimmable
      Tilt/Rotation 90° tilting, 360° rotation
      Beam Spread 40°
      Weight (lb.) 2.00

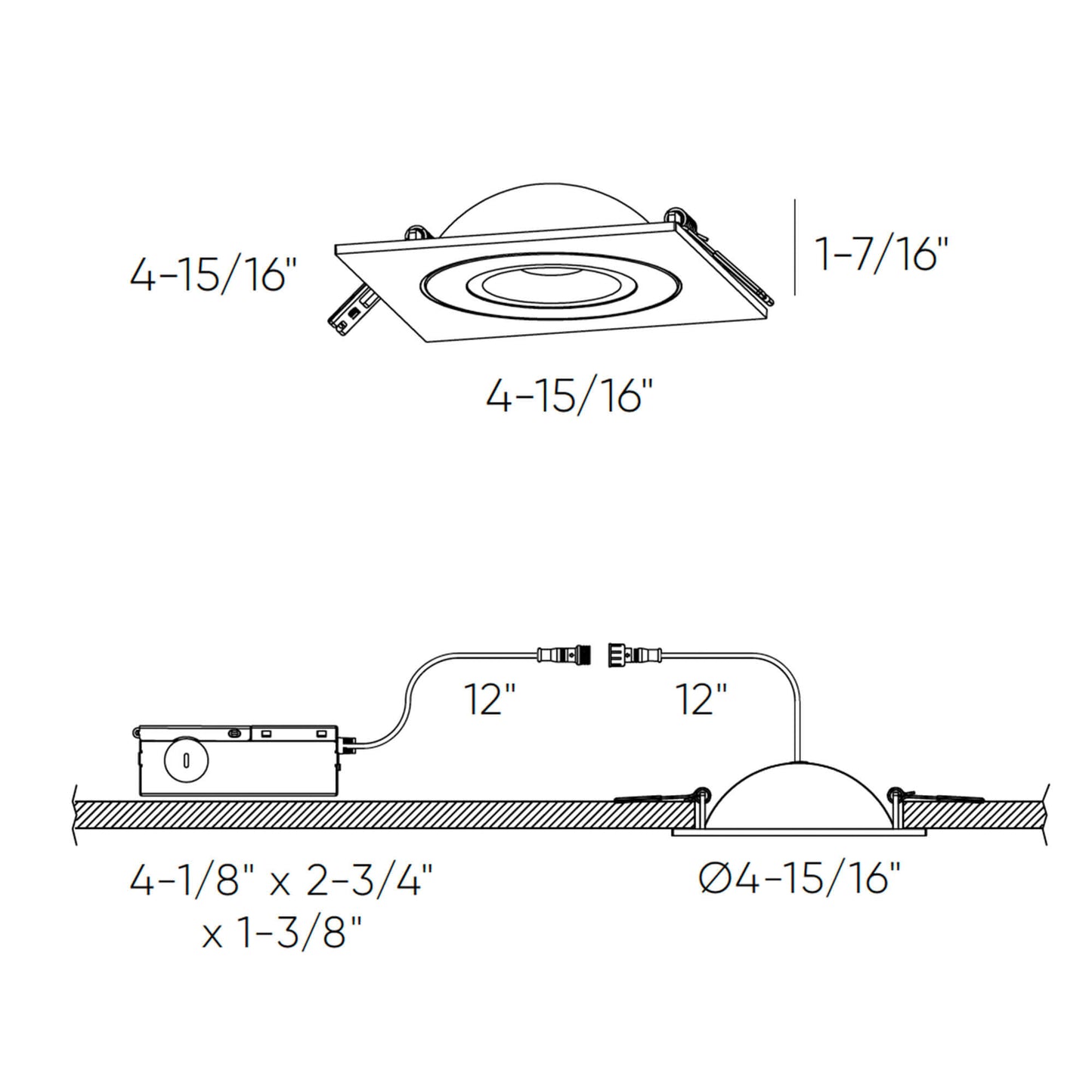

      Length (in.) 4-15/16"
      Width (in.) 4-15/16"
      Cutout (in.) 4.25"
      Height (in.)
      		 1-7/16"
      Additional Info
      SKU FGM4SQ-CC
      Safety Listing UL Listed, ETL Listed
      Location Rating Wet Location
      Energy Star Yes
      Warranty 3 Years
