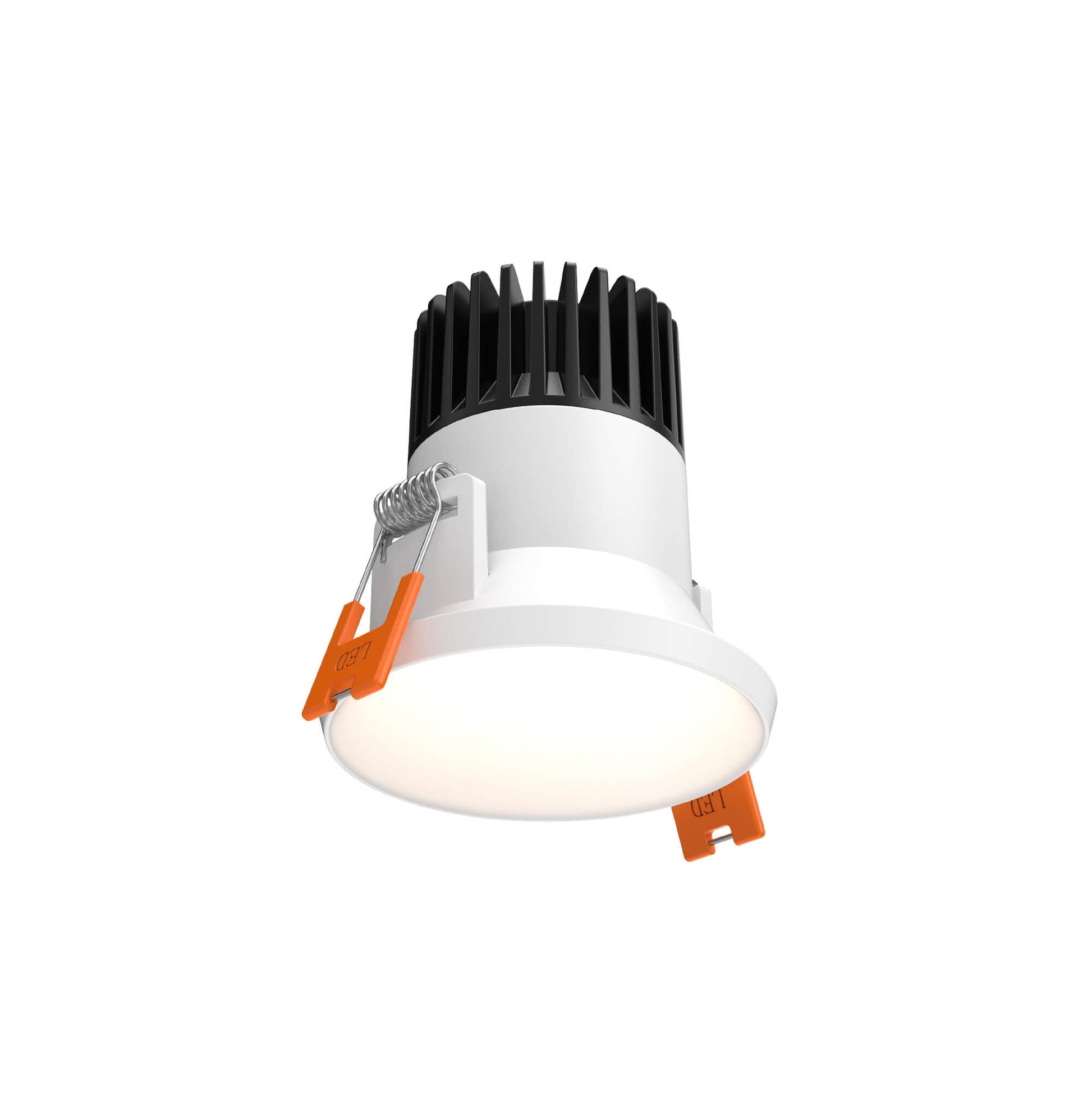

Dals Lighting ATR03-CDW 3” 10W Thin Trim Downlight Selectable CCT+DTW
Dals Lighting ATR03-CDW 3” 10W Thin Trim Downlight Selectable CCT+DTW
Couldn't load pickup availability
2" 8W Thin Trim Downlight

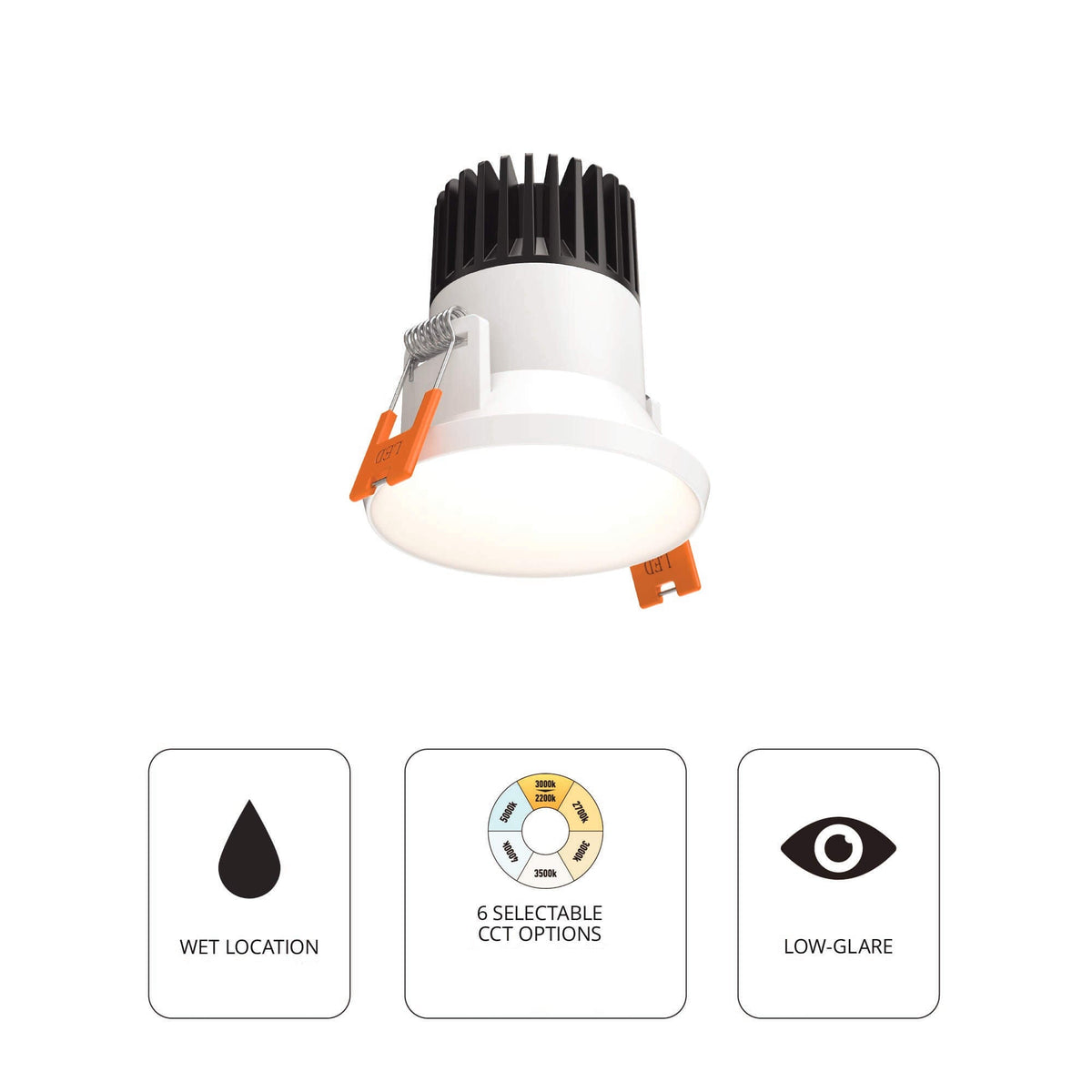

Dals Lighting ATR03-CDW 3" Thin Trim Recessed Downlight – 8W LED with Selectable Color Temperature The Nest series delivers a minimalist "almost trimless" design perfect for modern commercial and residential spaces. This 3" downlight combines 800 lumens of crisp illumination with field-adjustable color temperature control—choose from six CCT options (2700K–5000K) plus Dim-to-Warm technology (3000K–2200K) all managed from a single transformer switch. The integrated junction box and driver simplify installation, while the frosted lens eliminates glare and creates a seamless ceiling appearance. With a 24° beam angle, 90 CRI, and 50,000-hour lifespan, this wet-location-rated fixture delivers professional-grade performance. Daisy-chain compatible, ETL/FCC certified, and backed by a 5-year warranty.
- Every fixture includes a junction box with an integrated driver
- 6 CCT: 2700, 3000, 3500, 4000, 5000K + Dim-to-Warm (3000–2200K) integrated in a single unit
- Can be daisy chained
- Smooth 360° wide spread
- 24° beam angle

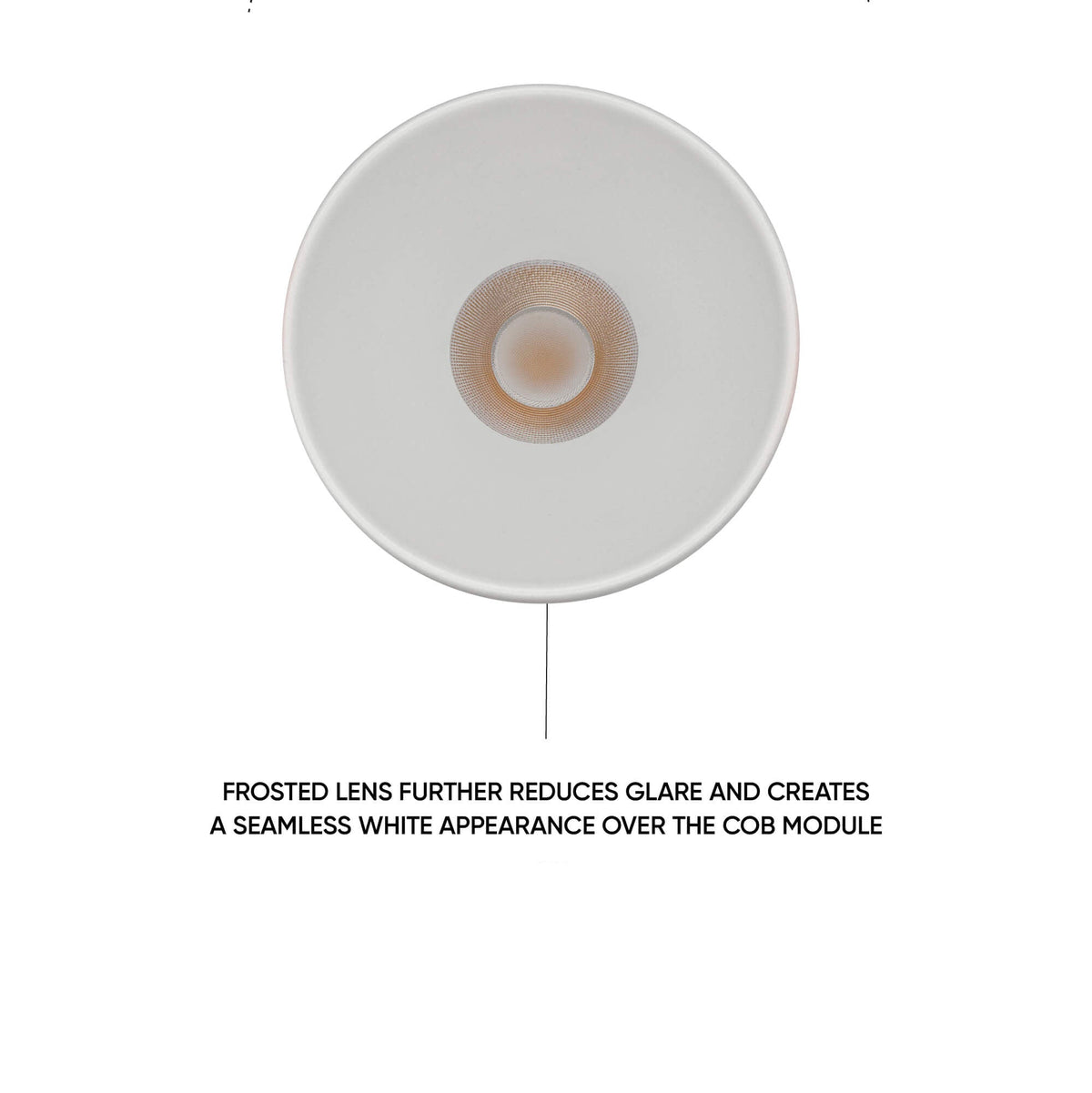

- Frosted lens further reduces glare and creates a seamless white appearance over the COB module
- 5-year warranty
Spec Sheet
Spec Sheet
Catalog Sheet
Installation Instructions
Info
| Product Type | Thin Trim Downlight |

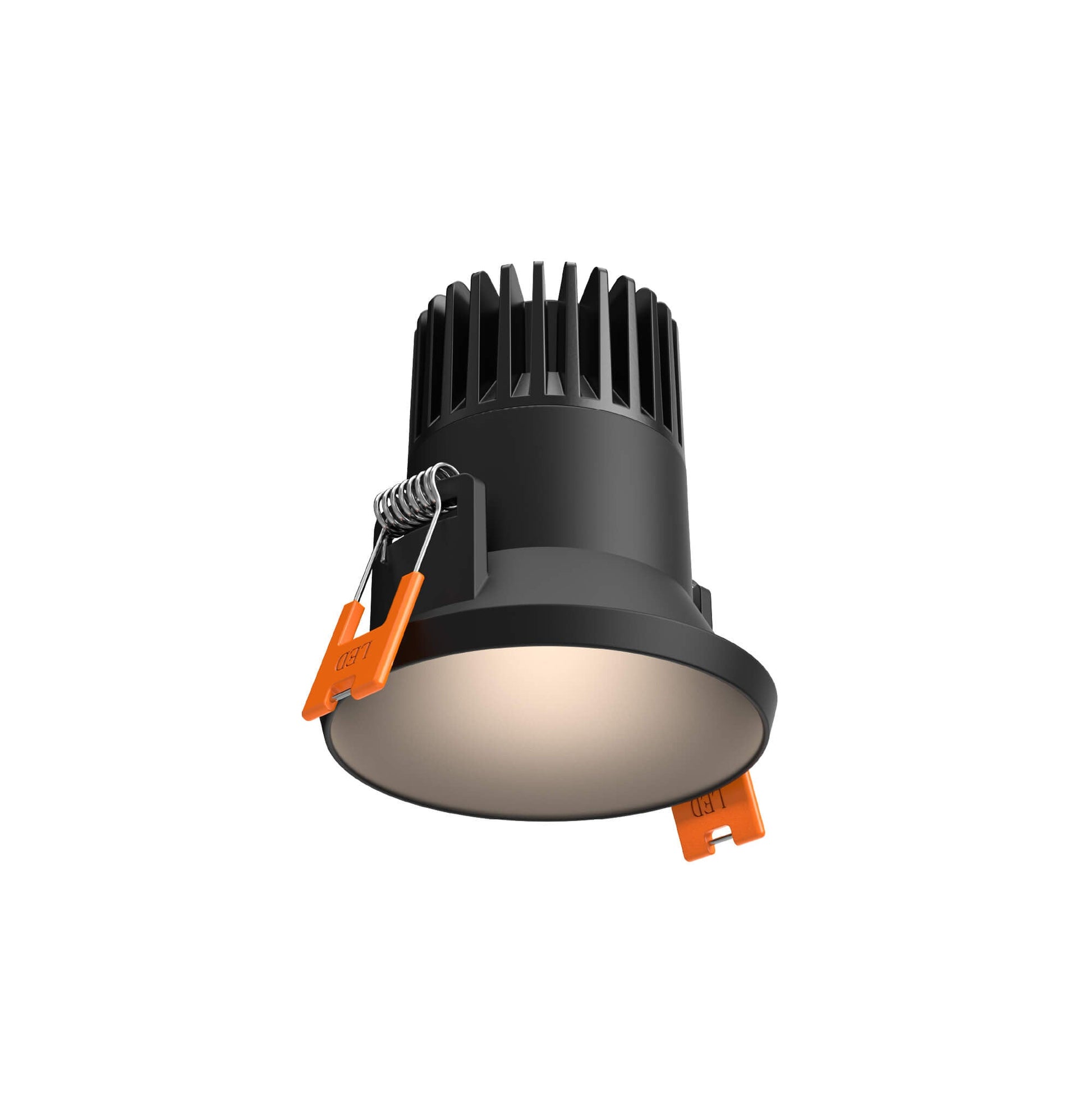

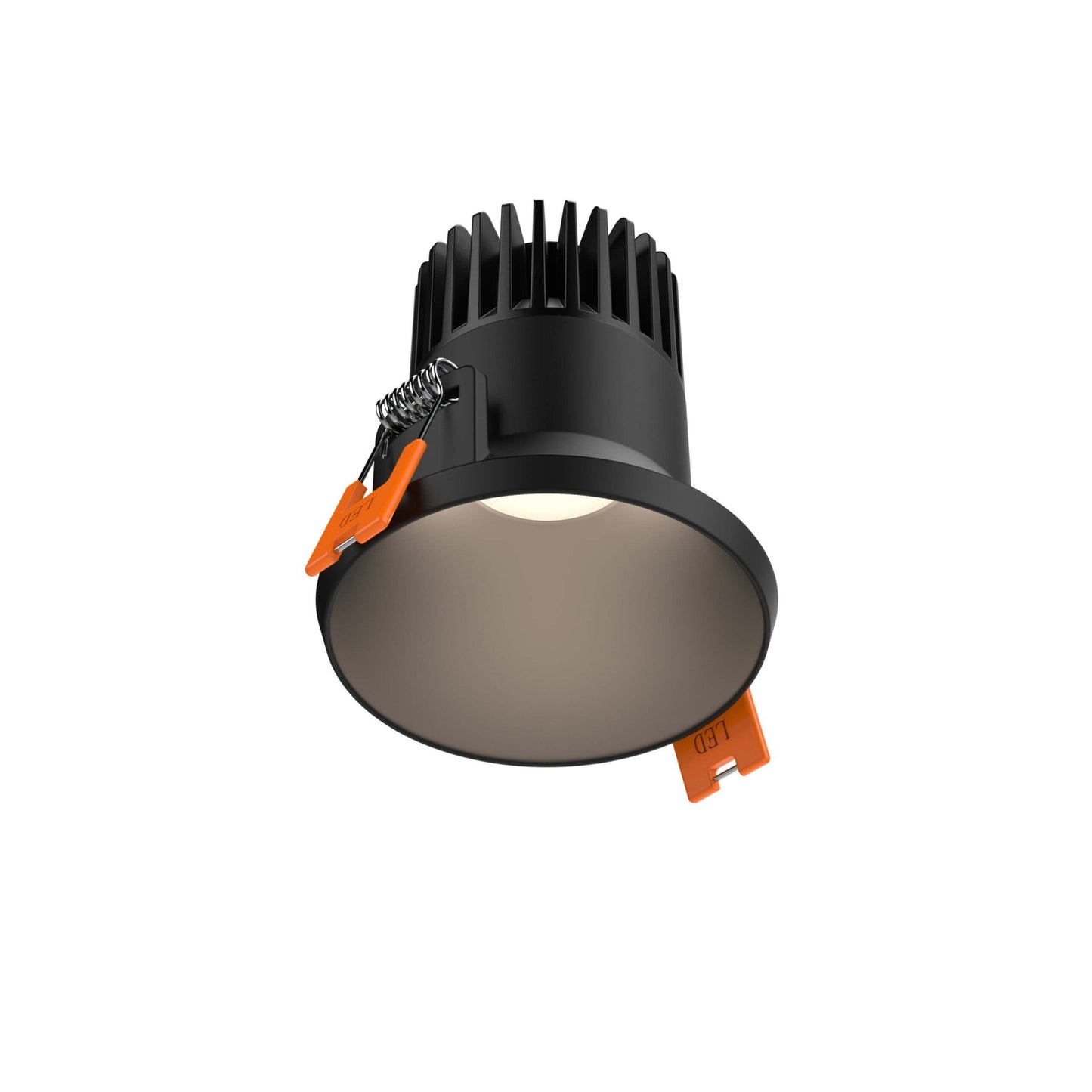

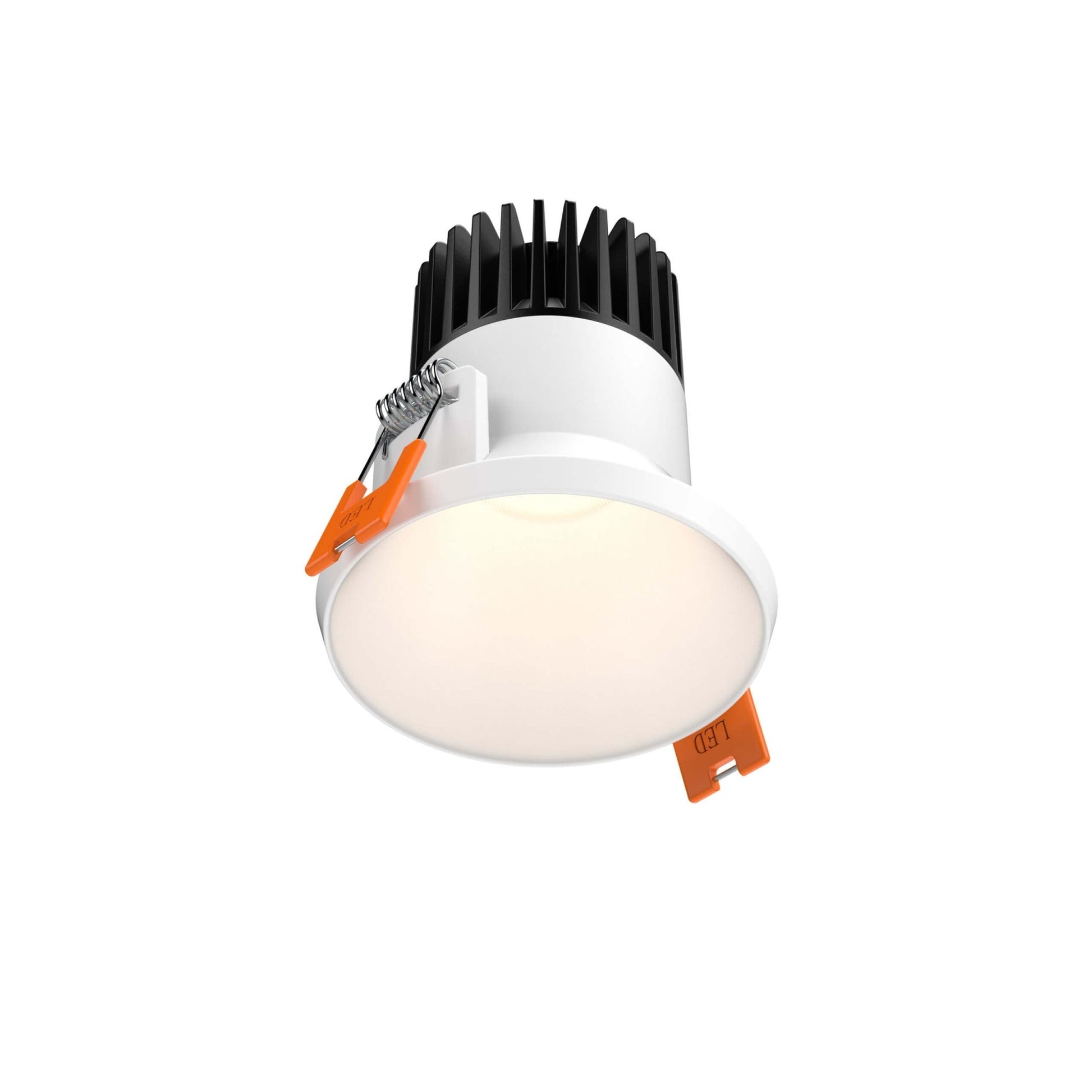

| Color | Black, White |
| Wattage | 10W |
| Lumen |
800 Lumen |
| Color Temp. | Field Adjustable (27K-50K) DTW (30K-22K) |

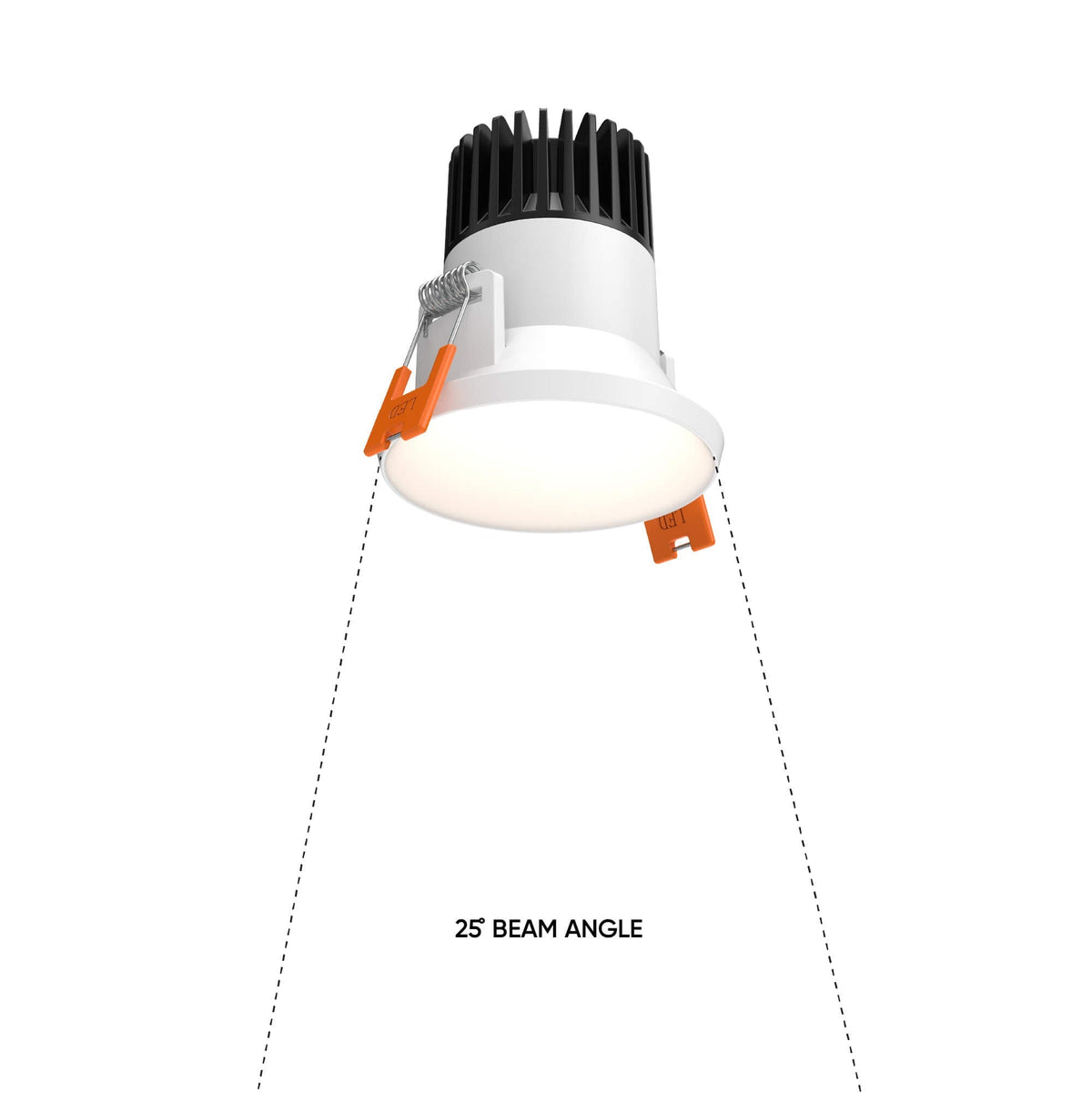

| Beam Angle | 25° |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Material | Metal |
| Mounting |
Recessed Mount |
Additional Info

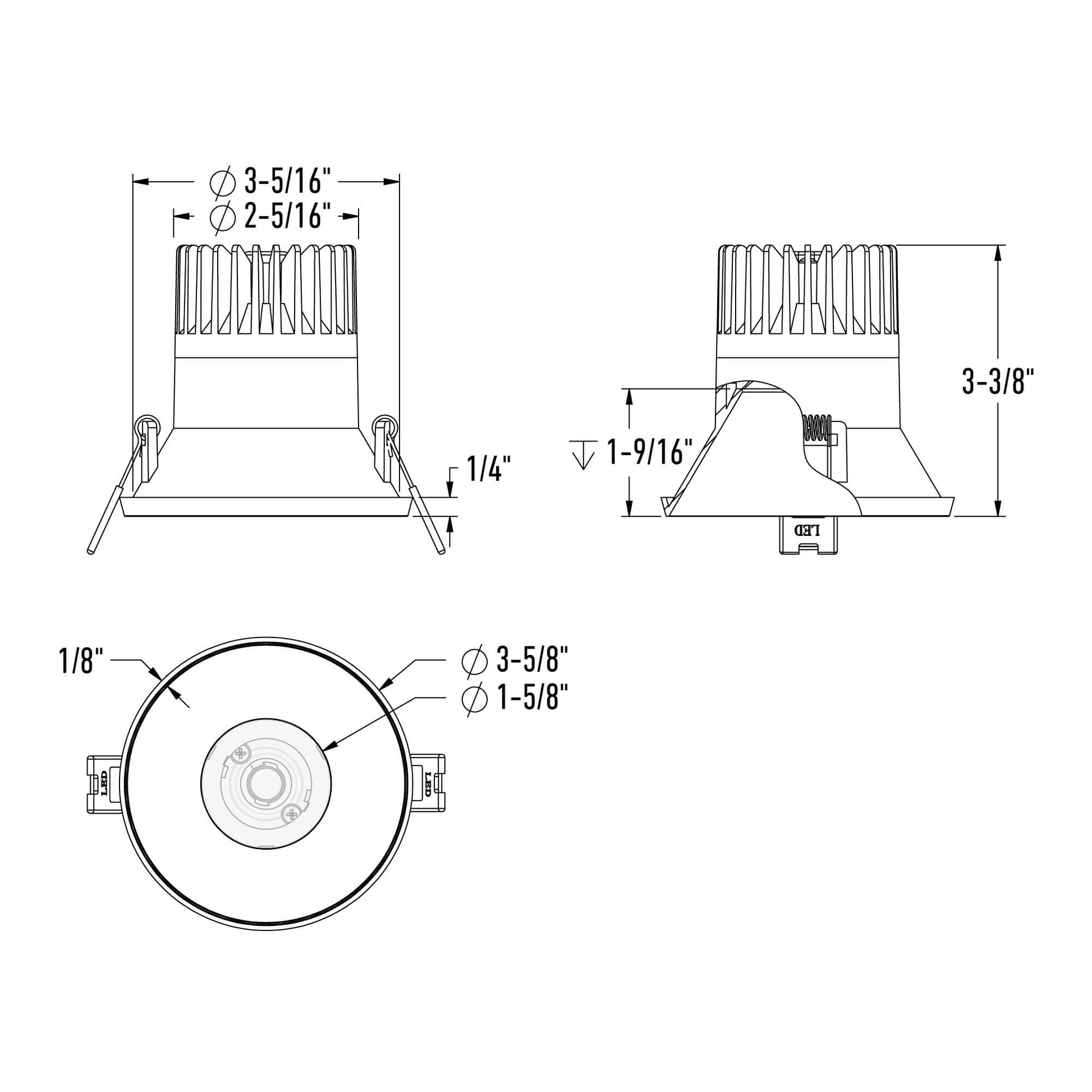

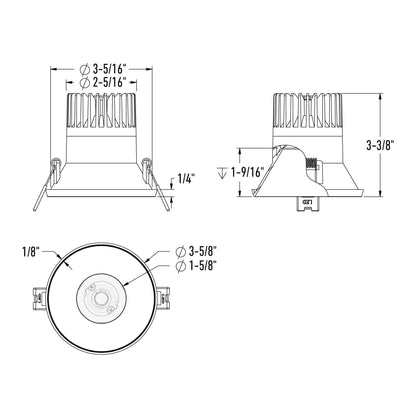

| Dimensions | 3-3/8"" X 3-5/8" |
| Cutout | 3-3/8" |
| Location Rating | Wet Location |
| Certifications | ETL, FCC, ICES, ES, T24/JA8 |
| Voltage | 120V |
| Warranty | 5 Year |
