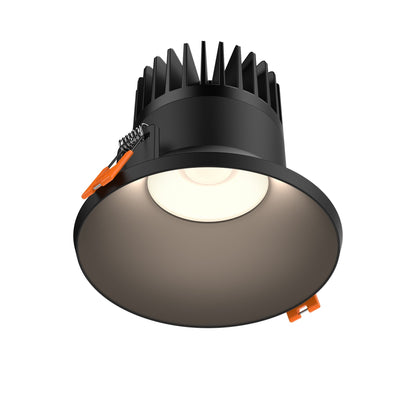

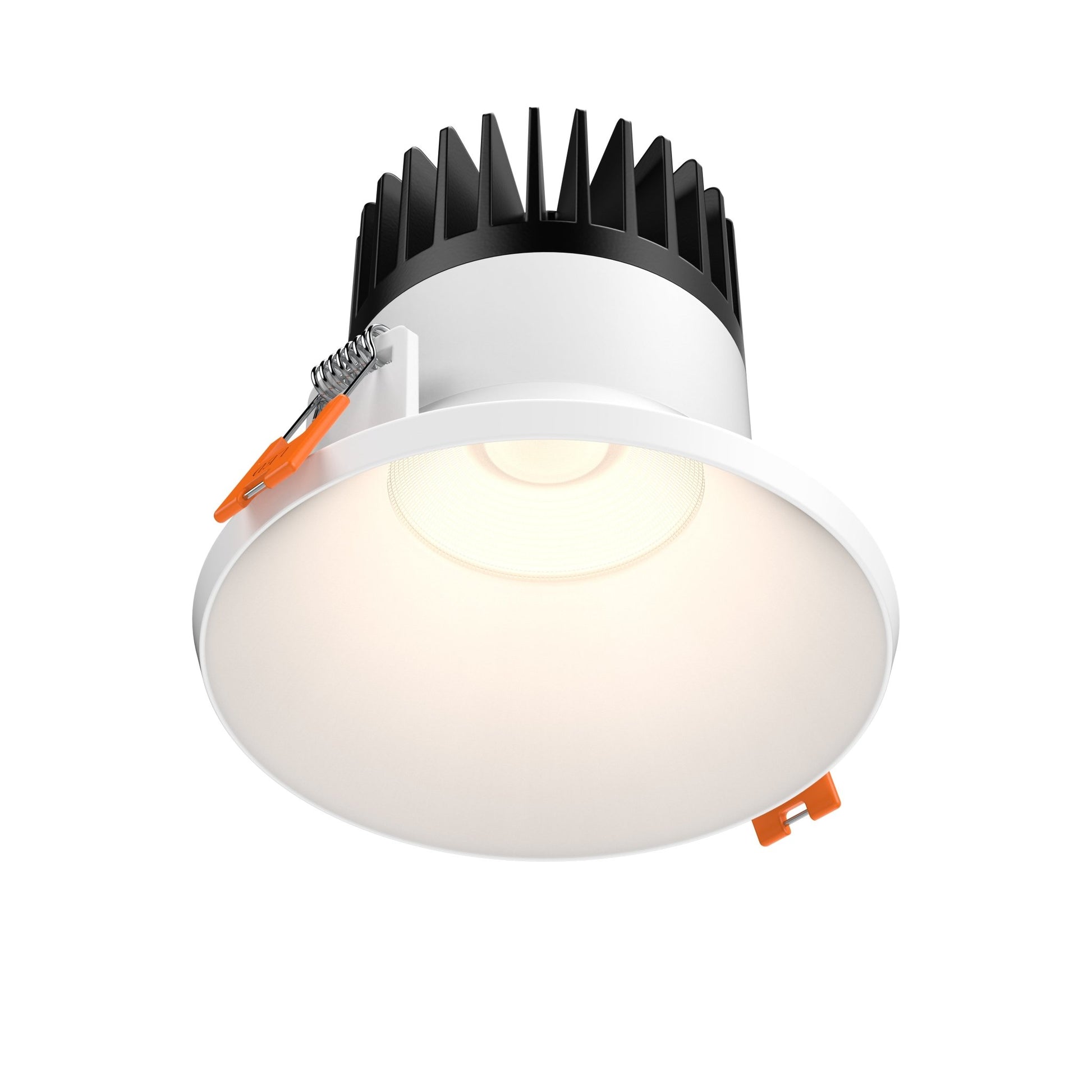

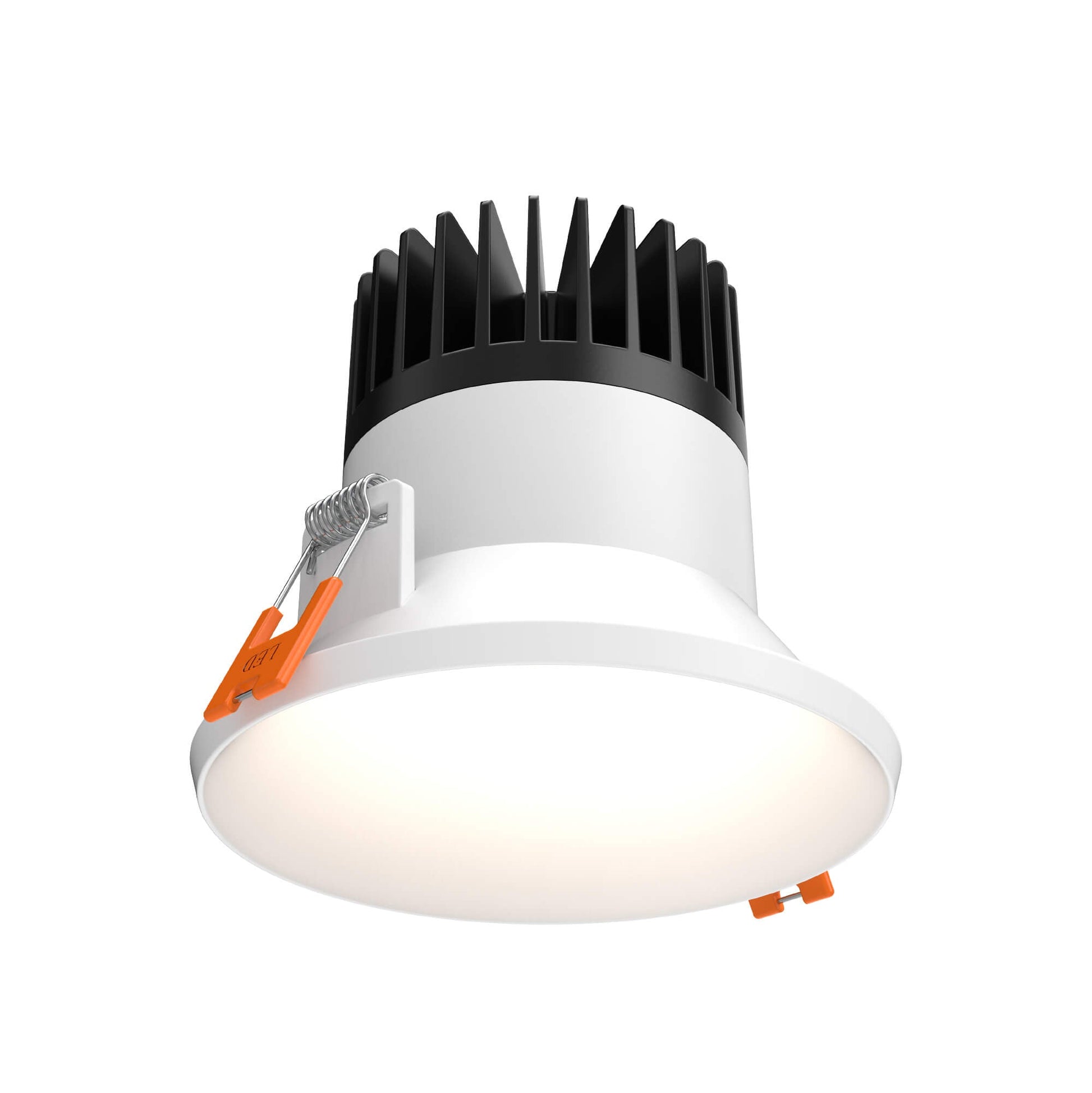

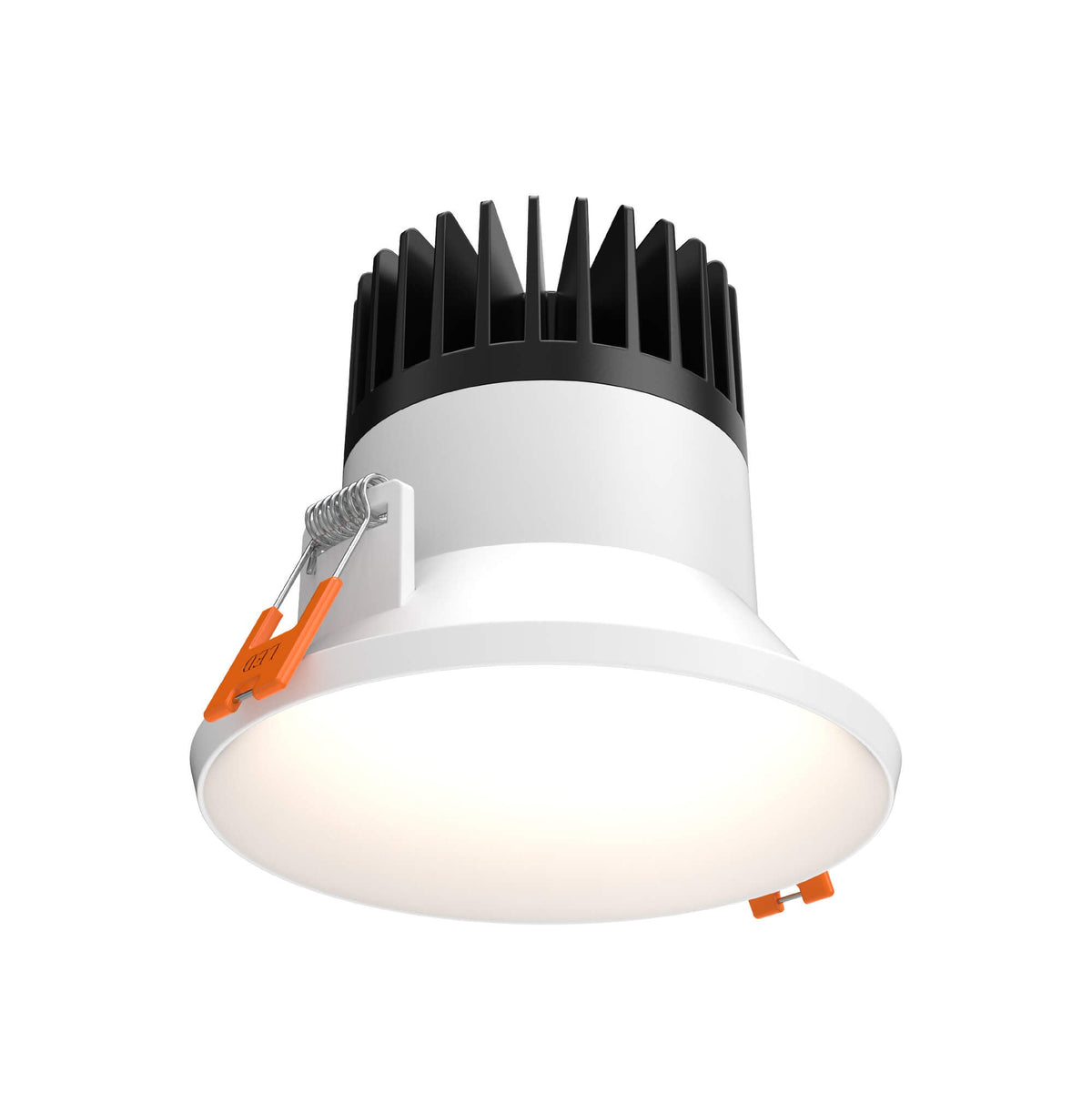

Dals Lighting ATR04-CDW 4” 14W Thin Trim Downlight Selectable CCT+DTW

Dals Lighting ATR04-CDW 4” 14W Thin Trim Downlight Selectable CCT+DTW

Regular price $133.92
Regular price Sale price $133.92
Sale Sold out
Shipping calculated at checkout.
Color: White
Color Temperature
Size
Quantity

4" 14W Thin Trim Downlight

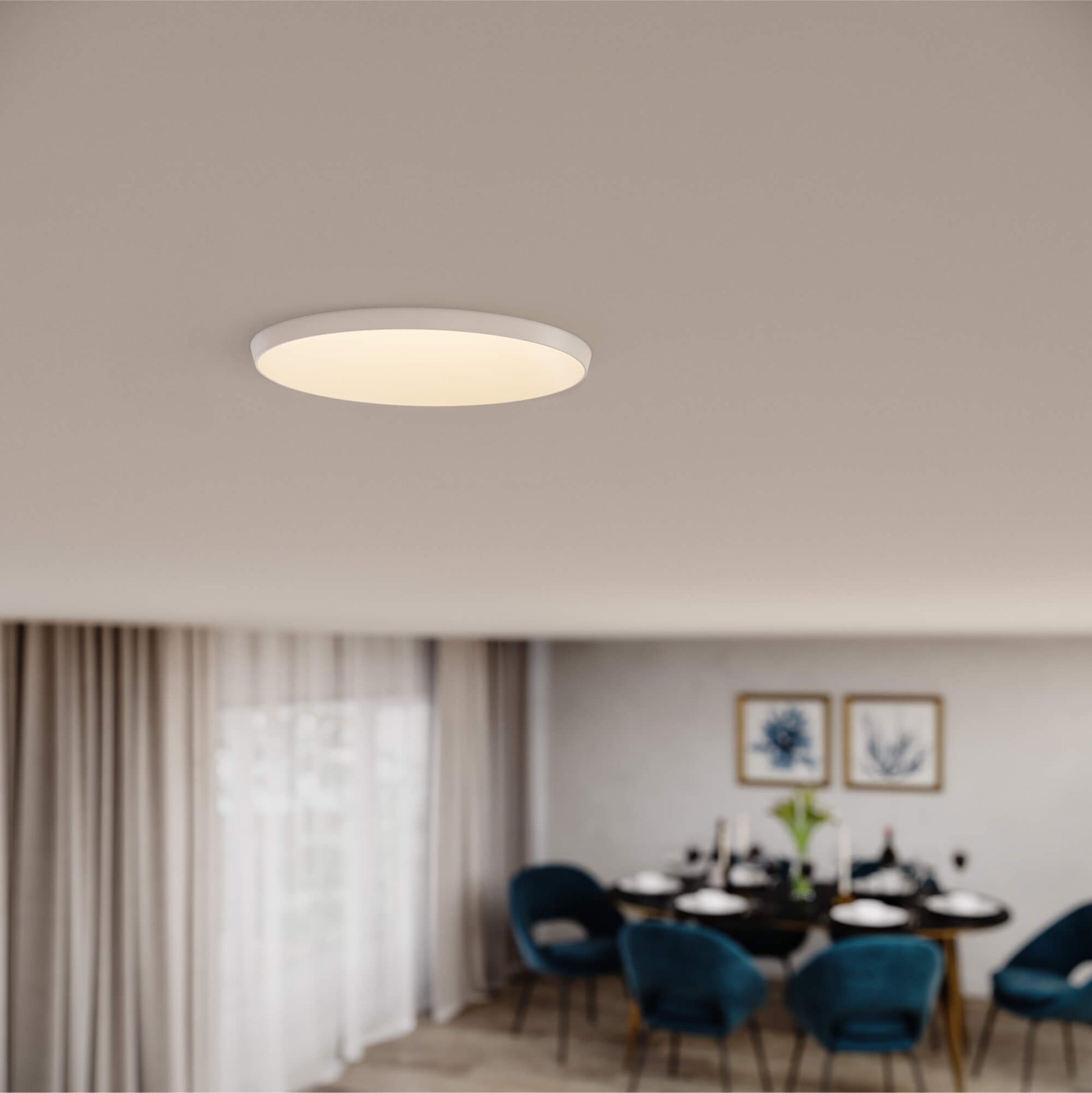

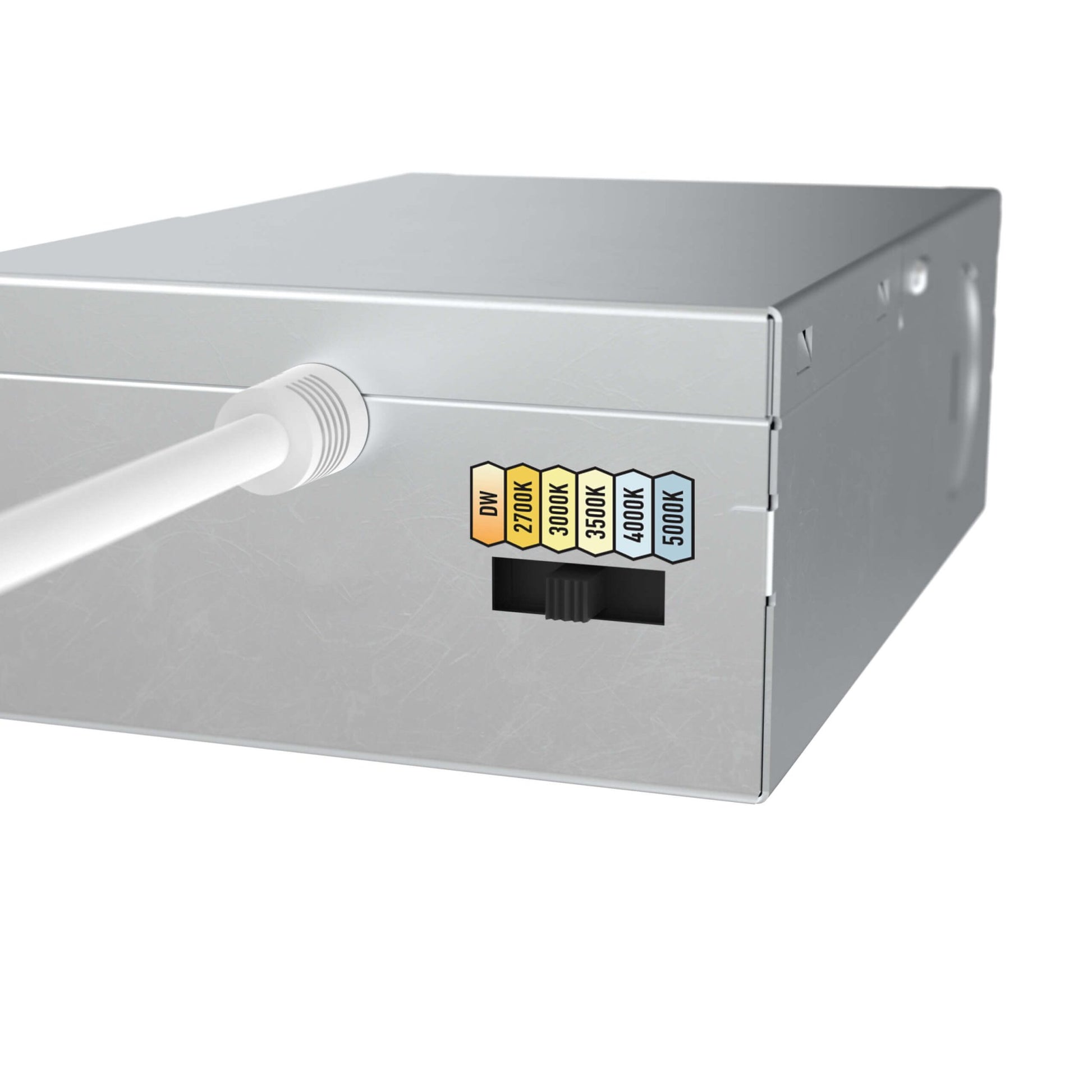

Dals Lighting ATR04-CDW 4" Thin Trim Recessed Downlight – 14W LED with Selectable Color Temperature The Nest series delivers a minimalist "almost trimless" design perfect for modern commercial and residential spaces. This 4" downlight combines 1220 lumens of crisp illumination with field-adjustable color temperature control—choose from six CCT options (2700K–5000K) plus Dim-to-Warm technology (3000K–2200K) all managed from a single transformer switch. The integrated junction box and driver simplify installation, while the frosted lens eliminates glare and creates a seamless ceiling appearance. With a 24° beam angle, 90 CRI, and 50,000-hour lifespan, this wet-location-rated fixture delivers professional-grade performance. Daisy-chain compatible, ETL/FCC certified, and backed by a 5-year warranty.

  • Every fixture includes a junction box with an integrated driver

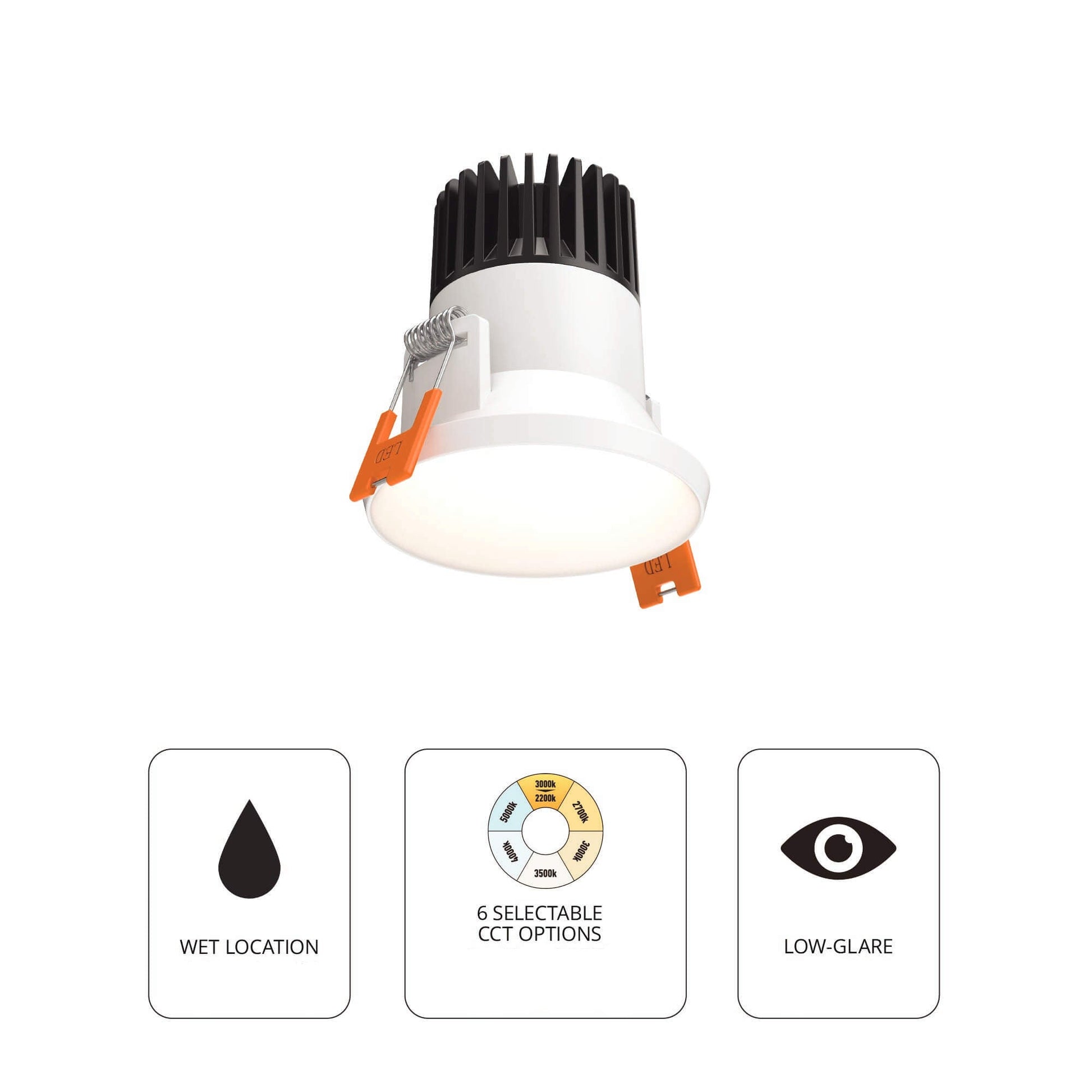

  • 6 CCT: 2700, 3000, 3500, 4000, 5000K + Dim-to-Warm (3000–2200K) integrated in a single unit
  • Can be daisy chained
  • Smooth 360° wide spread

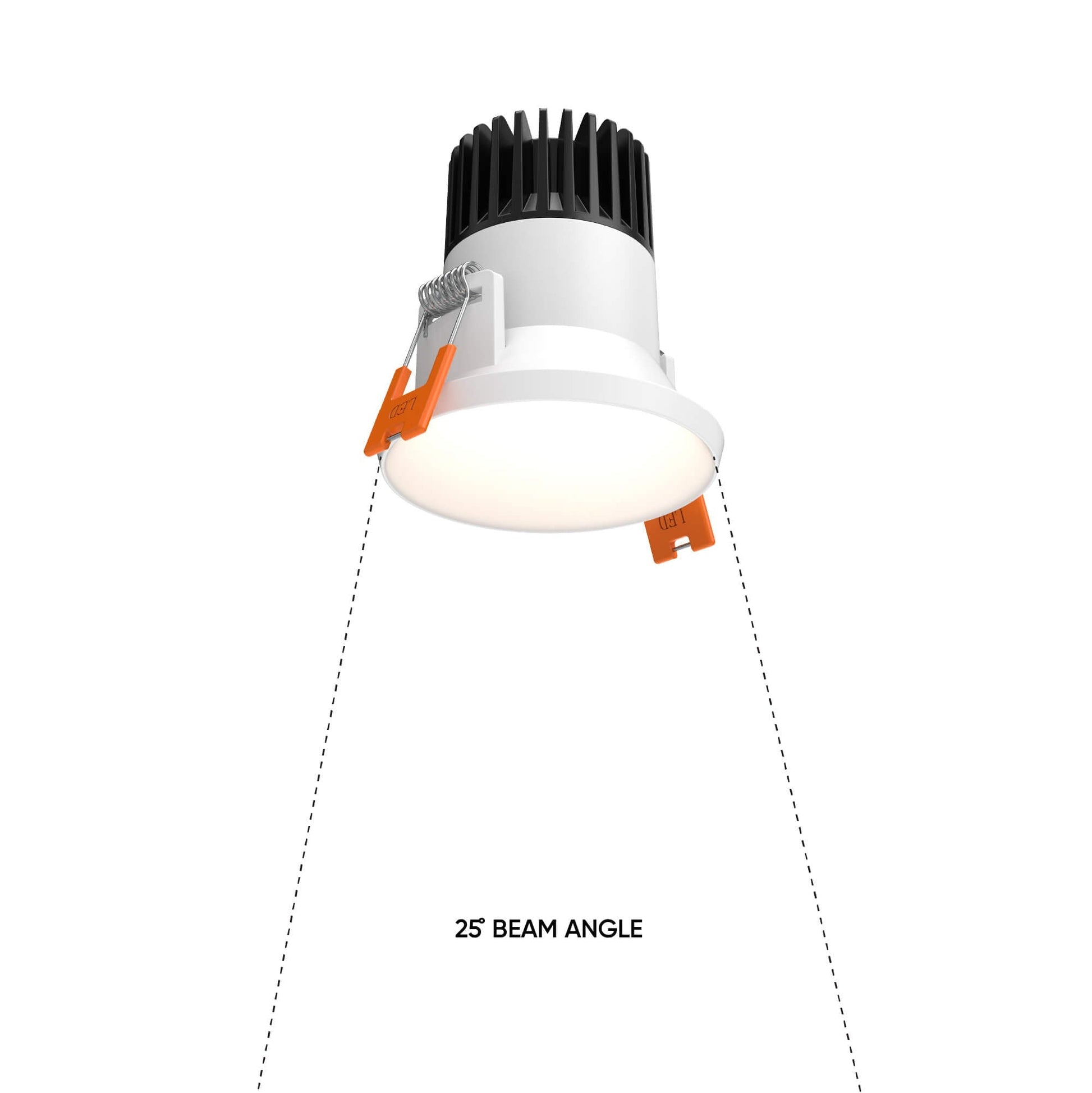

  • 24° beam angle

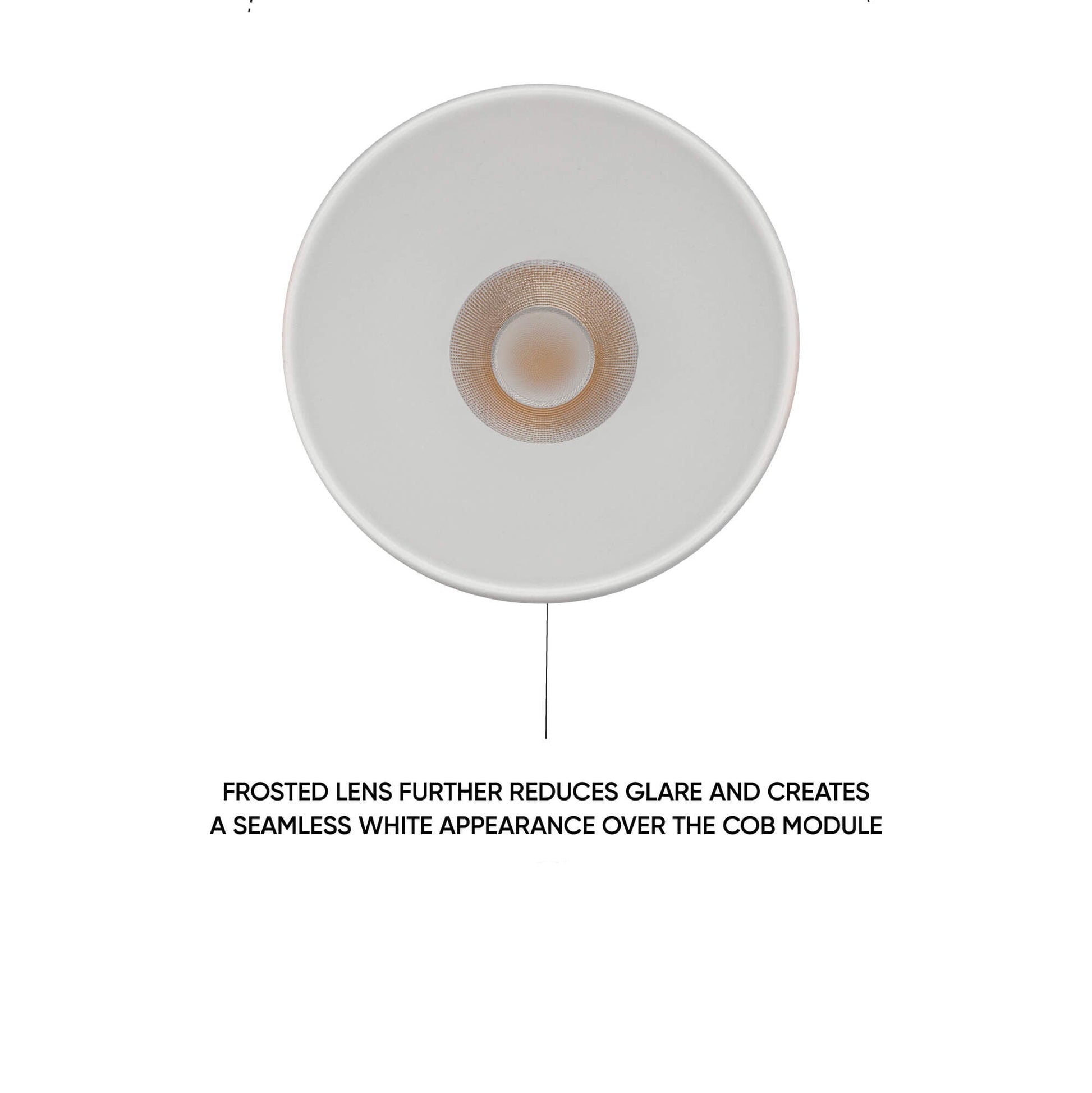

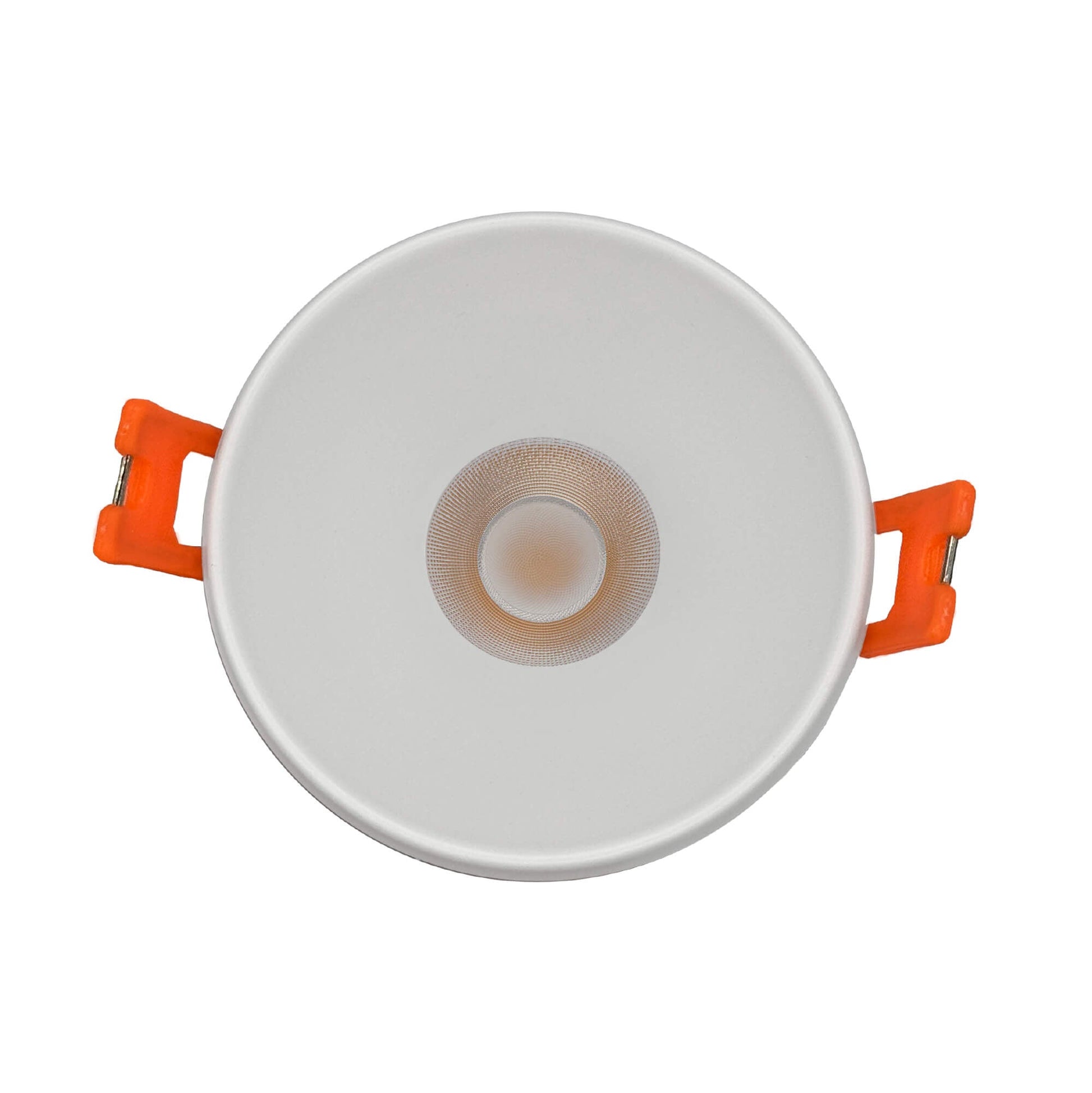

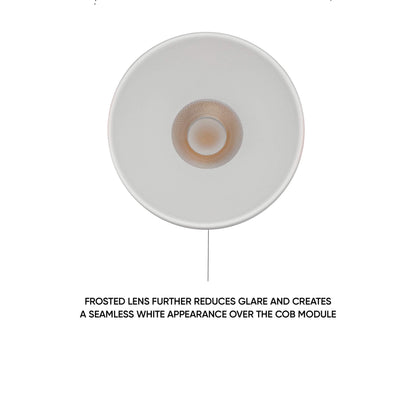

  • Frosted lens further reduces glare and creates a seamless white appearance over the COB module
  • 5-year warranty
Spec Sheet

Spec Sheet

Catalog Sheet

Installation Instructions

Info
Product Type  Thin Trim Downlight

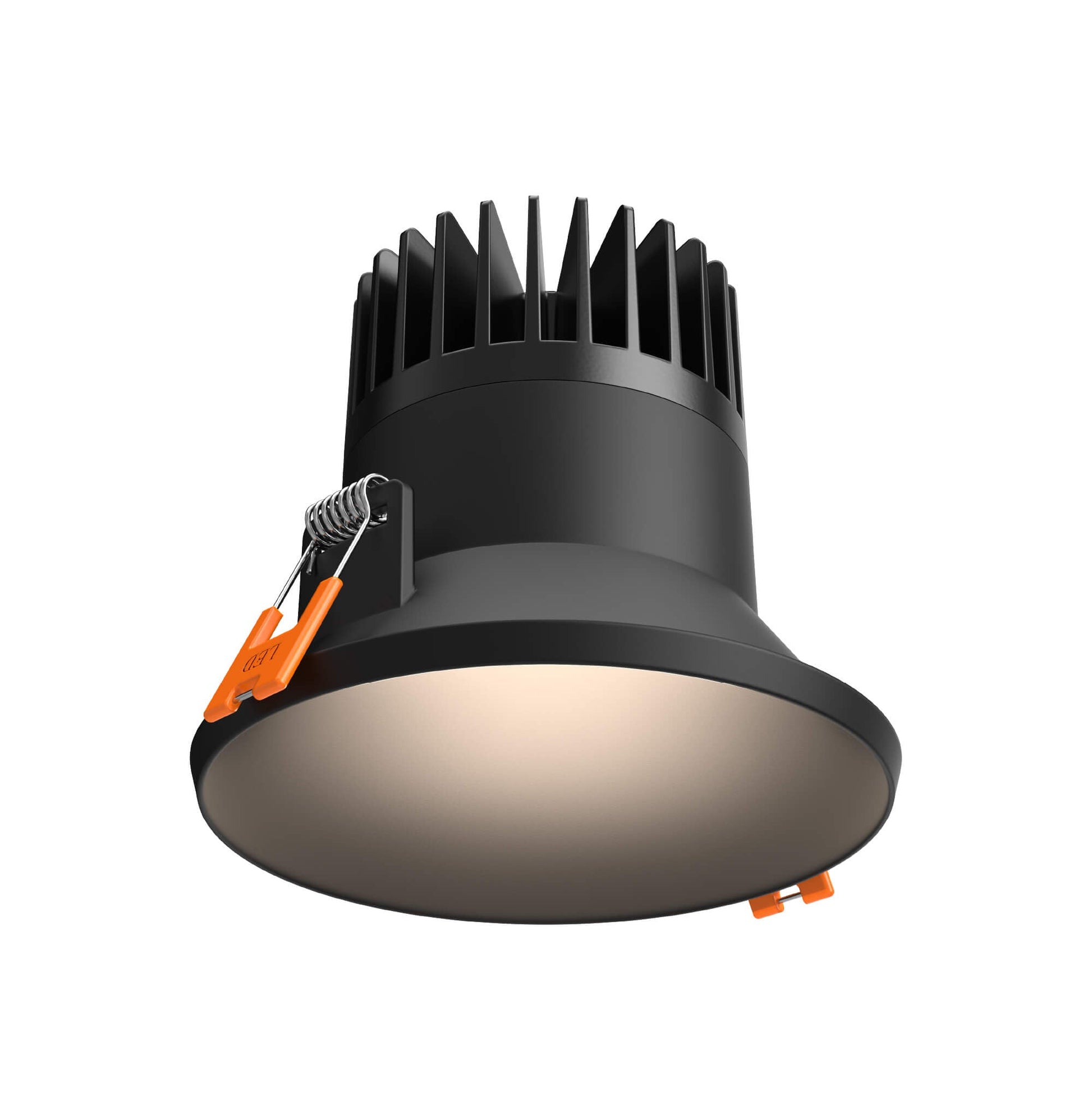

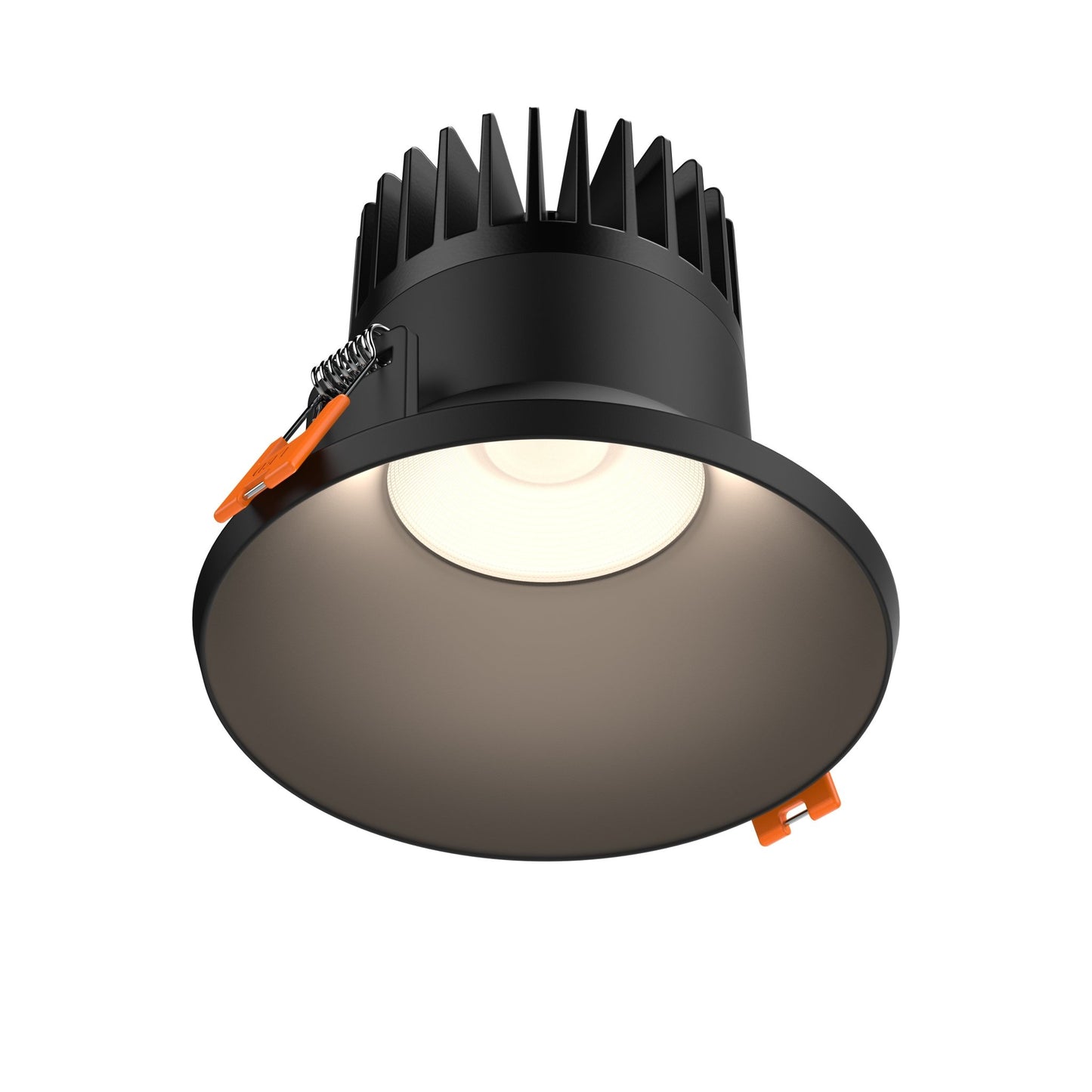

Color Black, White
Wattage 14W
Lumen 1220 Lumen
Color Temp. Field Adjustable (27K-50K) DTW (30K-22K)
Beam Angle 25°
CRI 90
L70 Lifespan 50,000
Material Metal
Mounting
Recessed Mount



Additional Info

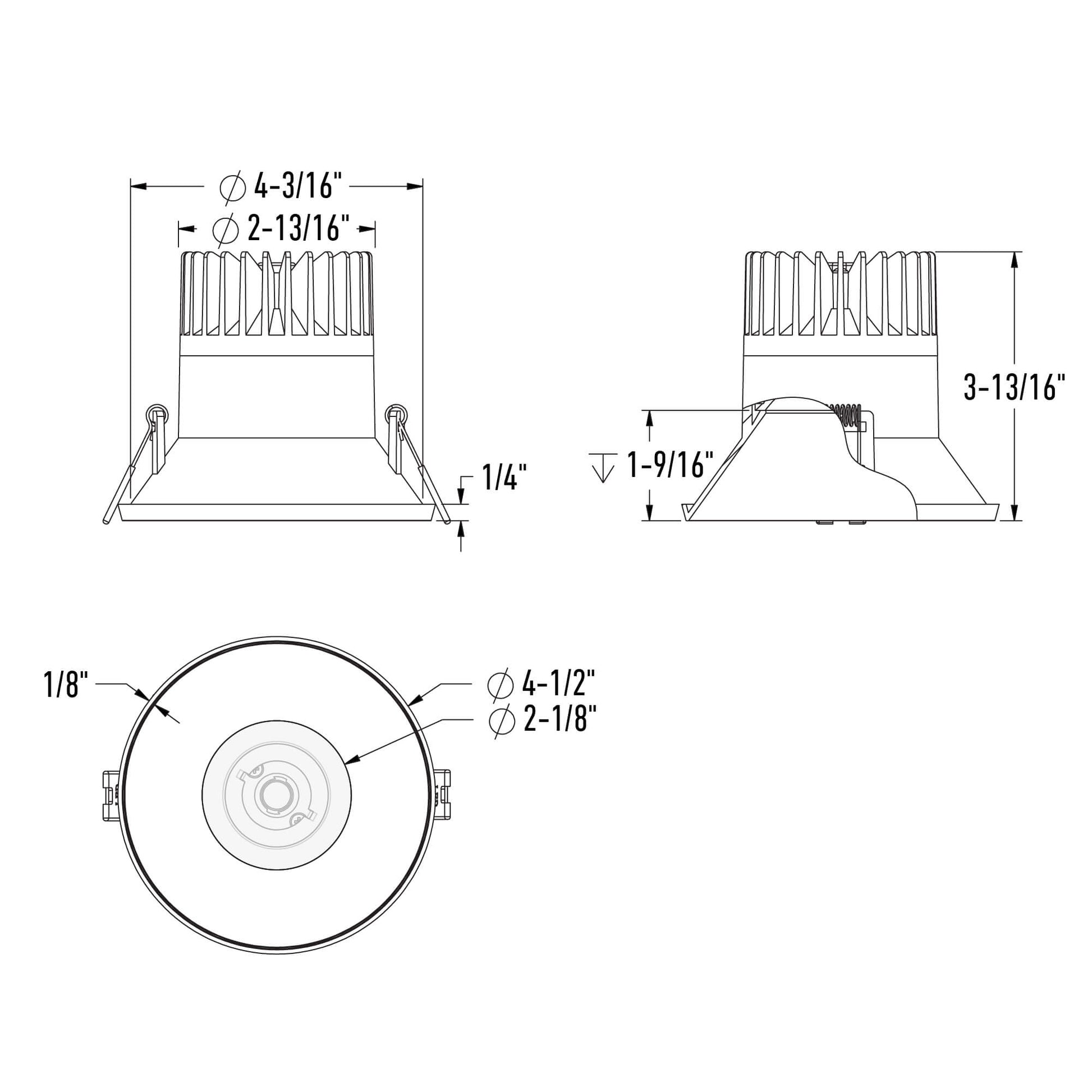

Dimensions 4.50"" X 3.875"
Cutout 4.25
Location Rating Wet Location
Certifications ETL, FCC, ICES, ES, T24/JA8
Voltage 120V
Warranty 5 Year
