Dals Lighting DCP-MTR30024V 300W Low-Voltage Smart Magnetic Transformer

Dals Lighting DCP-MTR30024V 300W Low-Voltage Smart Magnetic Transformer

Regular price $458.00
Regular price Sale price $458.00
Sale Sold out
Shipping calculated at checkout.
Color
Wattage

300W 24V Low-Voltage Smart Magnetic Transformer

The Dals Lighting DCP-MTR30024V is a 300W low-voltage smart magnetic transformer designed for reliable and efficient performance. It accepts 120V AC input and delivers a stable 24V DC output. Featuring an integrated junction box with multiple knockouts and circuit breakers for driver and LED protection, it’s built to last with a black powder-coated metal enclosure rated for both dry and wet locations. Its fanless, convection-cooled design operates quietly within a wide temperature range. Easy vertical mounting, a long 65-inch power cord, and a power factor of 0.9 ensure convenience and efficiency. This transformer supports Wi-Fi and BLE Mesh, works seamlessly with the Dals Connect app, and integrates with Google Assistant and Amazon Alexa for smart control.
  • Input 120V AC, 50/60Hz, Output 24V DC

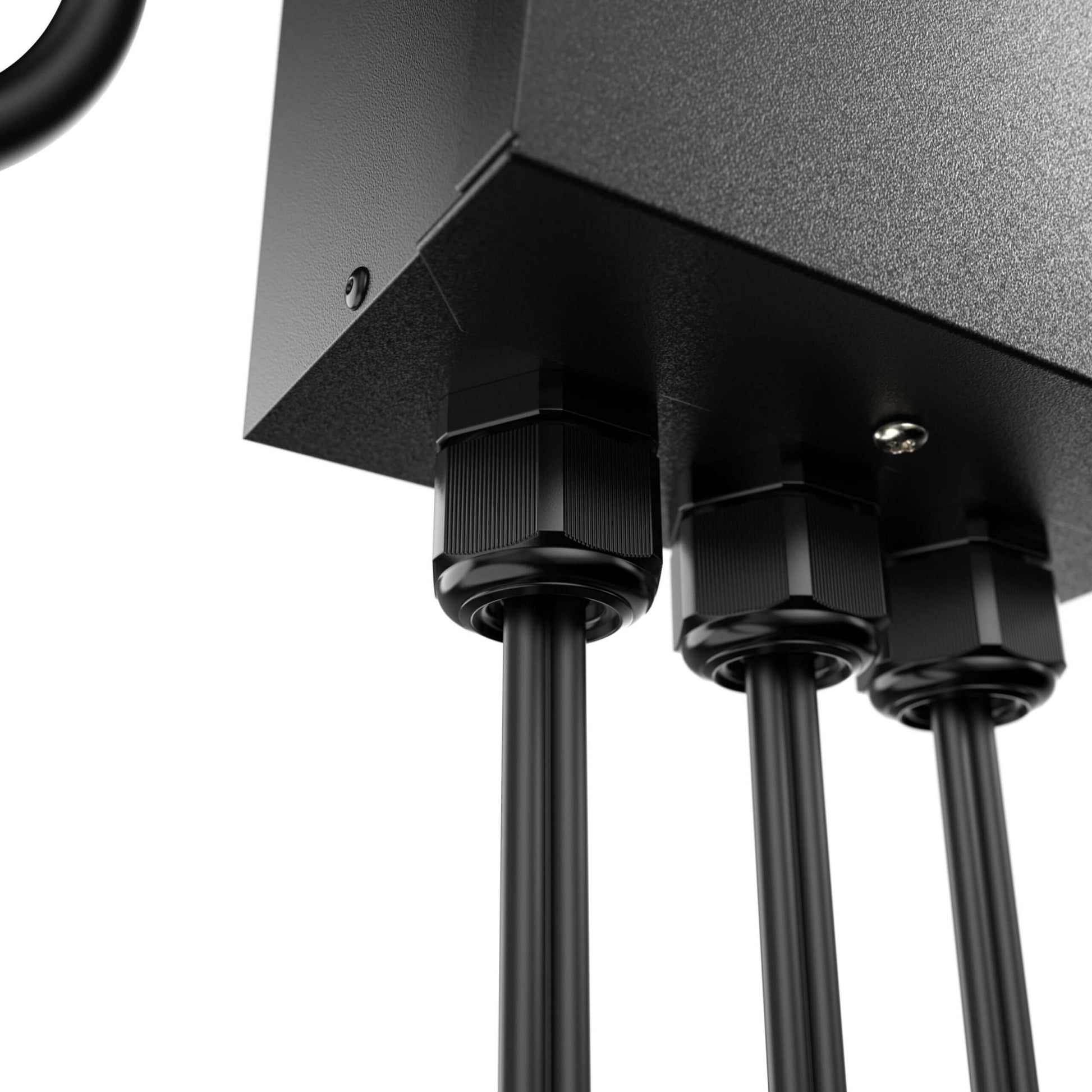

  • Integrated junction box with multiple knockouts
  • Circuit breakers protect both the driver and LED load
  • Black powder-coated metal enclosure
  • Rated for dry and wet locations
  • Encapsulated EI-core magnetic transformer
  • Fanless design with free-air convection cooling
  • Operating temperature –20°C to 70°C
  • Vertical mounting with keyholes at the top
  • Length of power cord: 65in
  • Power factor 0.9
  • Thermal class B (130°C)
  • Supports Wi-Fi and BLE Mesh
  • Works with the Dals Connect app
  • Compatible with Google Assistant and Amazon Alexa


Spec Sheet

Spec Sheet

Installation Instructions

Info
Wattage 300W
Case Fanless design with free-air convection cooling
Dimensions 10.00" X 5.00" X 2.00"
Input Voltage Input 120V AC, 50/60Hz
Output Voltage 24V DC
Life Hours 5000H
