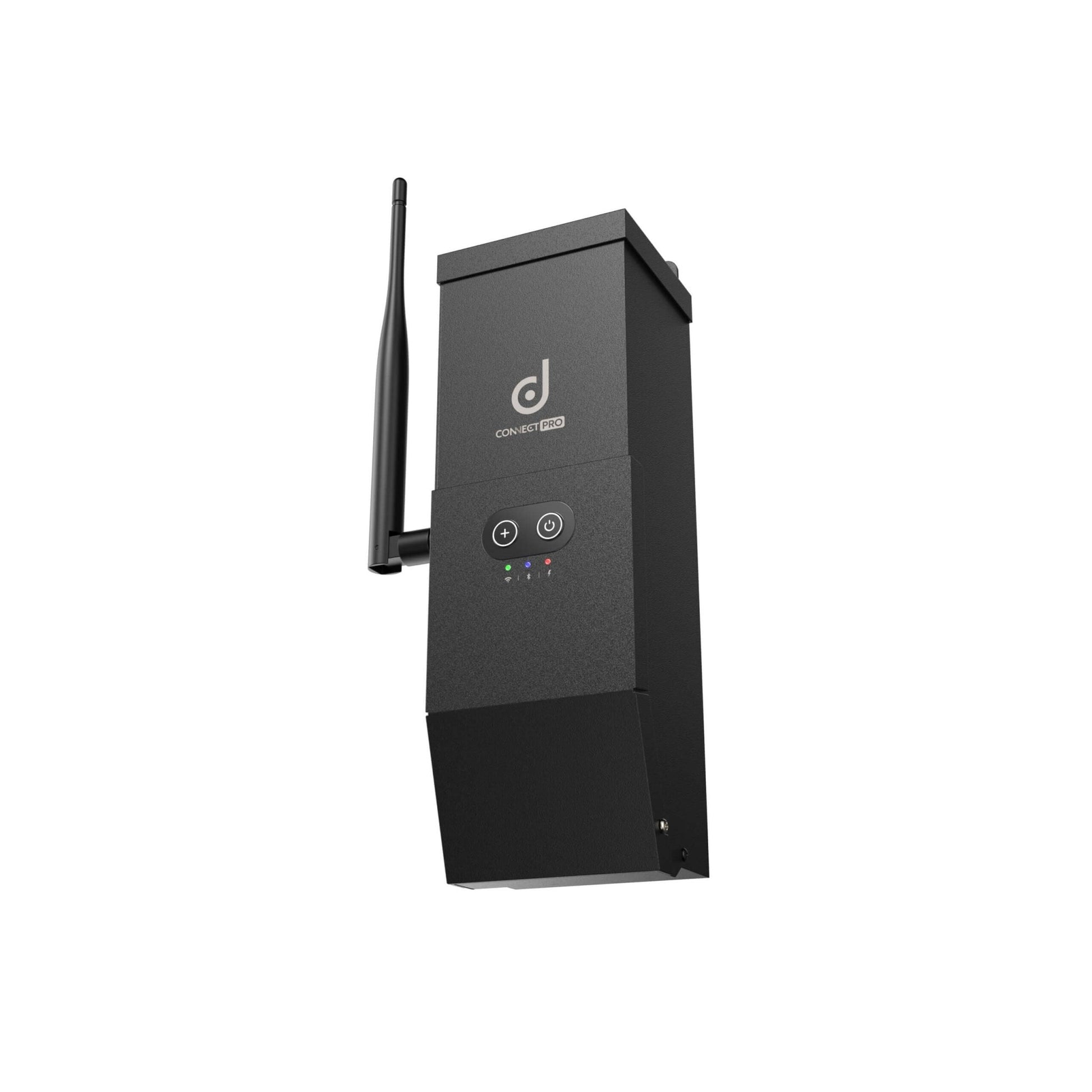

Dals Lighting DCP-MTR60 60W Low-Voltage Smart Magnetic Transformer

Dals Lighting DCP-MTR60 60W Low-Voltage Smart Magnetic Transformer

Regular price $309.15
Regular price Sale price $309.15
Sale Sold out
Shipping calculated at checkout.
Color
Wattage

60W 24V Low-Voltage Smart Magnetic Transformer

Available Dec 2025
The Dals Lighting DCP-MTR60 is a 60W low-voltage smart magnetic transformer designed for versatile, reliable performance. Featuring a 65-inch power cord and integrated junction box with multiple knockouts, it offers easy installation and protection with built-in circuit breakers. Its black powder-coated metal housing is rated for both dry and wet locations, with a fanless design that uses free-air convection for quiet, efficient cooling. Operating safely between –20°C and 70°C, it supports Wi-Fi and BLE Mesh, making it fully compatible with the Dals Connect app, Google Assistant, and Amazon Alexa for seamless smart home integration.
  • Length of power cord: 65in
  • Input 120V AC, 50/60Hz, Output 24V DC

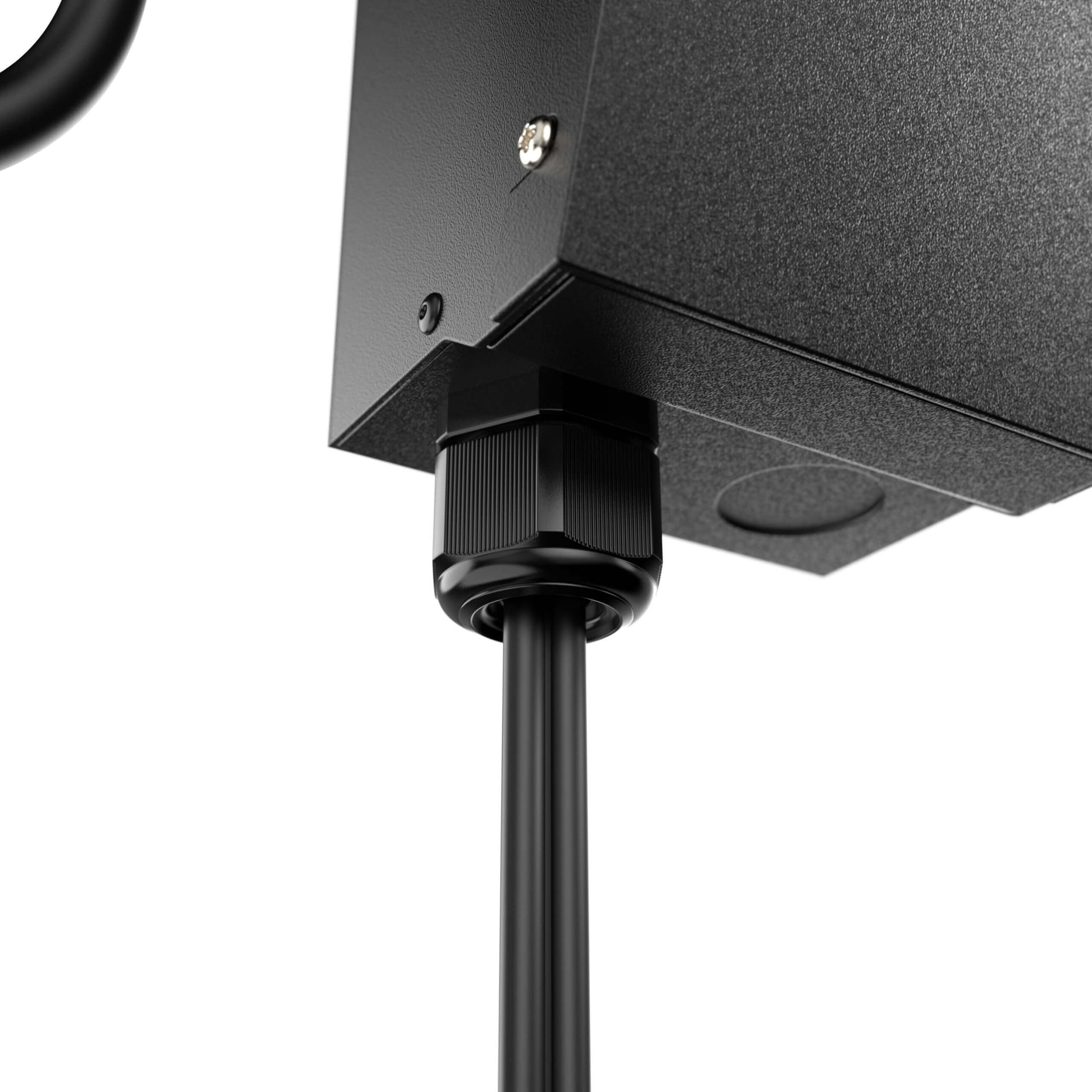

  • Integrated junction box with multiple knockouts
  • Circuit breakers protect both the driver and LED load
  • Black powder-coated metal enclosure
  • Rated for dry and wet locations
  • Encapsulated EI-core magnetic transformer
  • Fanless design with free-air convection cooling
  • Operating temperature –20°C to 70°C
  • Vertical mounting with keyholes at the top
  • Power factor 0.9
  • Thermal class B (130°C)
  • Supports Wi-Fi and BLE Mesh
  • Works with the Dals Connect app
  • Compatible with Google Assistant and Amazon Alexa


Spec Sheet

Spec Sheet

Installation Instructions

Info
Wattage 60W
Case Fanless design with free-air convection cooling

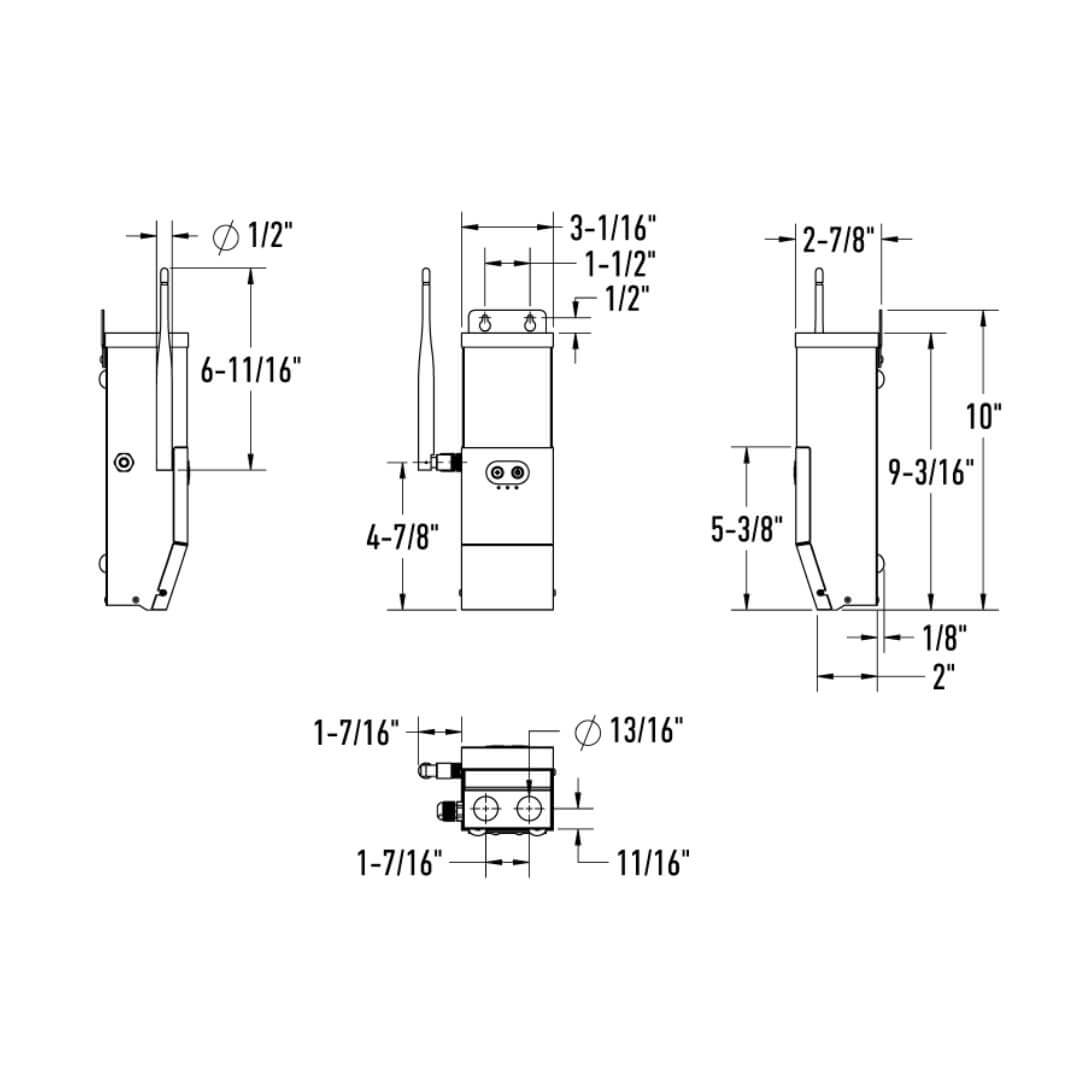

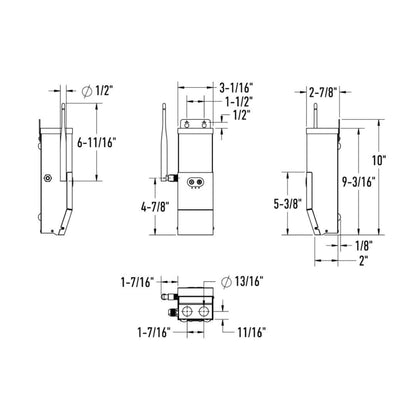

Dimensions 9.00" X 2.00" X 2.00" (estimate)
Input Voltage Input 120V AC, 50/60Hz
Output Voltage 24V DC
Life Hours 5000H
