Dals Lighting FGM4SQ-CC-DUO Double 4″ 18W LED Pivoting Gimbal Recessed Selectable CCT
Dals Lighting FGM4SQ-CC-DUO Double 4″ 18W LED Pivoting Gimbal Recessed Selectable CCT
Regular price
$79.90
Regular price
Sale price
$79.90
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

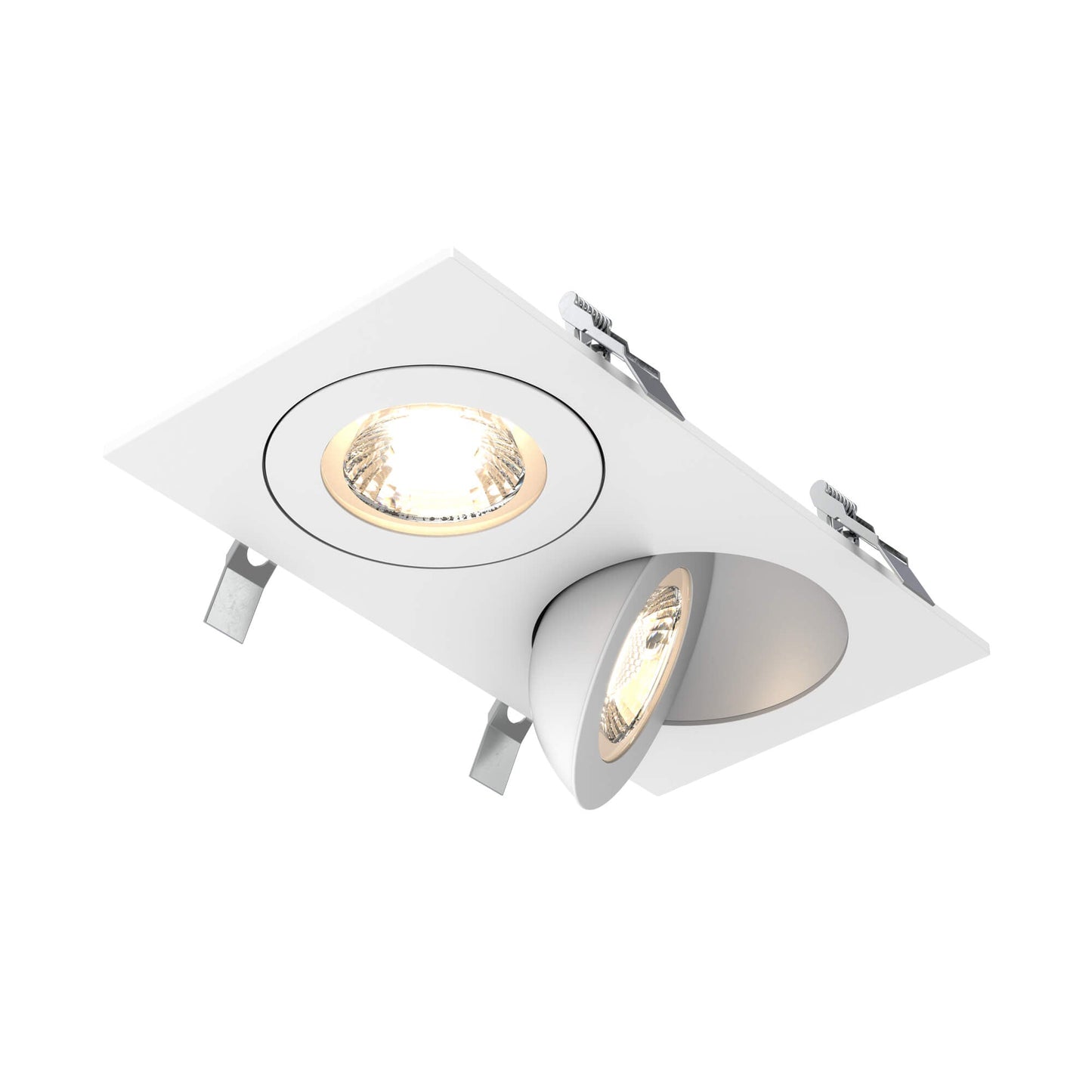

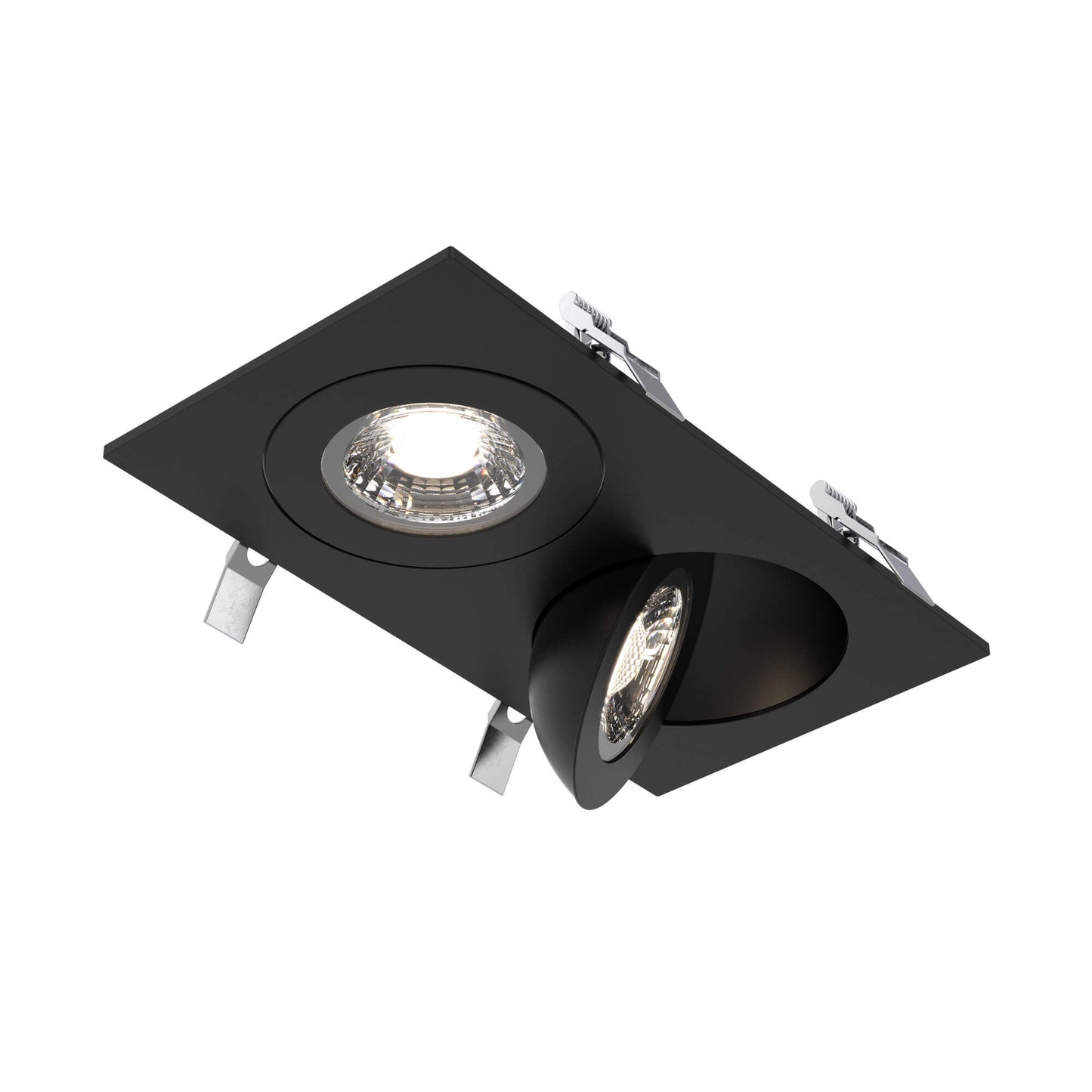

18W 4" LED Dual Pivot Gimbaled Selectable CCT
With an infinite choice of beam direction, Pivot Duo provides a discrete yet functional solution to general or accent lighting within your space.
- Includes a junction box with integrated dimmable driver
- Can be daisy chained
- Superior LED performance and lifespan
- 90° tilting, 360° rotation
- Minimal heat emission
- Aluminum construction
- Switch-selectable CCT: 27K/30K/35K/40K/50K
- Low profile
- 40° beam spread
- IC certification (suitable for direct contact with insulation)
- Suitable for wet locations
- Ideal operating temperature: -20° to 40° C
- 5-year warranty
Spec Sheet
Spec Sheet
Catalog Page
Installation Instructions
Info
| Technology | LED |
| Wattage | 18W |
| Lumen | 1600L |
| CCT (Kelvin) | 27K-50K |
| Color Temp. | Selectable |
| CRI | >90 |
| Voltage | 120V |
| Rated Hours | 50000 |
| Dimmable | Triac Dimming |
| Tilt/Rotation | 90° tilting, 360° rotation |
| Beam Spread | 40° |
| Weight (lb.) | 2.00 |

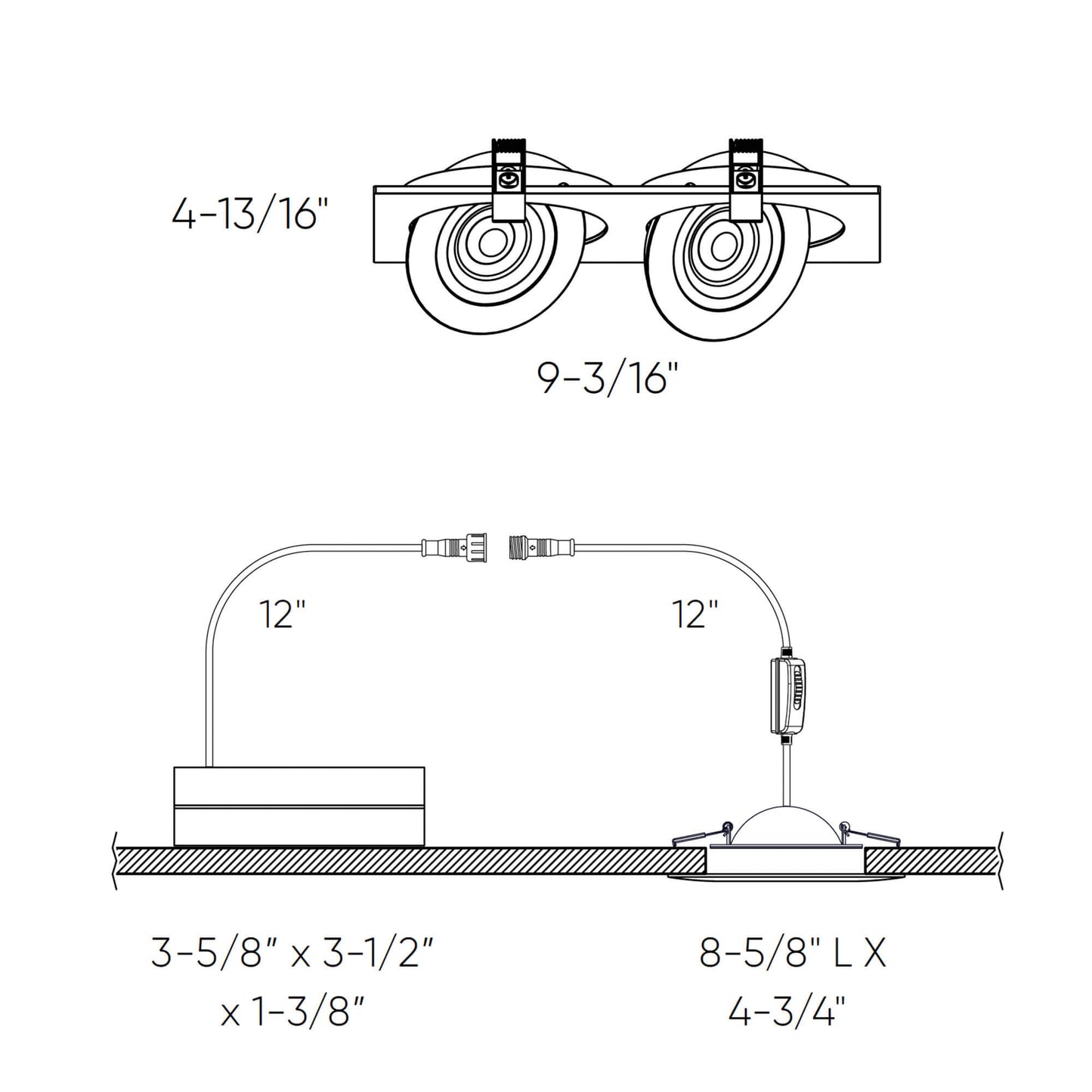

| Length (in.) | 9-3/16" |
| Width (in.) | 4-15/16" |
| Cutout (in.) | 8.625" X 4.75" |
|
Height (in.) |
1-7/16" |
Additional Info
| SKU | FGM4SQ-CC-DUO |
| Safety Listing | UL Listed, ETL Listed |
| Location Rating | Wet Location |
| Energy Star | Yes |
| Warranty | 3 Years |
