• DALS-GBR04-CDW-WHDals Lighting GBR04-CDW 4" Regressed Gimbal Downlight Selectable CCT + Dim-to-Warm
1 1

Dals Lighting

Dals Lighting GBR04-CDW 4" Regressed Gimbal Downlight Selectable CCT + Dim-to-Warm

Dals Lighting GBR04-CDW 4" Regressed Gimbal Downlight Selectable CCT + Dim-to-Warm

$109.86
$109.86
Sale Sold out
Shipping calculated at checkout.
Finish
Color Temperature
Wattage

4" Regressed Gimbal Downlight Selectable CCT + Dim-to-Warm

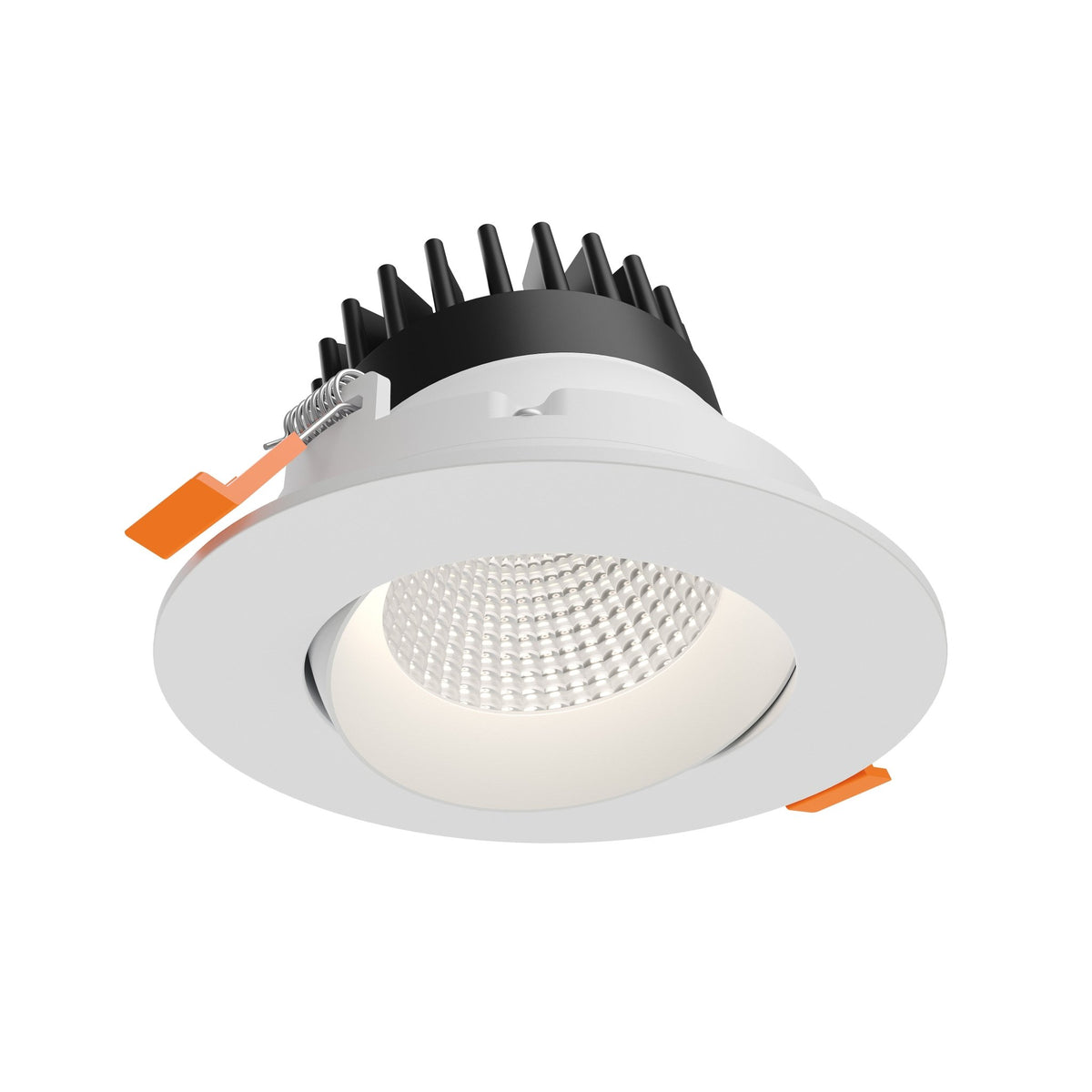

The DALS GBR04-CDW is a 4" round regressed gimbal downlight. It delivers 1260 lumens at 15W with switch-selectable color temperature plus dim-to-warm. The adjustable gimbal aims the light where you need it, and the regressed source keeps glare low. Wet location rated, indoors or outdoors.

  • 15W, 1260 delivered lumens at 3000K, CRI 92
  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K, plus dim-to-warm 3000K-2200K
  • 40° beam angle, adjustable gimbal
  • Triac / ELV dimming
  • Wet location, IP65, indoor/outdoor, -20 to 40 °C
  • ETL listed, Title 24, Energy Star, IC rated and air-tight
  • 5-year warranty
  • Polycarbonate lens, aluminum housing
Dimensions
Cutout (In.) 4-1/4"

Spec Sheets

Spec Sheet

Catalog Sheet

Info
Product Type Regressed Gimbal Downlight
Wattage 15
Lumen 1260
Color Temp. 2700/3000/3500/4000/5000k + DW 3000-2200k
CRI 92
Beam Angle 40°
Dimming Triac / ELV
L70 Lifespan >50,000 hours
Finish White
Construction Aluminum housing
Lens Polycarbonate, Optical lens
Additional Info
Compliance
Certifications ETL listed, Title 24-JA8, Energy Star, IC rated, Air-tight (ASTM E283-04), UL-1598, CSA C22.2 No. 250.0, FCC Part 15 Class B
Location Wet location, IP65
Warranty 5-year limited
Electrical
Input Voltage 120 V
Power Factor 99%
Driver Constant current
Operating Temp. -20 to 40 °C
