• DALS-GBR06-CC-BKDals Lighting GBR06-CC 6" Gimbal Recessed Downlight Selectable CCT
1 1

Dals Lighting

Dals Lighting GBR06-CC 6" Gimbal Recessed Downlight Selectable CCT

Dals Lighting GBR06-CC 6" Gimbal Recessed Downlight Selectable CCT

$127.32
$127.32
Sale Sold out
Shipping calculated at checkout.
Finish
Color Temperature
Wattage

6" Gimbal Recessed Downlight Selectable CCT

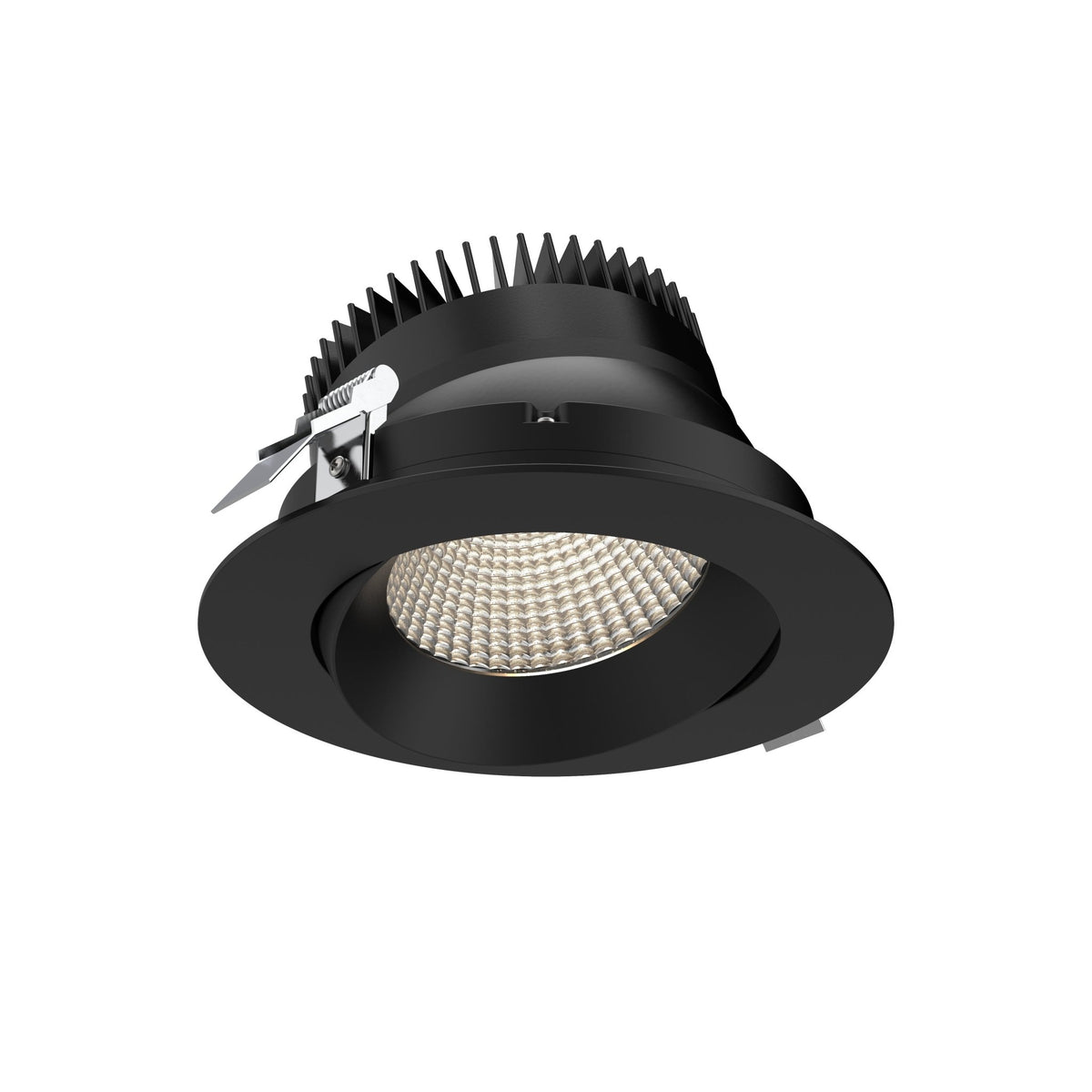

The DALS GBR06-CC is a 6" regressed gimbal downlight from the Revolve series. It delivers 1500 lumens at 20W with switch-selectable color temperature (2700K to 5000K). The adjustable gimbal aims the light where you need it, and the regressed source keeps glare low.

  • 20W, 1500 delivered lumens at 3000K, CRI 90
  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
  • 40° beam angle, adjustable gimbal
  • Wet location, IP44, indoor/outdoor, -20 to 40 °C
  • IC rated, 50,000 hour lifespan
  • Acrylic lens, aluminum housing
Dimensions
Cutout (In.) 6-1/2"

Spec Sheets

Spec Sheet

Catalog Sheet

Info
Product Type Regressed Gimbal Downlight
Wattage 20
Lumen 1500
Color Temp. 2700K/3000K/3500K/4000K/5000K
CRI 90
Beam Angle 40°
L70 Lifespan 50,000 hours
Finish Black
Construction Aluminum housing
Lens Acrylic, Optical lens
Additional Info
Compliance
Certifications ETL, FCC, ICES, Energy Star, IC rated, T24/JA8, ASTM E283-04
Location Wet location, IP44
Electrical
Input Voltage 108-135V (120) V
Power Factor 97%
Driver Constant current
Operating Temp. -20 to 40 °C
