3.5" 12W Square Regressed Gimbal Downlight Selectable CCT + Dim-to-Warm

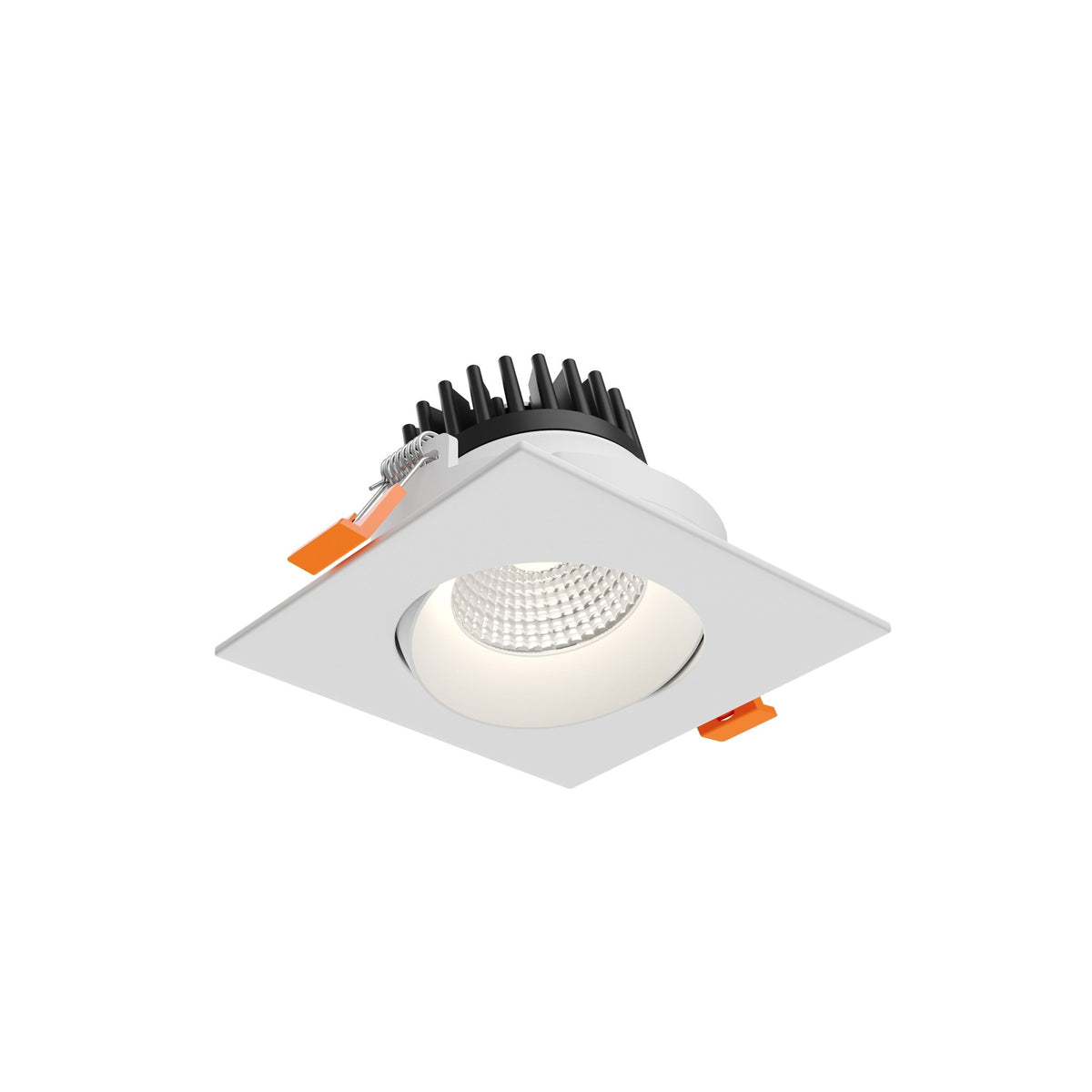

The DALS GBR35SQ-CDW is a 3.5" square regressed gimbal downlight. It delivers 1030 lumens at 12W with switch-selectable color temperature plus dim-to-warm. The adjustable gimbal aims the light where you need it, and the regressed source keeps glare low. Wet location rated, indoors or outdoors.

  • 12W, 1030 delivered lumens at 3000K, CRI 92
  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K, plus dim-to-warm 3000K-2200K
  • 40° beam angle, adjustable gimbal
  • Triac / ELV dimming
  • Wet location, IP65, indoor/outdoor, -20 to 40 °C
  • ETL listed, Title 24, Energy Star, IC rated and air-tight
  • 5-year warranty
  • Polycarbonate lens, aluminum housing
Dimensions
Cutout (In.) 3-1/2"

Spec Sheets

Spec Sheet

Catalog Sheet

Info
Product Type Regressed Gimbal Downlight
Wattage 12
Lumen 1030
Color Temp. 2700/3000/3500/4000/5000k + DW 3000-2200k
CRI 92
Beam Angle 40°
Dimming Triac / ELV
L70 Lifespan >50,000 hours
Finish White
Construction Aluminum housing
Lens Polycarbonate, Optical lens
Additional Info
Compliance
Certifications ETL listed, Title 24-JA8, Energy Star, IC rated, Air-tight (ASTM E283-04), UL-1598, CSA C22.2 No. 250.0, FCC Part 15 Class B
Location Wet location, IP65
Warranty 5-year limited
Electrical
Input Voltage 120 V
Power Factor 99%
Driver Constant current
Operating Temp. -20 to 40 °C
